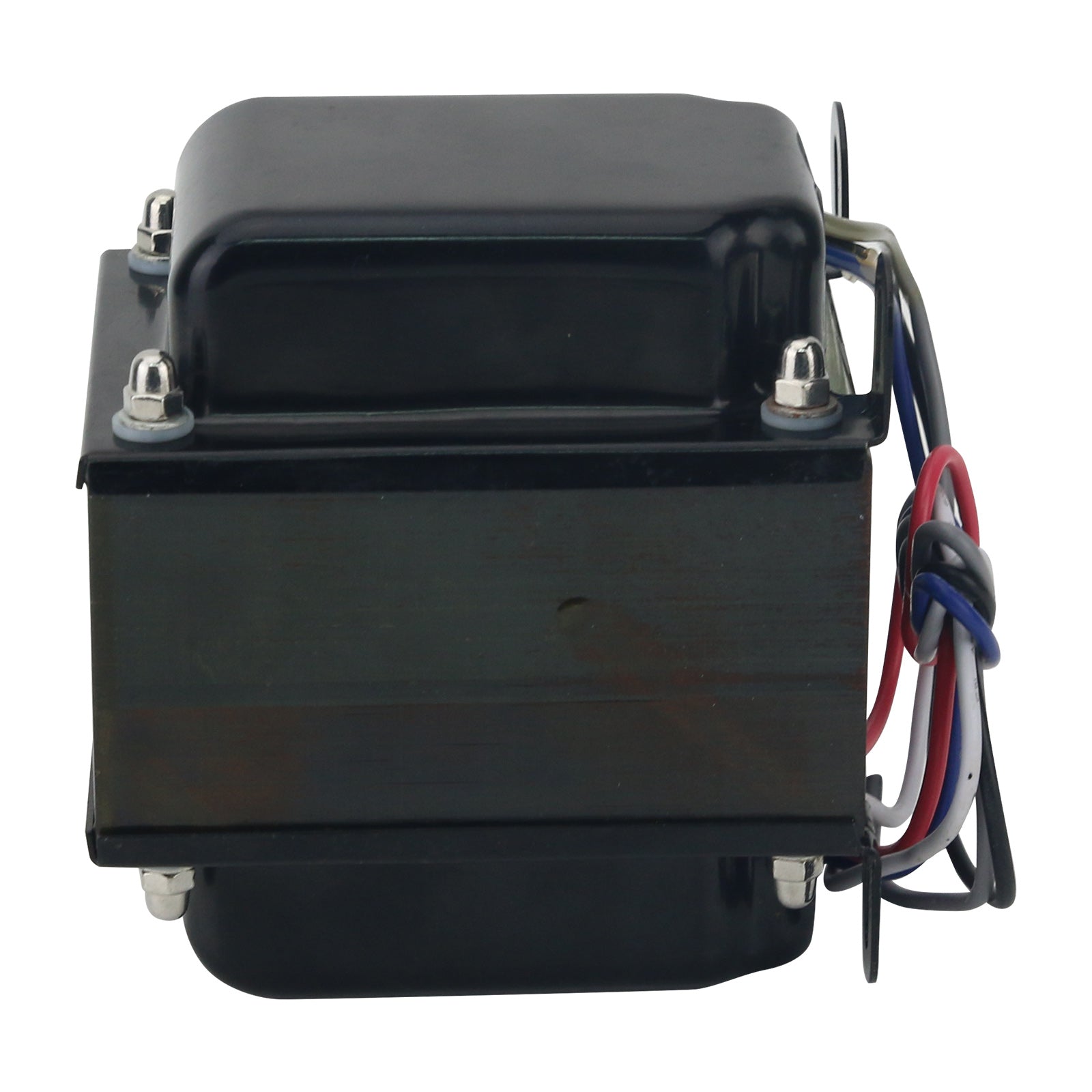

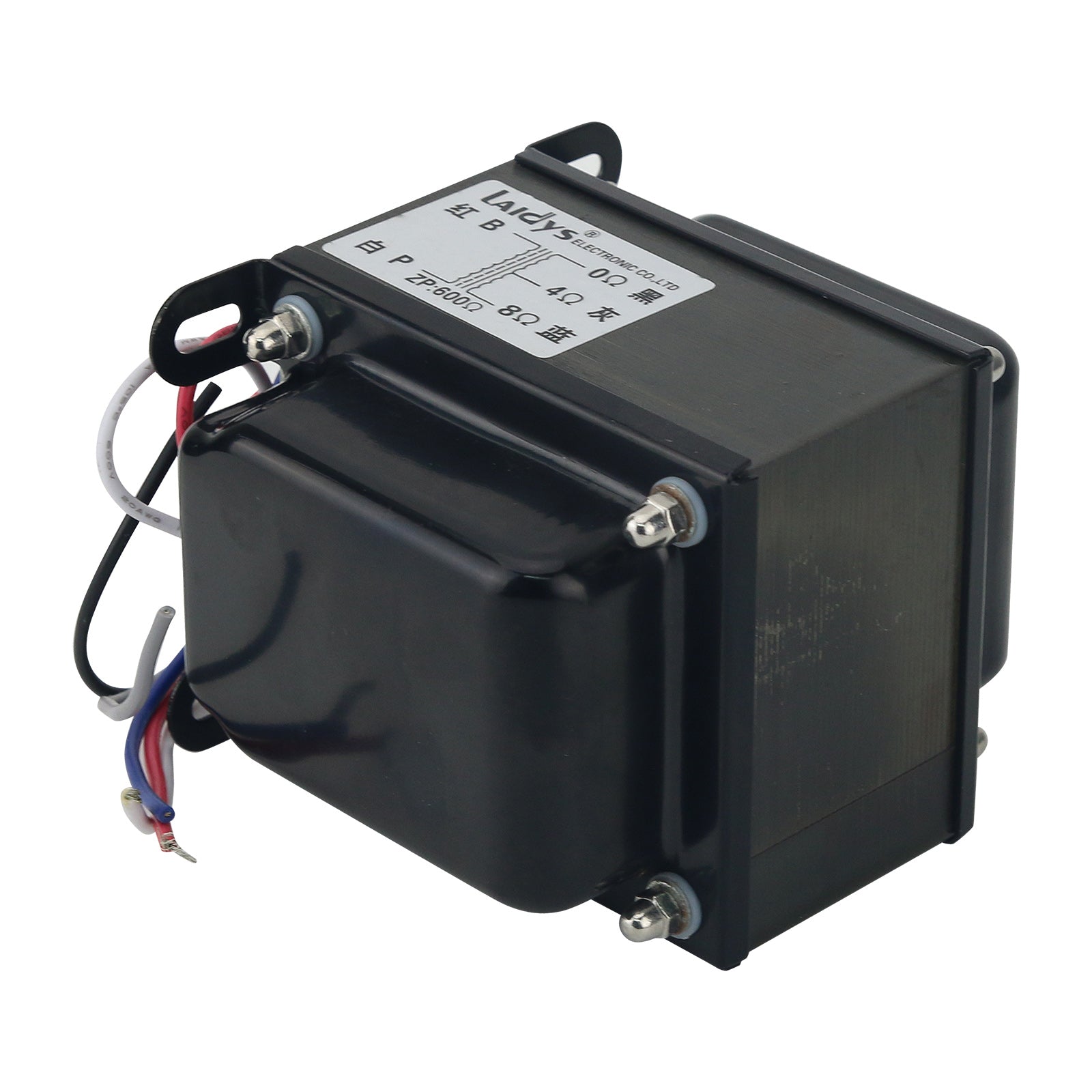

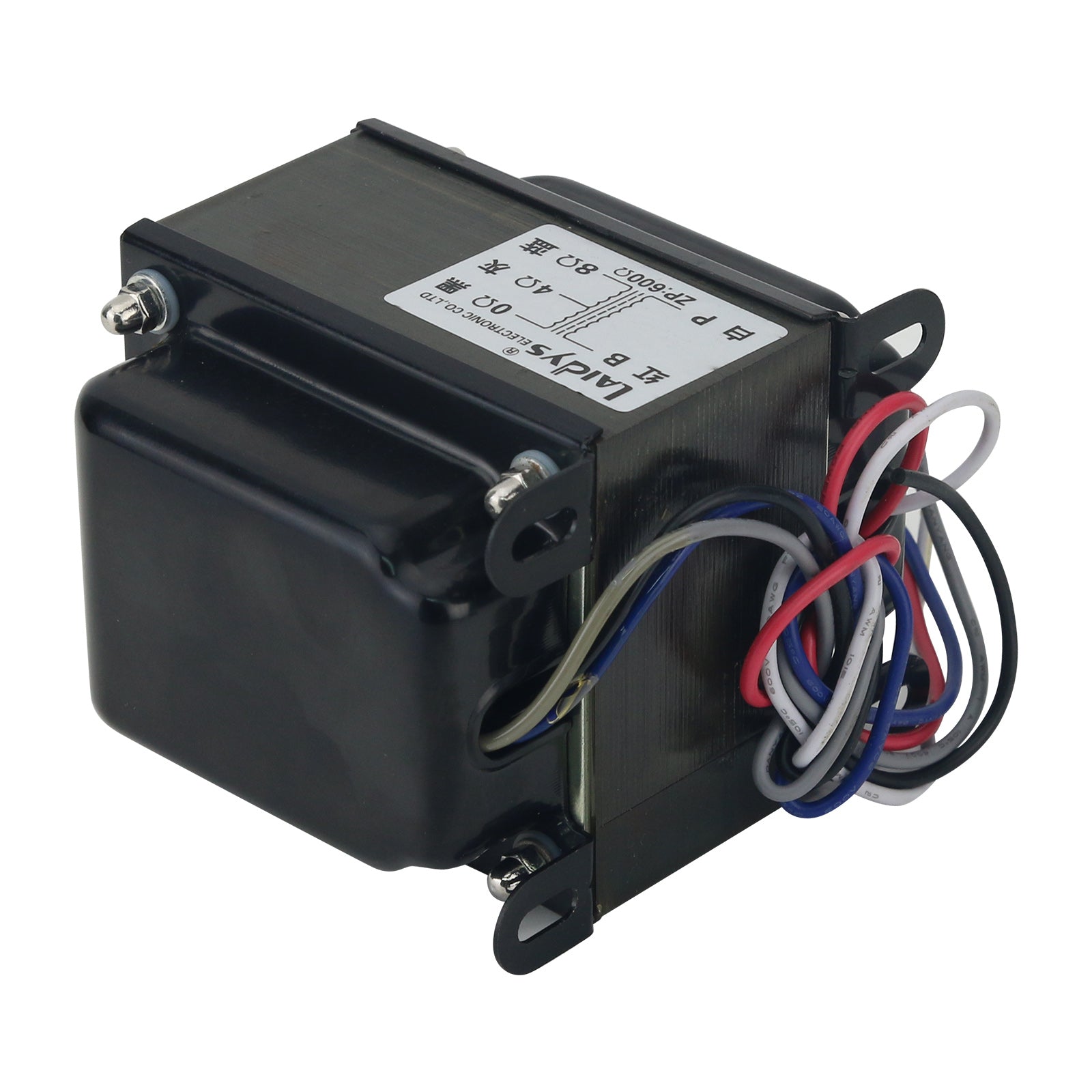

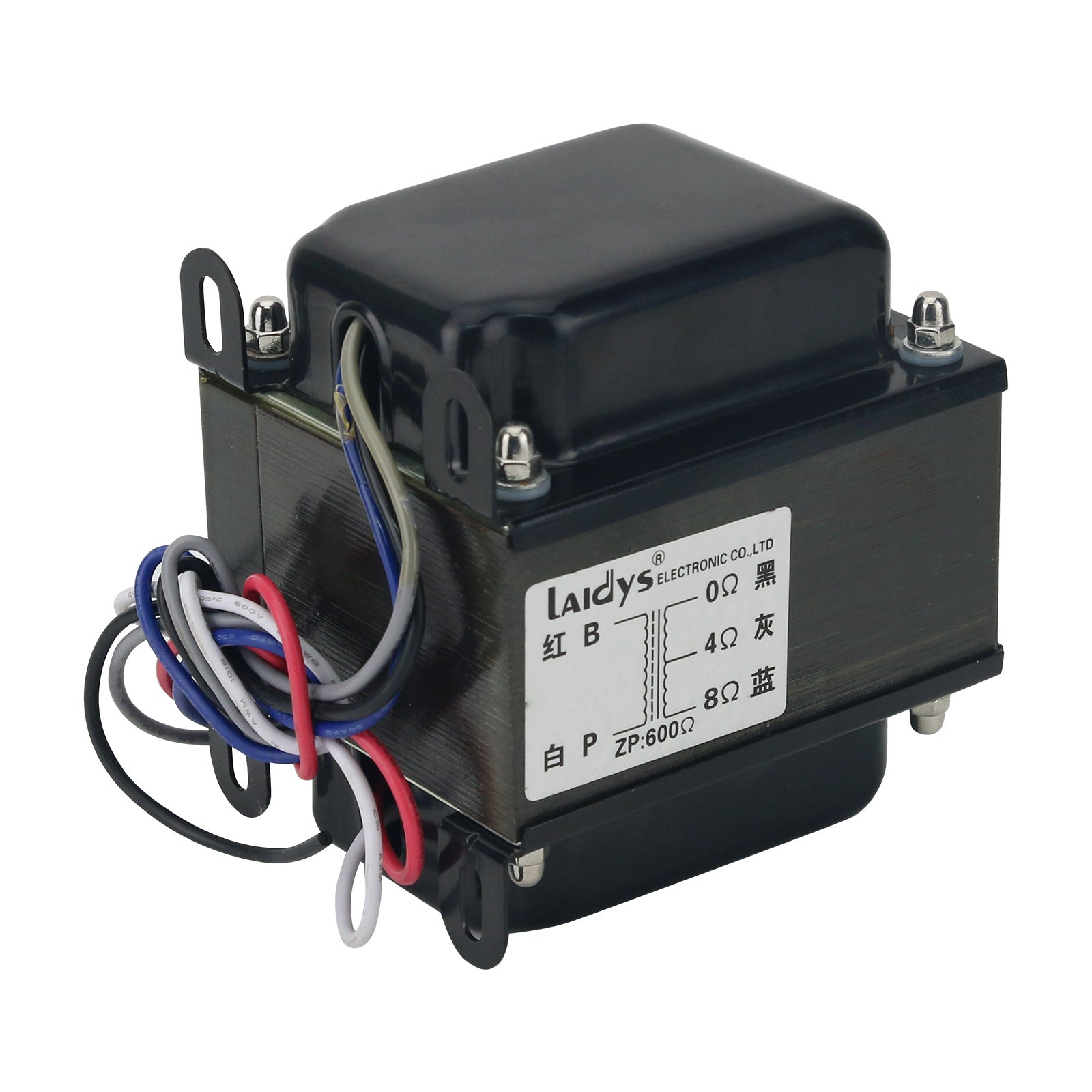

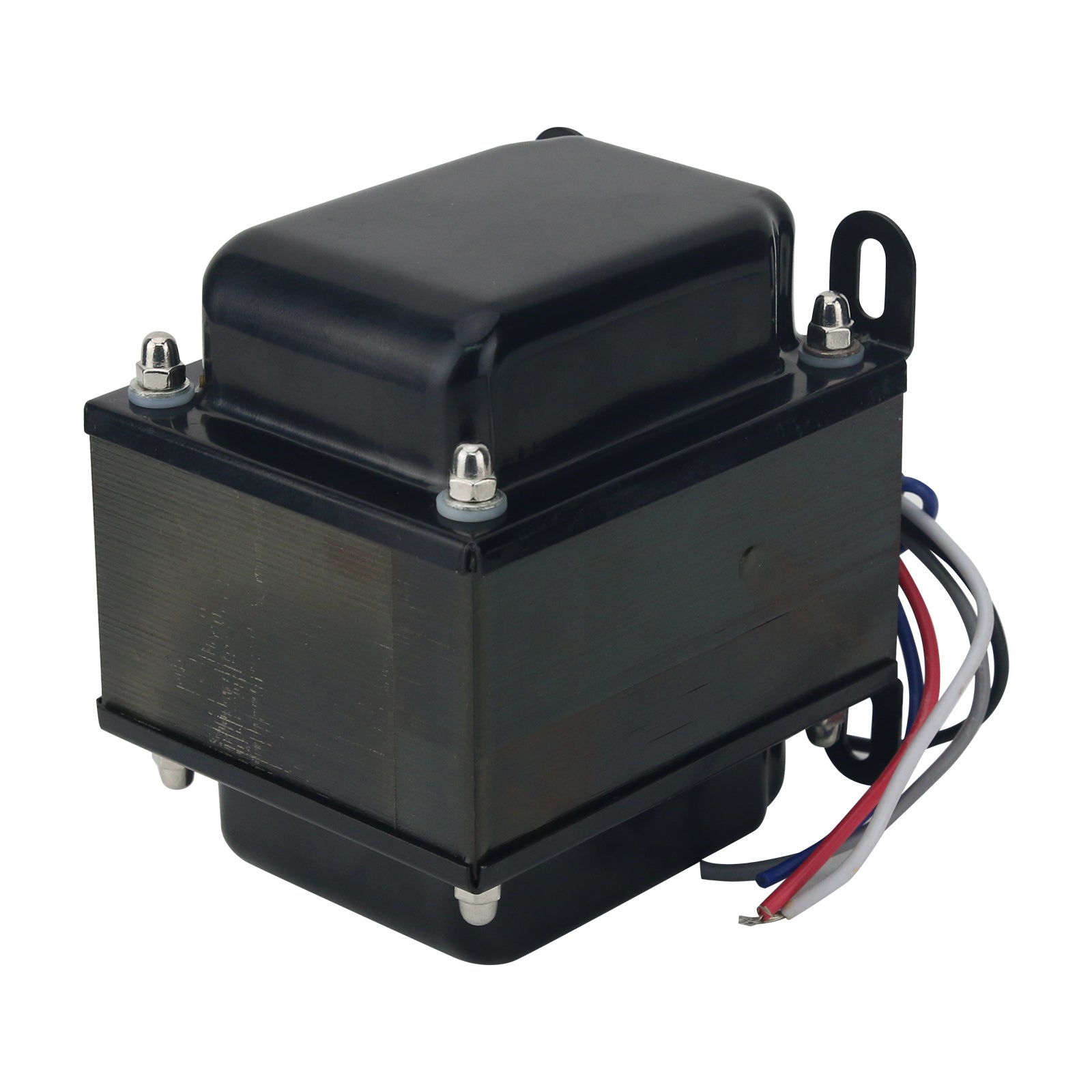

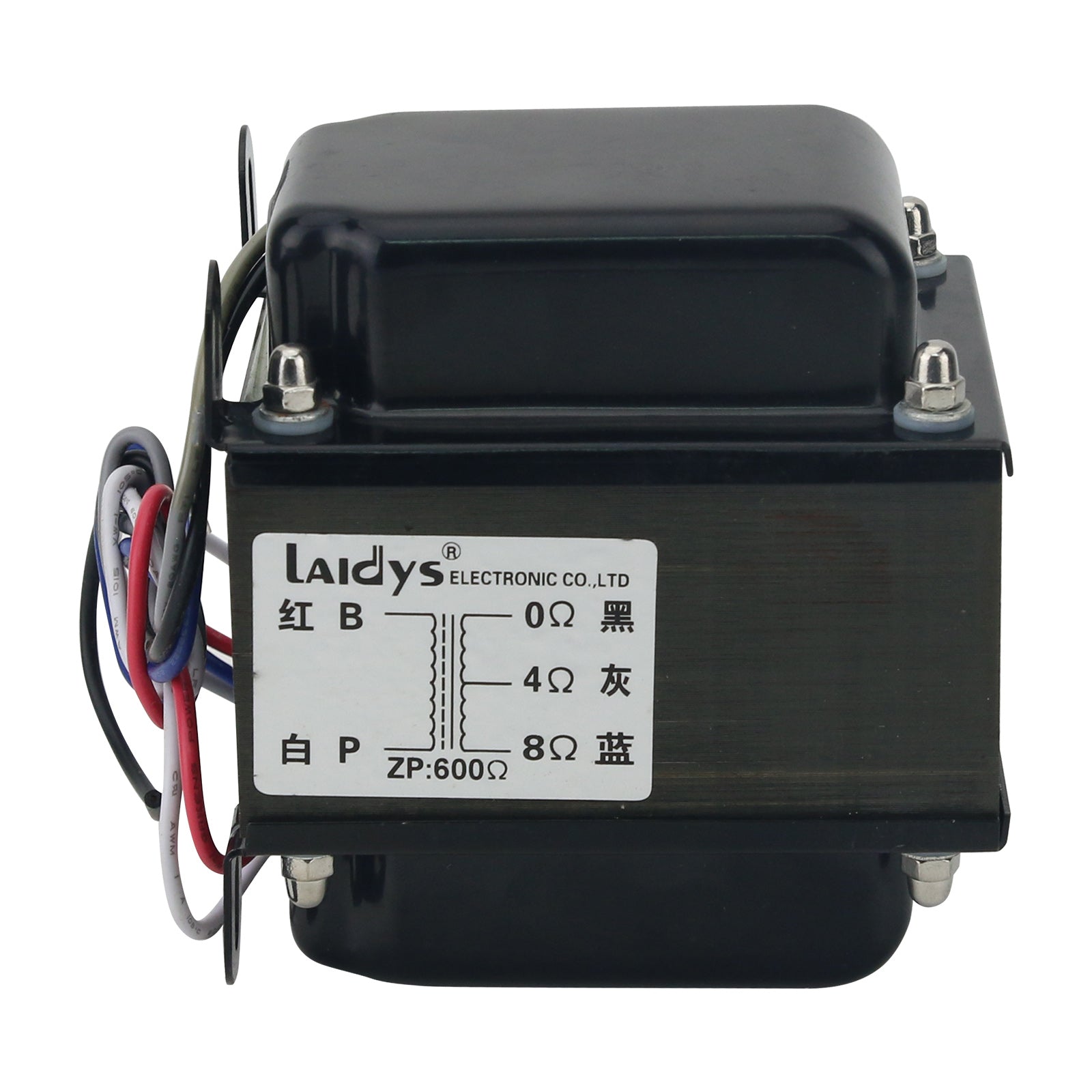

LAIDYS-30WA 600Ω 30W Single Ended Output Transformer for 6C33C 6С33С-B 6336A 6AS7 6080 Power Output

LAIDYS-30WA 600Ω 30W Single Ended Output Transformer for 6C33C 6С33С-B 6336A 6AS7 6080 Power Output

LAIDYS-30WA:
- Purpose: Single ended 6C33C/6С33С-B 6336A 6AS7 6080, etc. power output;
- Power: Continuous output power 30W (30Hz);
- Impedance: 600Ω: 0-4Ω-8Ω (or 1K: 0-8Ω-16Ω);
- Current: Primary maximum IpMax: 400mA;
- Frequency response: 10Hz-40kHz,  -3dB (6C33C online measurement, 0dB/1kHz/8Ω);
- Loss: Insertion loss 0.25dB;
- Feedback: Independent feedback winding (must specify when ordering);
- Features: British oxygen-free copper wire, Japan imported Z10-0.27 silicon steel sheet, the most reasonable manual winding process, etc.;
- Appearance: Black side cover pictured.

Package Included:
- 1 x Output Transformer
