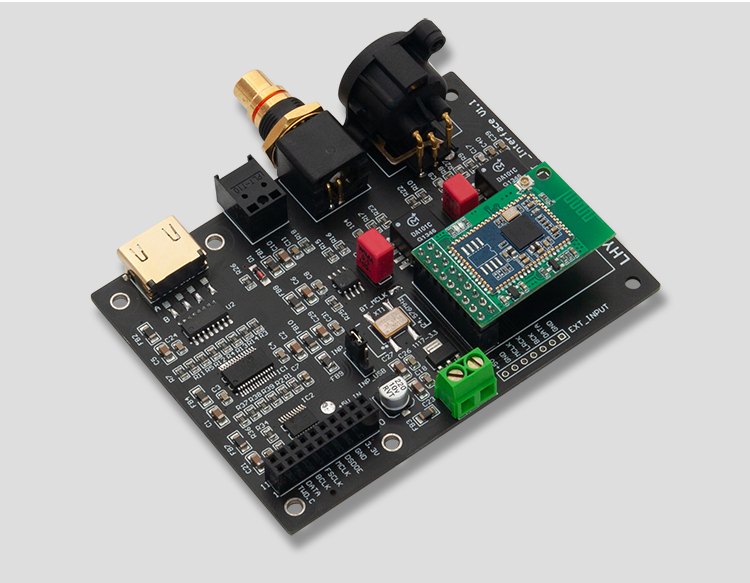

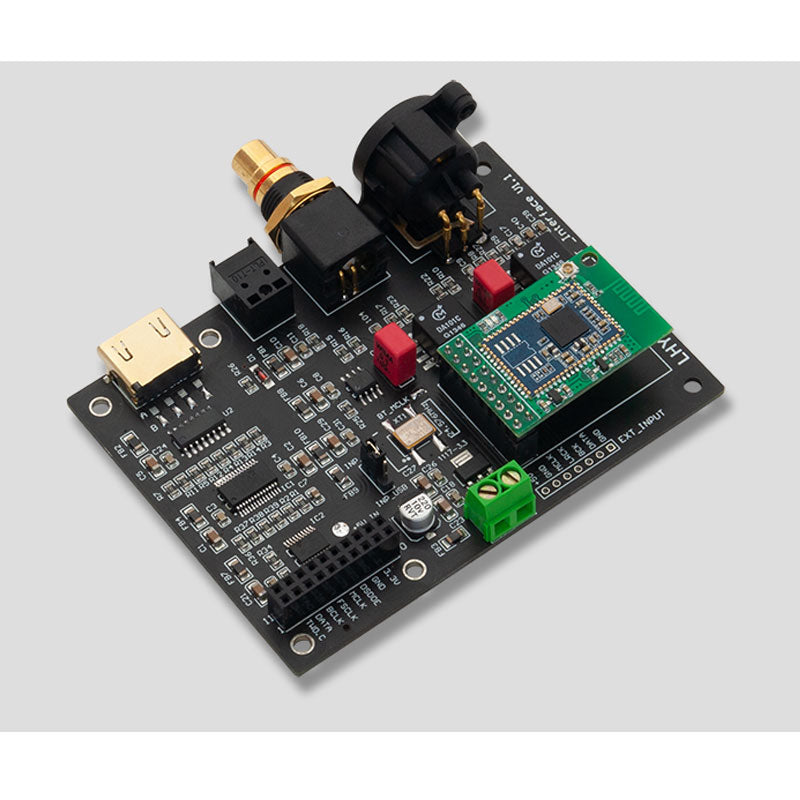

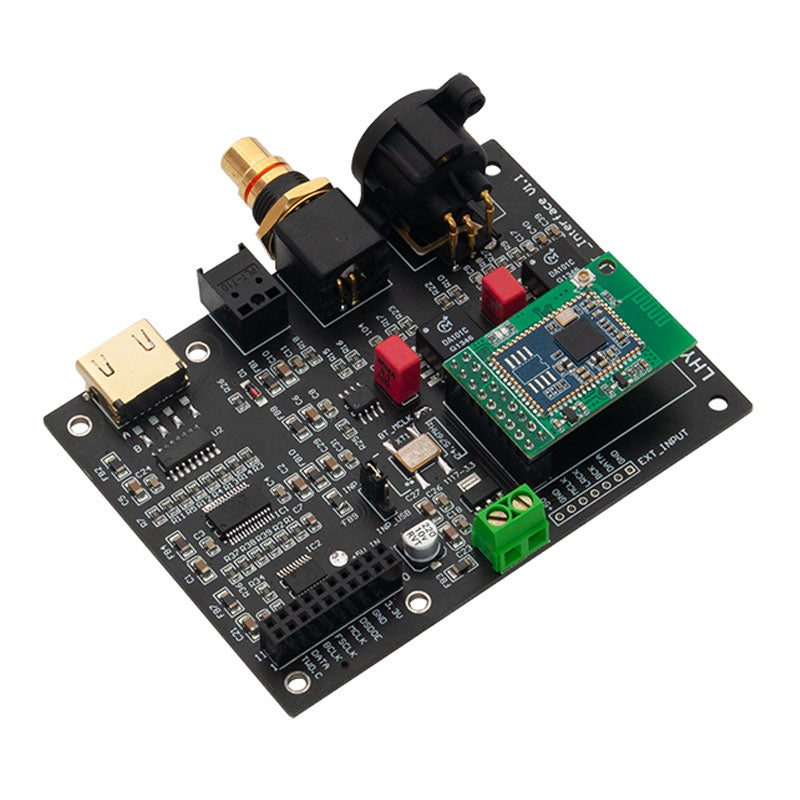

LHY AUDIO Digital Audio Output Board Coaxial Output Board w/ Bluetooth 5.0 Receiver Module CSR8675

LHY AUDIO Digital Audio Output Board Coaxial Output Board w/ Bluetooth 5.0 Receiver Module CSR8675

Features:
- Support for Amanero Combo384 USB interface and XMOS USB module. Bluetooth receiver uses CS8675 5.0 module
- Support PCM2706, CM108, SA9027 and other I2S signal conversion. Default I2S 4-wire (BCLK, LRCK, DATA, MCLK). Support for Raspberry, Bluetooth and other non-master clock MCLK output 3-wired BCLK, LRCK, DATA. MCLK is provided by the crystal oscillator clock on the board, the default is 24.576M, and the clock can be changed by yourself
- At the same time, external I2S signals can be accessed through switching function

Specifications:
- Model: 2478
- Input interface: I2S, Bluetooth
- Output interface: coaxial, AES, optical fiber, HDMI-IIS
- Bluetooth module: CSR8675 Bluetotoh 5.0
- Bluetooth support: for SBC/AAC/APTX/APTX-LL/APTX-HD/LDAC
- I2S (HDMI) support: 384K/32BIT, DSD64, DSD128, DSD256
- Fiber/Coaxial/AES support: 192K/24bit

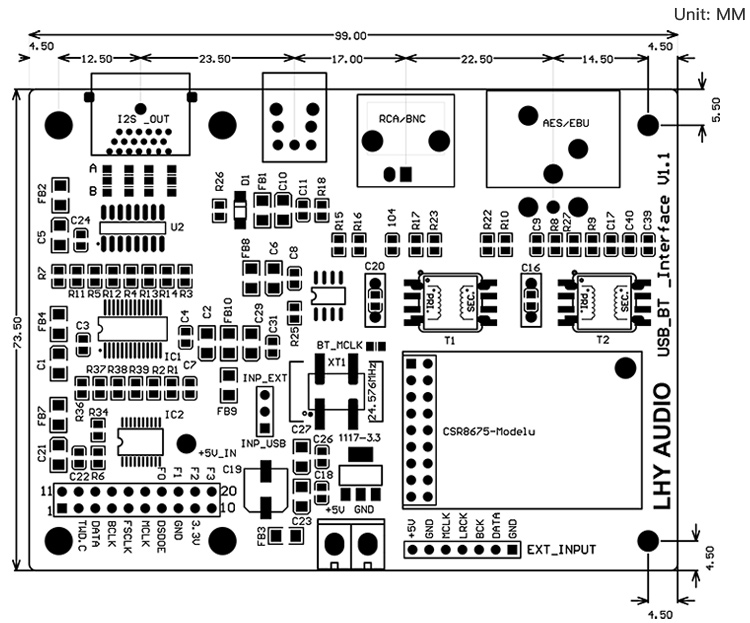

- Size: 99 x 74mm/3.9 x 2.9"

Package Included:
- 1 x Digital Audio Output Board

Note:
- The HDMI port of this board is for audio. It cannot be connected to a TV or HDMI port on a computer, etc.
