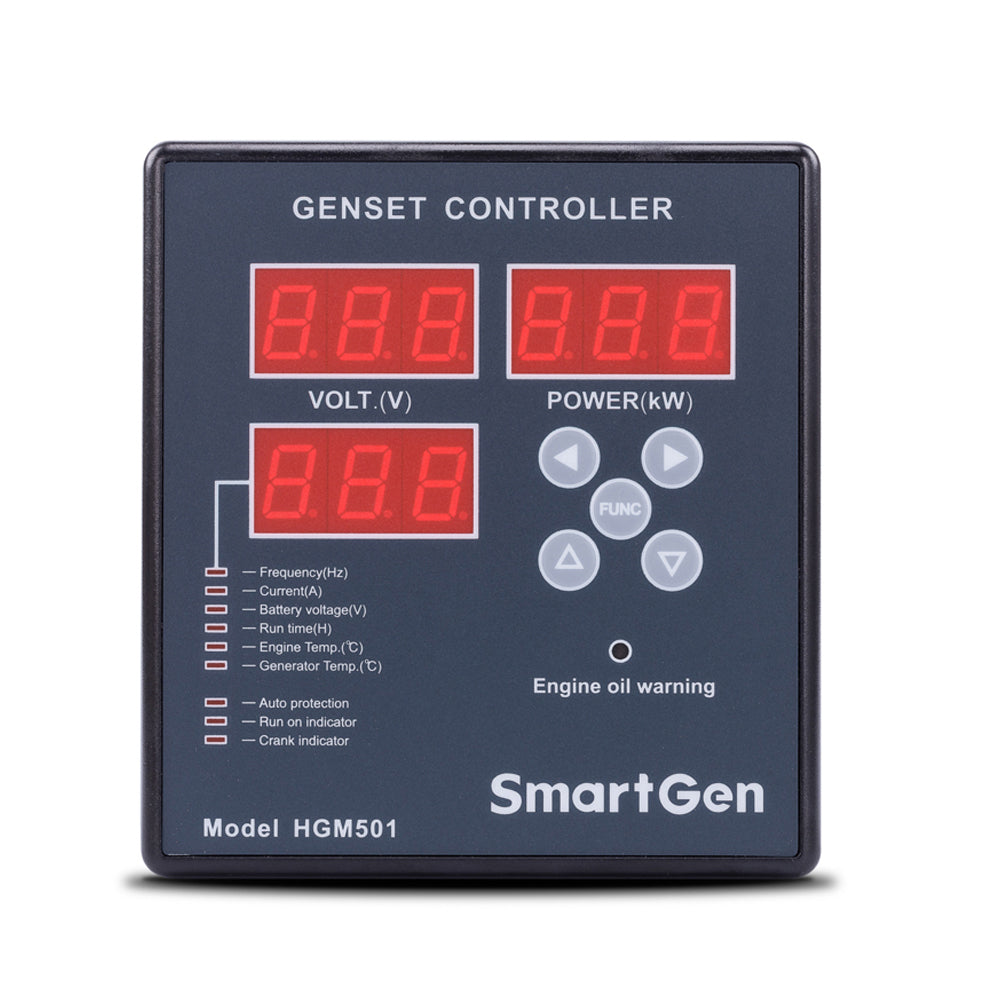

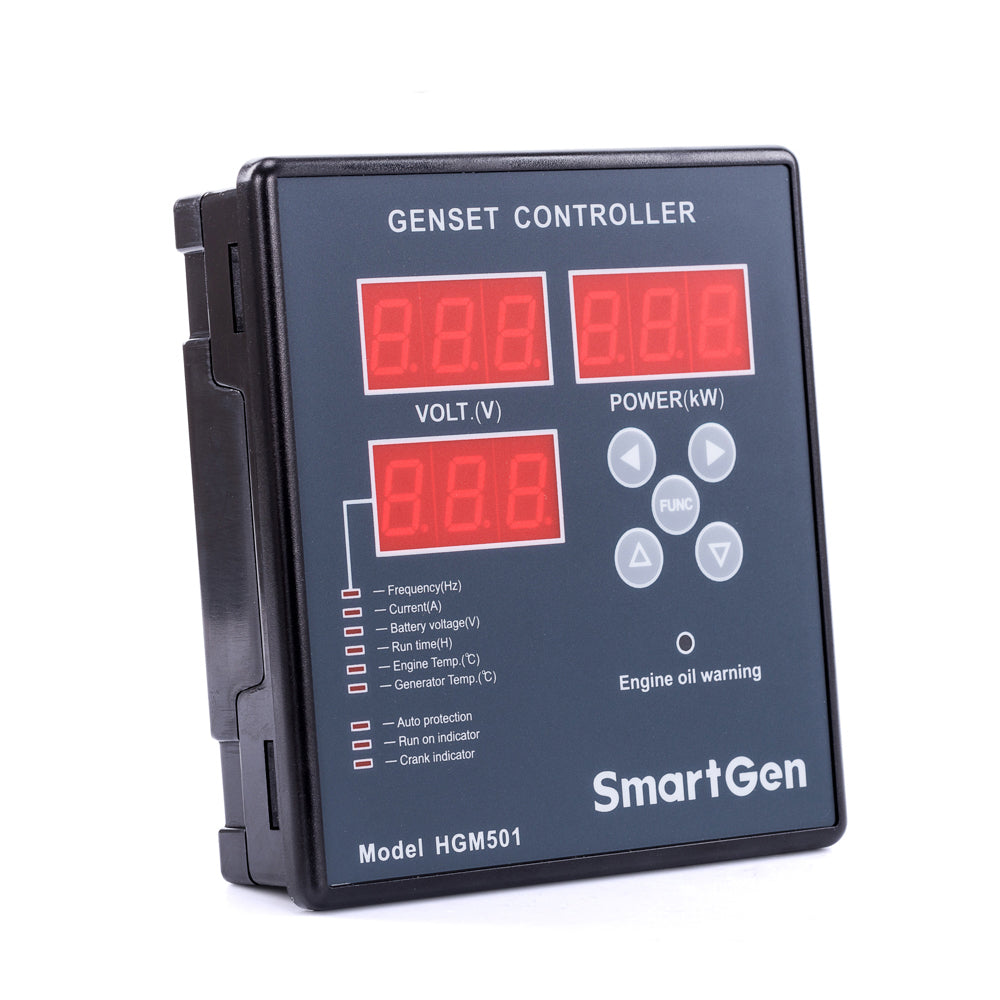

Maxgeek HGM501 Generator Controller Gasoline Genset Auto Start Control Panel Control Module LCD Display

Maxgeek HGM501 Generator Controller Gasoline Genset Auto Start Control Panel Control Module LCD Display

Description:
HGM501 gen-set controller is smart digital controller for control and protection of single-engine gen-sets. It can carry out start/stop, data measurement, alarm indication, shutdown protection and other functions. The controller is fitted with LED indicators; it is reliable and easy to use.

Specification:
Power Supply: DC 9-18V
Case Dimensions: 118*128*36(mm)
Operating Temperature: -25~+70℃

Features:
-Two specialized LED displays: single phase voltage display and total active power voltage display (calculated using single phase power, taking load as balanced).
-Multifunctional LED display that can be switched between single phase frequency, single phase current, battery voltage, total running time (max 999 hours), engine and generator temperature.
-Under voltage, over voltage, under frequency, over frequency, over load, over temperature protection, starting with flashing lights alarm and followed by shutdown protection after alarm delay.
-Low oil pressure digital input that immediately shuts down the generator in case of low oil pressure.
-Displayed parameters can be selected using touch-buttons.
-Wide selection of temperature sensor types in settings.
-All the parameters can be set via front panel for easy and convenient operation.
-Modular design, anti-flaming ABS plastic enclosure, compact structure, convenient to use.

Package List:

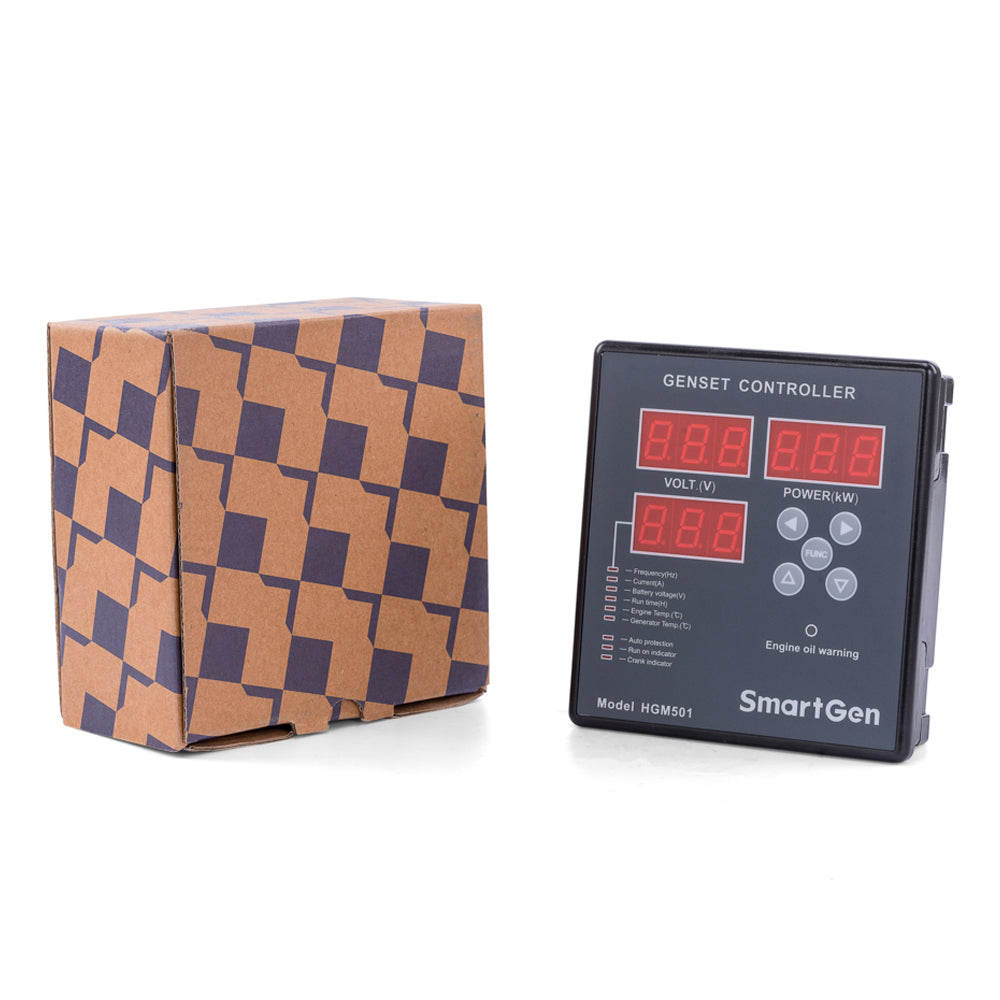

1 x Generator Controller
