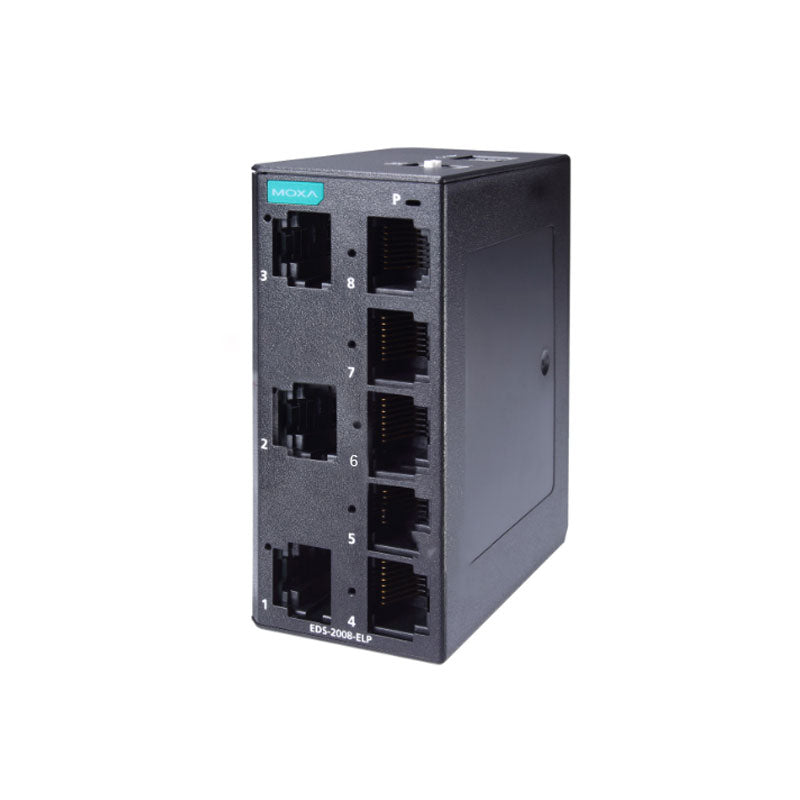

MOXA EDS-2008-ELP 8 Port Ethernet Switch Entry-Level Unmanaged Ethernet Switch with Plastic Housing

MOXA EDS-2008-ELP 8 Port Ethernet Switch Entry-Level Unmanaged Ethernet Switch with Plastic Housing

Features and Benefits:
• 10/100BaseT(X) (RJ45 connector)
• Compact size for easy installation
• QoS supported to process critical data in heavy traffic
• IP40-rated plastic housing

Introduction:
The EDS-2008-ELP industrial Ethernet switch has eight 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2008-ELP also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.

It has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2008-ELP has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-ELP has a standard operating temperature range of -10 to 60°C.

Package Included:
• 1 x Ethernet Switch
• 1 x Quick Installation Guide
• 1 x Warranty Card

Packaging Details:
• G.W.: 0.4kg
