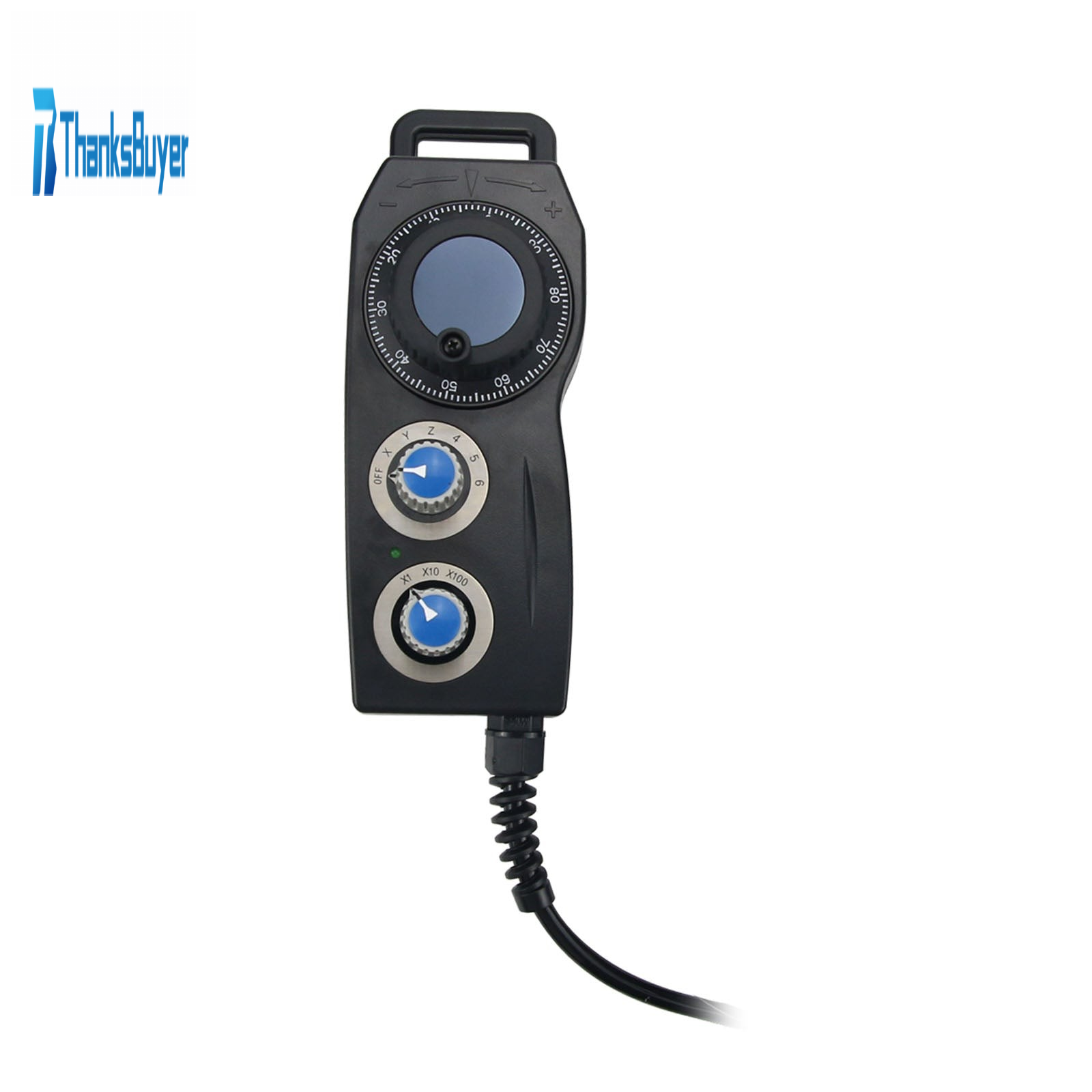

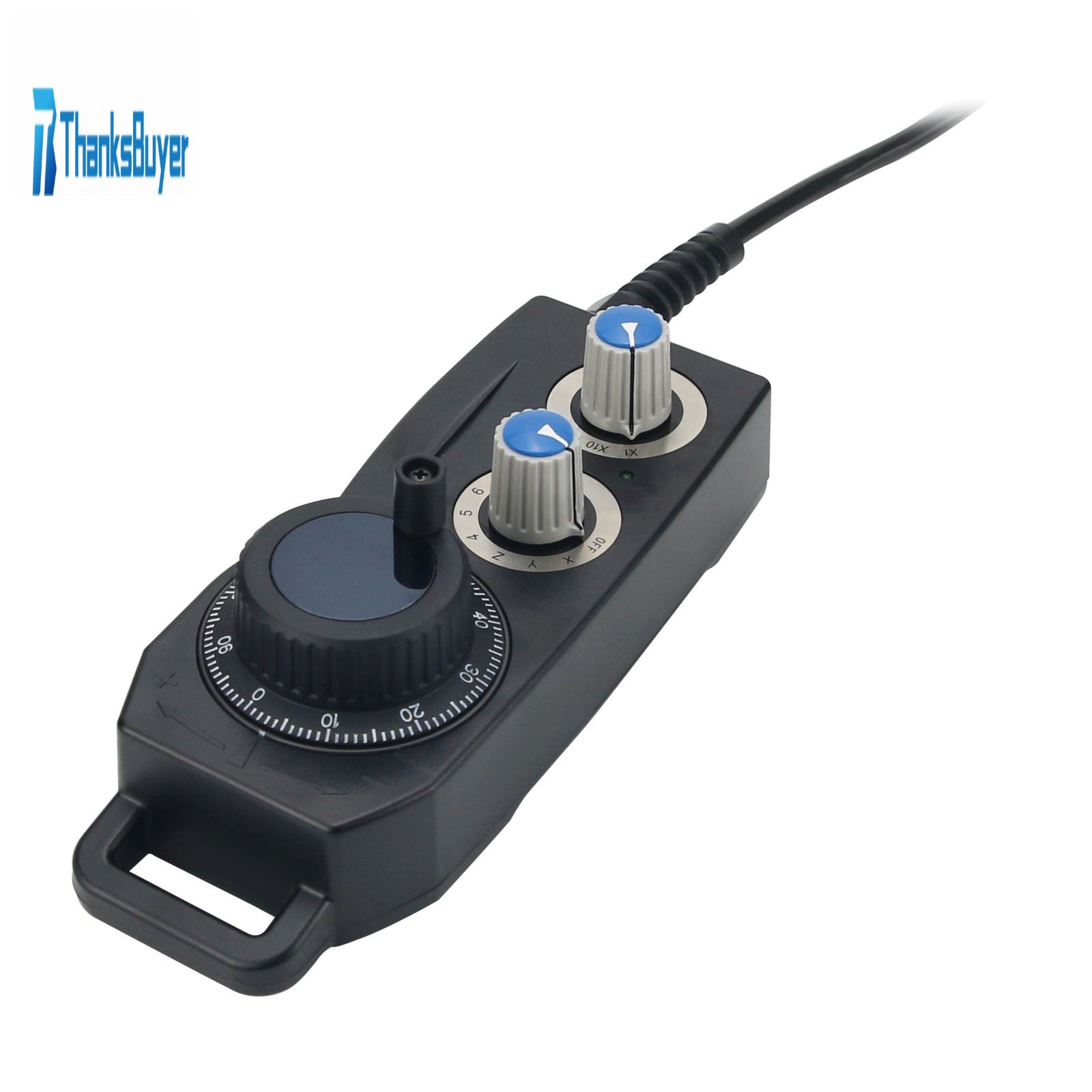

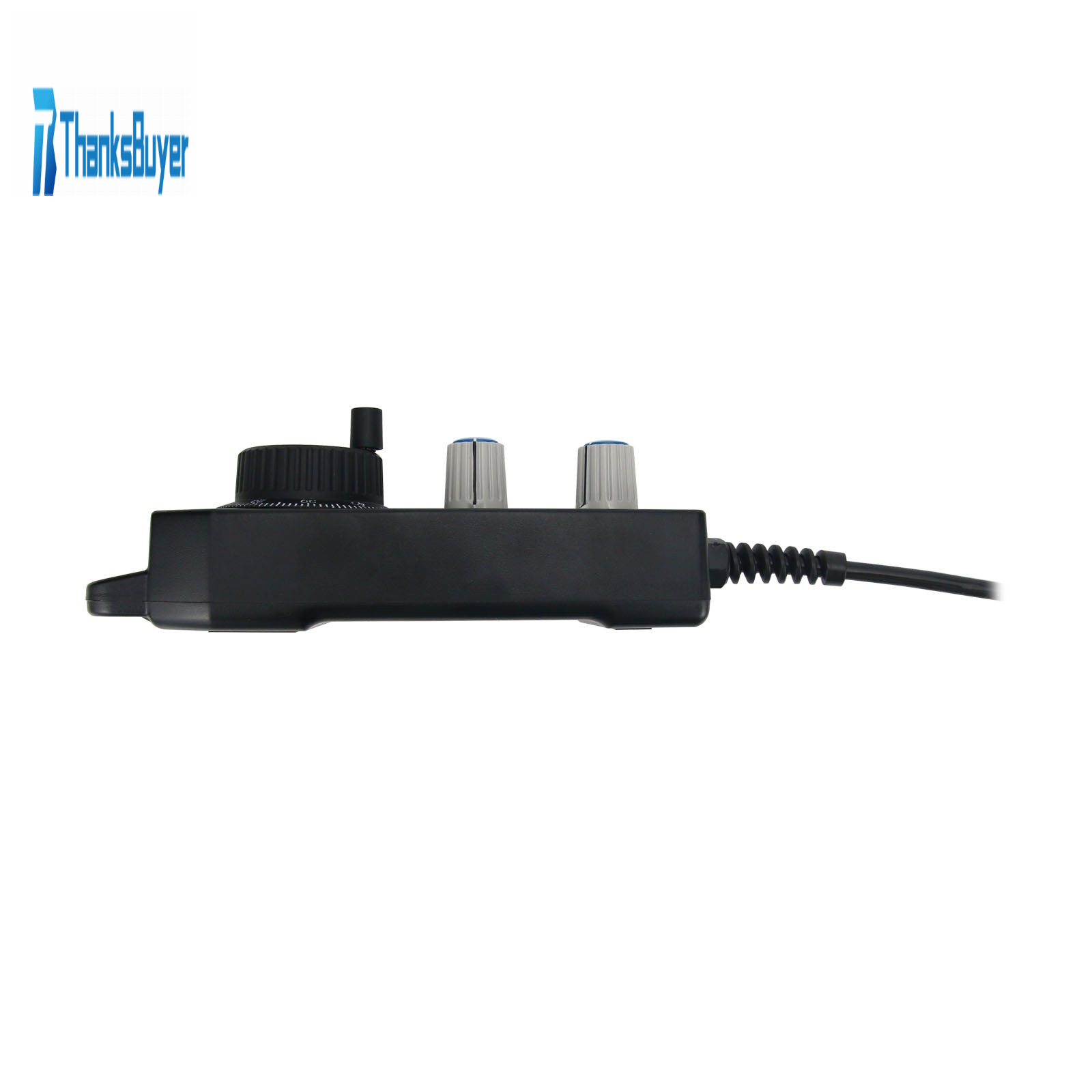

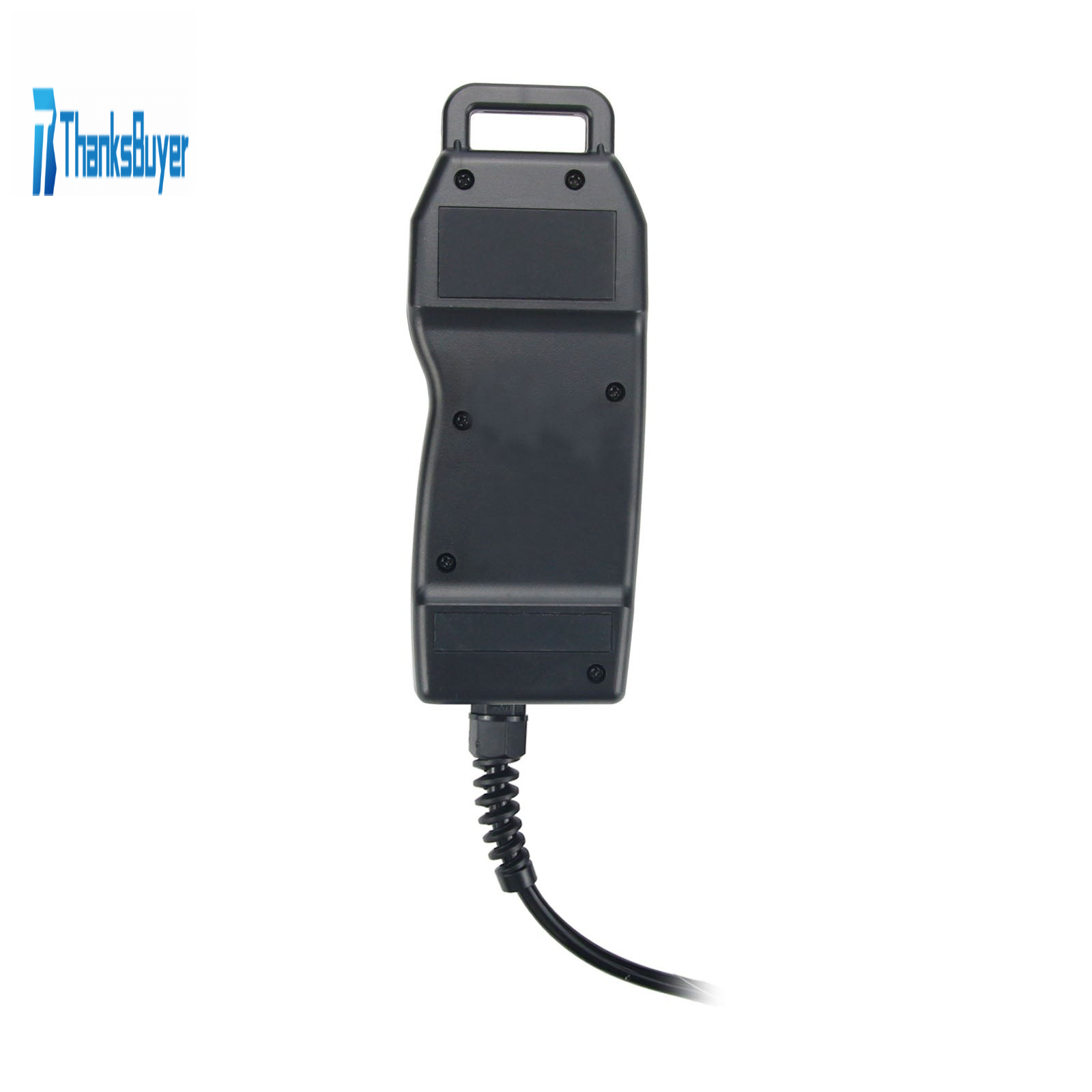

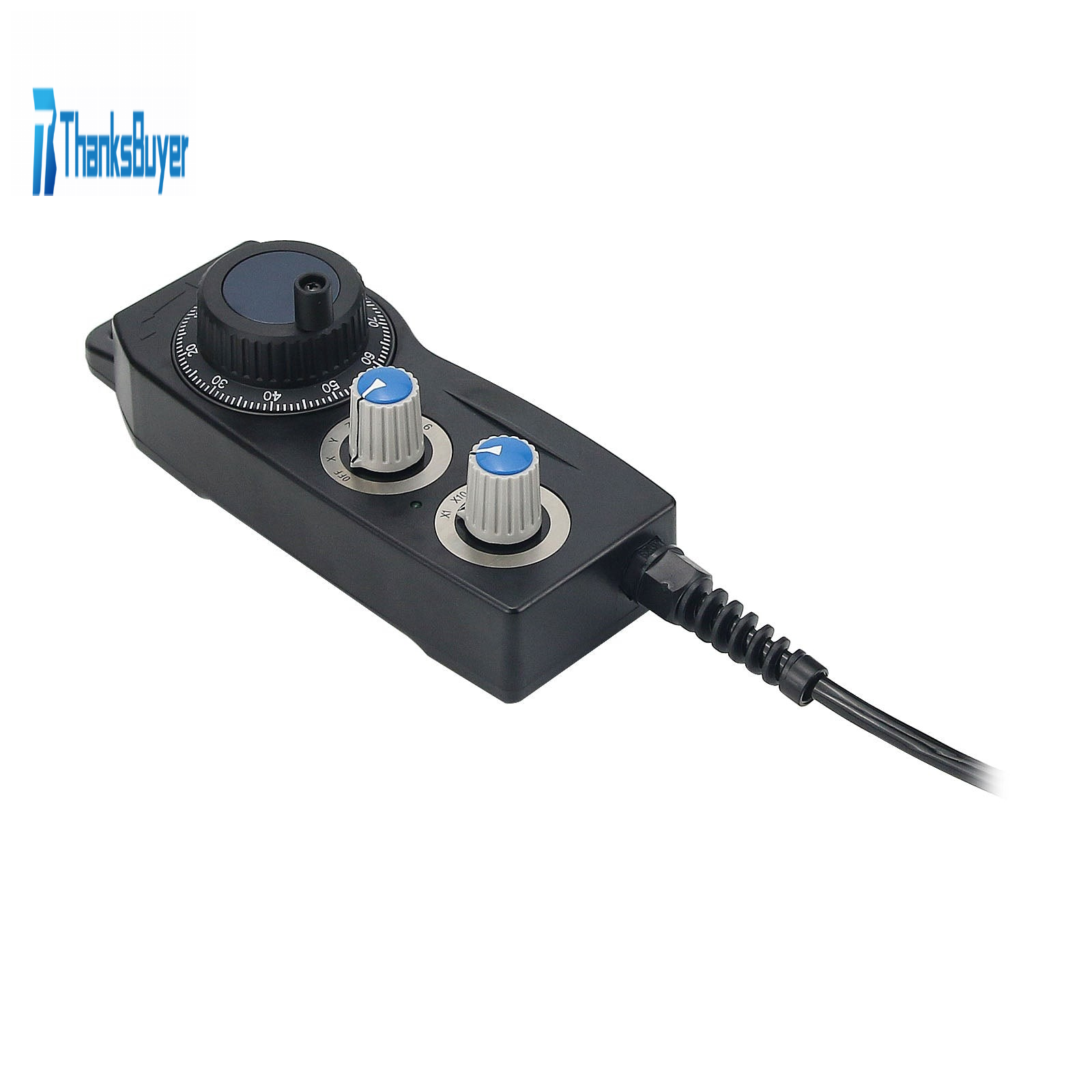

OMT002 6Axis Manual Pulse Generator MPG Electronic CNC Handwheel 100PPR 5V Universal Type

OMT002 6Axis Manual Pulse Generator MPG Electronic CNC Handwheel 100PPR 5V  Universal Type

Features:
- High-end CNC handwheel
- 6-Axis MPG manual pulse generator
- Voltage 5V 100PPR A A- B B-: It fits for 98% of Chinese systems
- Premium Component: High quality for its luminescent tube was made in Japan and its band switch was made in Taiwan
- Its 1.6m spring cable can be extended to 3m, bearing 300,000 times of stretching without damage

Technical Parameters:
Electrical Specifications:
- Output Waveform: Square Wave
- Output Phase: AB Phases
- Current Consumption: ≤100mA
- Response Frequency: 0 to 20KHz
- Duty Ratio: 0.5T±0.1T
- Phase Difference: 90°±45°
- Power Supply Voltage: DC 5V
- Output Voltage: High Level ≥ 85%Vcc, Low Level ≤ 0.3V
- Number of Pulses: 100 PPR

Mechanical Specifications:
- Position Signal: 2 Kinds
- Max. Speed: 500rpm
- Starting Torque: 2 x 10 -2 to 6 x 10-2 Nm (+25℃)
- Shock Resistance: 980m/s2, 6ms, twice in X Y Z directions
- Anti-Vibration: 50m/s2, 10 to 200Hz, 2h for X Y Z directions separately
- Life Span: MTBF ≥ 10000hg (+25℃, 2000rpm)
- Weight: approx. 640g

Environmental Specifications:
- Operating Humidity: 30% to 85% (Without condensation)
- Storage Temperature: -30℃ to 85℃
- Operating Temperature: -10℃ to 70℃
- Protection: Waterproof, Oil-proof, Dust-proof IP54

Package Included:

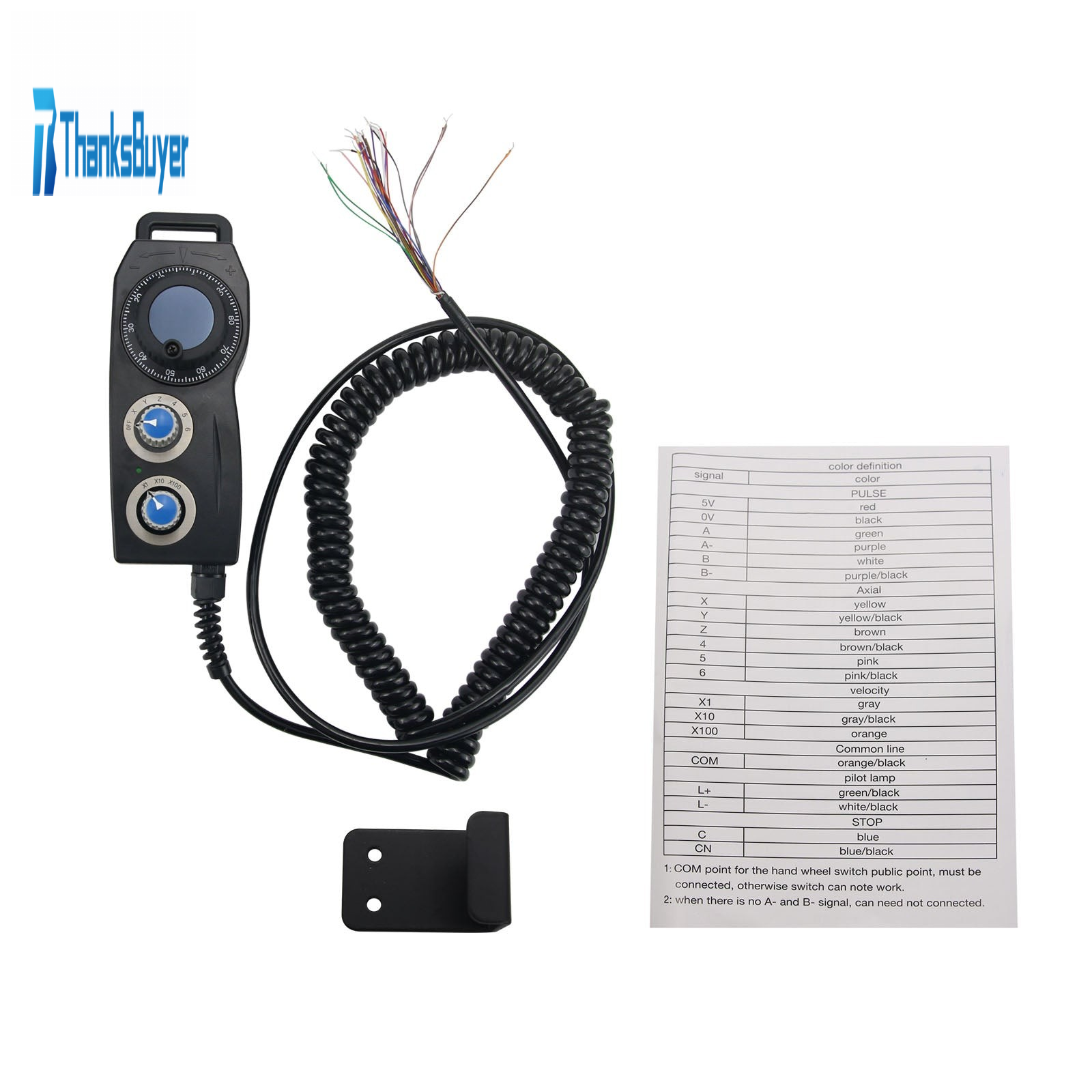

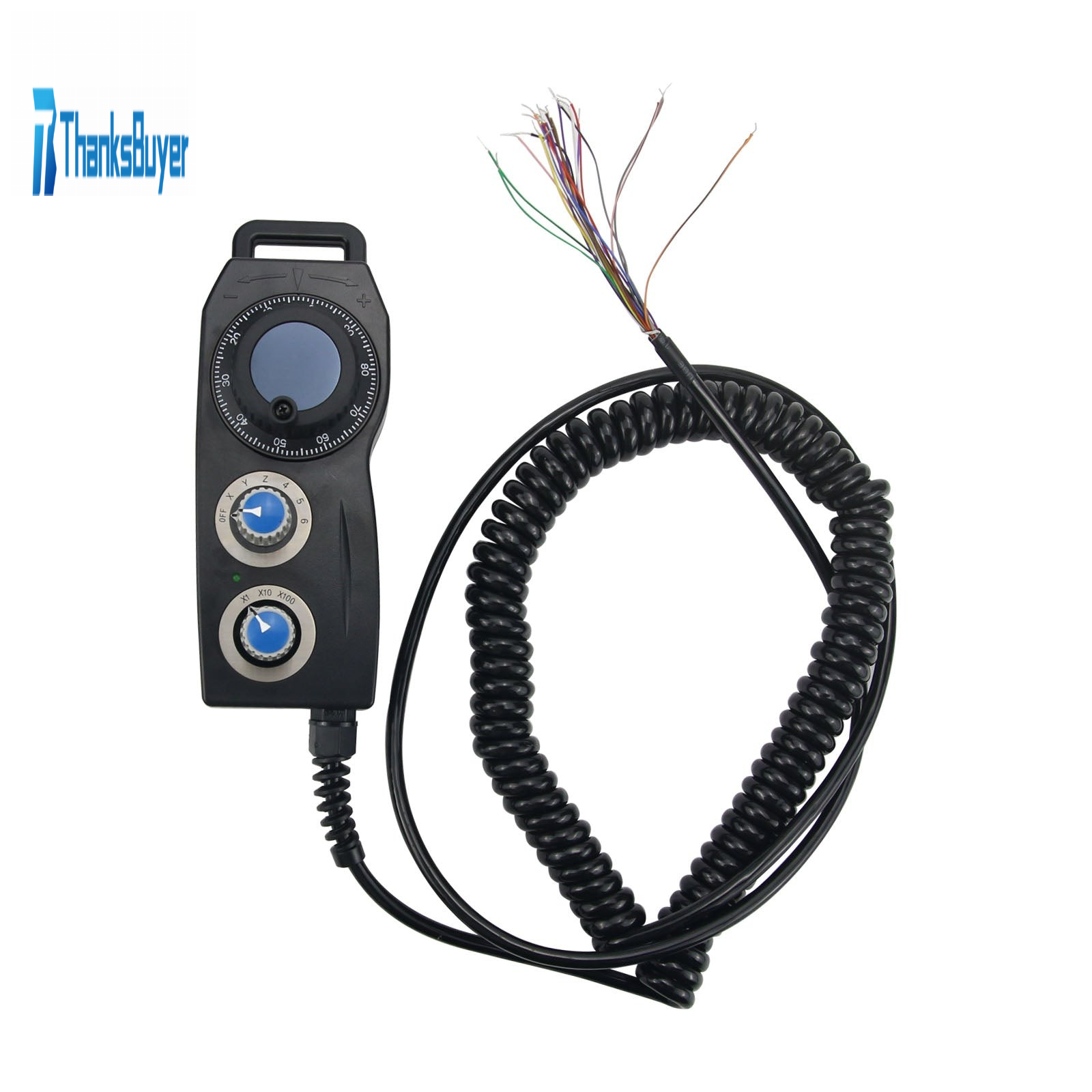

- 1 x Manual Pulse Generator w/ 1.6m Spring Cable
