OSC201 OCXO Frequency Reference Thermostatic Crystal Oscillator 10MHz Sine Wave Frequency Standard Radio Network Analyzers Electrical Instrument

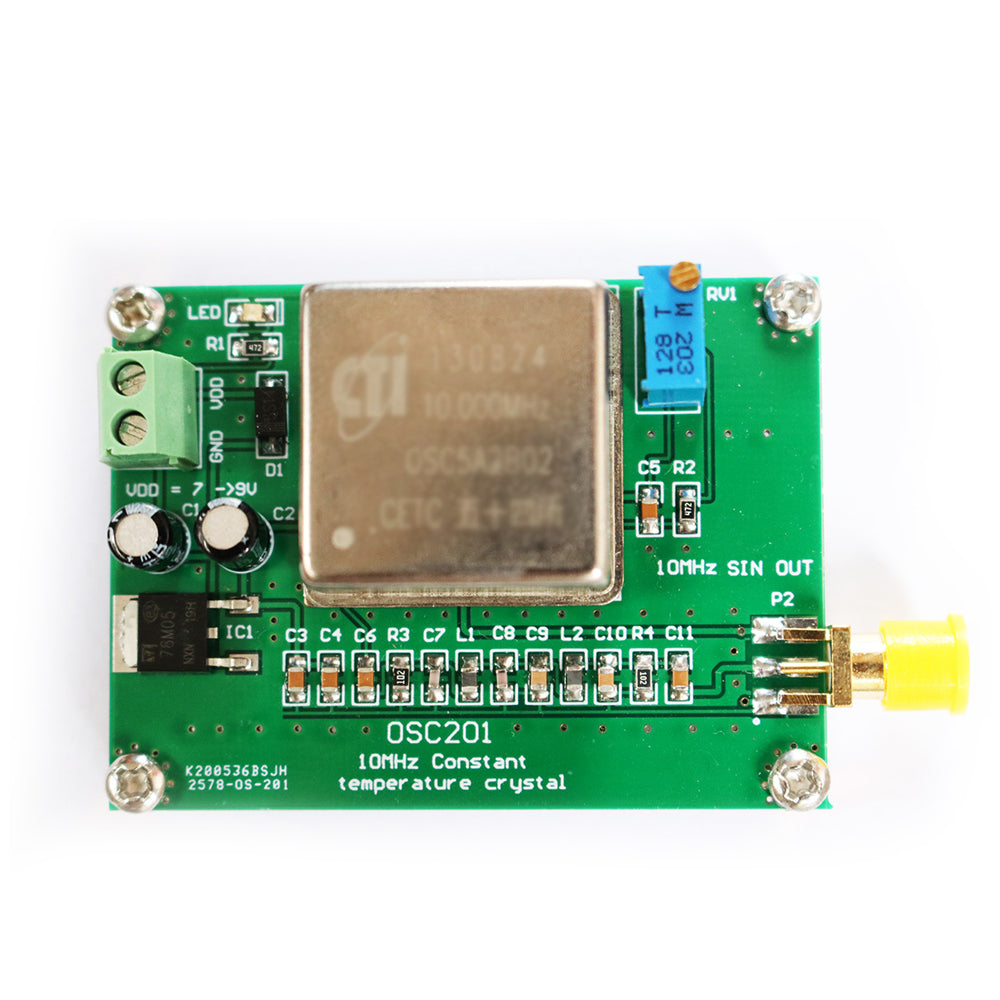

Description:
The frequency accuracy of this module output 10MHz signal (+/-200ppb), there is a standard 10MHz sinusoidal signal output,
1. P1: Power input interface; (7~9V 500MA).
2. P2: 10MHz sine signal output interface; (10Mhz amplitude: 2.5Vpp) SMA interface
3. RV1: Correct the deviation of 10Mhz output frequency (+/-2.0ppm)
Length X width X height：56mm*45mm*25mm
