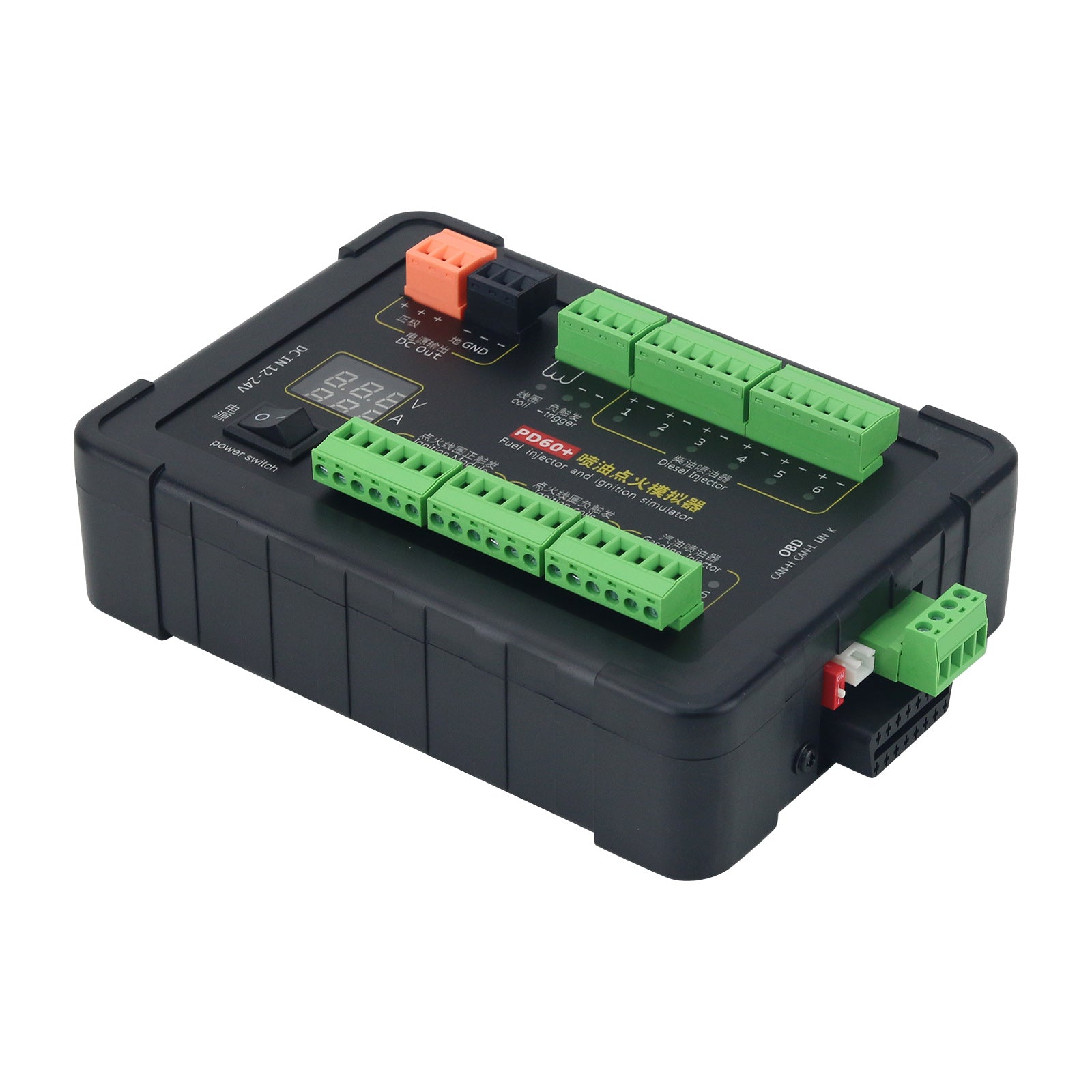

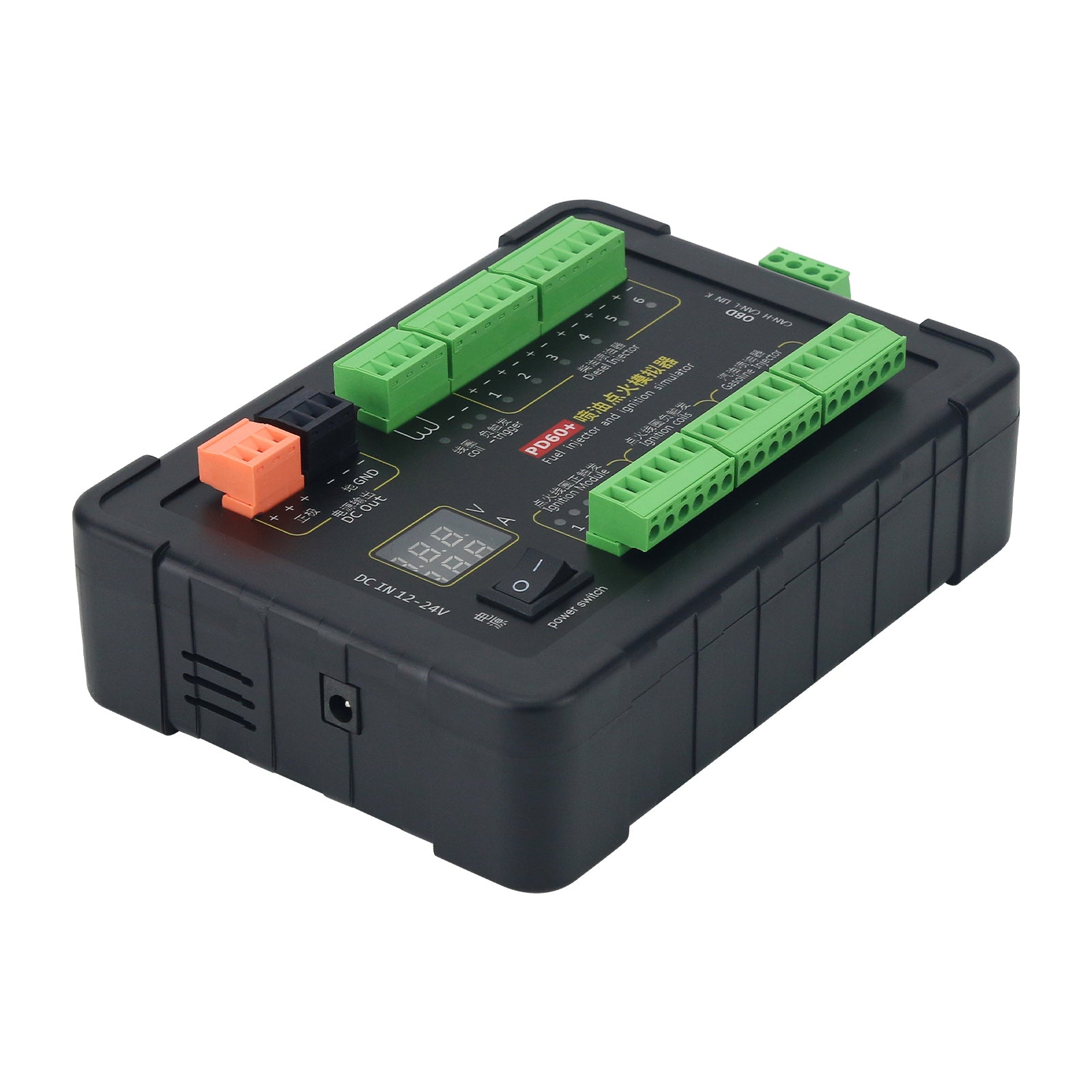

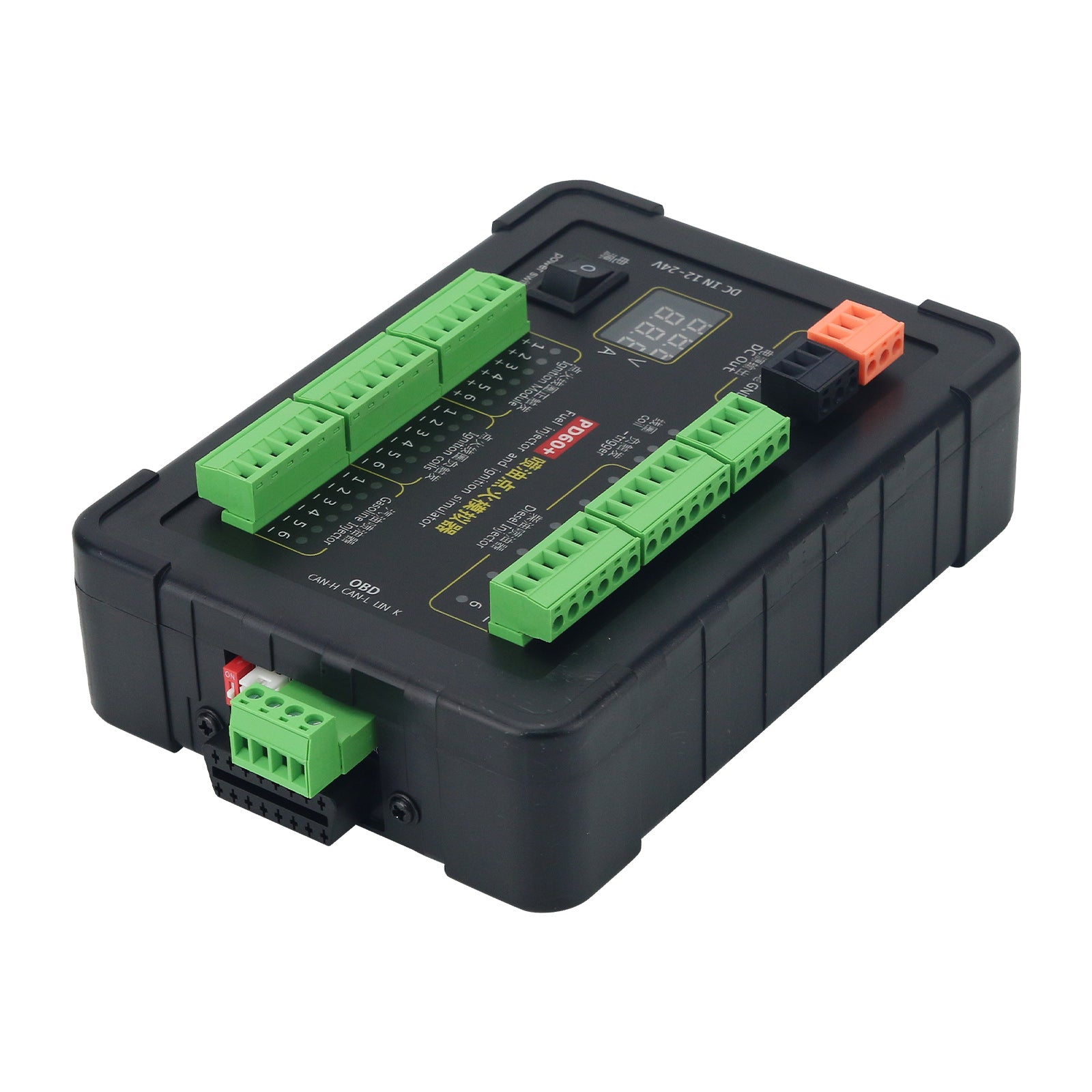

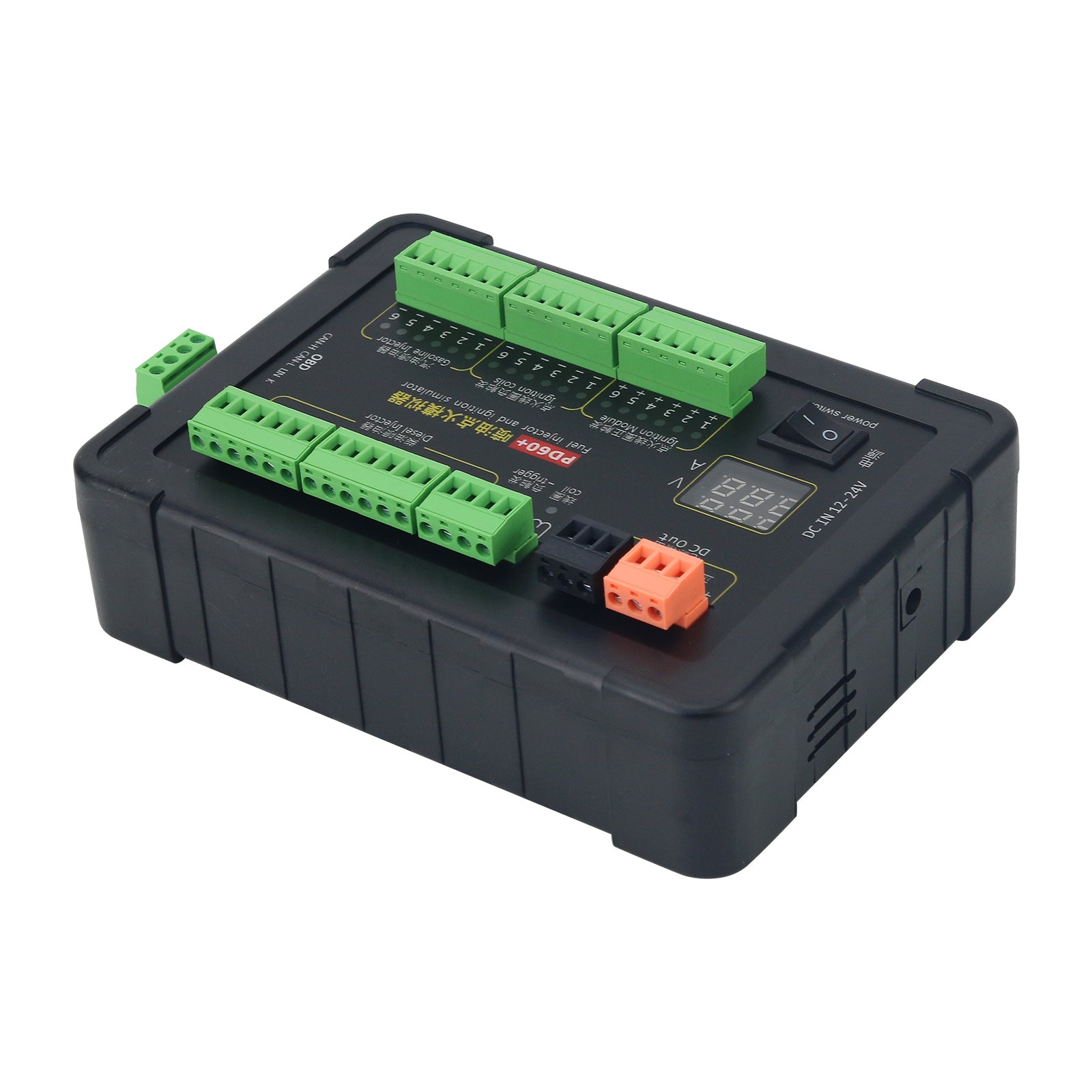

PD60 Fuel Injector Simulator and Ignition Coil Simulator for Gasoline Diesel Fuel & ECU Maintenance

PD60 Fuel Injector Simulator and Ignition Coil Simulator for Gasoline Diesel Fuel & ECU Maintenance

Features:

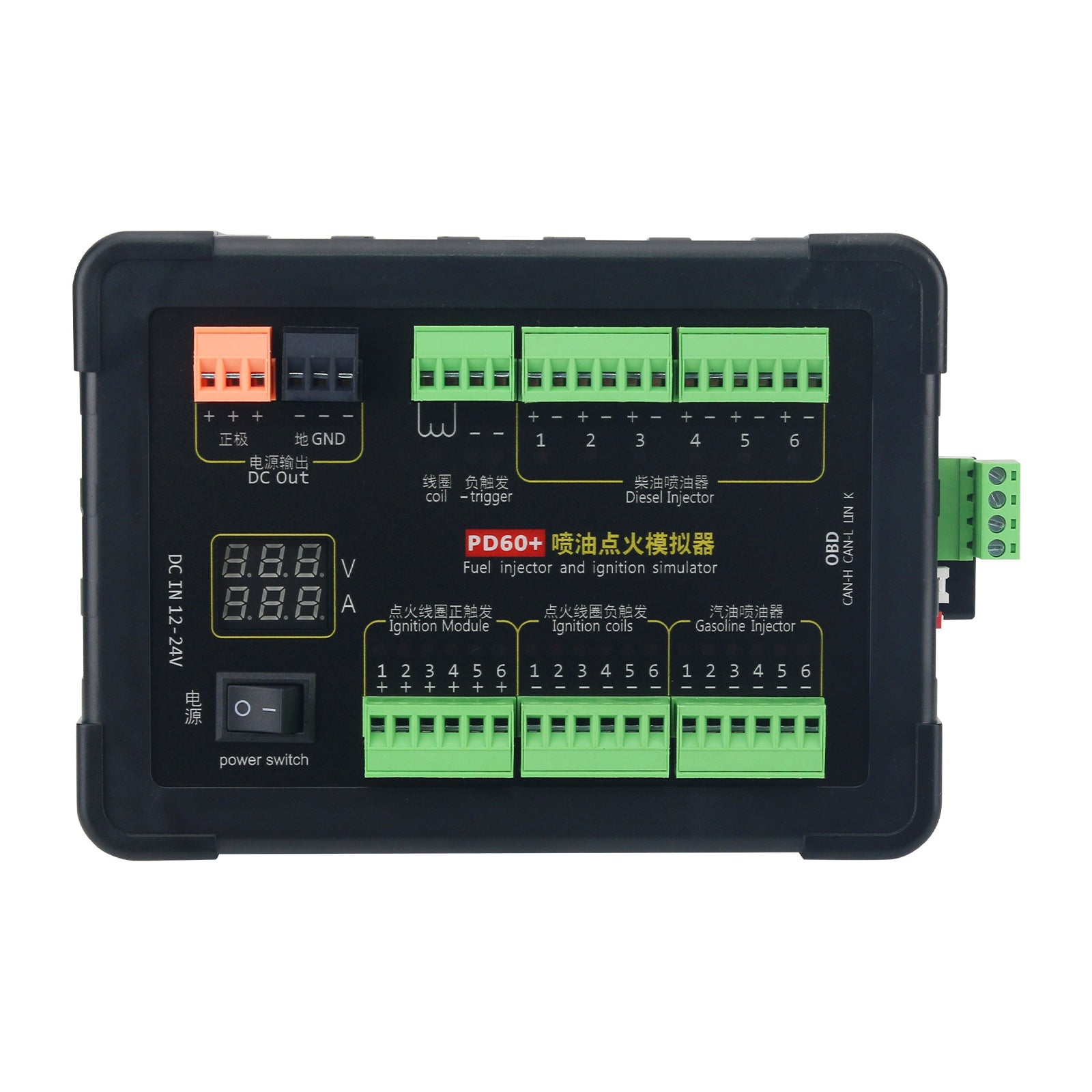

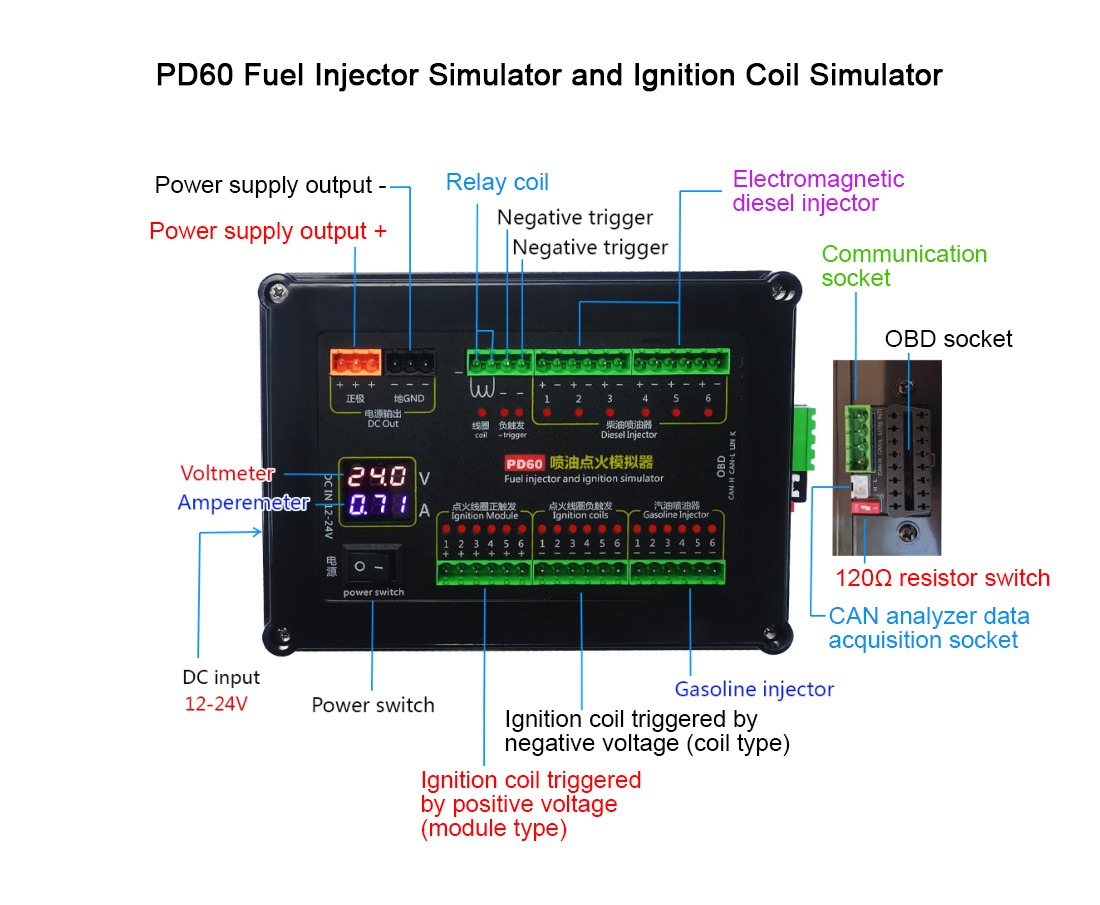

- Fuel injection and ignition coil simulator
- 12V-24V electromagnetic diesel injector simulator
- 12V gasoline injector simulator

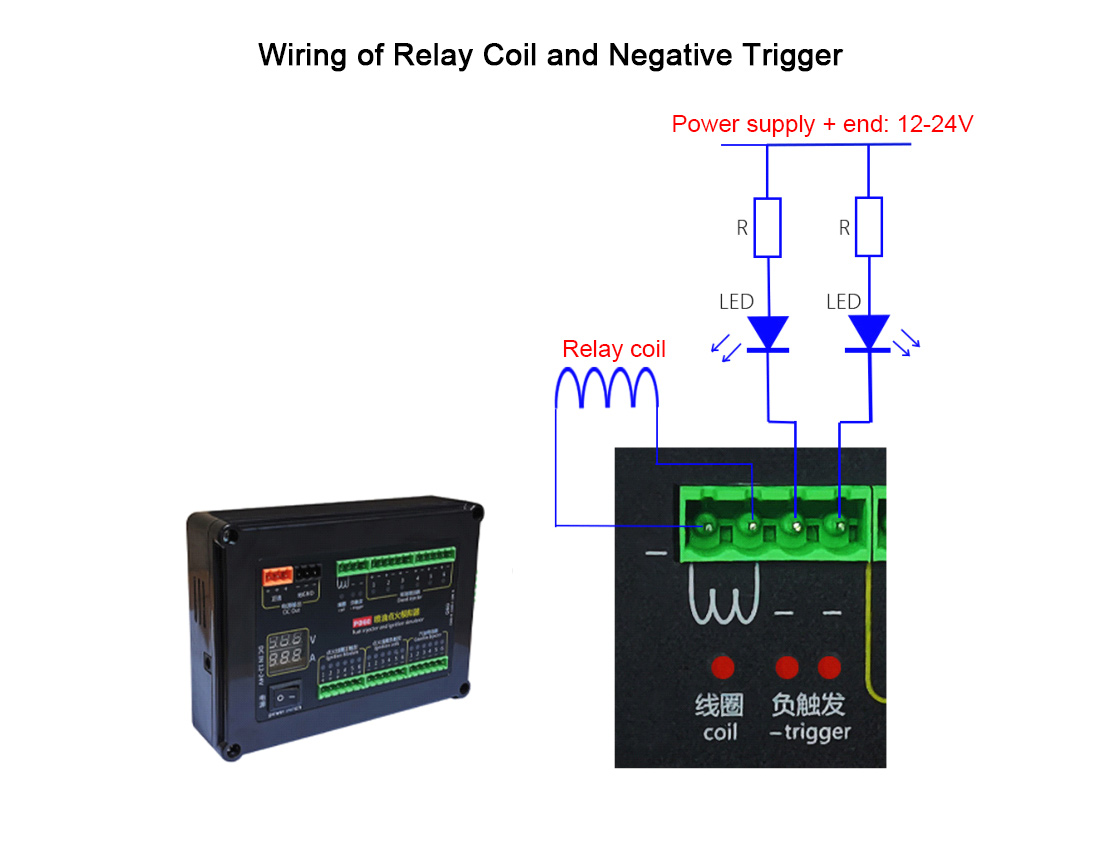

- Simulation of ignition coil triggered by positive voltage
- Simulation of ignition coil triggered by negative voltage
- With voltmeter and ammeter
- Real-time display of ECU module
- Operating voltage and current
- With a over-current protection circuit

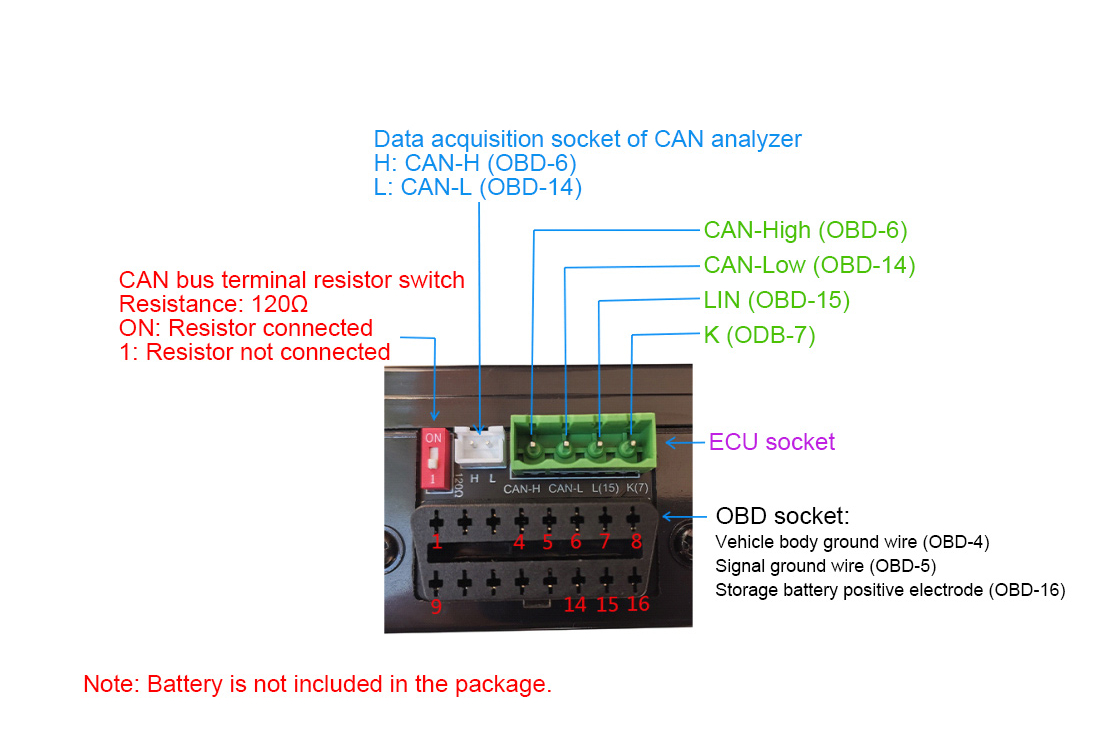

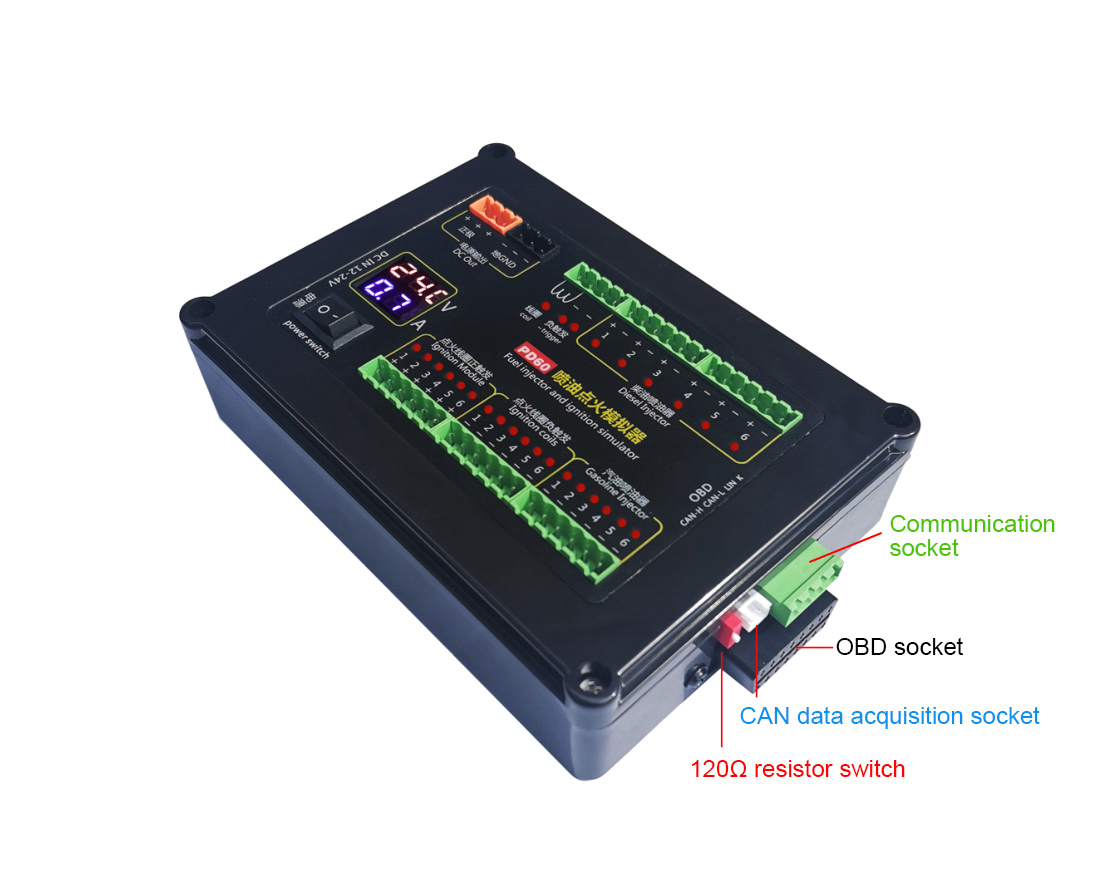

- With an OBD socket

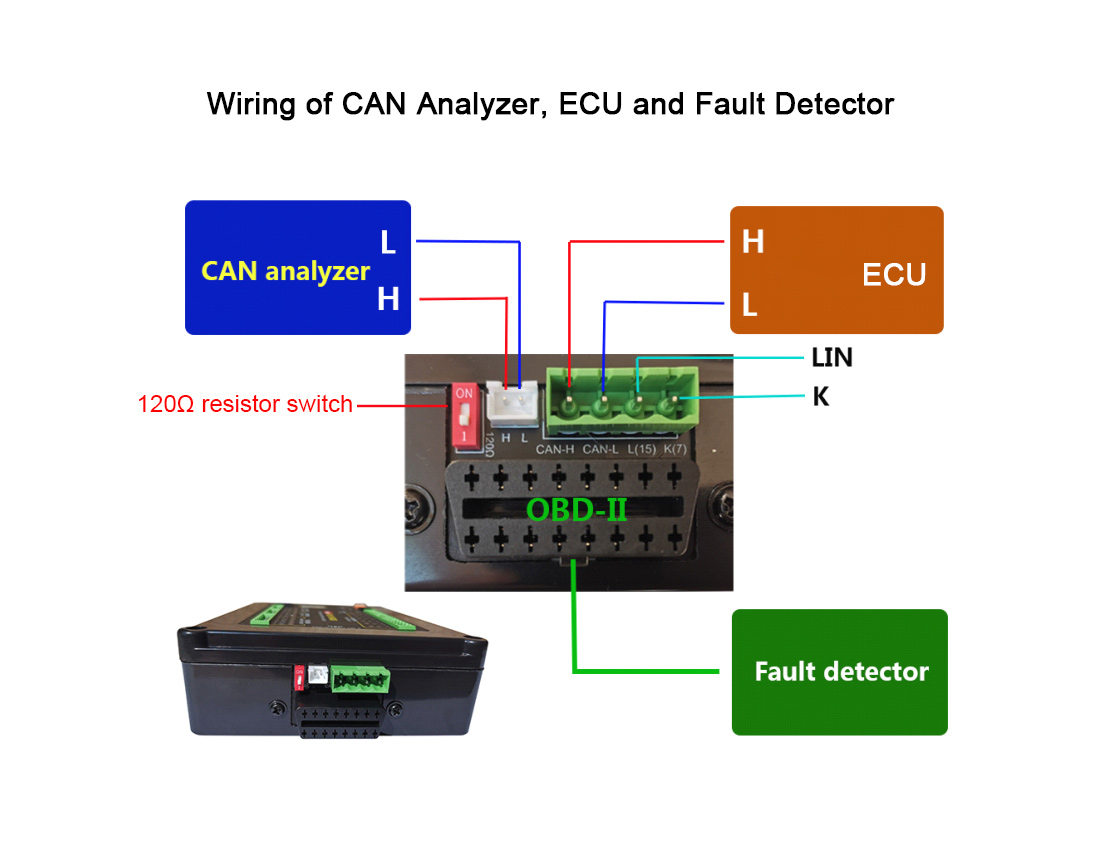

- With a CAN data acquisition socket
- With a 120Ω terminal resistor
- With high-power resistor (to simulate fuel metering valves)

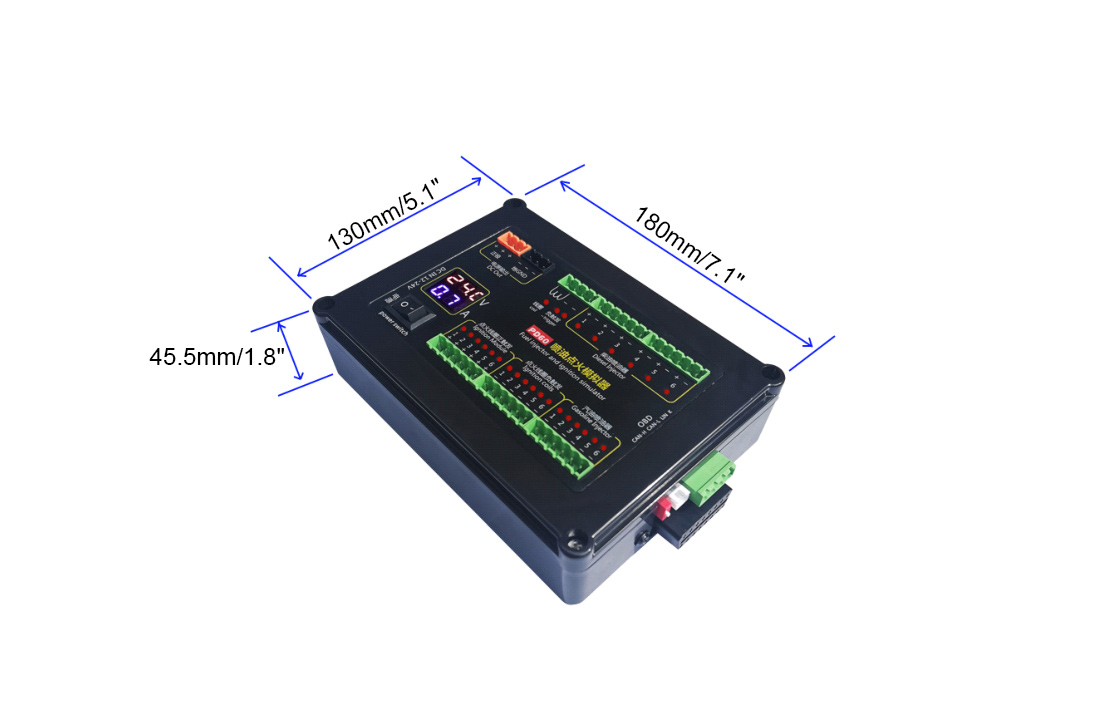

- Main unit size: 180mm x 130mm x 45.5mm/7.1" x 5.1" x 1.8" (LxWxH)

Attention:

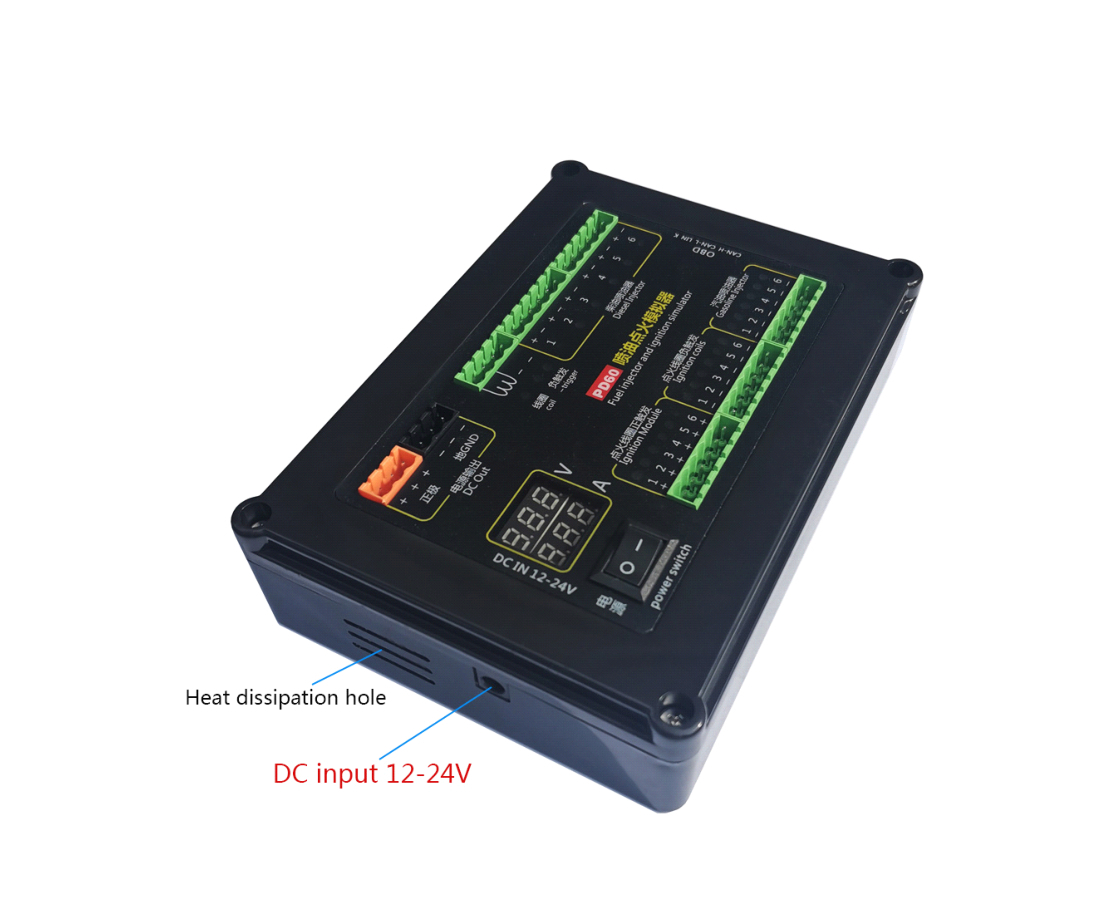

1. The simulator needs to be connected to an external 12-24V power supply in order to work normally.
2. The coil resistance of diesel injector is very small. It is generally 0.3-0.5Ω.
3. PD60 can simulate 12V-24V electromagnetic diesel injector, but cannot simulate piezoelectric crystal injector.
4. The instrument has over-current protection inside. If the output of the power supply is short-circuited or the current is too large, the instrument will automatically power off.
5. PD60 is specially designed for automobile repair technicians. And non-professionals should use it under the guidance of automobile repair technicians.

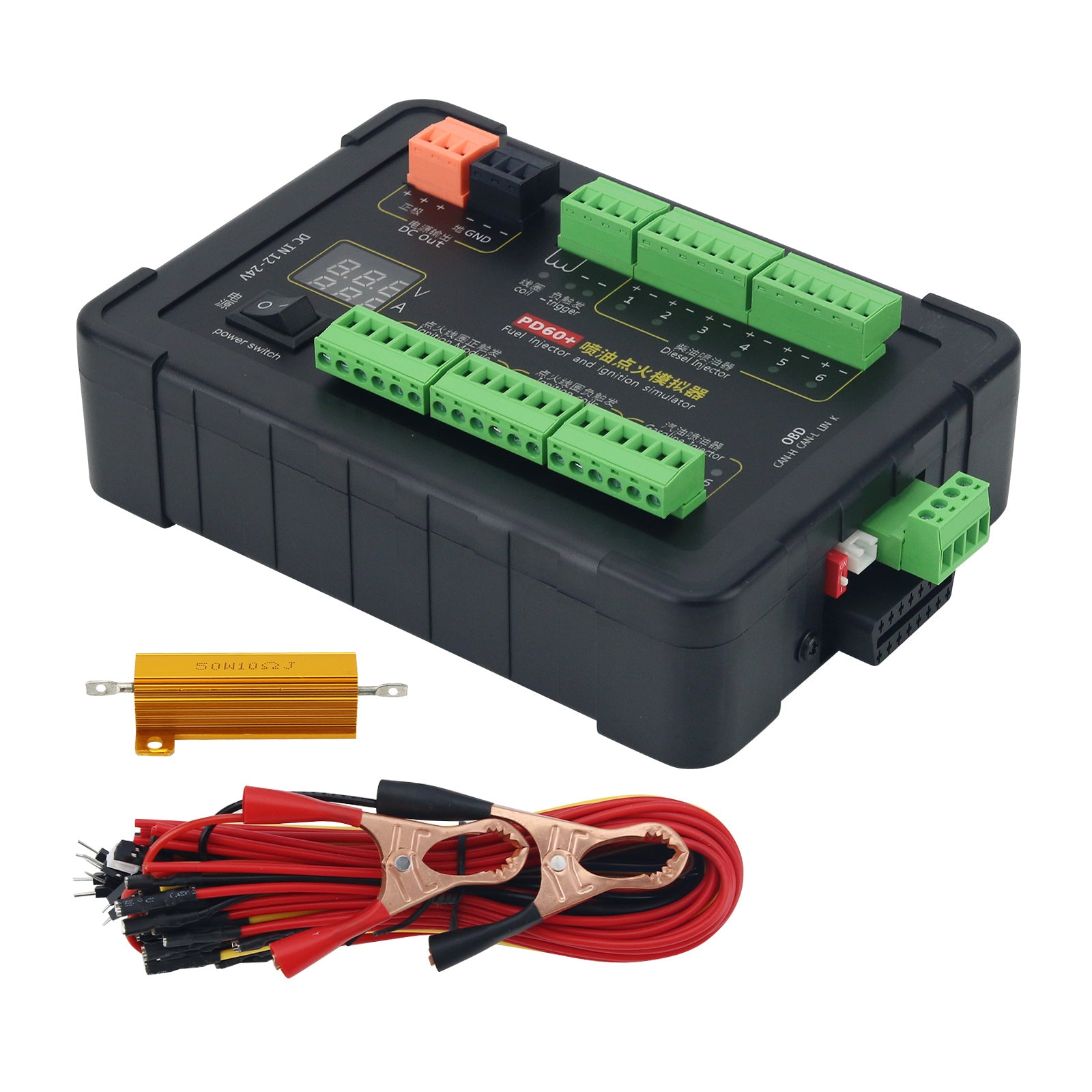

Package Included:
- 1 x High-power resistor
- 1 x Main unit
- 1 x Power cable
- 1 x Connection cable for CAN analyzer
- 3 x Connections cables (yellow, black & red) for ECU
- 1 x FFC cable
- 9 x Wiring plugs

Packaging Details:
- Weight: 0.9kg

Note:
- The product cannot be used as a signal generator. Therefore, it cannot simulate sensor signals.
- Battery is not included in the package.
