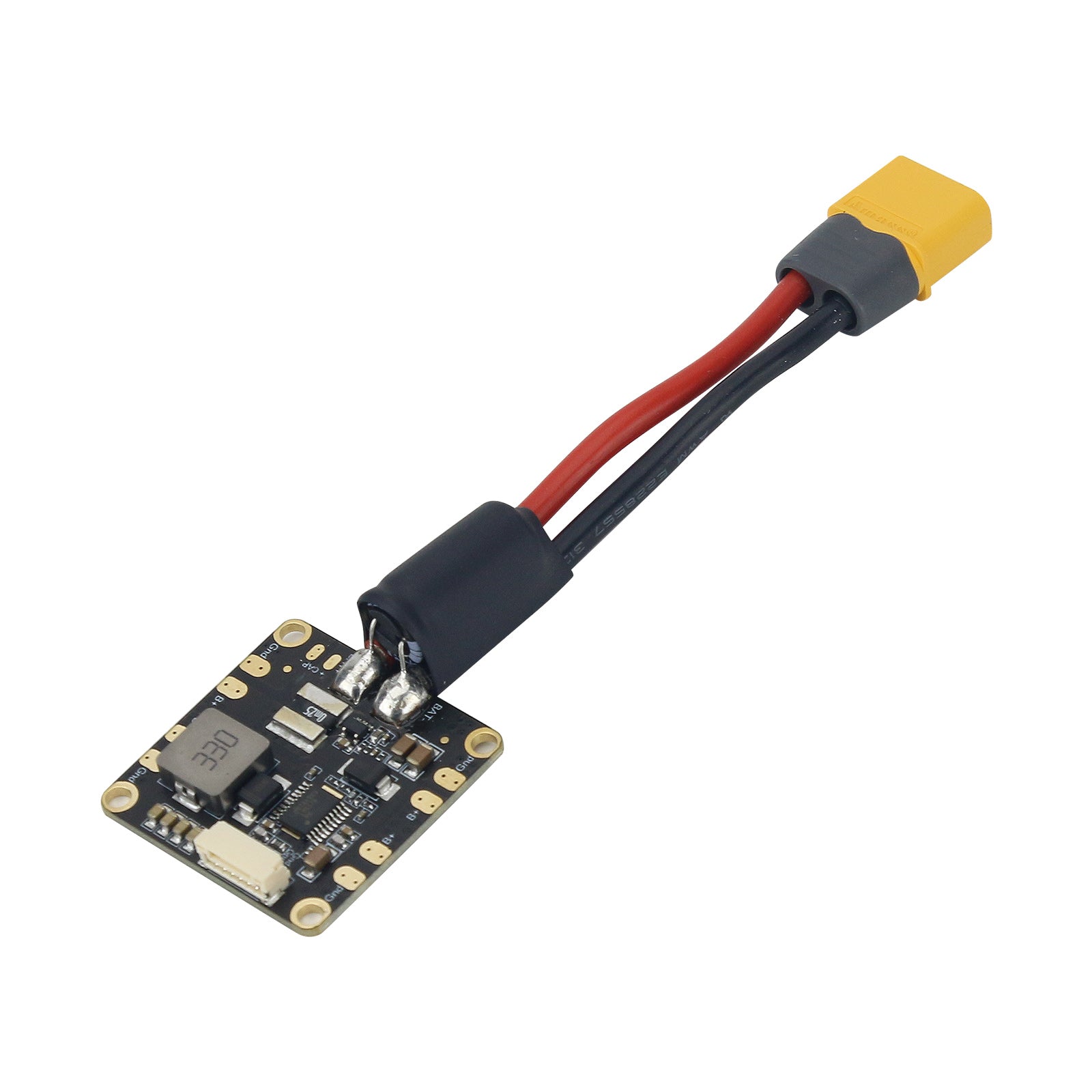

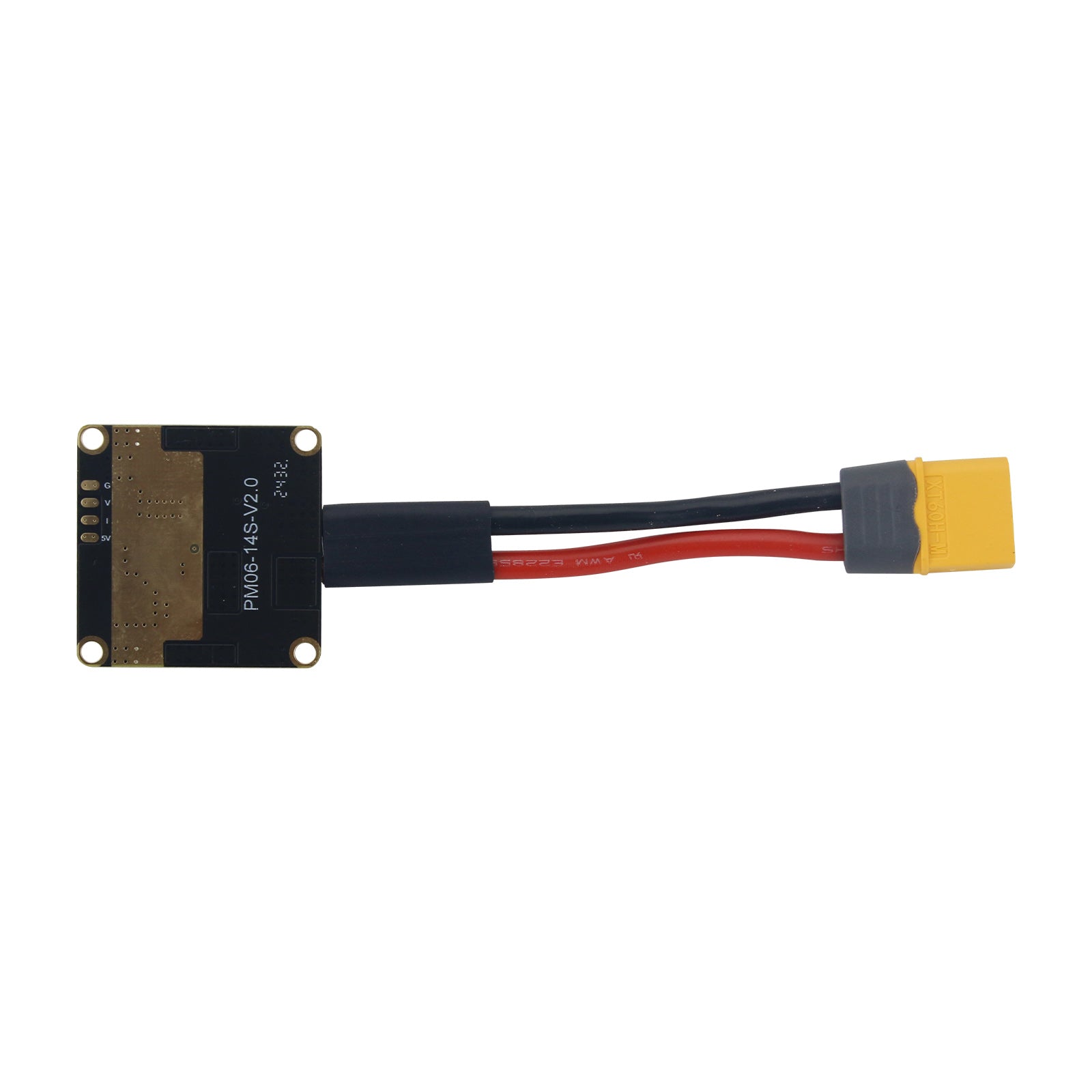

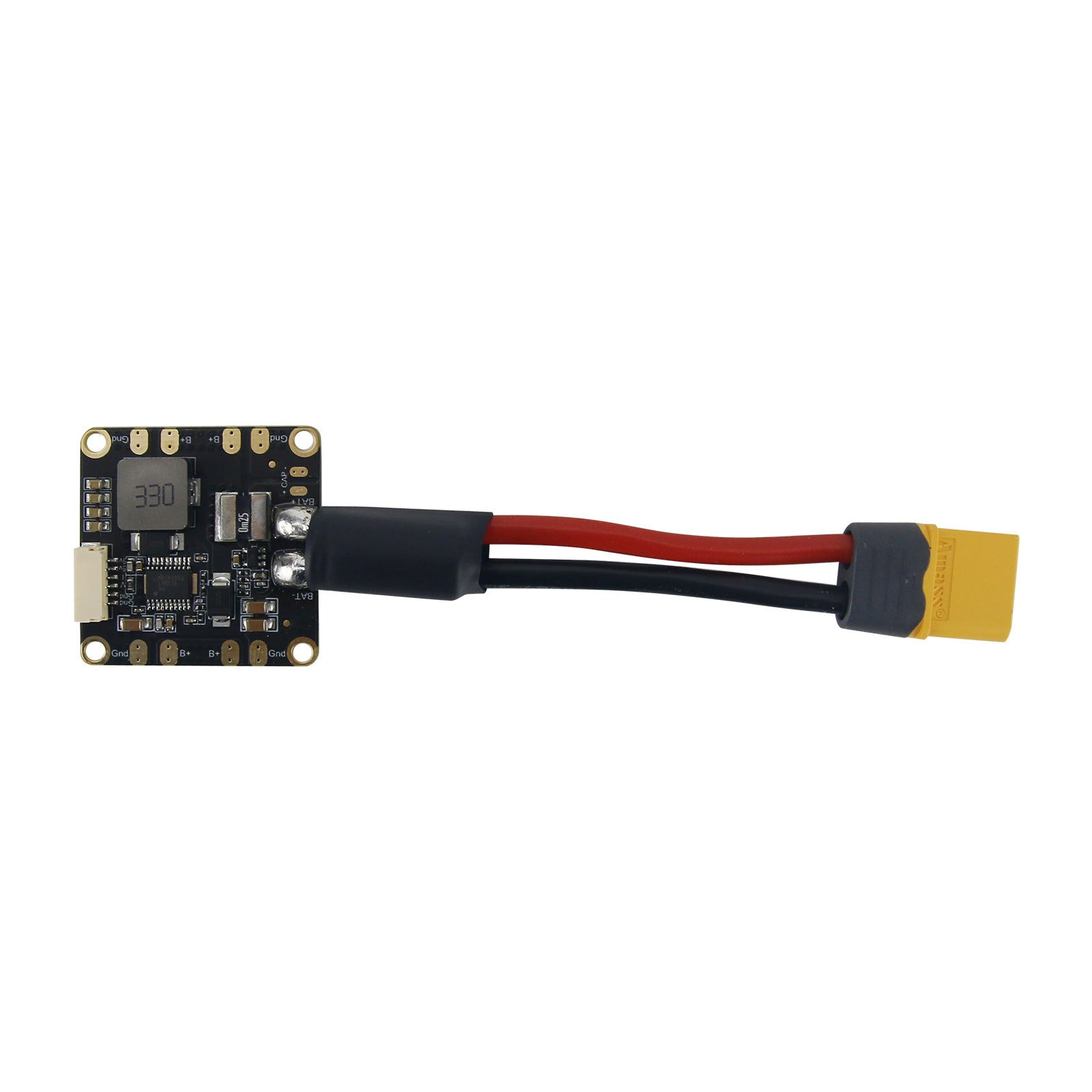

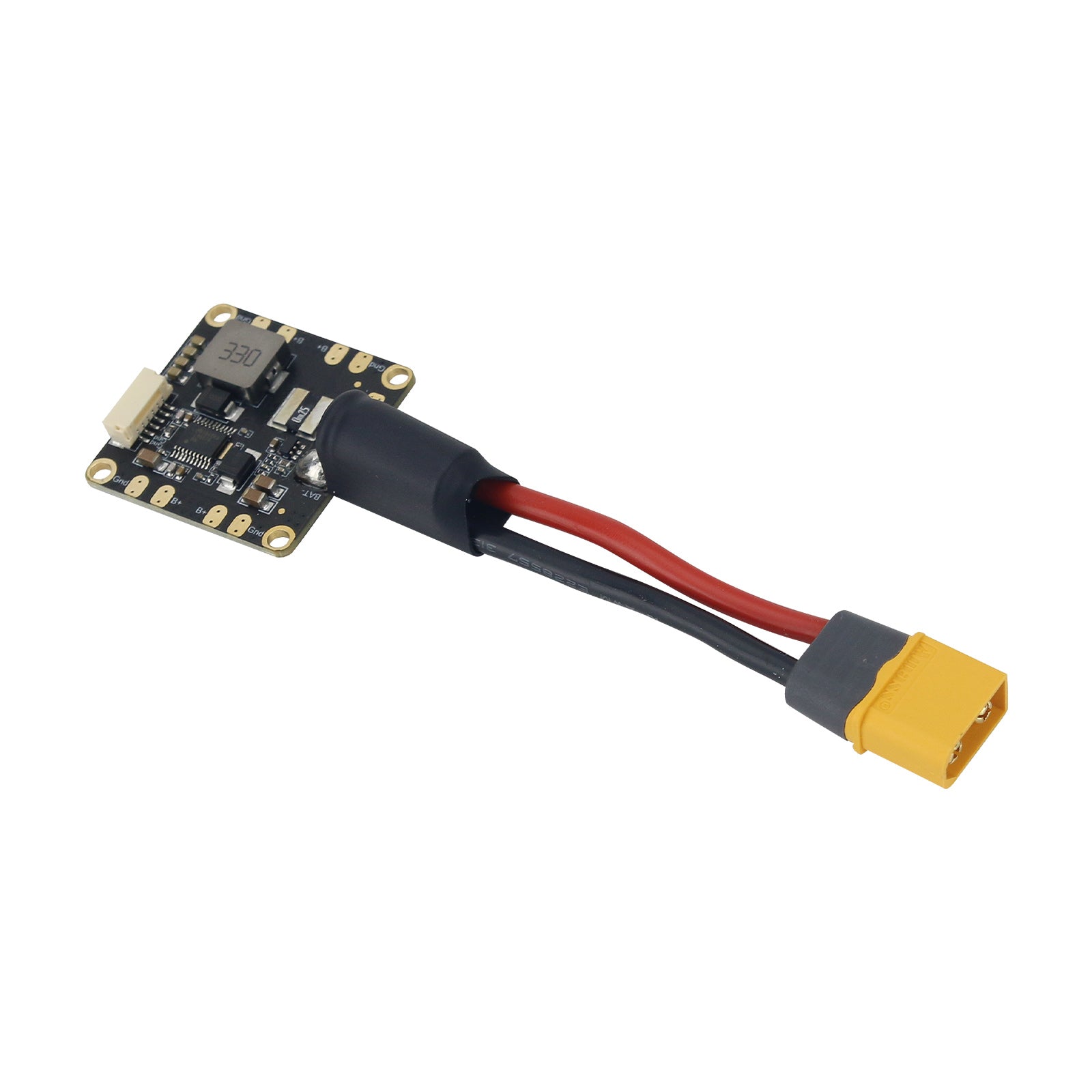

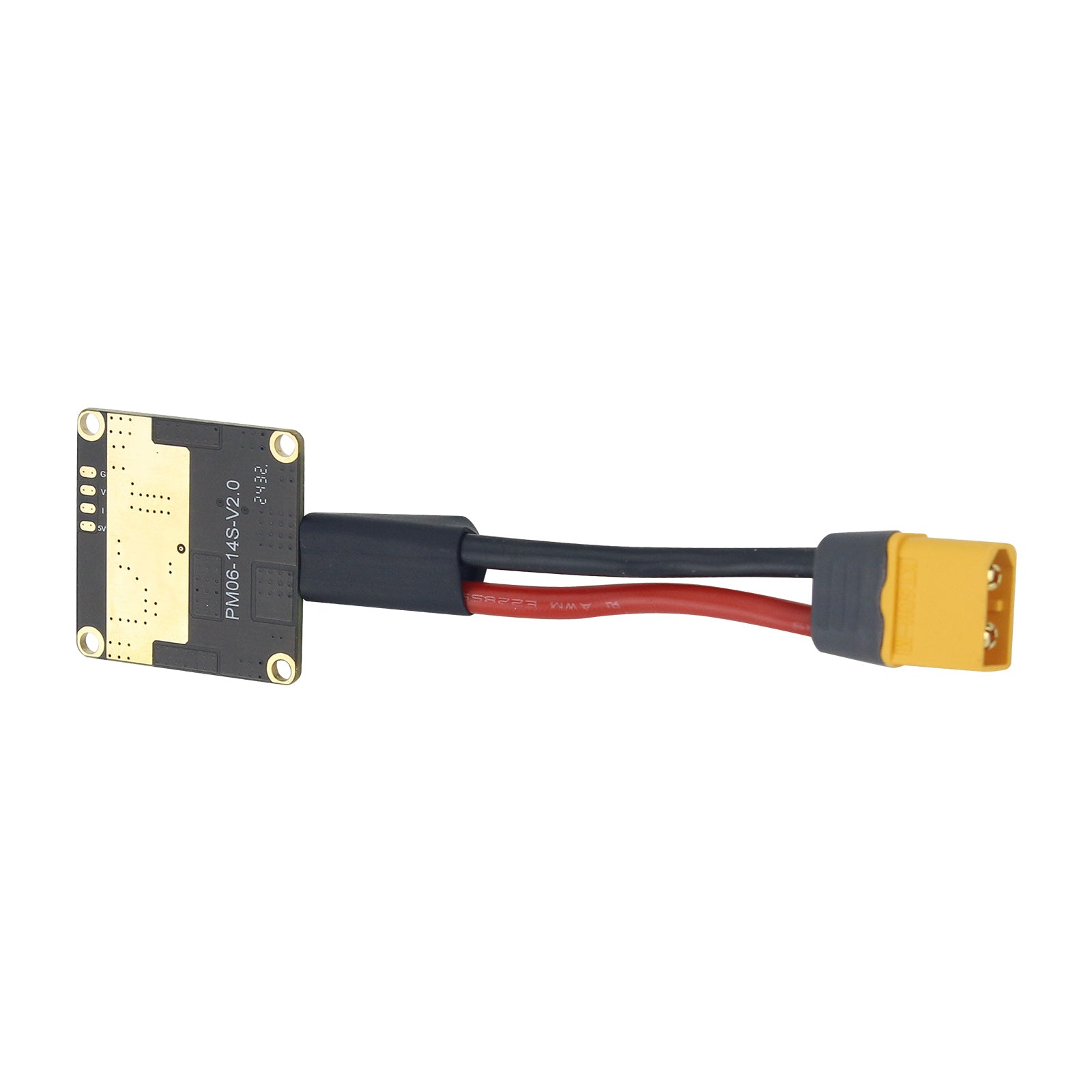

PM06 Power Module Power Distribution Board 10S/120A High Current Low Pass Filter for Pixhawk4 Mini
Specifications:
PCB Current: 120A continued
UBEC Current: 3A Max
Power input: DC 7V~42V(2S~10S)
Power output: DC 5.1V~5.3V
Dimensions: 35x35x5mm
Mounting hole: 30.5mm*30.5mm
Weight: 7g
Features:
-This PDB has 5V output 3A output
-Integrated voltage & current sensor for flight controller
-UBEC maximum input voltage: 7~42V (10S LiPo)
-PCB maximum continuous current: 120A
Package List:

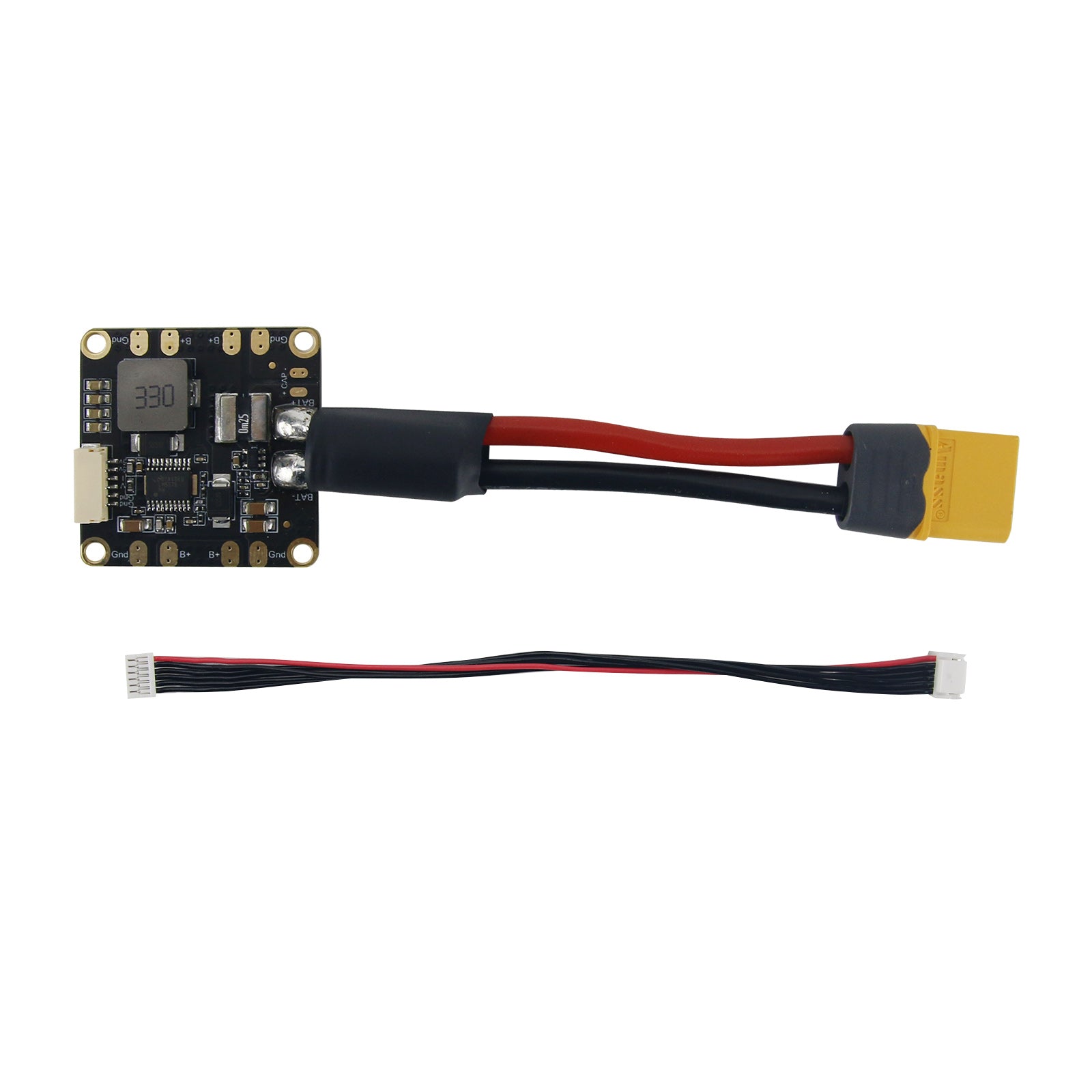

1 Set of Power Module
