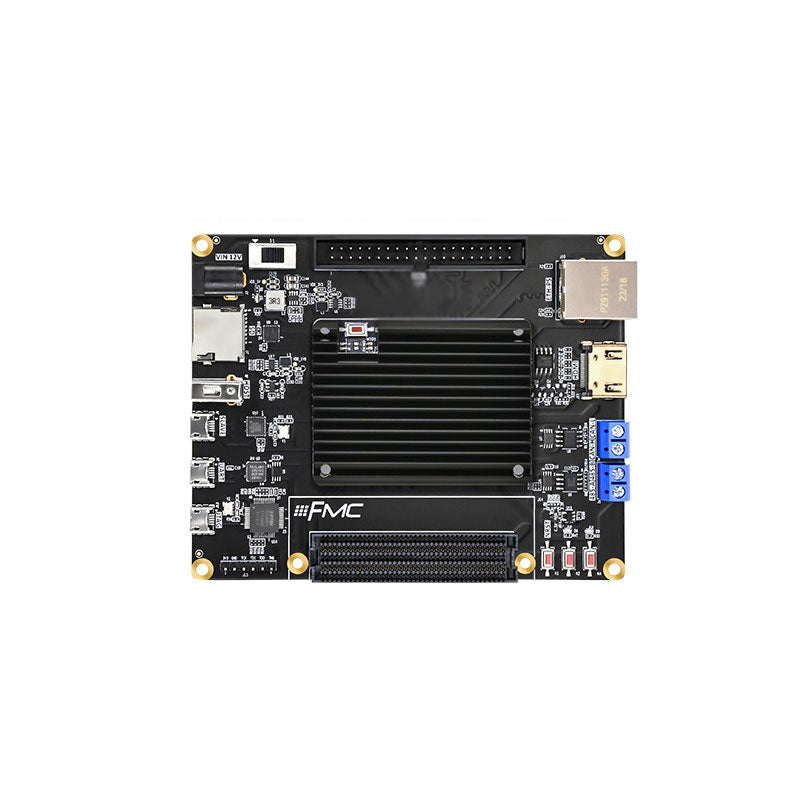

PZ7020S-FL-KFB ZYNQ7020 ARM+FPGA Development Board 766MHz Dual Cortex-A9 XC7Z020-2CLG400I

PZ7020S-FL-KFB ZYNQ7020 ARM+FPGA Development Board 766MHz Dual Cortex-A9 XC7Z020-2CLG400I

Key Features:
- ARM+FPGA architecture, dual-core ARM Cortex-A9, main frequency 766Mhz.
- Core parameters 1GB DDR3, 8GB EMMC, 128Mb QSPIFLASH.
- Reserved ports UART, RS485, CAN, Dual Gigabit Ethernet, HDMI-compatible, etc.
- Support SDK development, support for PYNQ, rich routines, help product development.

Core Board Main Parameters:
- FPGA Chip: XC7Z020-2CLG400I
- Processor Core: dual core ARM Cortex-A9
- Speed Grade: 2
- Chip Level: industrial Grade (-40°C~+85°C)
- Logic Cells: 85K
- Lookup Tables: 53200
- Flip-Flops: 106400
- DSP Slices: 220
- BLOCK RAM: 4.9Mb
- DDR3/DD3L: 1GB
- QSPI FLASH: 256Mb
- User LED: 2
- PS Side MIO: 30 (24 fixed 1.8V, 6 fixed 3.3V)
- PL Side IO: total 116 single-ended IOs (1.8V/2.5V/3.3V adjustable, default 3.3V)
- Crystal Oscillator: single-ended crystal 33.3333MHz for PS; single-ended crystal 50MHz for PL
- Core Board Form Factors: 60 x 45mm

Interface and Function:
- JTAG Interface: 1
- UART/RS485/CAN: 1/1/1
- SD Card Slot Interface: 1
- USB2.0 Host/ Slave: 1/1
- Gigabit Ethernet: 1 on PS side, 1 on PL side
- HDMI-compatible: 1 HDMI-compatible output
- LED: 4 LEDs
- KEY: 4 KEYs
- FMC-LPC: 72 single-ended / 36 differential pairs
- Voltage / Current: 12V/1A
- Board Form Factors: 120 x 95mm
- Technology: black matte, immersion gold process
- 40Pin Expansion Port: total 32 single-ended/16 pairs of differential (PL side); reserve one 40-pin 2.54mm space expansion port, to connect other modules (AD/DA, camera, LCD); expansion port including 5V power supply, 3.3V power supply, 6 Ground, 32 IOs.

Package Included:
- 1 x Development Board
- 1 x 12V/1A Power Adapter
- 1 x Heat Sink
- 1 x 8GB SD Card
- 1 x SD Card Reader
- 2 x USB Cable
