PZ7045F-FH-KFB FPGA Development Board PSOC7000 FMQL45T900 350K Logic Cells 1GB+1GB DDR3 FMC PCIe
$2,288.57 - $2,793.43
Imposte incluse.
Spese di spedizione calcolate al check-out.
Prezzo di listino
$2,288.57
Prezzo di listino
Prezzo scontato
$2,288.57
Prezzo unitario
per
Impossibile caricare la disponibilità di ritiro
Availability:
2000 disponibile/i
SKU:
105508
Tags:
Collections:
Prezzo di listino
$2,288.57
Prezzo di listino
Prezzo scontato
$2,288.57
Available Kit Options:
* Development Board Only
* ADDA Kit
* Binocular Camera Kit
* LCD Kit
* SSD Kit
* High-Speed ADC Kit
* Classic Kit
* Deluxe Kit
Features:
* Fudan Micro PSOC7000 Development Board
* Architecture for ARM+FPGA
* PCIE/SFP/SATA Interfaces
* FMC-HPC IO Fully Connected
* Rich Tutorials and Technical Support
More Information:
* Processor Architecture: For ARM + FPGA, FPGA
* Expansion Slot Types: MicroSD, PCIe, USB Type-C, USB, and GPIO
* Operating System Support: Linux
* Typical Applications: Embedded Hardware, IoT, Energy & Environment, 51 MCU Learning, and Consumer Electronics
* Network Interface Configuration: RS485, UART, I/O, Type-C, and USB 2.0
* Compatible Expansion Module: 1 Module
Packing List (Varies by Selected Kit):
Development Board Only:
* 1 x PZ7045F-FH-KFB Development Board
* 1 x 12V/3A Power Adapter
* 1 x Micro USB Cable
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x Downloader
* 1 x ARM Emulator

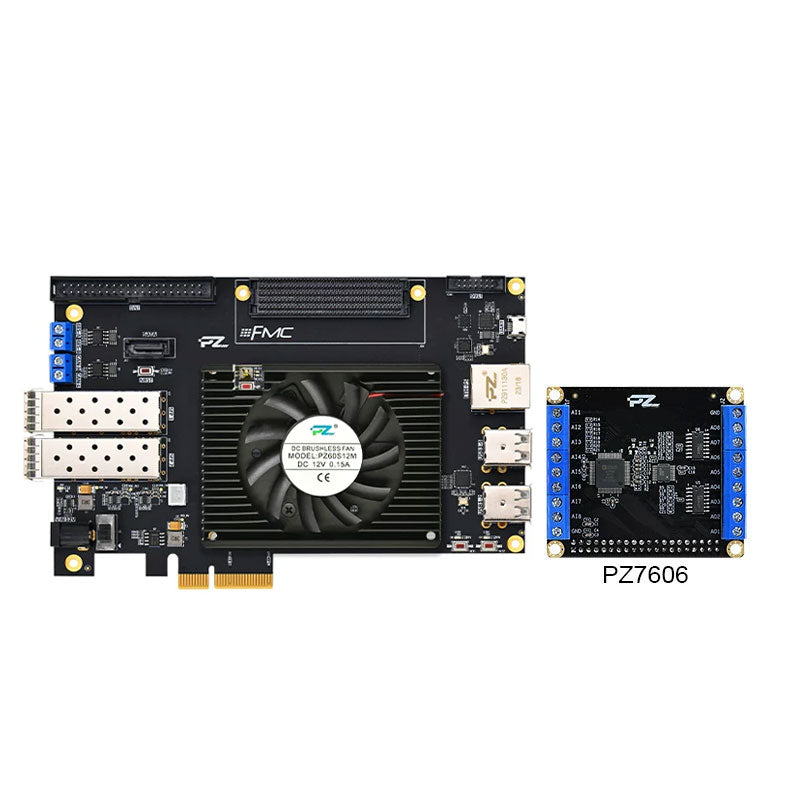

ADDA Kit:
* 1 x PZ7045F-FH-KFB Development Board
* 1 x 12V/3A Power Adapter
* 1 x Micro USB Cable
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x Downloader
* 1 x ARM Emulator
* 1 x PZ7606 AD7606 8CH 200KSPS ADC Module

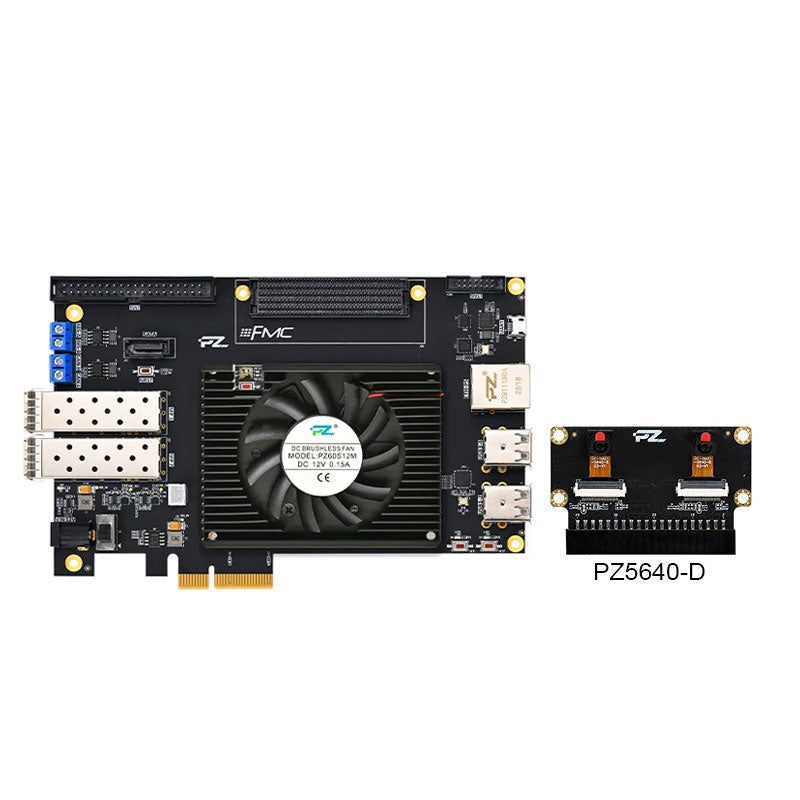

Binocular Camera Kit:
* 1 x PZ7045F-FH-KFB Development Board
* 1 x 12V/3A Power Adapter
* 1 x Micro USB Cable
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x Downloader
* 1 x ARM Emulator
* 1 x PZ5640-D OV5640 5MP Binocular Camera

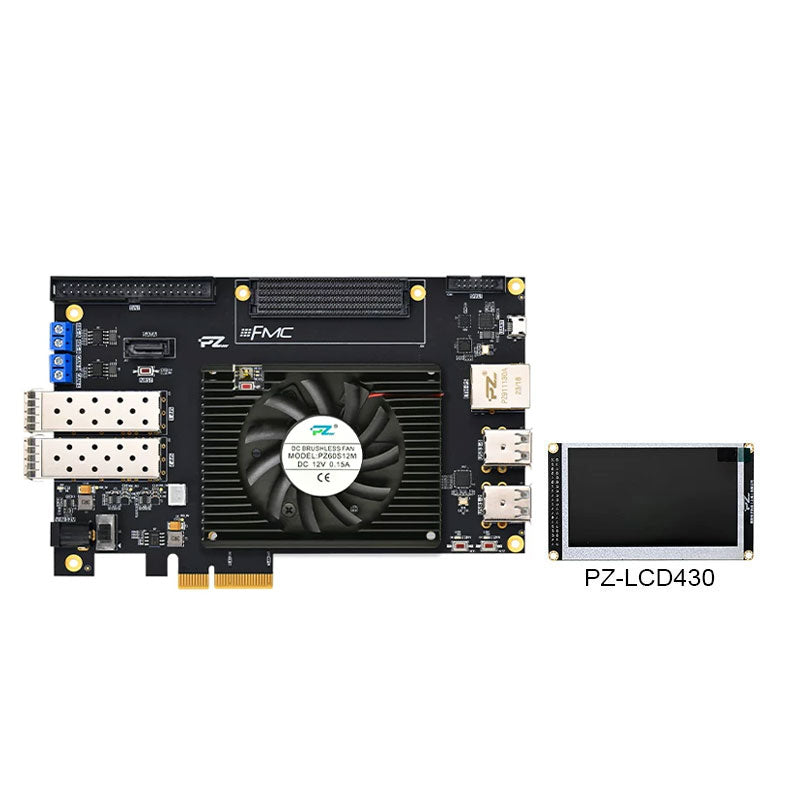

LCD Kit:
* 1 x PZ7045F-FH-KFB Development Board
* 1 x 12V/3A Power Adapter
* 1 x Micro USB Cable
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x Downloader
* 1 x ARM Emulator
* 1 x PZ-LCD430 4.3-Inch TFT LCD Display

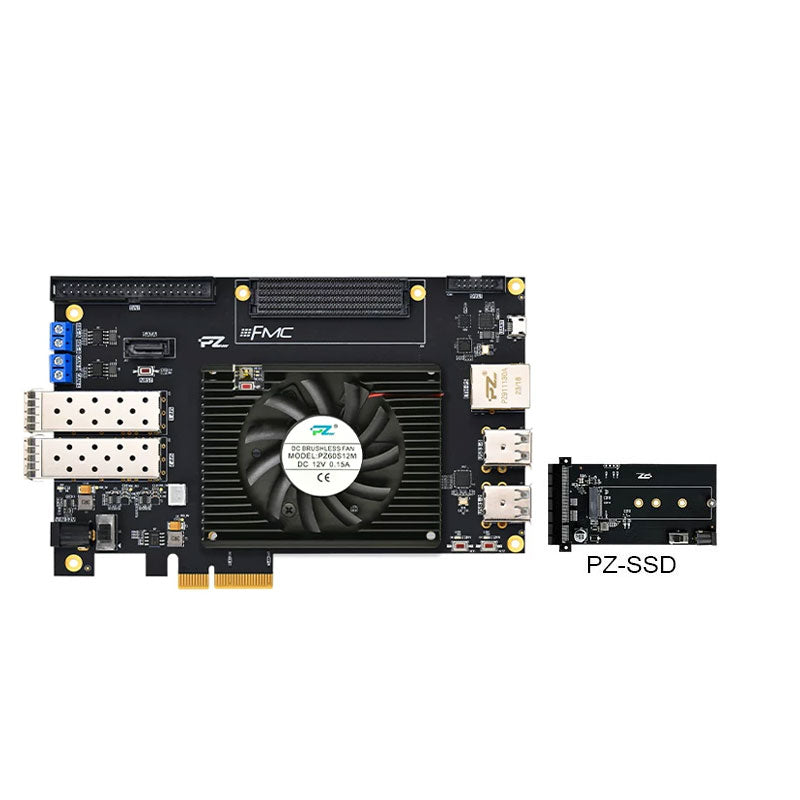

SSD Kit:
* 1 x PZ7045F-FH-KFB Development Board
* 1 x 12V/3A Power Adapter
* 1 x Micro USB Cable
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x Downloader
* 1 x ARM Emulator
* 1 x PZ-SSD M.2 NVMe SSD Adapter Card

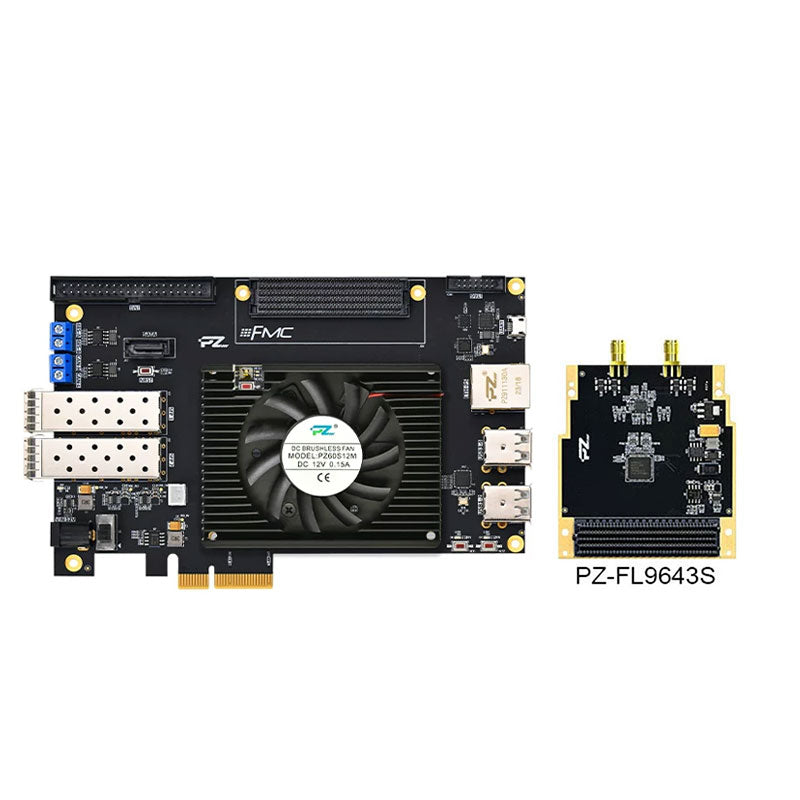

High-Speed ADC Kit:
* 1 x PZ7045F-FH-KFB Development Board
* 1 x 12V/3A Power Adapter
* 1 x Micro USB Cable
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x Downloader
* 1 x ARM Emulator
* 1 x PZ-FL9643S AD9643 2CH 250MSPS ADC

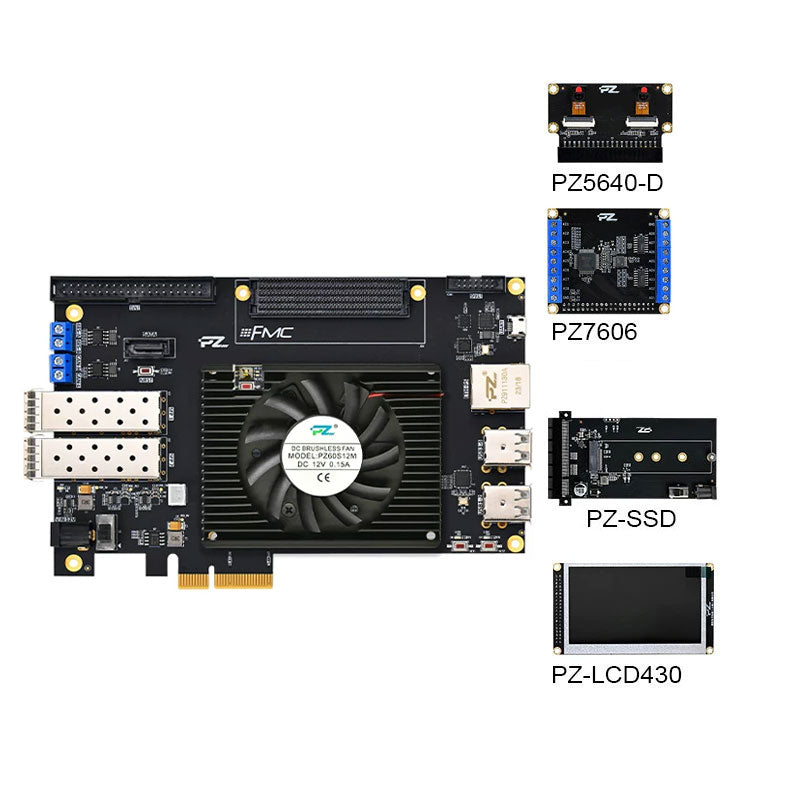

Classic Kit:
* 1 x PZ7045F-FH-KFB Development Board
* 1 x 12V/3A Power Adapter
* 1 x Micro USB Cable
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x Downloader
* 1 x ARM Emulator
* 1 x PZ5640-D OV5640 5MP Binocular Camera
* 1 x PZ7606 AD7606 8CH 200KSPS ADC Module
* 1 x PZ-LCD430 4.3-Inch TFT LCD Display
* 1 x PZ-SSD M.2 NVMe SSD Adapter Card

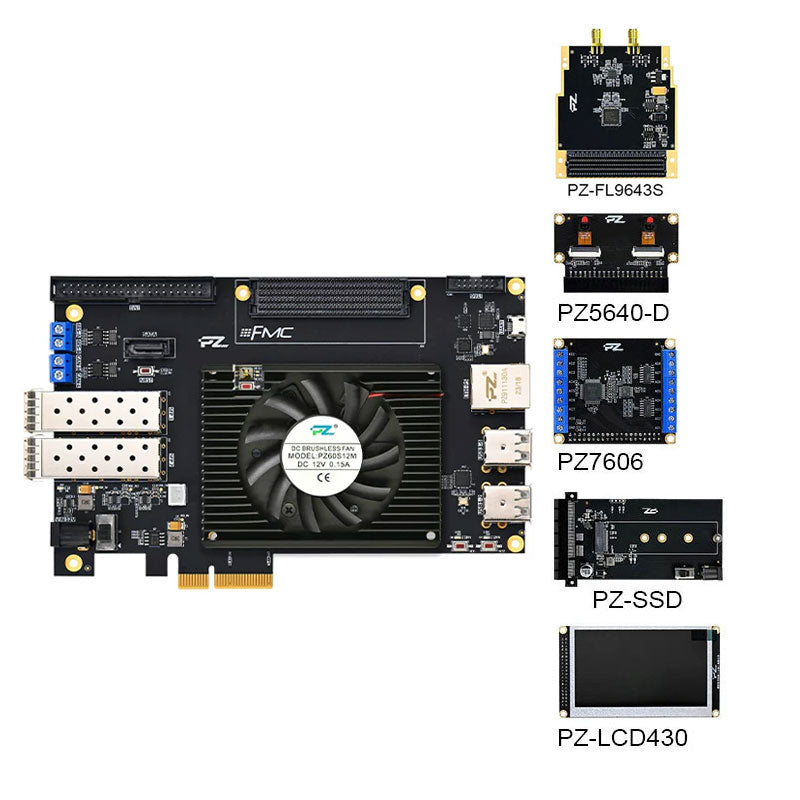

Deluxe Kit:
* 1 x PZ7045F-FH-KFB Development Board
* 1 x 12V/3A Power Adapter
* 1 x Micro USB Cable
* 1 x Heatsink (with fan)
* 1 x 32G SD Card
* 1 x SD Card Reader
* 1 x Downloader
* 1 x ARM Emulator
* 1 x PZ5640-D OV5640 5MP Binocular Camera
* 1 x PZ7606 AD7606 8CH 200KSPS ADC Module
* 1 x PZ-FL9643S AD9643 2CH 250MSPS ADC
* 1 x PZ-LCD430 4.3-Inch TFT LCD Display
* 1 x PZ-SSD M.2 NVMe SSD Adapter Card
Package Weight:
* Development Board Only: 0.7kg
* ADDA Kit: 0.8kg
* Binocular Camera Kit: 0.8kg
* LCD Kit: 0.8kg
* SSD Kit: 0.8kg
* High-Speed ADC Kit: 0.8kg
* Classic Kit: 1kg
* Deluxe Kit: 1kg
