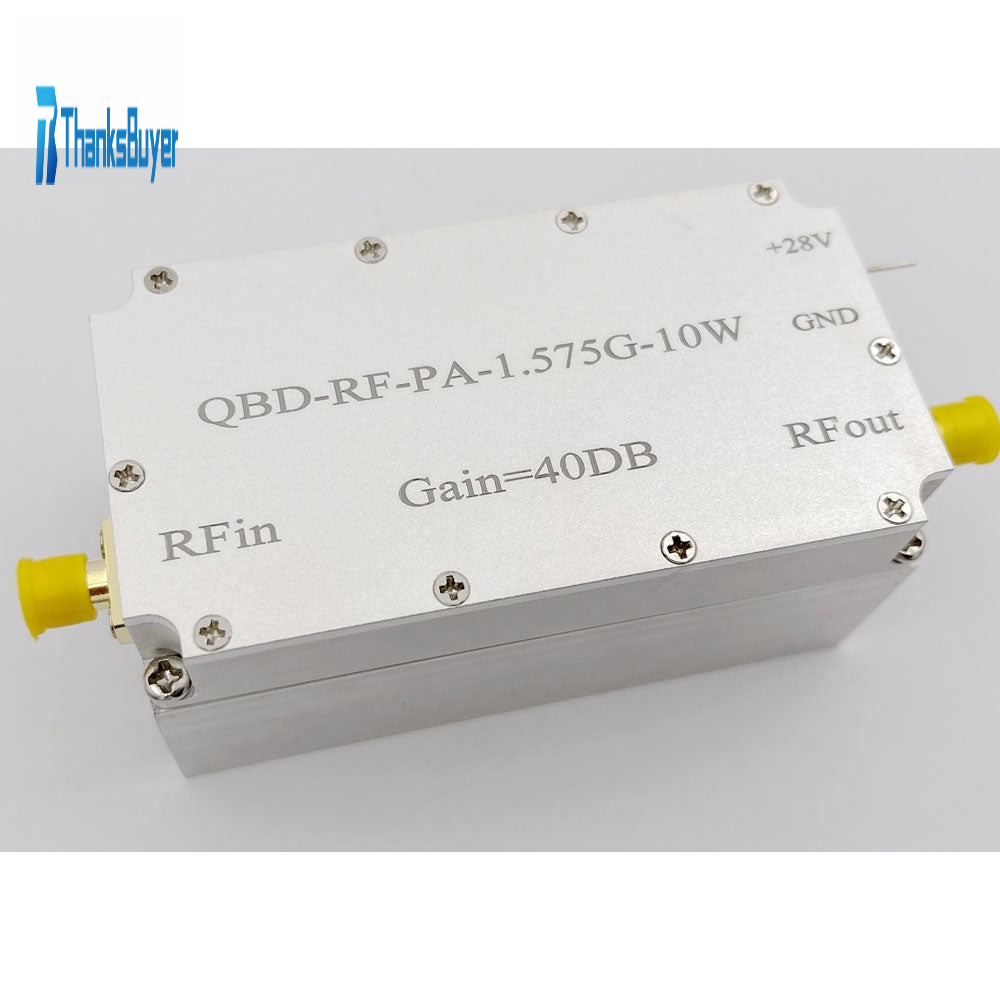

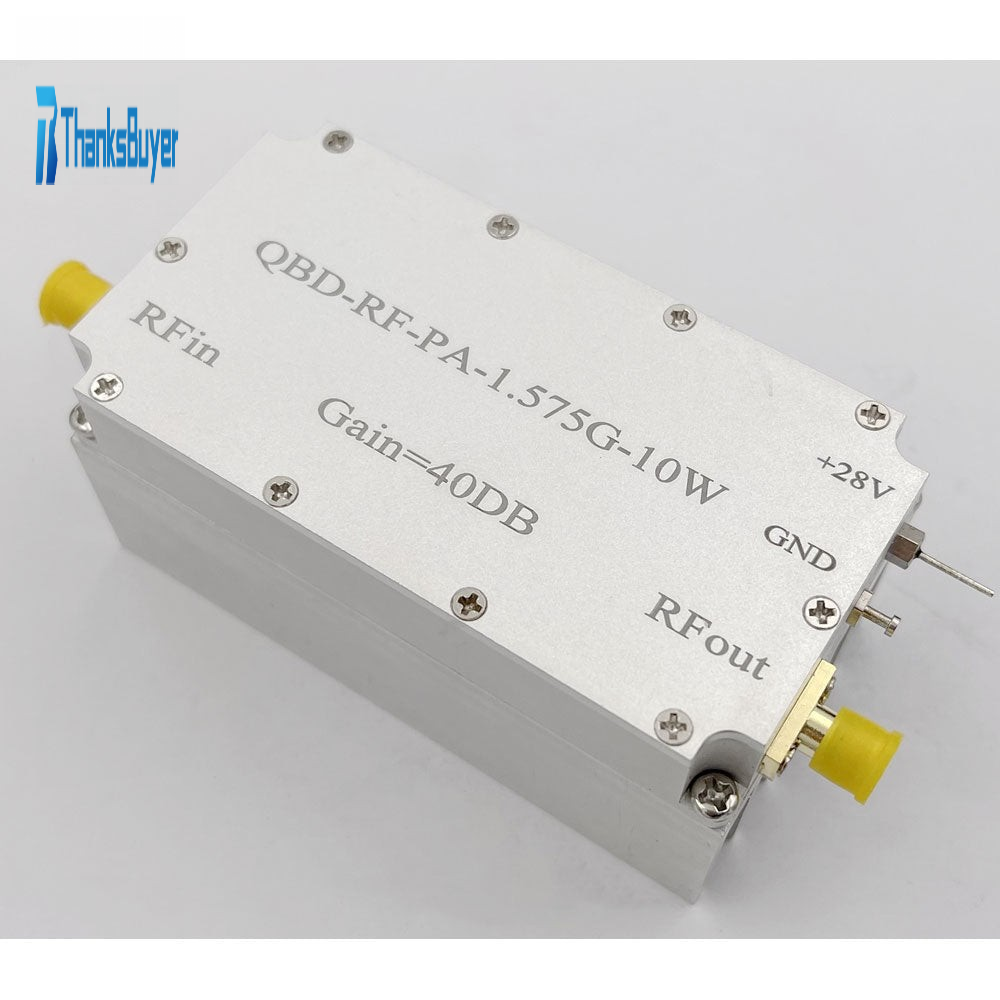

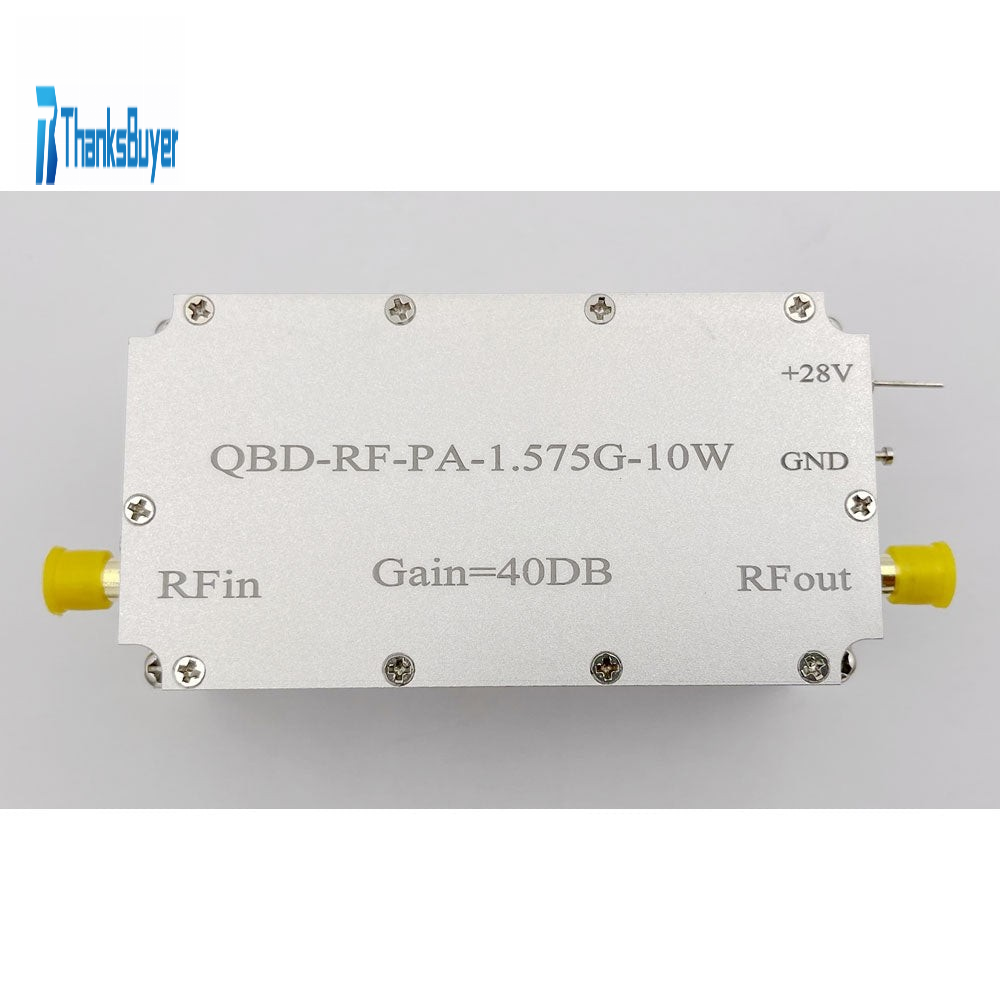

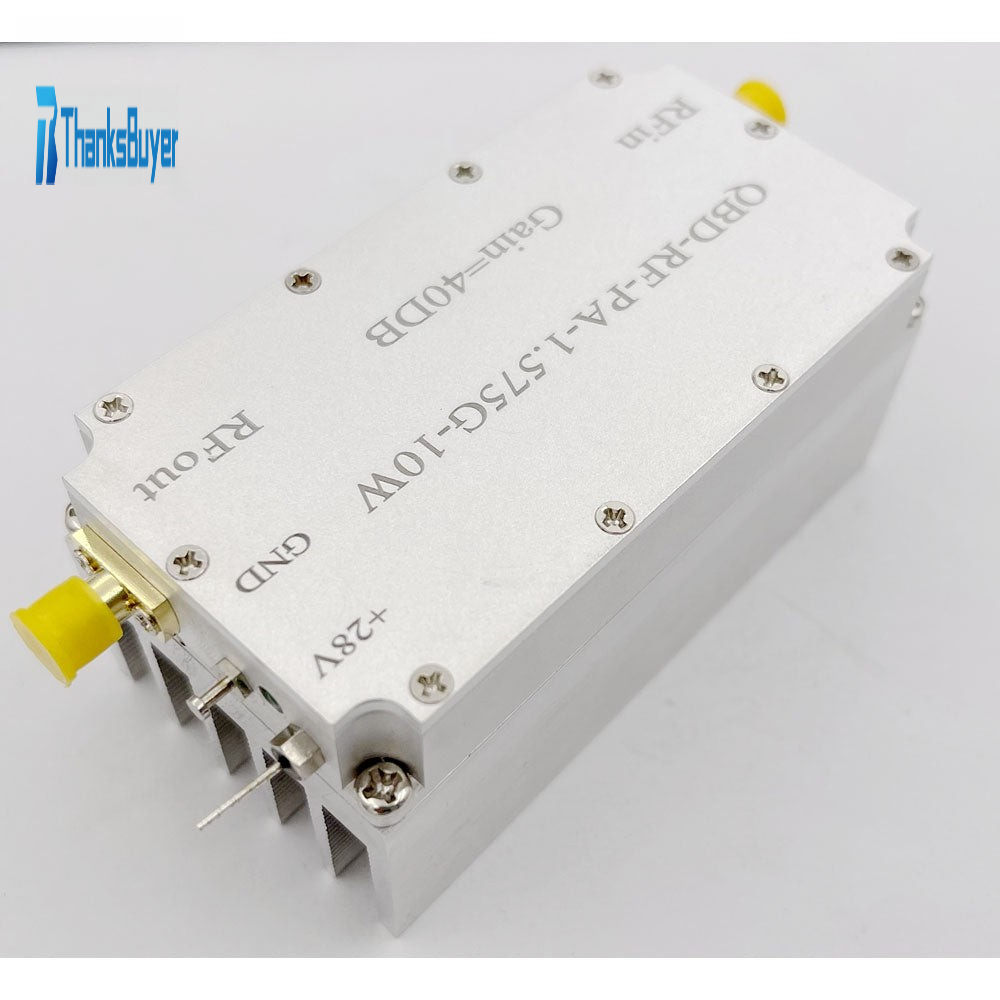

QBD-RF-PA 1.5-1.6G 10W RF Power Amplifier RF Power Amp Module with Heat Sink for GPS Beidou
Specifications:
1. Frequency range: 1.5-1.6GHz
2. Input and output interface: 50 ohm, SMA female connector
3. Power supply: +28V (1A)
4. Maximum output power: 40dBm (10W)
5. Gain: 40DB
6. Maximum signal amplitude of input: 0dBm
7. Size: 85 x 45 x 41mm/3.3 x 1.8 x 1.6" (excluding SMA connectors and power supply feed-through capacitor)
8. Weight: 250g/0.6lb
Package Included:
- 1 x RF Power Amplifier
Specifications:
1. Frequency range: 1.5-1.6GHz
2. Input and output interface: 50 ohm, SMA female connector
3. Power supply: +28V (1A)
4. Maximum output power: 40dBm (10W)
5. Gain: 40DB
6. Maximum signal amplitude of input: 0dBm
7. Size: 85 x 45 x 41mm/3.3 x 1.8 x 1.6" (excluding SMA connectors and power supply feed-through capacitor)
8. Weight: 250g/0.6lb
Package Included:
- 1 x RF Power Amplifier
