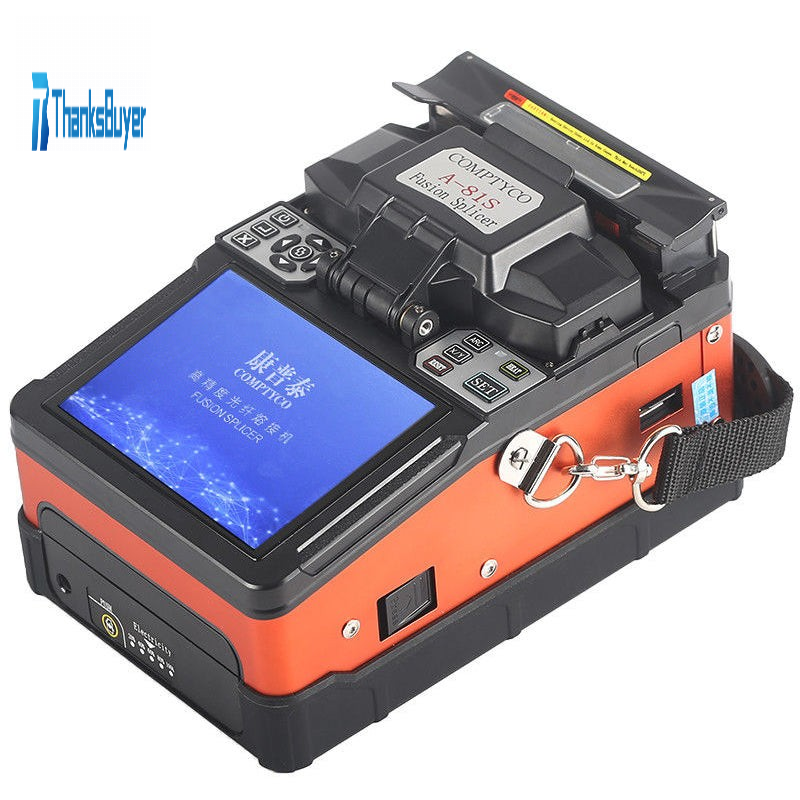

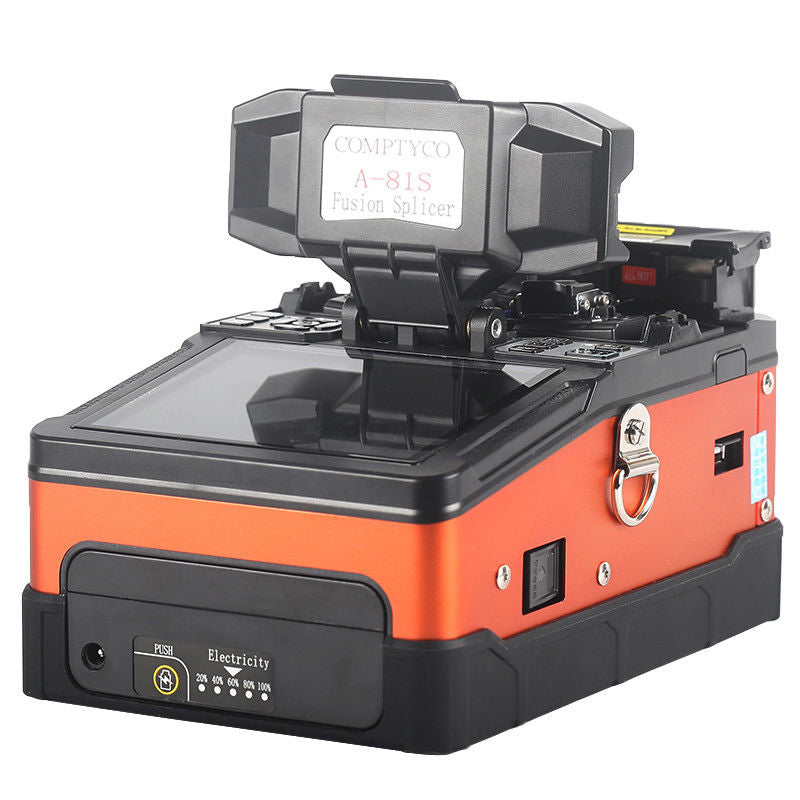

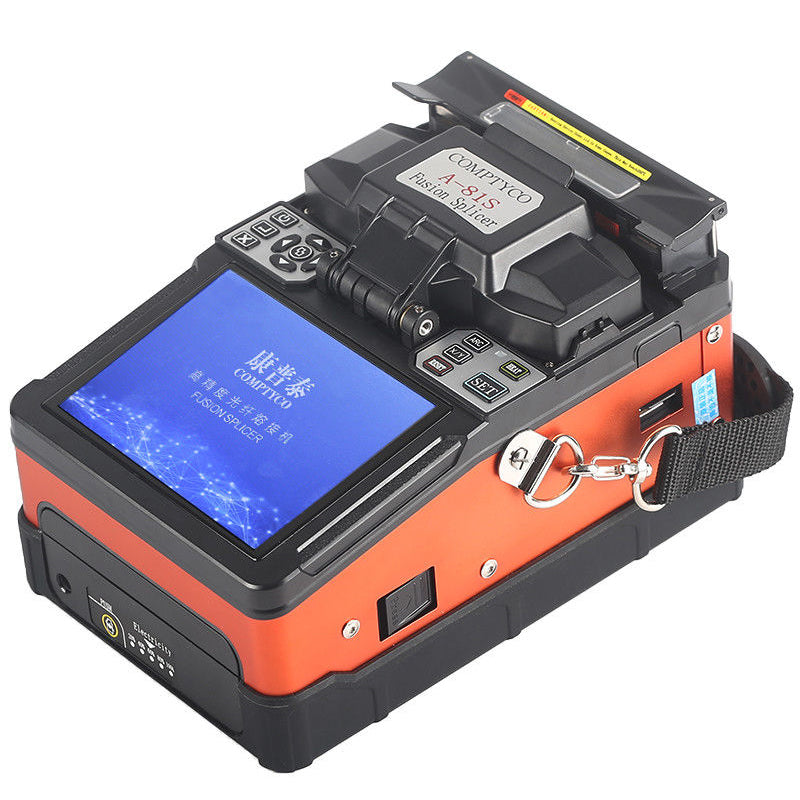

SM&MM Automatic Fusion Splicer Machine Fiber Cleaver Kit A-81S Orange

SM&MM Automatic Fusion Splicer Machine Fiber Cleaver Kit A-81S Orange

Features:
- A-81S optical fiber welding machine.
- Chinese and English bilingual switch, manual in English.
- Demolition of three-in-one universal fixture (pigtail, bare fiber, leather line).
- Core alignment, 7-9 seconds welding, 9-26 seconds heating (heating time can be set, the heating temperature can be adjusted).

Specifications:
- Fiber alignment: Precise alignment/cladding alignment / fiber core alignment
- Splicing time: 9S
- Heating time: 26S (configurable heating time and adjustable heating temperature)
- Applicable Fibers:    SM (G.652&G.657), MM (G.651), DS (G.653), NZDS(G.655)and self-defined optical fiber types
- Splice Loss: 0.02dB（SM）、0.01dB（MM） 0.04dB（DS/NZDS）
- Return loss: Better than 60DB
- Fiber diameter:
  Cladding Diameter: 80-150μm
  Coating Diameter: 100-1000μm
- Fiber Cleave Length:
  Coating less than 250μm:8-16mm
  Coating less than 250-1000μm:16mm
- Tension Test: Standard 2N
- Fiber holders: 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
- Magnification: 300 for X or Y view
- Screen: 5 inch TFT color display
- Heat shrink bush: 60mm/40mm and series of miniature bush
- Splicing loss storage: 5000 latest splicing results are stored in the built-in storage
- Rechargeable type, charging time ≤ 3.5 hours, continuous splicing and heating about 200 times
- Power supply: Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery power
- Operating Conditions:
  Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation)
  Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s
- Weight: 1906g
- Size: 205mm*140*123*
