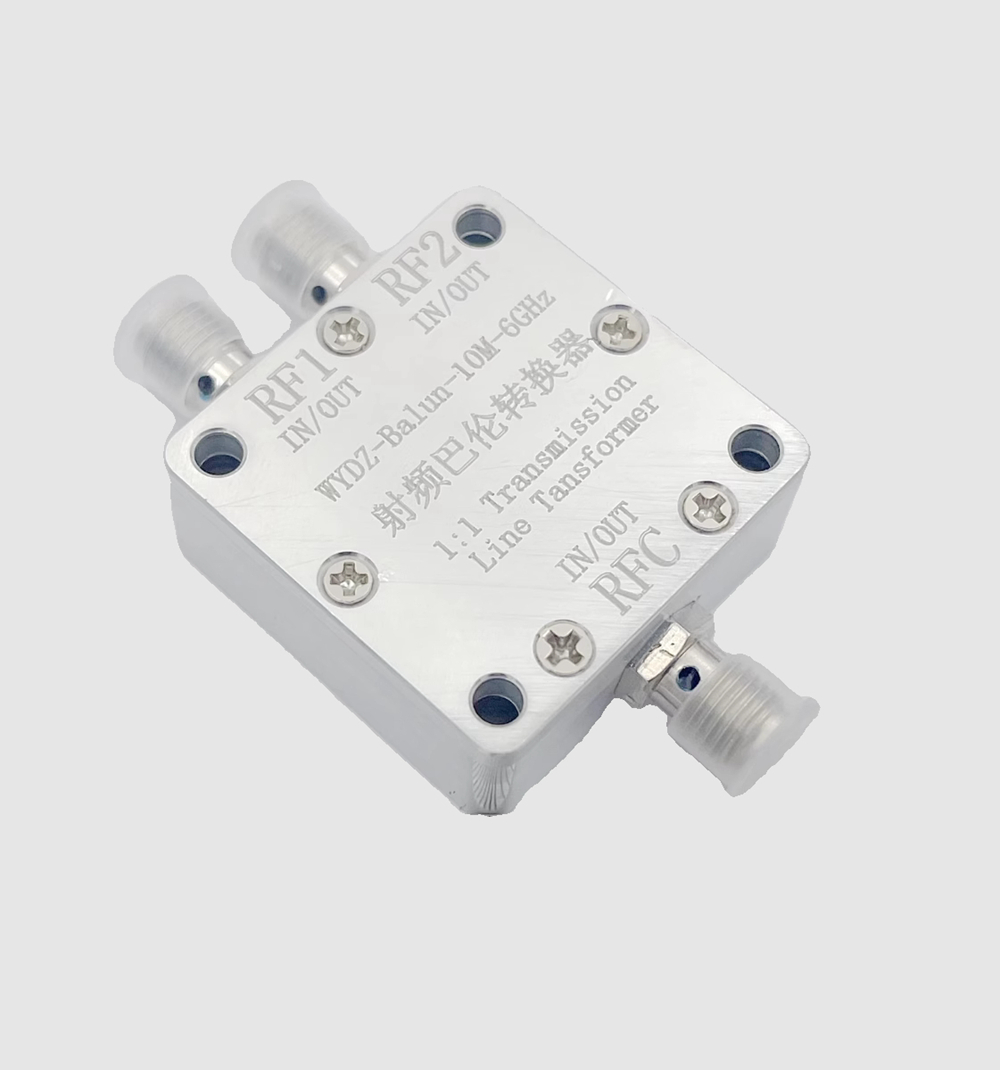

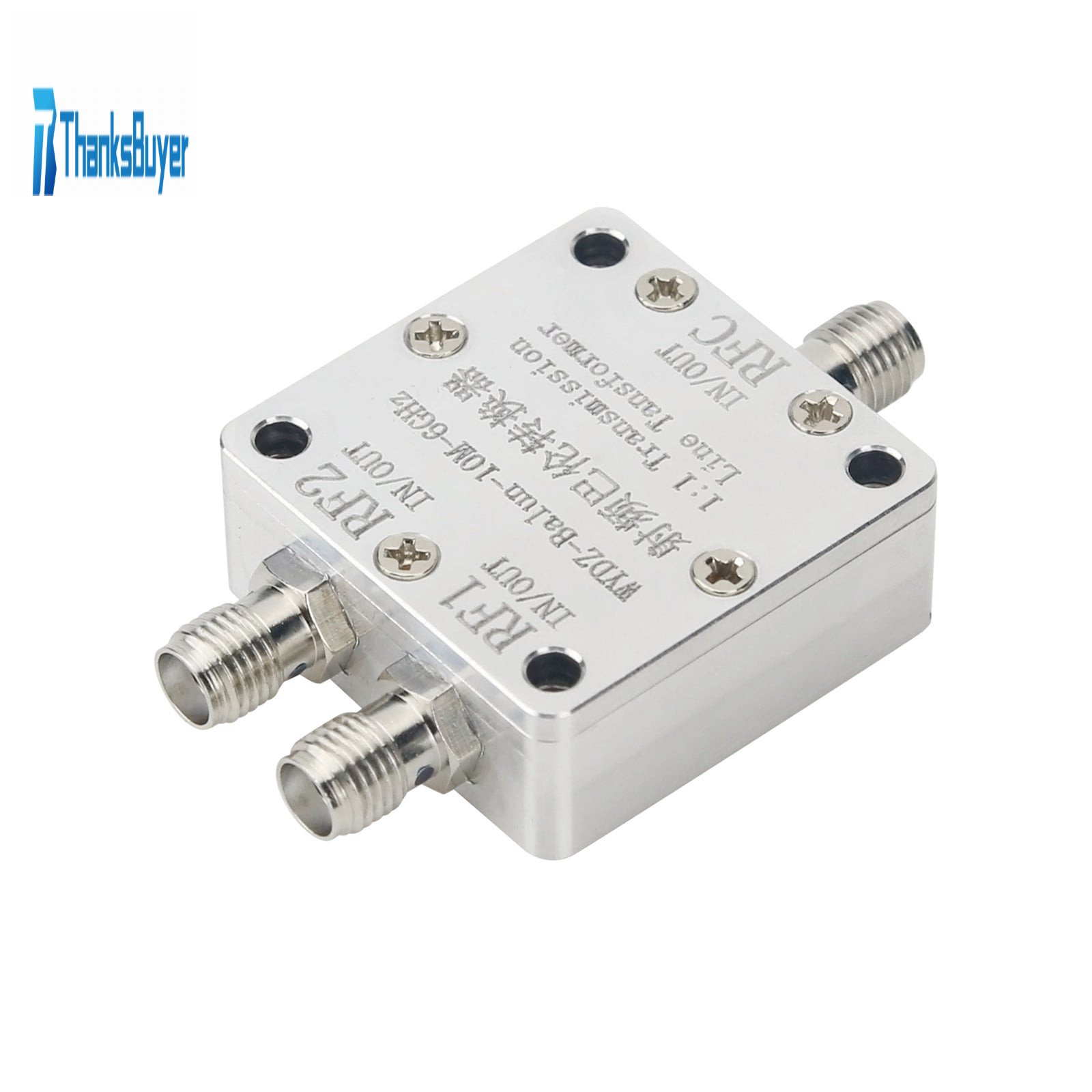

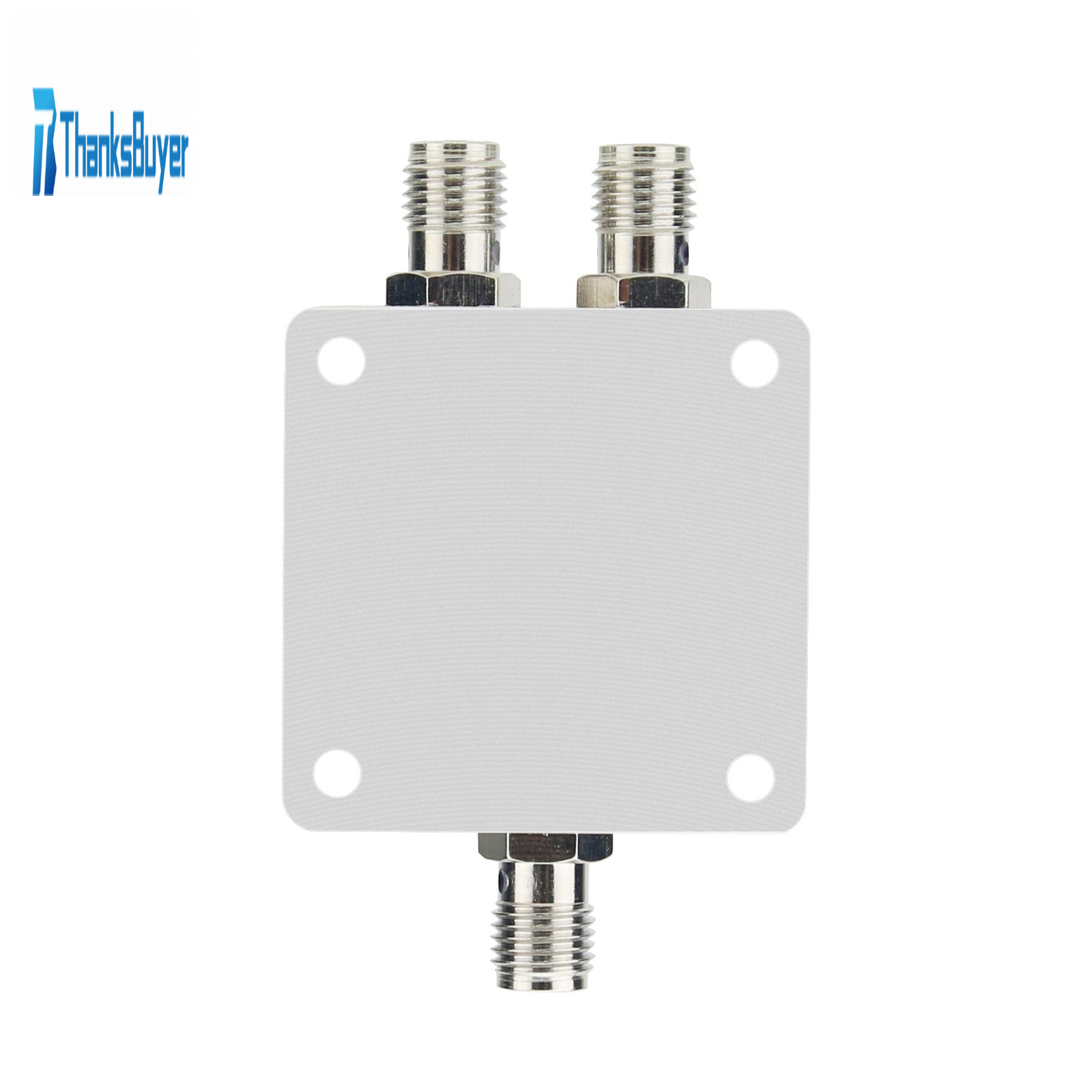

WYDZ-Balun-10M-6GHz 1:1 Transmission Line Transformer Supports Clock Sine Wave and Square Wave
Module Functions:
- Single-ended signal to differential signal
- Differential signal to single-ended signal
Module Parameters:
- Maximum input power of the module: 30dBm (1W)
- Module input and output impedance: 50Ω
- Frequency range: 10MHz to 6GHz

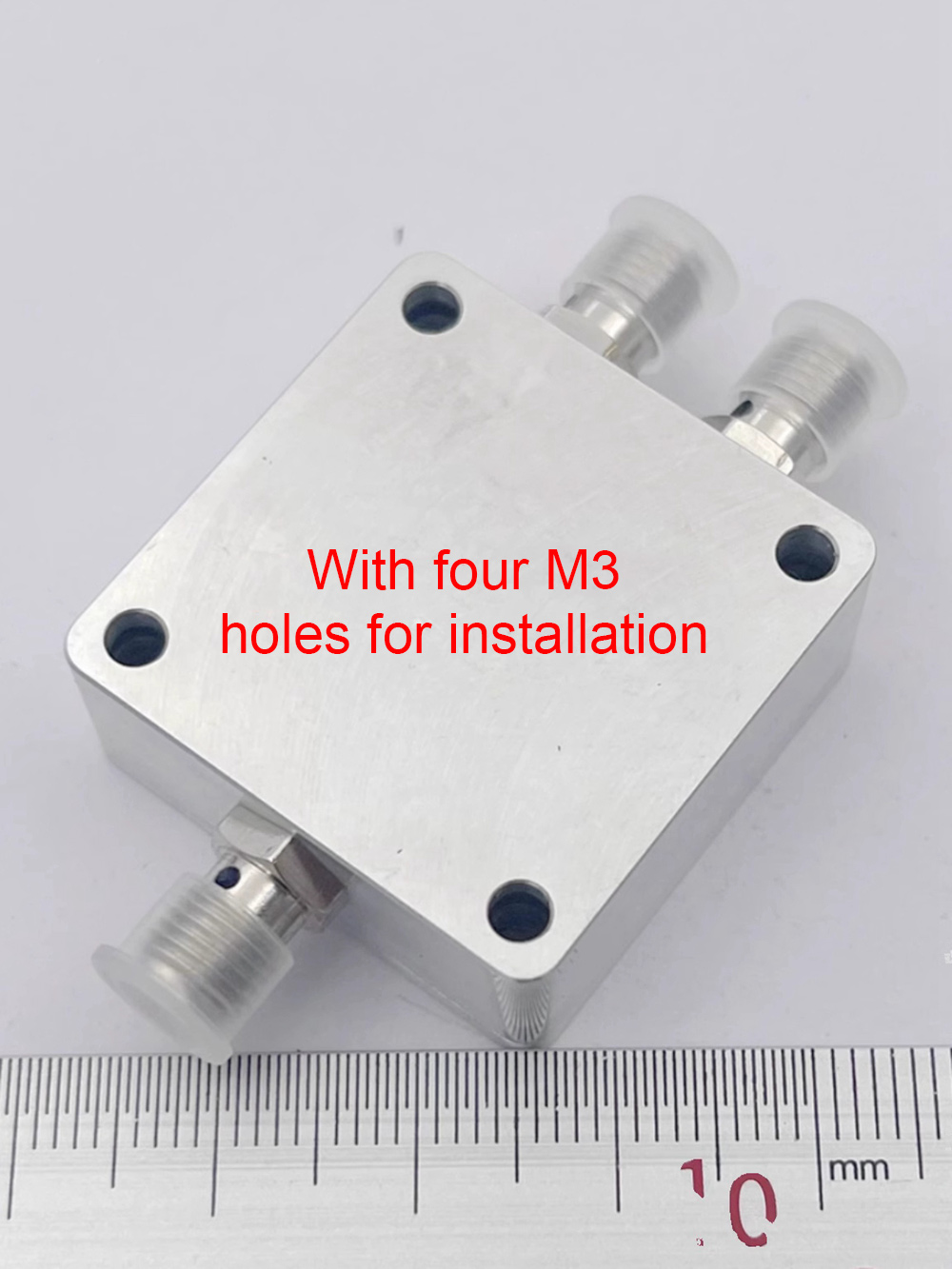

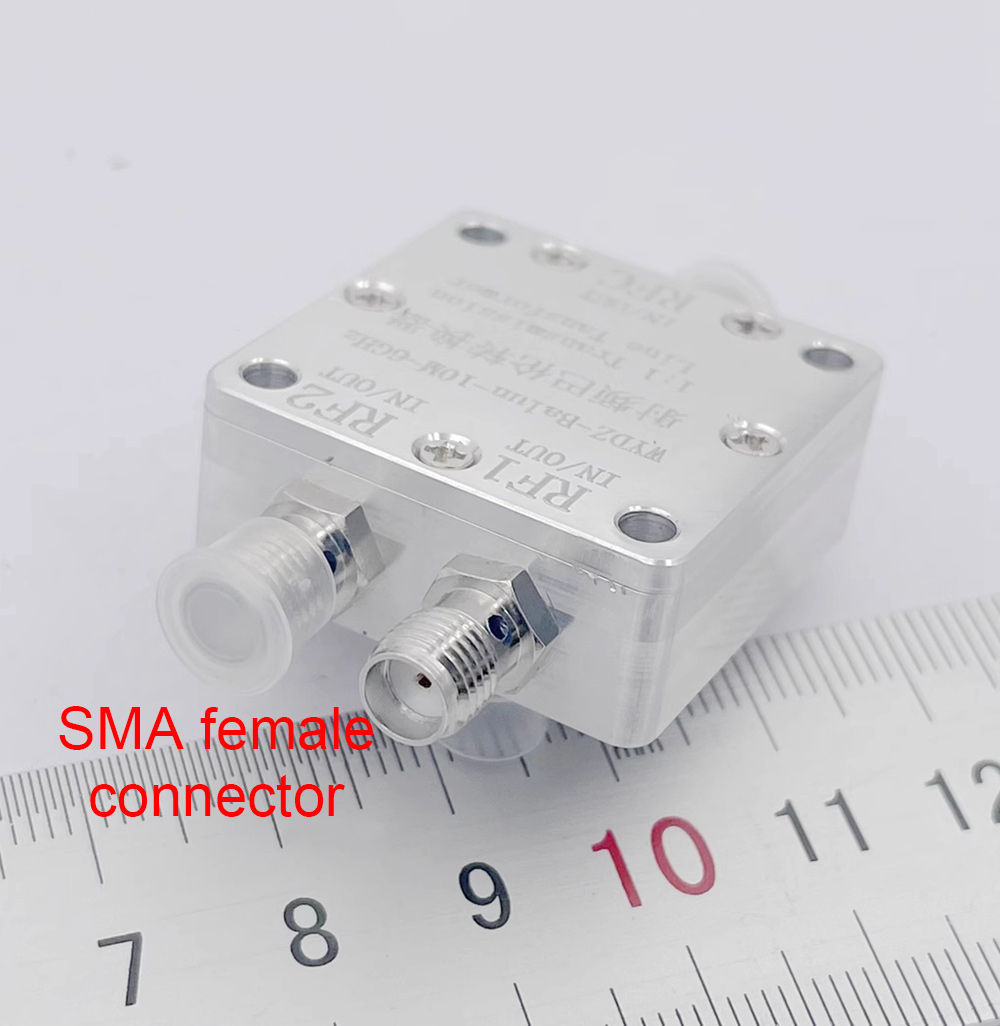

- Input and output connectors of the module: SMA female connectors

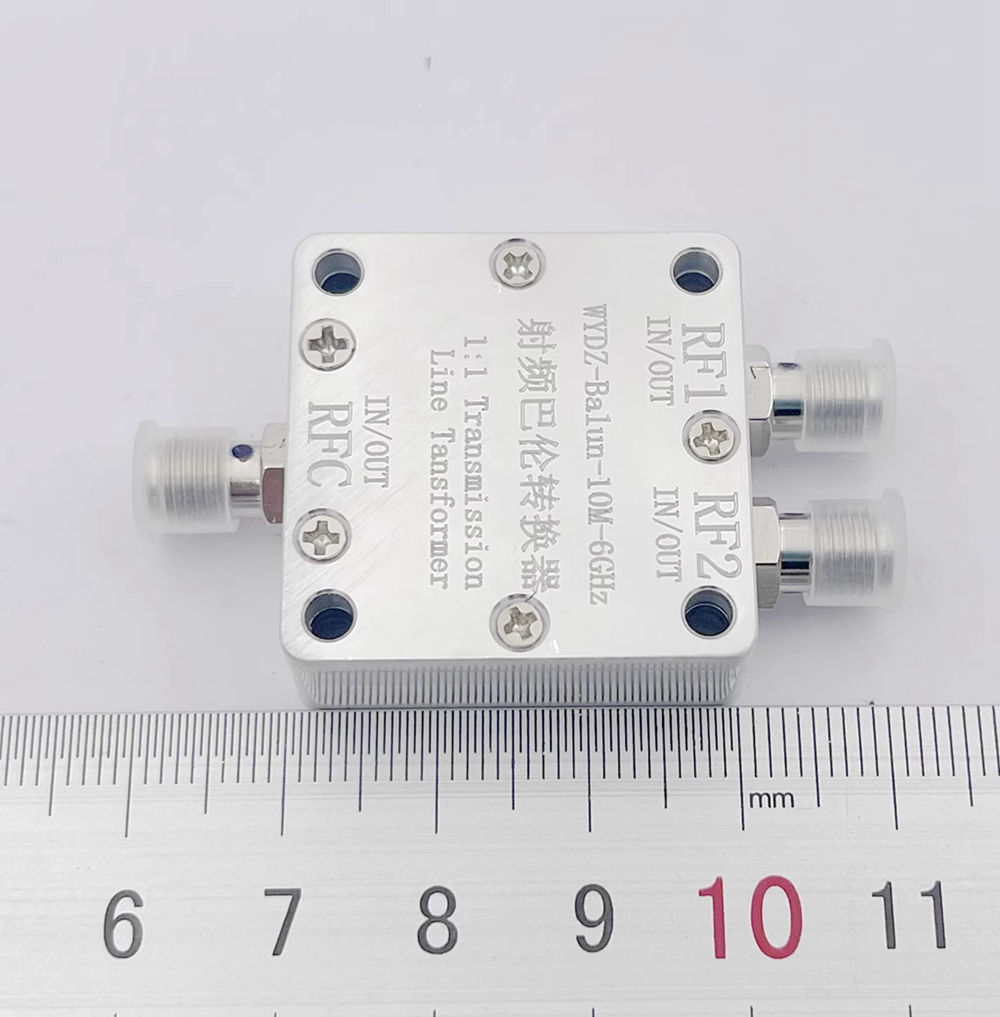

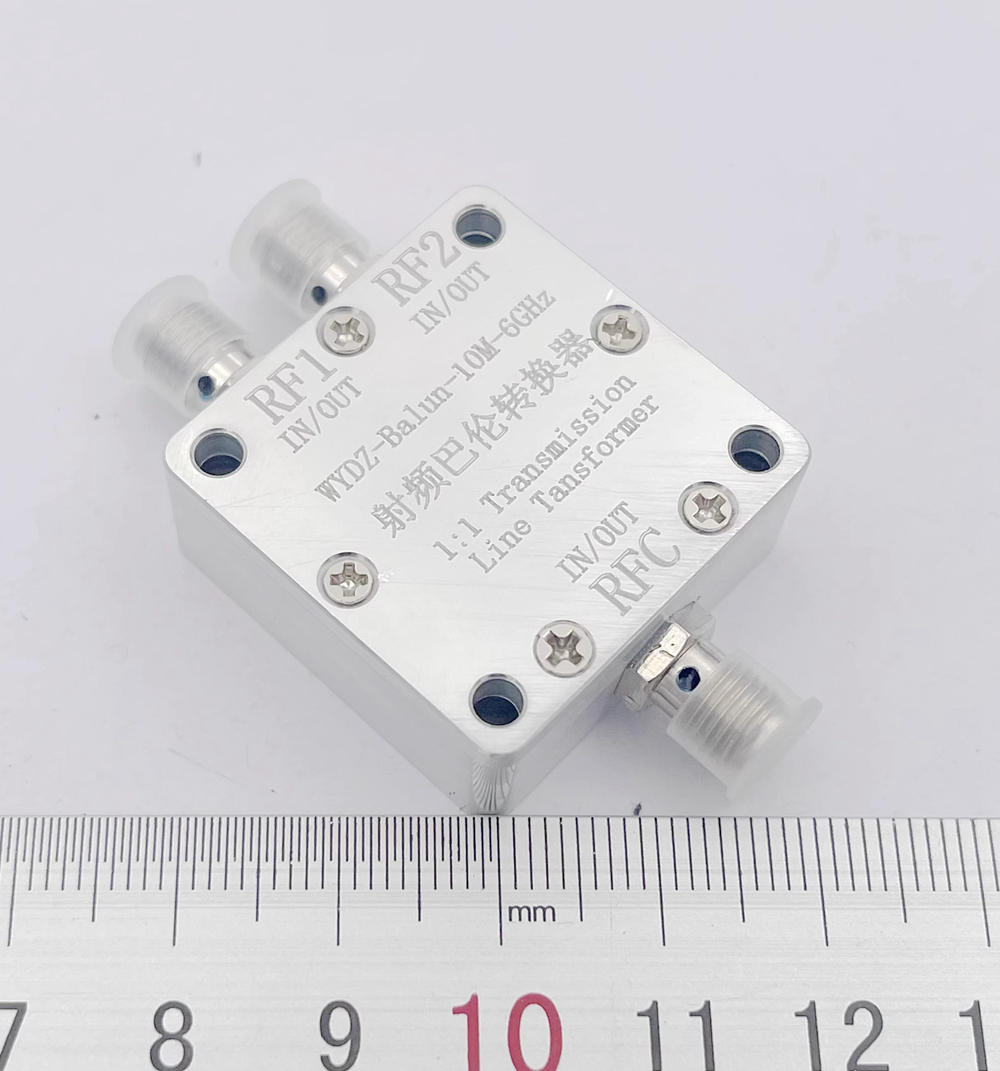

- Module dimensions: 30 x 30 x 12mm/1.2 x 1.2 x 0.5" (excluding connectors)
- Module operating temperature: -25°C to +85°C
- Storage temperature: -55°C to +100°C
Package Included:
- 1 x Transmission Line Transformer
Packaging Details:
- G.W.: 0.15kg

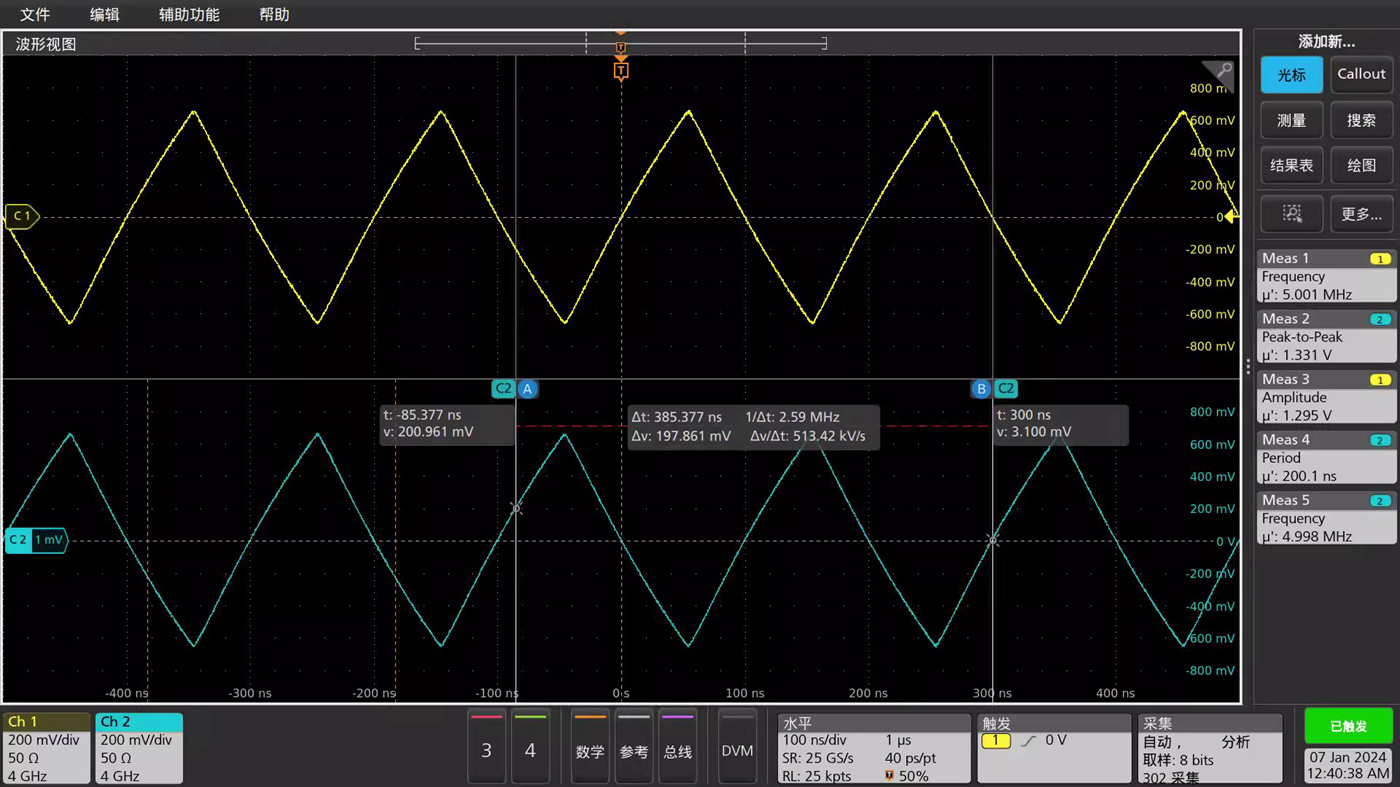

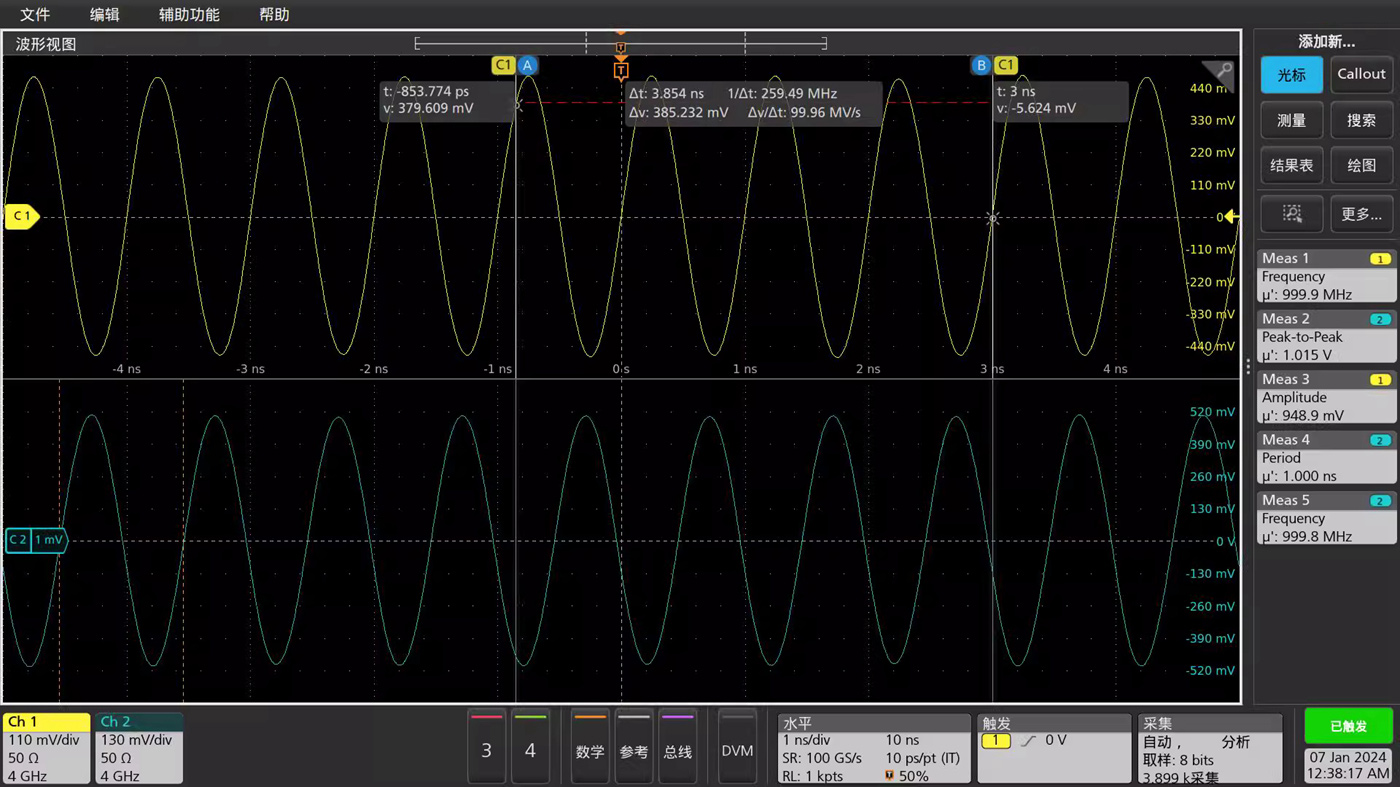

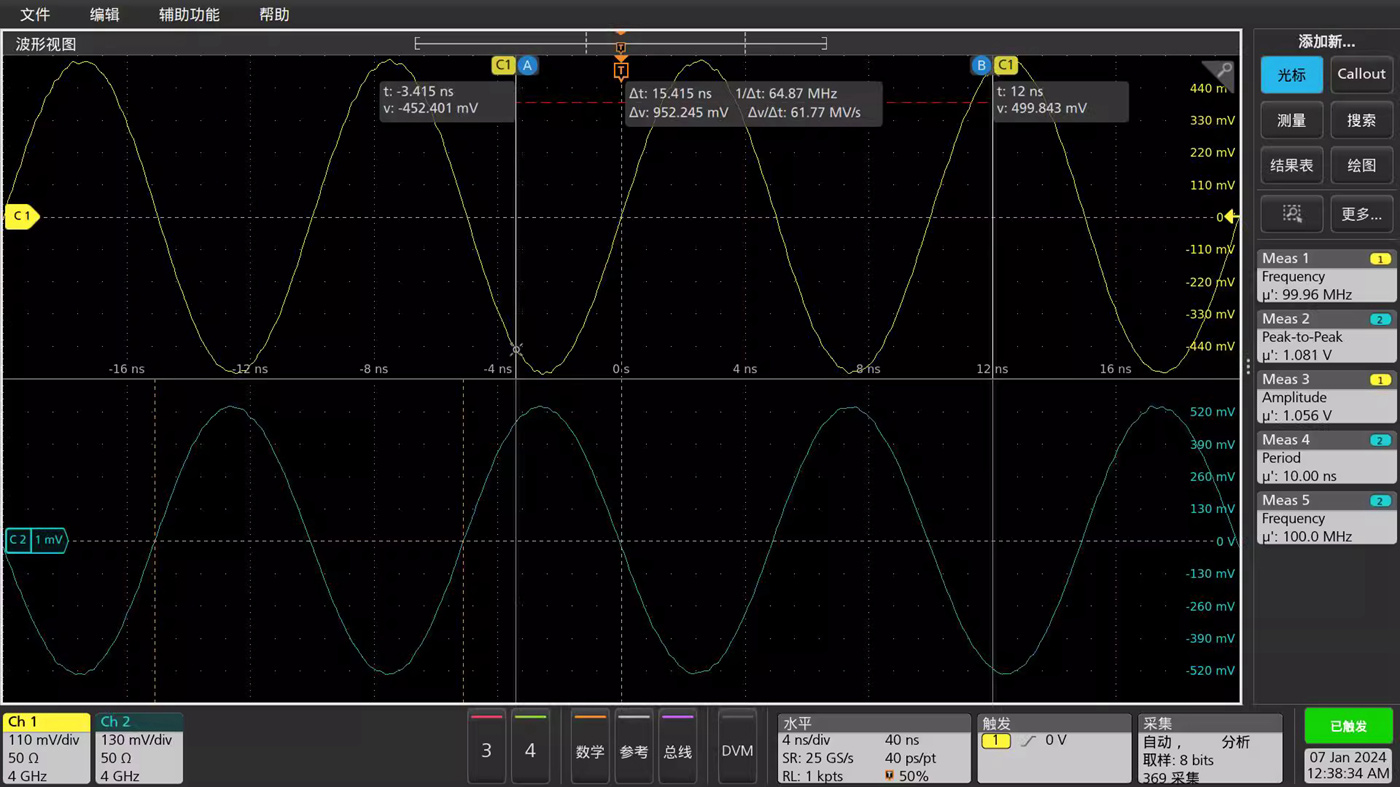

Measured Time-domain Waveform:
