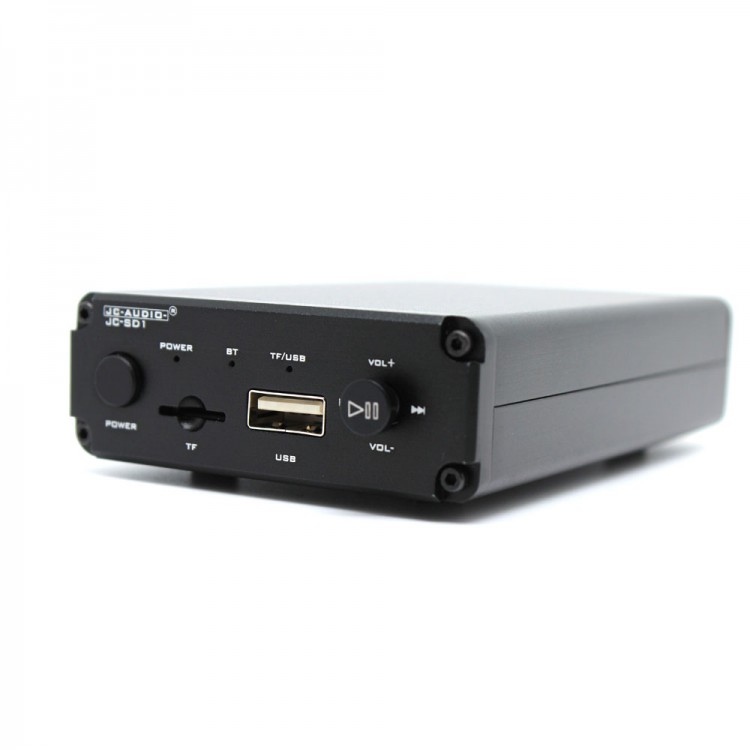

JC-AUDIO JC-SD1 Headphone Amplifier DAC Decoder Supports Bluetooth/TF Card/U Disk For APE/WAV/WMA
Description:
JC-SD1 decoder adopts ATS2825 solution for Actions, Bluetooth 5.0, and supports TF card/U disk decoding. TF card/U disk file formats include WAV+CUE/WMA+CUE/FLAC+CUE/APE+CUE/MP3/MP2.
Support FAT16/FAT32 system files. Support APP software control for IOS system and APP software control for Android system. APP software can operate the audio source of your device (select U disk/Bluetooth), read local playlists and support free selection of songs to play. Compared with traditional physical buttons, selecting songs is much more convenient.
JC-SD1 decoder uses PCM5101A decoder chip as analog audio output. The Bluetooth module is connected with the IIS digital signal, and the digital signal is transmitted and decoded to ensure the sound quality.
JC-SD1 decoder uses high-quality components, all chip capacitors use original capacitors for Samsung, plug-in capacitors use audio dedicated capacitors for Panasonic, and solid capacitors for Foxconn (the plug-in capacitors will be upgraded without notice. Subject to the actual product received).
The decoder supports wireless Bluetooth audio push, supports TF card/U disk local music file decoding, and automatically switches between Bluetooth/TF card/U disk modes. During Bluetooth playing, it will automatically switch to TF card mode after inserting a TF card. When the TF card is playing, it will switch to the U disk mode when the U disk is inserted. The above is mechanical automatic switching. The menu of the mobile APP supports software switching, that is, when the Bluetooth connection is connected, the TF card is also plugged in, and the U disk is also plugged in, the Bluetooth mode or U disk playback mode can be selected in the mobile APP. It is very simple and convenient to use.
JC-SD1 decoder supports wide voltage DC 5V(2A)-4V. If using DC 5V, the power must be more than 2A, and when 12V-24V, the power must be more than 1A.
The neat structure design of JC-SD1 consists of a main board and an operation panel, which are connected by a flexible cable, making full use of the shell space, minimizing the product, and combining powerful functions. Less than a palm-sized size, integrated Bluetooth function, TF card function, U disk function, decoding function, headphone amplifier function. The op amp plug-in design makes it easy to replace different op amps and monitor different styles. SD1 op amp adopts ±15V power supply, audiophile-level op amp circuit, providing a perfect experience. SD1 adopts 5532 op amp by default, which can be upgraded can upgrade by users.
APP Software Control Interface:
In the playlist interface, click the corresponding music folder to expand the list of songs in the folder, and you can freely select songs. When playing the interface, you can operate to play, pause, adjust the volume, choose previous song and next song. It cannot fast forward or rewind. In the menu interface, you can choose Bluetooth playing or U disk playing.
Bluetooth Connection:
When your mobile phone turns on Bluetooth and searches for name JC-AUDIO-SD1, click the name to automatically connect to Bluetooth. JC-AUDIO-SD1-ble does not have Bluetooth audio. Please not click the name to connect.
Package Included:
- 1 x Bluetooth Antenna
- 1 x JC-SD1 Host
- 1 x Original Power Supply 12V 5A
- 1 x Copper Cord
