JDS2022A Bandwidth 20M 200MSa Dual Channel Digital Pocket Handheld Oscilloscope

Availability: In stock, usually dispatched in 1 business day

Price:$181.79
Price in reward points: 1818 Reward Points: 18

Quantity	3+ units	10+ units	30+ units	50+ units	More
Price /Unit	$178.15	$174.52	$169.06	$161.79	Contact US

Product details
Reviews (0)

JDS2022A Bandwidth 20M 200MSa Dual Channel Digital Pocket Handheld Oscilloscope

Description:

- JDS2022A handheld oscilloscope is a portable device developed and produced by JH company. This product is compact, portable, and flexible operation; Using color TFTLCD and pop-up menus to display; to achieve its ease of use, greatly improving the user productivity.

- In addition,this product has superior performance and it is powerful, affordable, high cost.The real-time sampling rate can be as high as 200MSa/S,can meet the market demand of complex signals and cacquisition speed;Support for USB storage devices, users can upgrade via USB, the maximum to meet customer needs.

Features:

- New ultra-thin design, small volume, light weight, convenient carrying

- Color TFTLCD display, 320*240 resolution, waveform display more clearly, stability

- Dual analog channel (JDS2012A for single channel)

- Support for USB storage device

- Have the edge trigger function, can automatically detect the support (50Hz-40MHz)

- Support time and voltage cursors

- Support A variety of waveforms mathematical sum

- Support Chinese and English menu display

- A variety of display styles: color display, monochrome display

- Supports automatic power off and power-saving modes: time can be set

- Backlight brightness can be adjusted

- Waveforms can be saved by screenshot

- Long standby: single cell battery can work continuously for 5 hours

Specifications:

Input
Input coupling	AC、DC
Input impedance	1MΩ 25pF
The maximum input voltage	40V (probe X1); 400V (probe X10) can be measured 220V voltage; (probeX100) 2000V voltage can be measured
Probe attenuation	1X、10X
Set the probe attenuation factor	1X、10X、100X
Signal acquisition system
Sampling Method	Real-time sampling, random sampling
Memory depth	4K (per channel for each 2K)
Acquisition Mode	Sample, Peak Detect
Vertical System
Vertical Sensitivity	10mV-5V (Probe 1X) 100mV-50V (probe 10X) (1,2.5,5 step)
Vertical accuracy	+/-3%
Vertical resolution	8bit
Bandwidth	20MHz
Horizontal Systems
Real-time sampling rate	200 MSa/s
Horizontal scan range	10nS/div-5S/div
Trigger System
Mode	Auto, Normal and Single
Type	Rising edge trigger, falling edge trigger
Automatic detection	Support (50Hz-40MHz)
Math	CH1+CH2、CH1-CH2、CH2-CH1
Measurement System
Cursor measurements	Support time and voltage cursors
Measurements	Manual
Measure	Peak and frequency
Equipment
Screen	3.2-inch, 16-bit true color, TFT, 320 * 240
Battery	3000 + mA lithium battery (single cell about four hours of continuous work)
Size	202 * 100 * 35 (mm)

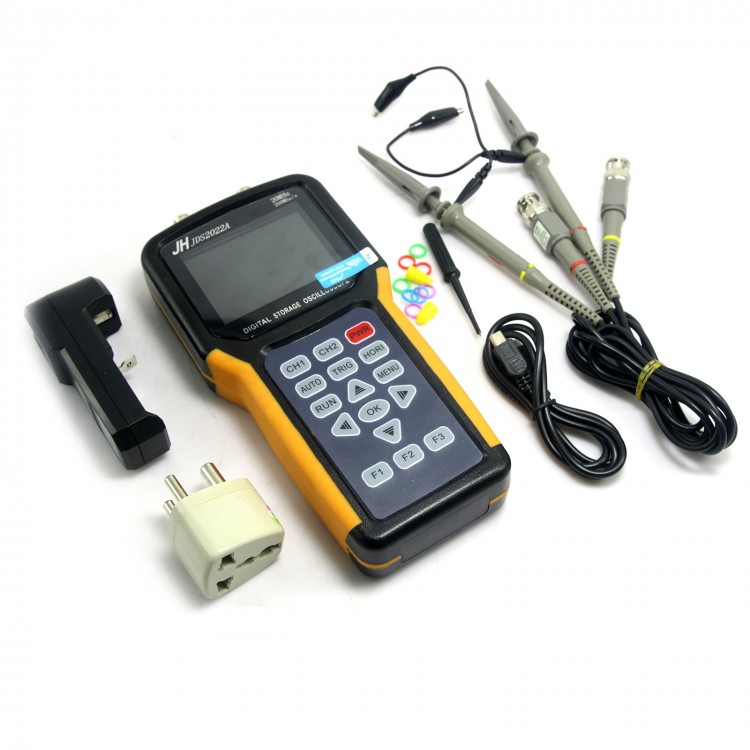

Package will be included :

- 1 x Dual Channel Handheld Oscilloscope JDS2022A ;

- 1 X user manual ;

- 2 X1:1 / 1:10 probe ;

- 1 X certificate

- 1 X Lithium battery charger (battery not include)
