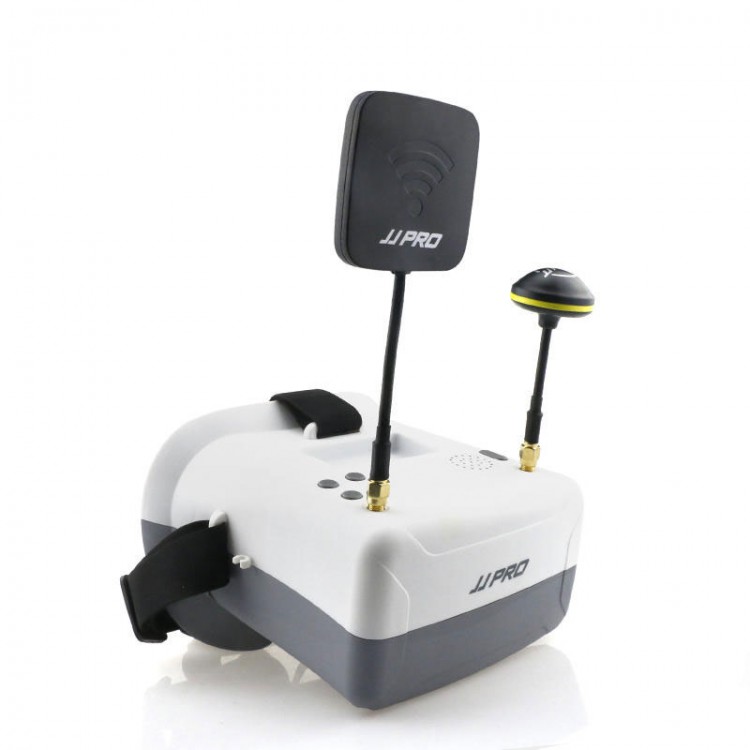

JJRC JJPRO F02 5.8G 64CH 3D Goggles FPV Glasses Monitor for H6D H8D H11D Drone

JJRC JJPRO F02 5.8G 64CH 3D Goggles FPV Glasses Monitor for H6D H8D H11D Drone

Description:
- Original JJRC JJPRO F02 5.8G 64CH Raceband 3D Goggles Wireless FPV Glasses with 4.3in VR Monitor for JJRC H6D H8D H11D JJPRO P175 P200 QAV250 RC Quadcopter Racing Drone
- As a great partner of the quadcopter, FPV goggles can bring a different feeling to you. Now JJPRO - F02 5.8G 64 channel wireless goggles are fantasy choices, for the most exciting experience of virtual reality.

Applicable: JJRC H8D, H11D, H6D Apply: with 5.8G FPV camera through the remote control aircraft, remote control car.

Features:
- High quality and exquisite craftsmanship.
- Creatively designed for user-friendliness.
- Classic material adopted for extended use.
- High performance antenna, stable image transfer.
- Built-in rechargeable battery, support USB charging.
- Ergonomic design, comfortable for long-term wearing.
- 5.8G 64CH, full-band 5645M~5945M, automatically search and scan to match the transmitter.

Specifications:
- Brand: JJPRO
- Model: JJPRO-01
- Frequency: 5.8G 64 channel, full-band 5645M - 5945M

Screen parameters
- Screen: 4.3 inch
- Resolution: 480X272 (WVGA)
- Brightness: 500cd / m2 high brightness, outdoor use(adjustable)
- Contrast: adjustable
- Angle of view: Wide viewing angle, 0/120 degrees (Horizontal / Vertical)
- FOV: 80-Degree Large screen (To provide a larger screen than ordinary video glasses)

Lens parameters
- Can be magnified: 2.8x
- Distortion: No distortion
- Material: Plexiglass
- Transparency: Up to 92% of the light, the real high transmittance, less interference to watch the screen

Power supply parameters(JST)
- Capacity: 7.4V 30C 1000mah
- Battery weight: 0.05kg
- Battery size: 4.8cm * 3.5cm * 1.6cm
- Package weight: 0.51kg
- Packing size: 8.5cm * 5cm
- Charging time: 90 minutes
- Battery type: Lithium battery

Wireless parameters
- Frequency: 5.8GHz
- Channel: 40ch, including RaceBand
- Automatic search: Yes, enhanced V3.0 automatic search technology
- Screen channel information display: Yes
- Antenna: 5.8G HZ FPV antenna, 2 pcs
- RX: Built-in 40CH 5.8G hzA / V automatic search receiver
- DUO Design: Amplifies rounds with the best performance of RX and uses two types of antenna (Omnidirectional / linearly polarized antennas at the same time).

Receive frequency table
Band A : 5865,5845,5825,5805,5785,5765,5745,5725
Band B : 5733,5752,5771,5790,5809,5828,5847,5866
Band E : 5705,5685,5665,5645,5885,5905,5925,5945
Band F : 5740,5760,5780,5800,5820,5840,5860,5880
Band R : 5658,5695,5732,5769,5806,5843,5880,5917

Video input parameters
Video input: 75Ω, composite video signal / CVBS / AV
Convenience: For better sharing of videos from other RX devices, such as FatShark / ImmersionRC

Humanized design
Eyeglasses ultra-light design Dual antenna design (not double receive) can be used at the same time omnidirectional with a straight line antenna (both root antenna can receive signals at the same time, unlike double receive which receive signal to switch which one)

Operating temperature -10 ℃ -80 ℃
Storage temperature -20 ℃ -90 ℃

Product package
- 1x VR-HD01 dual antenna 4.3 inch HD FPV glasses
- 1x 5.8G Hz 4DBI mushroom antenna 1x 5.8G Hz 14DBI flat antenna
- 1x Video input line
- 1x Power input conversion line 0.8 m 3.5 mm L head turn JST head
- 1x Instruction manual
- 1x Battery(7.4V 30C 1000mah)

Caution for the battery:
- Don't over-charge, or over-discharge batteries.
- Don't put it beside the high temperature condition.
- Don't throw it into fire.
- Don't throw it into water.

Notice:
- The support frame is used for photo effects not included.
- In order to protect the battery, please charge in time when the goggles in low battery status;
- This RC model is not a toy and is not suitable for children under 14 years old, keep it away from children.
- When the battery progress bar shows low power, please immediately charge to prevent the battery over discharge and damage;
- Because the glasses in the standby state will consume power, so the end of the day after the use of the battery plug to pull out to prevent damage to the battery over discharge;
