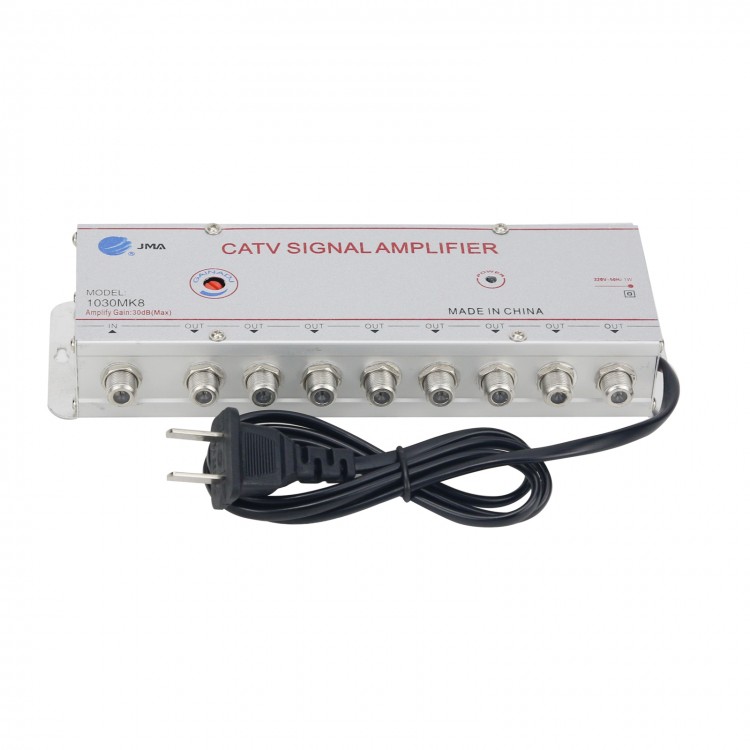

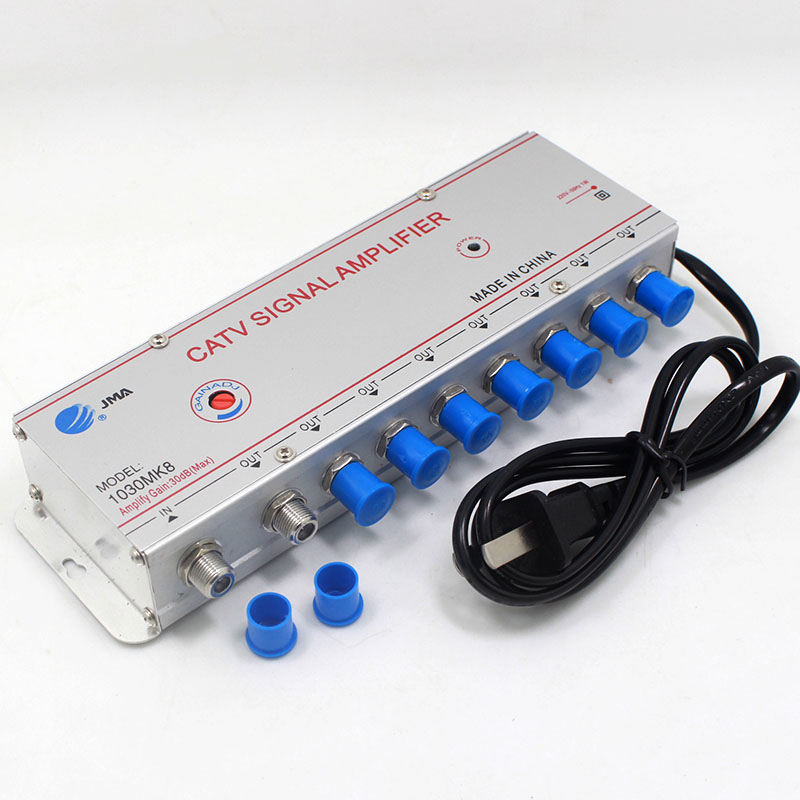

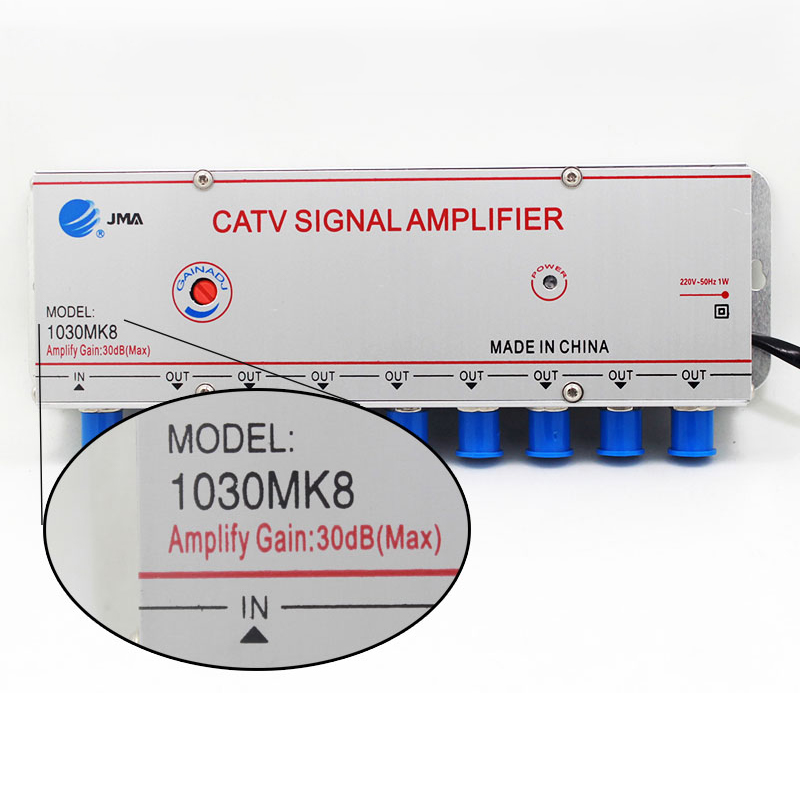

JMA 1030MK8 Cable TV Signal Booster CATV Signal Amplifier 1 IN 8 OUT 30DB Gain (220V 50Hz)

Availability: In stock, usually dispatched in 1 business day

  • Price:$25.49
  • Price in reward points: 255 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $24.98 $24.47 $23.71 $22.69 Contact US
Quantity:

JMA 1030MK8 Cable TV Signal Booster CATV Signal Amplifier 1 IN 8 OUT 30DB Gain (220V 50Hz)

Description:

JMA 1030MK8 Cable TV Signal Booster replaces SB-1030M8, with the same function. It is suitable for LCD TV and digital TV, and its gain can be adjusted up to 30DB.

Features:
- When your TV image is bad, it can reduce snowflakes and improve image clarity after zooming in
- When the signal strength of multiple TVs to be connected is insufficient, use the amplifier to amplify first and then perform multi-channel branch distribution
- The use of computer graphic stock information receiving system can reduce the information bit error rate and improve the receiving speed
- Imported CATV amplifier design with bandwidth 45-1000MHZ; overall gain: 30±2dB
- Low noise helps improve signal quality
- Wide dynamic range, with input level 35-75db uv
- Aluminum profile shell with good shielding performance, strong anti-interference ability, and excellent heat dissipation
- The signal of each output port can be directly used for TV and computer, and can also be used for multi-channel branch distribution
- Multiple output interfaces on one side

Key Parameters:

- Bandwidth: 45-1000MHz
- Overall gain: 30±2dB
- Gain adjustment: 0-10dB
- In-band flatness: ±0.75Db
- Slope: 5dB
- Noise figure: ≤5dB
- Power consumption: 2W
- Output port: 8
- Dimensions: 195 x 70 x 30mm/7.7 x 2.8 x 1.2"

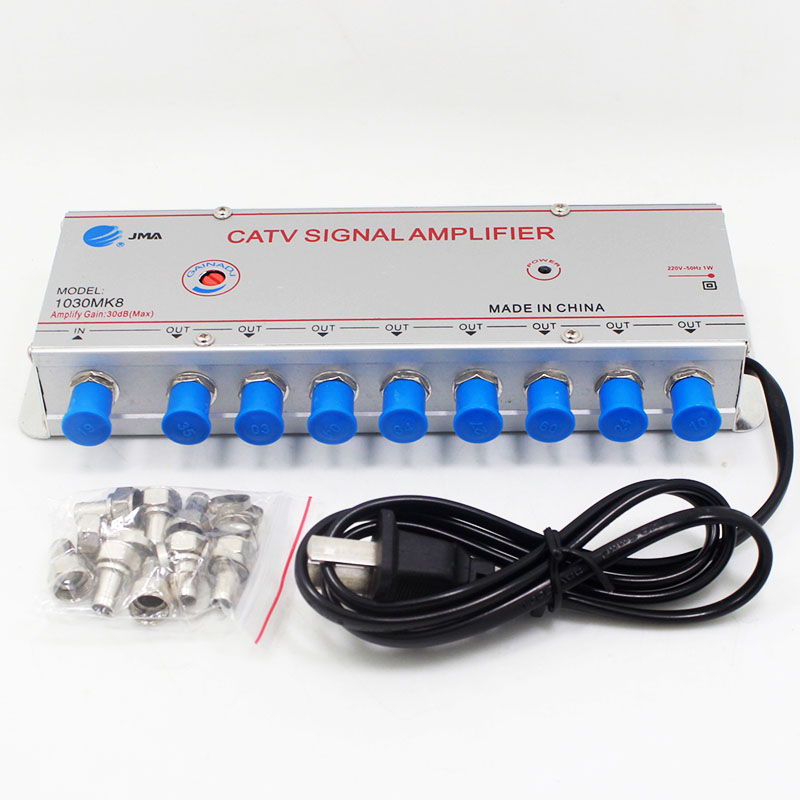

Package Included:
- 1 x CATV Signal Amplifier
- 1 x Bag of Imperial Connectors F Type

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
