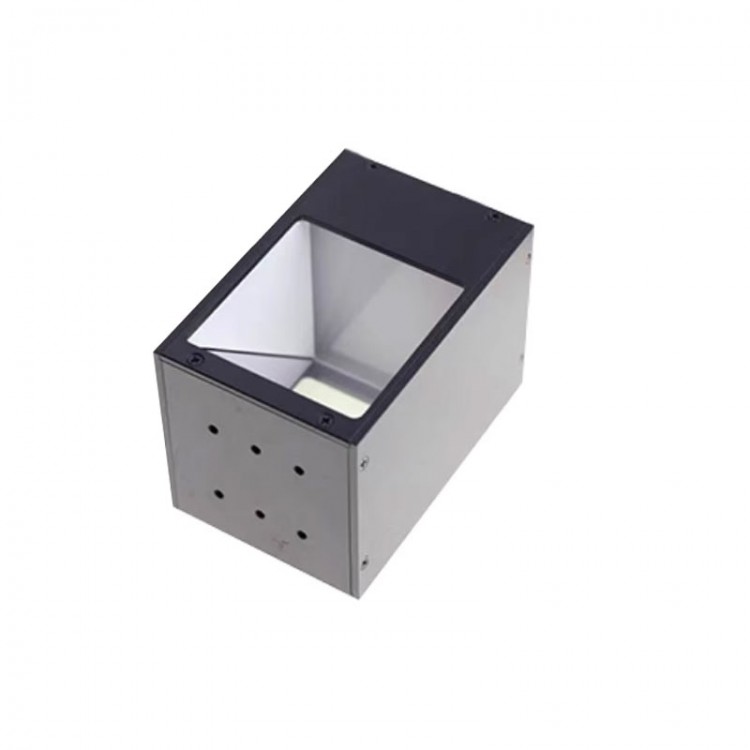

JS-CUL-20 20x20mm Coaxial Light Machine Vision Light White/Blue/Green/Red LED for Industrial Cameras

JS-CUL-20 20x20mm Coaxial Light Machine Vision Light White/Blue/Green/Red LED for Industrial Cameras

Features:
Industrial Machine Vision Coaxial Light Source
* Multiple light colors available
* Adjustable brightness

Multiple Light Colors Available
* White, Blue, Green, Red

Precise Mounting Holes
* Standard light sources come with M3 screw mounting holes, and each light has corresponding drawings to facilitate the production of structural components
* Custom mounting can be made according to requirements

Integrated Aluminum Alloy Construction
* Sandblasted surface treatment technology effectively prevents rust and corrosion of the casing, extending service life

Uniform Illumination
* High-quality chips
* High brightness and uniform light emission
* Uses high-brightness LED chips for better uniformity
* The coaxial light has undergone aging tests, making it more stable and reliable, with an approximate service life of 30,000 hours

Specifications:
* Model: JS-CUL-20
* Light Emitting Surface Size: 20mm × 20mm
* Window Size: 18mm × 18mm
* Voltage: 24V
* Power: 1W (red light) ; 1.2W (white/blue/green light)
* Dimensions: 53.7mm × 30mm × 27mm
* Light Color: White/Blue/Green/Red
* Illuminance: Over 36,000 lux
* LED Beads: Imported chip plug-in LEDs
* Standard Power Connector: 3-pin square plug

Packing List:
* 1 × Coaxial Light Source

Packaging Details:
* Weight: 0.33kg
