Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $60.36 | $59.13 | $57.28 | $54.82 | Contact US |

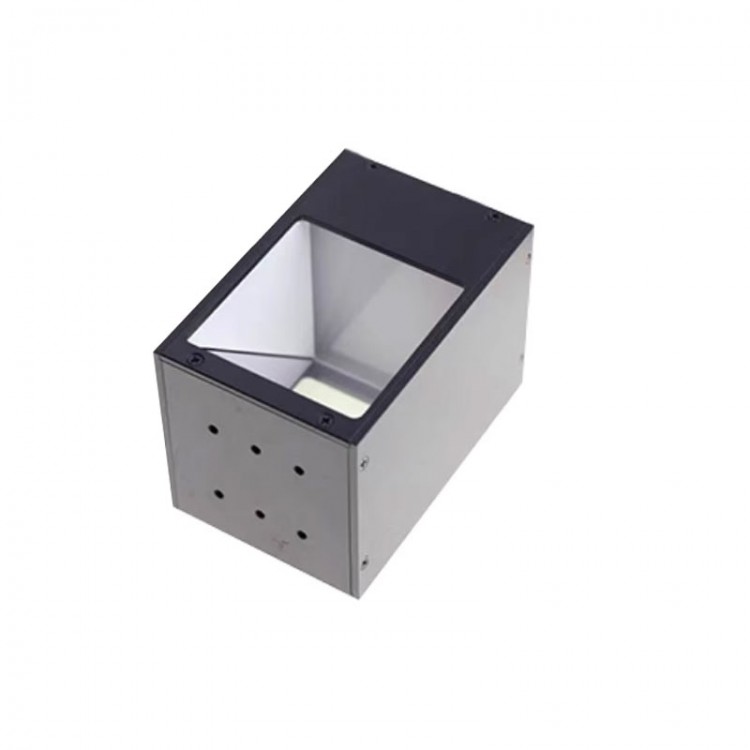

JS-CUL-50 50x50mm Coaxial Light Machine Vision Light with Red LED Light for Industrial Cameras
Features:
Industrial Machine Vision Coaxial Light Source
* Multiple light colors available
* Adjustable brightness
Multiple Light Colors Available
* White, Blue, Green, Red
Precise Mounting Holes
* Standard light sources come with M3 screw mounting holes, and each light has corresponding drawings to facilitate the production of structural components
* Custom mounting can be made according to requirements
Integrated Aluminum Alloy Construction
* Sandblasted surface treatment technology effectively prevents rust and corrosion of the casing, extending service life
Uniform Illumination
* High-quality chips
* High brightness and uniform light emission
* Uses high-brightness LED chips for better uniformity
* The coaxial light has undergone aging tests, making it more stable and reliable, with an approximate service life of 30,000 hours
Specifications:
* Model: JS-CUL-50
* Light Emitting Surface Size: 50mm × 50mm
* Window Size: 45mm × 45mm
* Voltage: 24V
* Power: 3.7W (red light) ; 6W (white/blue/green light)
* Dimensions: 87mm × 58mm × 60.5mm
* Light Color: White/Blue/Green/Red
* Illuminance: Over 36,000 lux
* LED Beads: Imported chip plug-in LEDs
* Standard Power Connector: 3-pin square plug
Packing List:
* 1 × Coaxial Light Source
Packaging Details:
* Weight: 0.53kg
