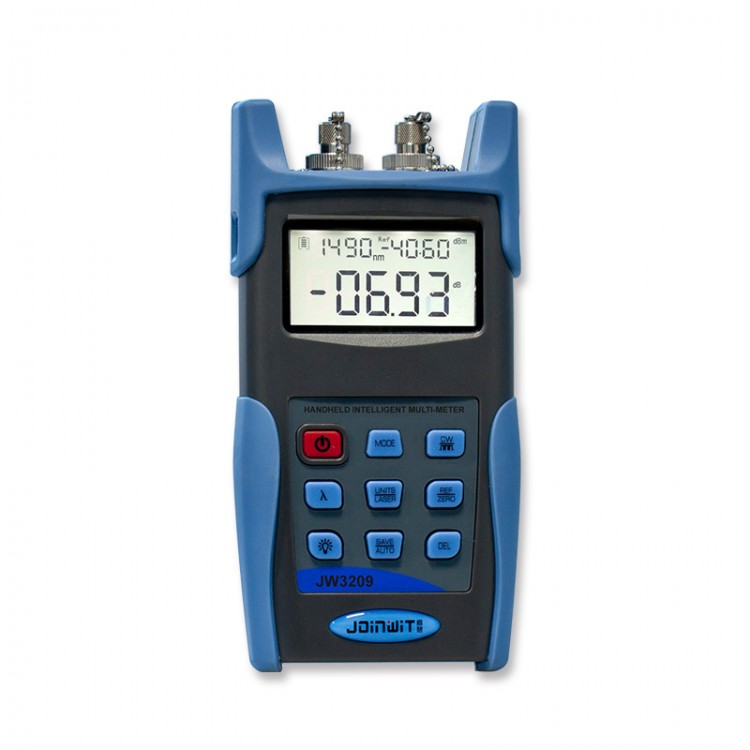

JW3209 Handheld Intelligent Optical Multimeter Optical Power Meter 1310NM 1550NM Optical Light Source
Description:
JW3209 Intelligent Optical Multimeter is an cost-effective instrument. It has the functions of an optical power meter and a light source. It can store and upload the data records of tests. It is widely used in digital data networks, telecommunication networks and construction, inspection and maintenance of cable television and other optical fiber optic cable projects.
Features:
- Intelligent optical power meter module and highly stable light source module in one unit
- Simple function mode switching
- Stable output of light source
- Automatic wavelength switching function of the light source
- Frequency light detection function
- Data storage function, up to 1000 test records
- USB communication port can upload stored information and supply power
- Real-time data reading is convenient for embedded system application
Optional Types:
- JW3209A (-70 to +6dBm)
- JW3204B (-60 to +10dBm)
- JW3209C (-50 to +26dBm)
- JW3204D (-20 to +30dBm)
Specifications:
Optical Power Meter Module:
- Detector Type: InGaAs
- Measurement Range: -70 to +6dBm (JW3209A); -60 to +10dBm (JW3204B); -50 to +26dBm (JW3209C); -20 to +30dBm (JW3204D)
- Resolution: 0.01dB
- Uncertainty: ≤ ±0.25
- Linearity: ≤ ±0.1dB
- Frequency ID Range: ＜ 10KHz
Optical Light Source Module:
- Wavelengths: 1310/1550nm (other wavelengths can be optional)
- Typical Output Power: -5dBm
- Output Stability : ≤ 0.1dB (30min, 20℃)
- Modulation Frequencies: CW, 270Hz, 1KHz, and 2KHz
General Specifications of Multimeter:
- Automatic-off time: 10min
- Communication Port: Mini USB
- Operating Temperature: -10 to 60℃
- Storage Temperature: -25 to 70℃
- Dimensions: 23.5 x 16 x 8cm/9.3 x 6.3 x 3.1"
- Net Weight: 0.7kg/1.5 lb
Package Included:
- 1 x Set of Optical Multimeter
Note:
- It can be powered by 3pcs 1.5V alkaline batteries (not included) or by a mini USB 5V adapter.
