JW3213 1310/1490/1550NM PON Power Meter + Optical Power Meter OPM + Visual Fault Locator VFL

Availability: In stock, usually dispatched in 1 business day

  • Price:$139.97
  • Price in reward points: 1400 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $137.17 $134.37 $130.17 $124.57 Contact US
Quantity:

JW3213 1310/1490/1550NM PON Power Meter + Optical Power Meter OPM + Visual Fault Locator VFL

Features:

- JW3213 handheld PON optical power meter. Precise and durable. Portable and lightweight
- Using PON system, it can test three wavelengths at the same time, namely 1310nm, 1490nm and 1550nm
- Threshold setting. 10 sets of threshold selection
- 1000 sets of data storage
- Optional Chinese/English display
- FTTX network maintenance
- Quickly judge and fast response. Simultaneous measurement and display of voice, data and video signals
- Visual fault locator
- 1310nm upstream burst mode
- Automatic shutdown, enabling longer standby time. The device can be set to automatically shut down after ten minutes. Date and time can be set
- All-inclusive silicone sleeve
- Smooth appearance and good hand feeling. The use of seamless membrane buttons prevents dust from entering the machine to a large extent. Smart shape, anti-fall and anti-shock

Specifications:
1310nm Uplink Test:
- Spectral passband: 1260nm~1360nm
- Measuring range: -35dBm to +10dBm
- Maximum input power: 15dBm
- Isolation (1490/1550nm): >40dB
- Burst test error: <±0.5dB

1490nm Downlink Test:
- Spectral passband: 1470nm~1505nm
- Measuring range: -35dBm to +10dBm
- Maximum input power: 15dBm
- Isolation (1310/1550nm): >40dB

1550nm Downlink Test:
- Spectral passband: 1535nm~1570nm
- Measuring range: -35dBm to +10dBm
- Maximum input power: 25dBm
- Isolation (1310/1490nm): >40dB

Measurement Accuracy:
- Inherent uncertainty: ±0.5dB
- Linearity: ±0.1dB
- Pass insertion loss: <1.5dB

General Indicators:
- Probe type: InGaAs
- Connector type: FC/SC/ST universal connectors
- Fiber type: SM 9/125um
- Unit display: dB/dBm/xW
- Resolution: 0.01dB
- Working voltage: DC3.3V~5.5V
- Working temperature: -10°C to 60°C
- Storage temperature: -25°C to 70°C
- Weight (without battery or sleeve): 425g/0.94 lb

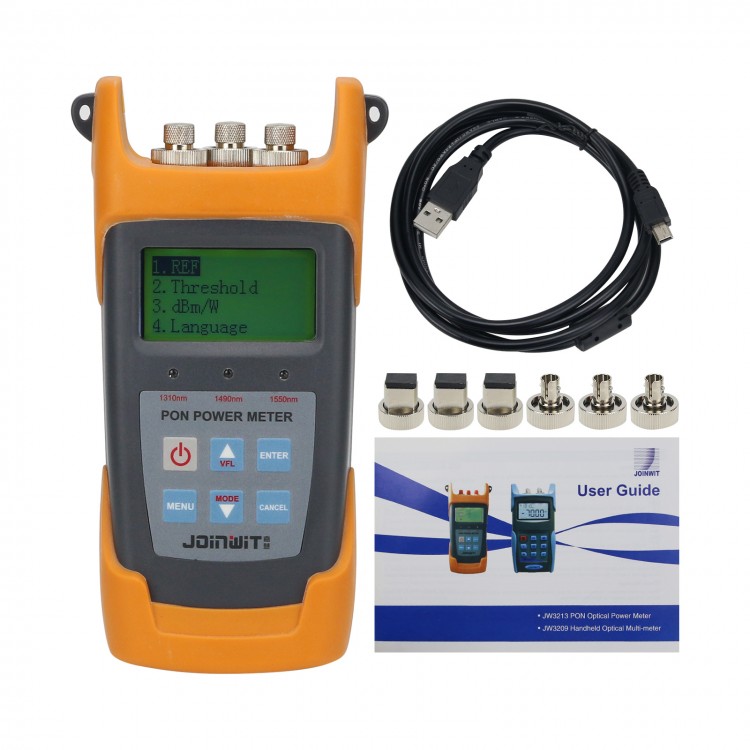

Package Included:
- 1 x Set of PON Power Meter

Note:
- 3pcs 1.5V AA batteries are not included.
