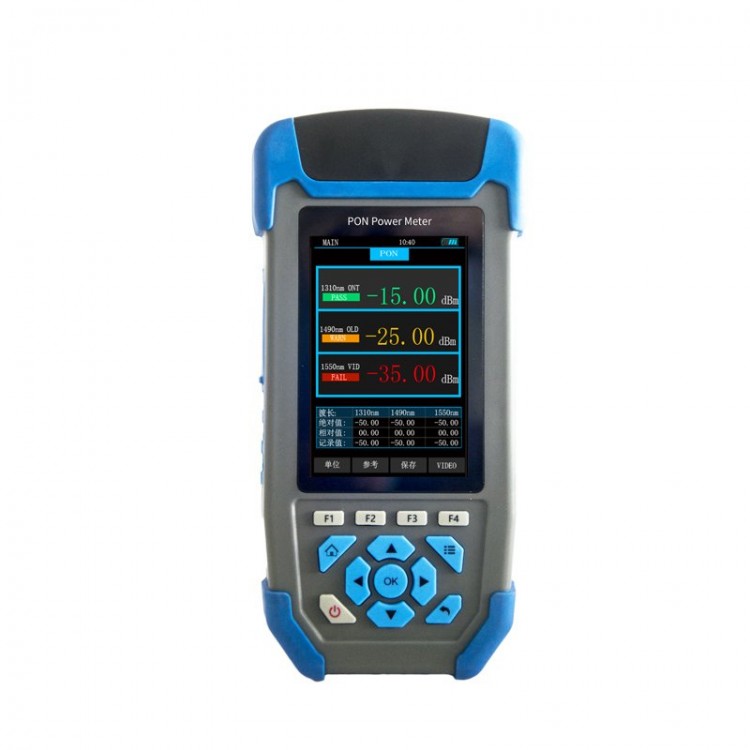

JW3330 PON Power Meter Fiber Optic Power Meter Calibration Wavelengths 1310NM 1490NM 1550NM 1625NM
Description:
In order to meet the development needs of FTTX in China, we have introduced the JW3330 PON optical power meter, which is intelligent type and economical. It works in any position in PON network. By extracting a very small part of optical signal online, it can be used to measure during the entire FTTx service opening, maintenance, and testing phases to reliably verify and ensure that the network communication requirements are met.
Features:
- Simultaneously test 1310 upstream signal, 1490 & 1550 downstream signal in the PON system
- Support uplink burst optical mode test. Support the addition of visual fault location and standard optical power meter
- Supports simultaneous measurement and display of experimental voice, data and video signals on the BPON/EPON/GPON architecture
- Thresholds, file saving, file name editing and the like can be set
- Support Chinese, English and third language setting
- Can be powered by lithium battery or power adapter
- USB communication interface
- Support operation via PC software
- Three-color alarm
Package Included:
- 1 x Set of PON Power Meter
