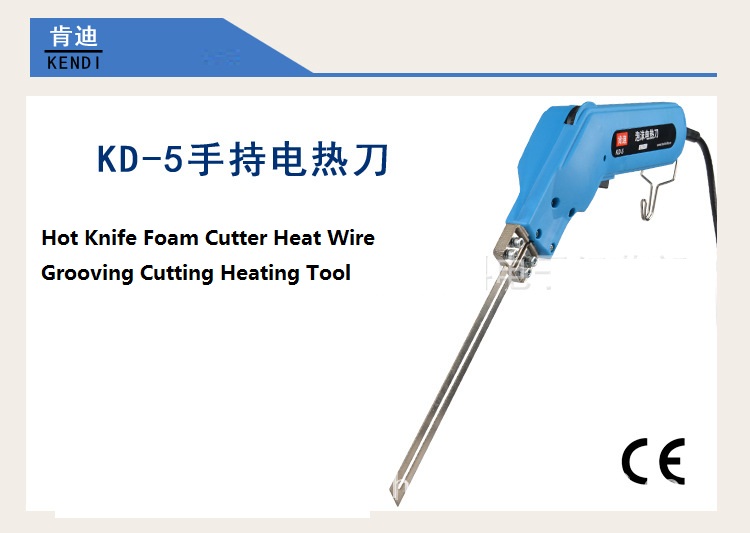

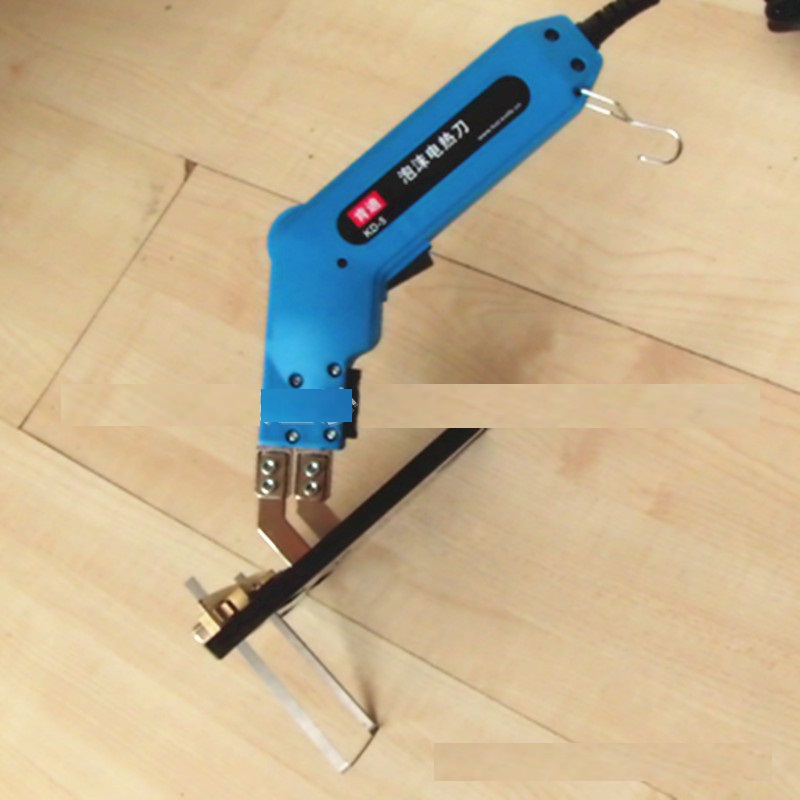

KD-5 XPS Electric Hot Knife Foam Cutter Heat Wire Grooving Cutting Heating Tool

Availability: In stock, usually dispatched in 1 business day

  • Price:$170.03
  • Price in reward points: 1700 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $166.63 $163.23 $158.13 $151.33 Contact US
Quantity:

KD-5 XPS Electric Hot Knife Foam Cutter Heat Wire Grooving Cutting Heating Tool



Product Description:

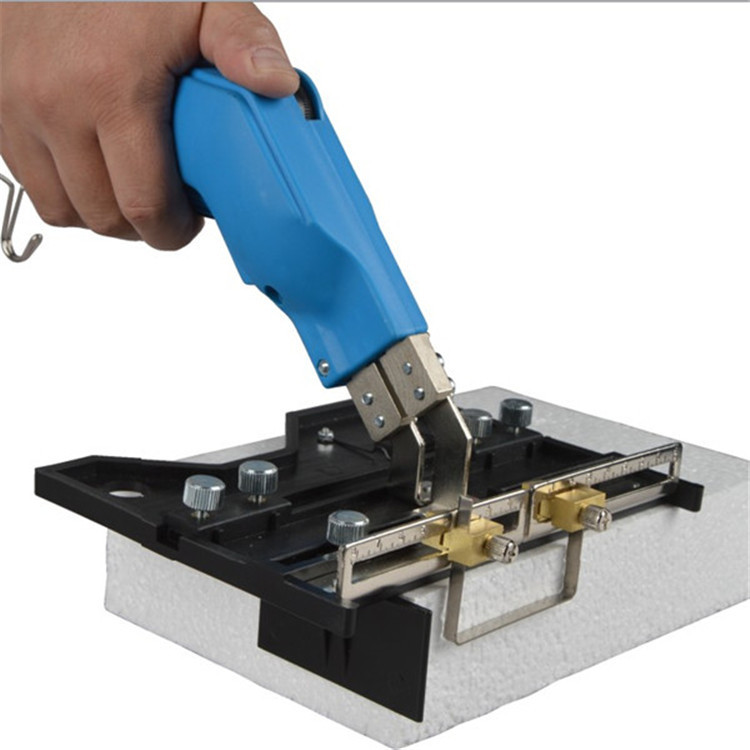

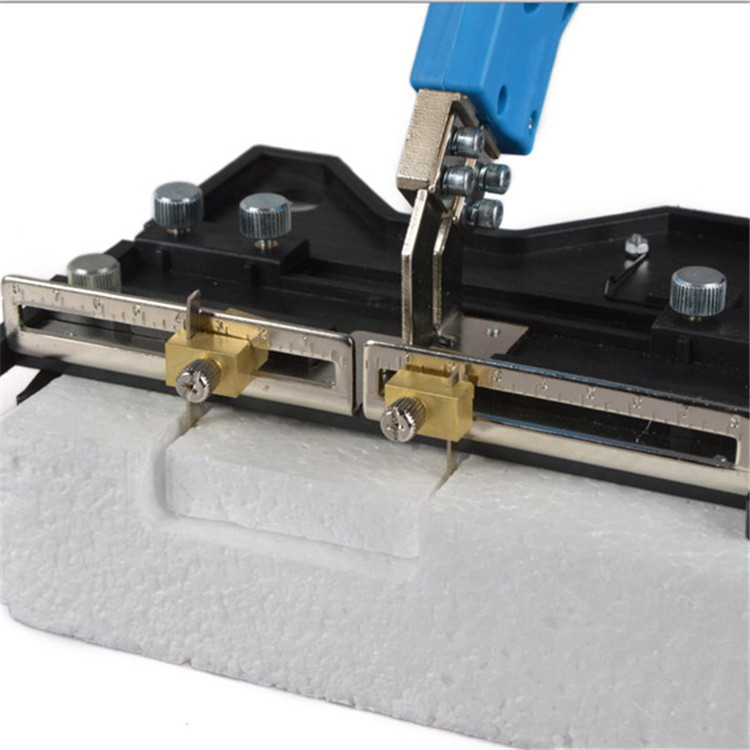

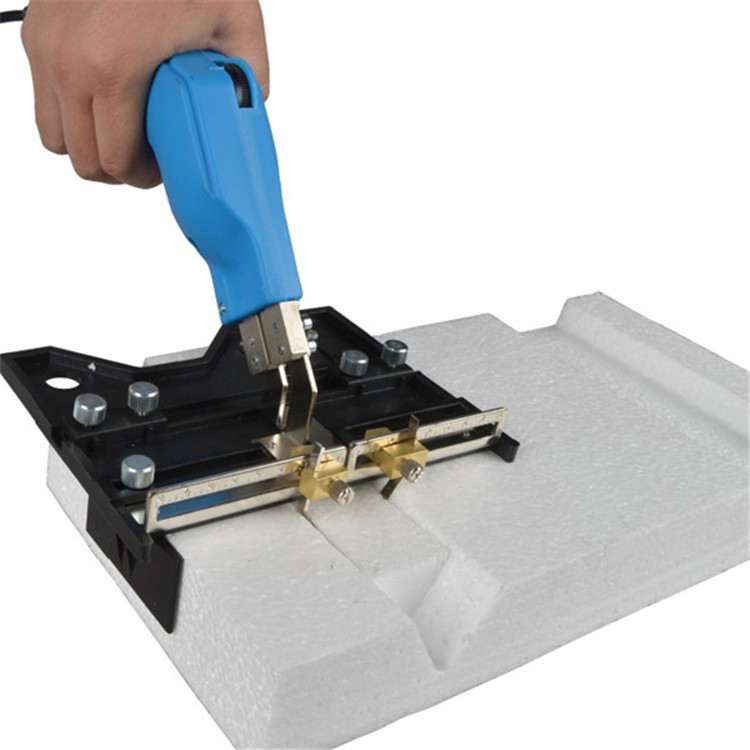

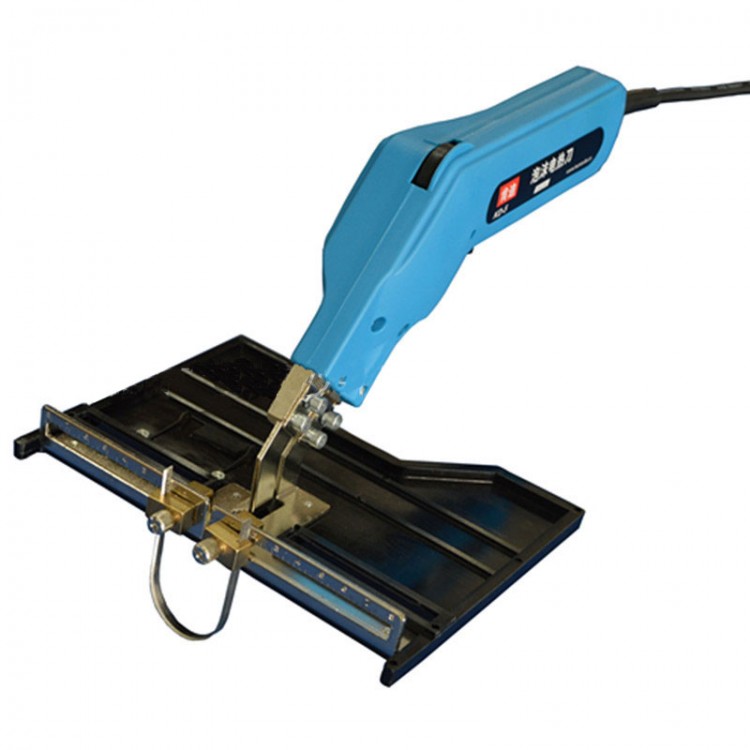

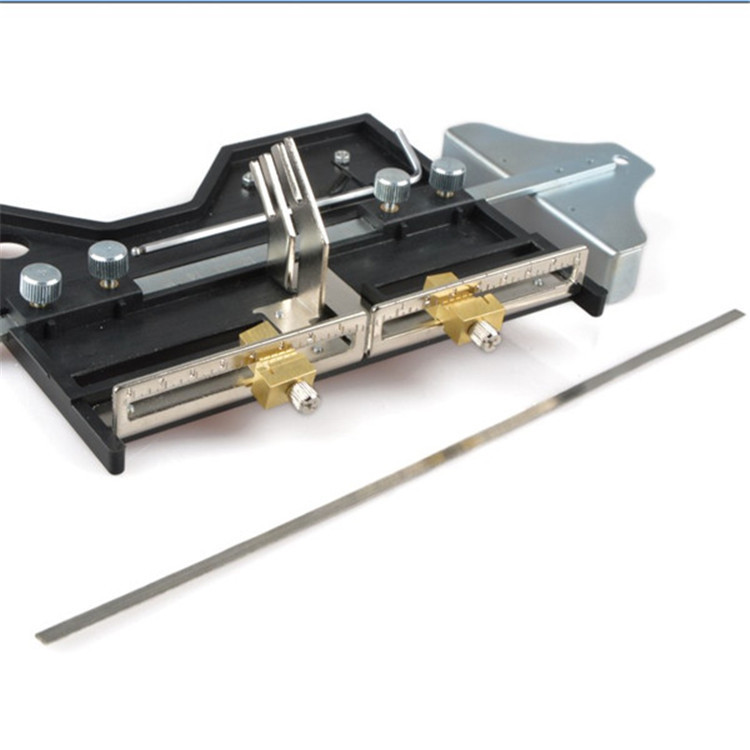

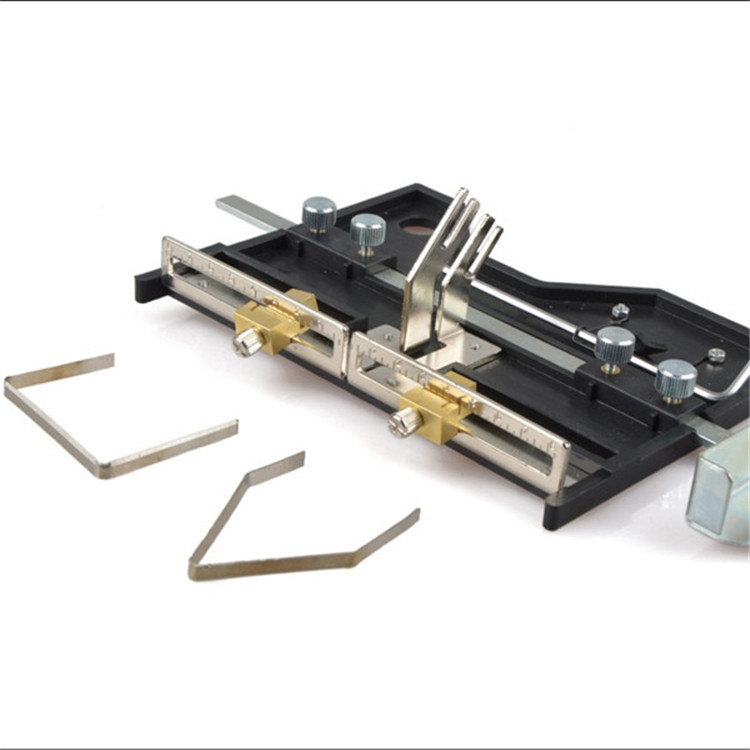

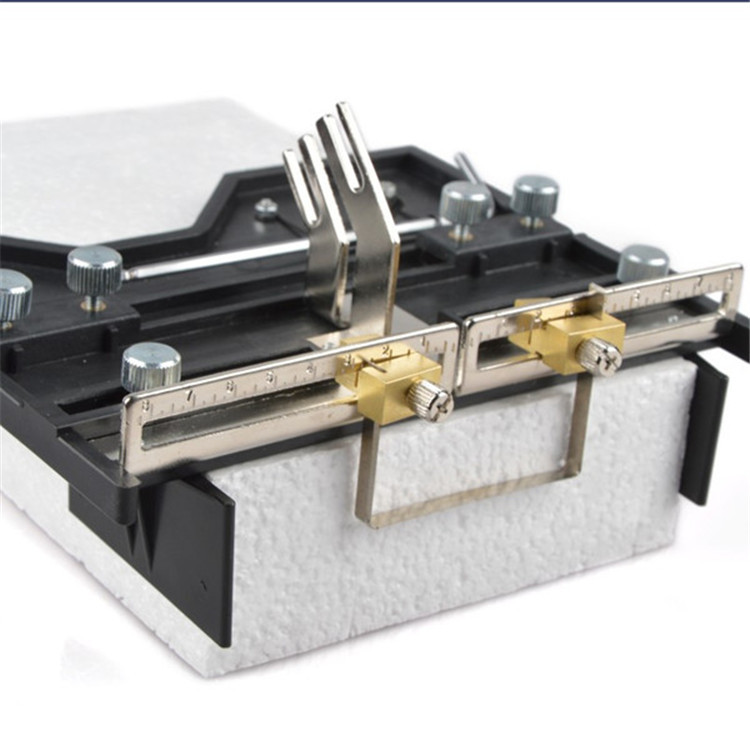

The foam cutter/grooving cutter is for cutting different density foam around 150mm thick, with fine cutting edge, no mess.Cutting with the groove-sled, it is easy to make different groove shape on the foam.

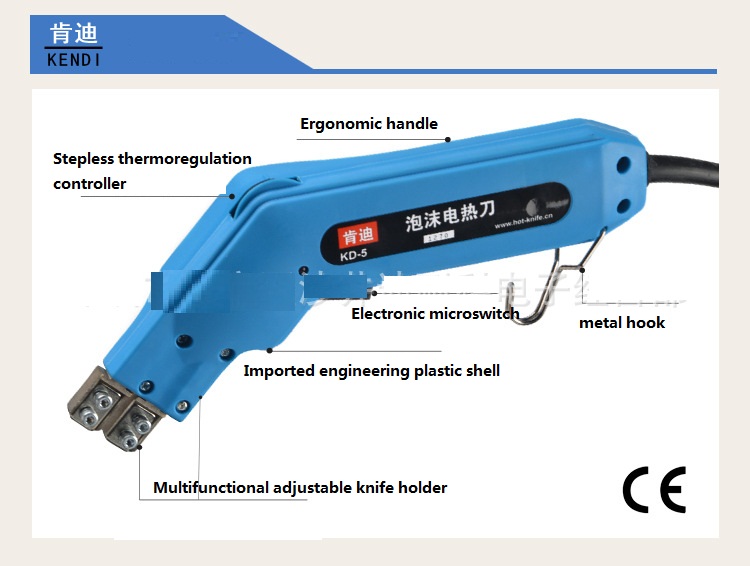

Product Features:
- CE Certificated(TUV SUD)
- High efficiencyunique electronic design
- 16 steps adjustment
- The handhold part not hot, even long time operate.
- Light weight
- Cutting different density foam
- Fine cutting edge

Specification:
- Name:Electric Groove Foam Cutter
- Model:KD-5
- Voltage:AC230V/50Hz,120V/60Hz
- Power:150W
- Temp:Highest  500  °c
- Power cord length:3.0M

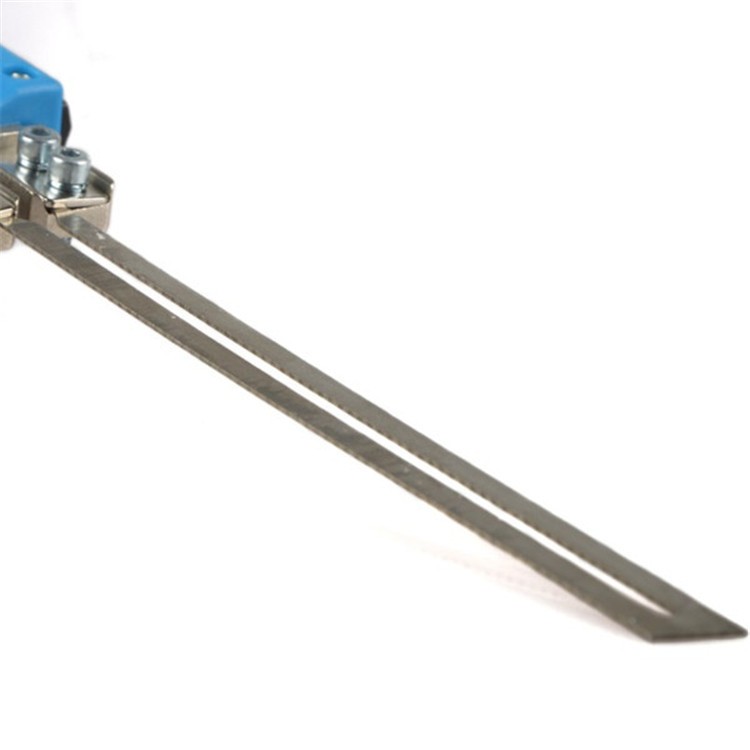

- Arc blade:Height 1mm, width 5mm,length 300mm
- MAX. groove width:160mm
- Adjust button:16 steps
- Gap working time:1/4 min
- Size: 26x5x3.5cm

Tool Use:
- Foam cutting, carving and grooving, fracture smooth and free of debris!
- Especially for EPE EPE, EPS benzene boards, XPX extruded plate.
- Cutting lighter, more efficient!

Operating:
- After cooling the tool, unscrew the nut.
- The two knife blades are inserted into the two legs knife, tighten the nut.
Ensure full access to the blade and knife holder.
If the knife legs were not installed correctly, the blade will not be heated.
- Power

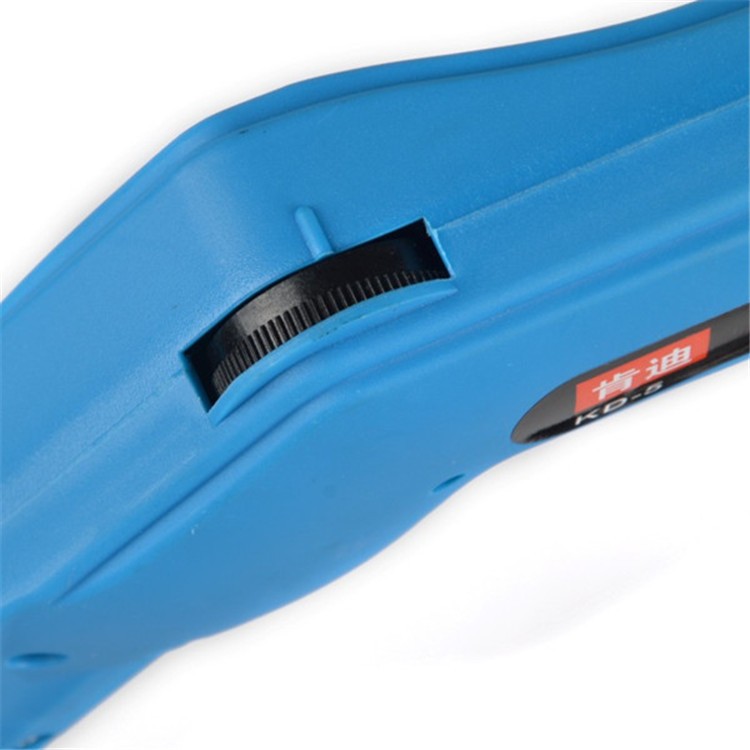

- Temperature adjustment wheel points 16, the wheel raised Lise shorter, smaller output power

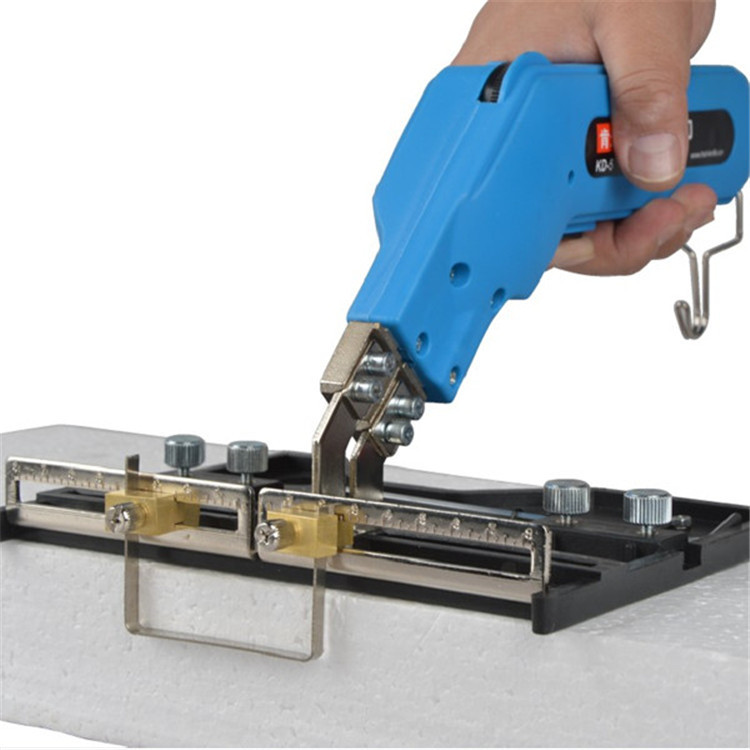

Cutting:
- Avoid direct contact with two tool holder cause a short circuit.
- The temperature control knob to the middle position, the blade on the cutting object, then press the trigger. Preheat 3 seconds to cut. It is recommended to test the waste.
- When cutting is best to keep the temperature and speed of harmonization. If you smoke too much, it may be because the cutting blade speed is too slow or the temperature is too high. This may cause irregular cutting path, not flat, this situation, you can lower the temperature or the cutting blade intermittently release the switch. When finished cutting the distance 3-5CM, release the switch. When cutting, the exposed portion of the blade should not be more than 2 cm, if the exposed portion is too long, the blade may be bent due to overheating.
- Use wire brush to clean the blades.

Notes:
- Always use this tool in ventilation.
- Do not burn residual debris on the blade, or blade will bend.
- Do not dry blades, please contact cutting was then heated.
- Do not touch the blade, not the blade is placed in the hot clothing, or near flammable materials.
- Please handle blade after blade cooling, in order to avoid accidental injury
- Do not make a red-hot blade without cutting materials.
- Super power output will overheat the blade deformation may also cause overheating damage the knife tool. Adjust output power of reasonable cause appropriate cutting speed.

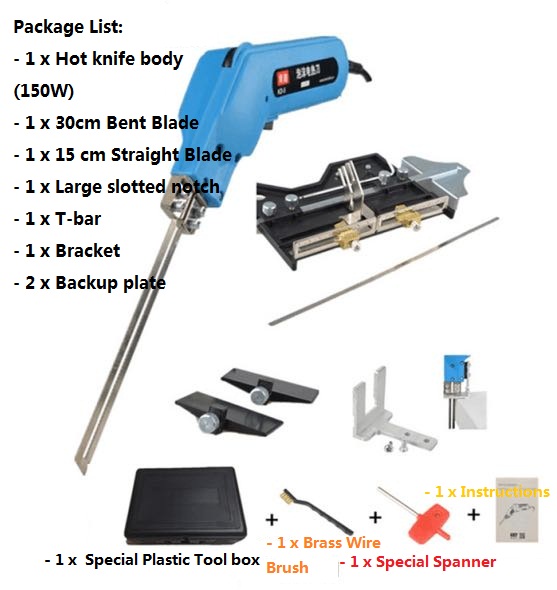

Package List:
- 1 x Hot knife body (150W)
- 1 x 30cm Bent Blade
- 1 x 15 cm Straight Blade
- 1 x Special Spanner
- 1 x Brass Wire Brush
- 1 x  Special Plastic Tool box

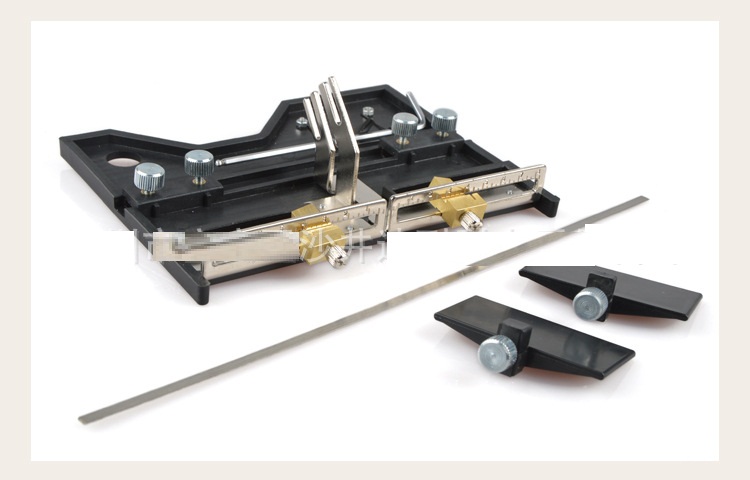

- 1 x Large slotted notch
- 1 x T-bar
- 1 x Bracket
- 2 x Backup plate
- 1 x Instructions
