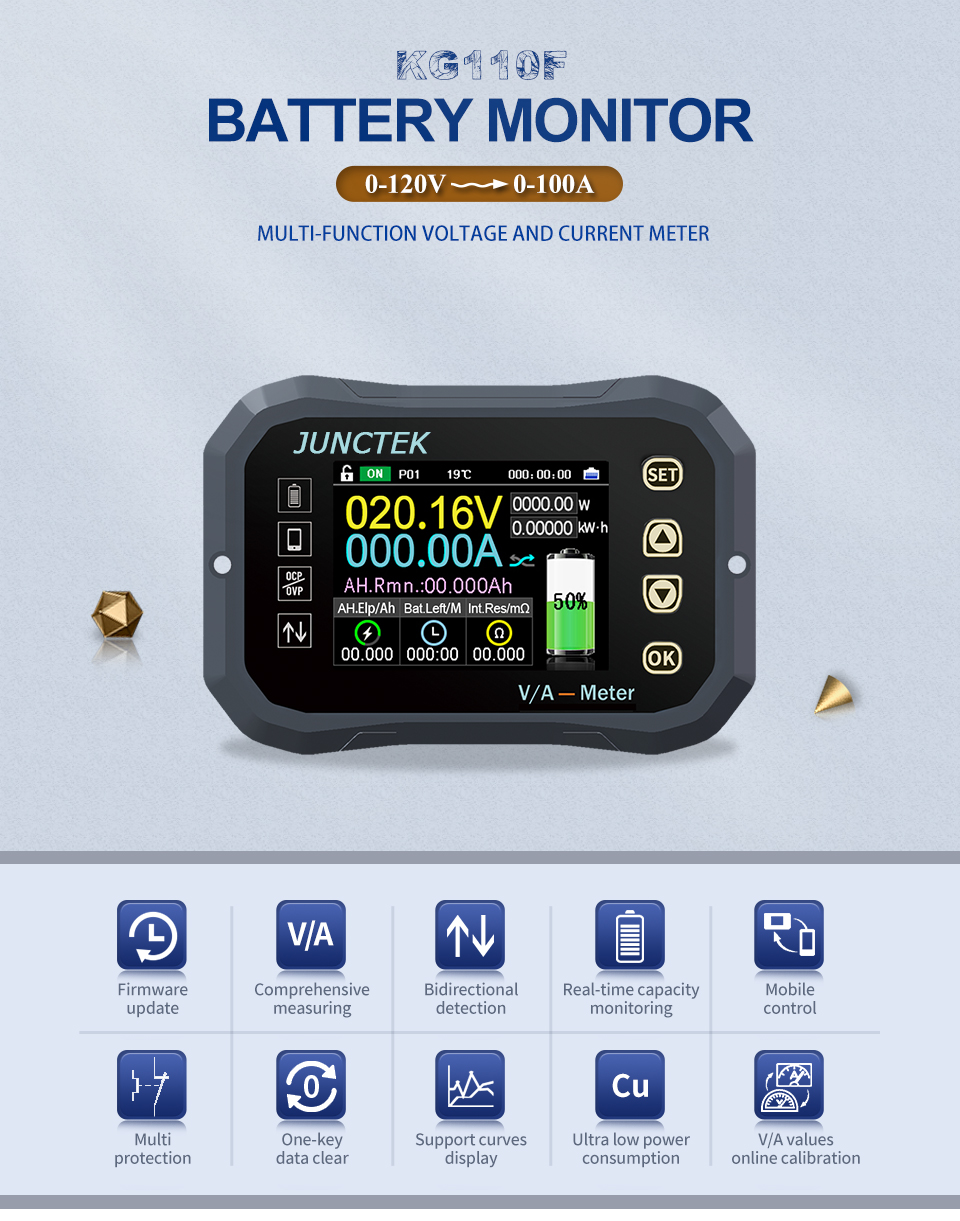

KG110F 0-120V 100A Battery Coulometer Battery Monitor Voltage Current Meter Supports APP Control
Description:

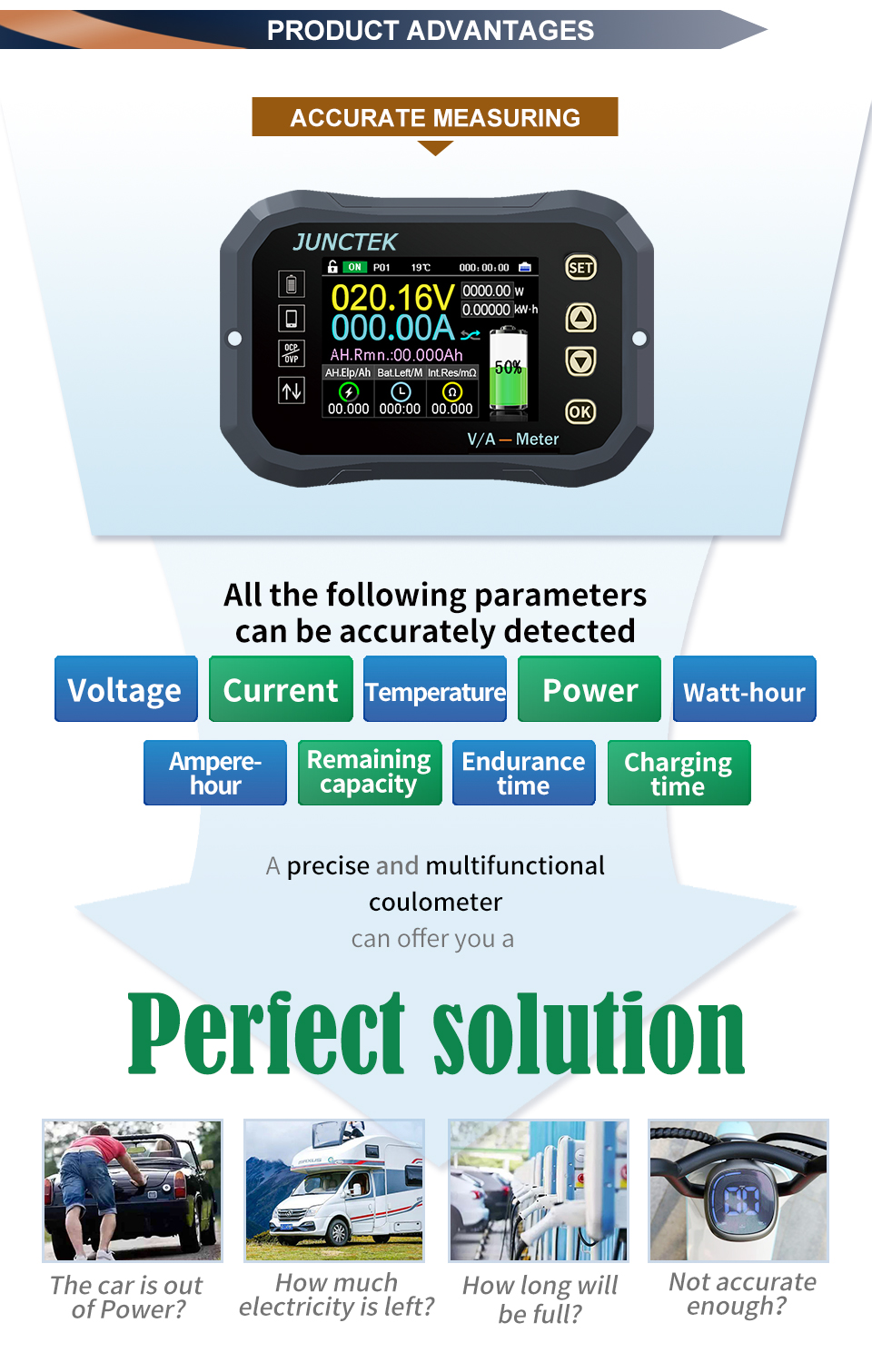

KG-F series color screen wireless bluetooth battery coulomb meter is a professional instrument for monitoring battery power, and it can also monitor the voltage, current, power, ambient temperature, and energy of the battery during charging and discharging. Real-time display of how long the battery can be fully charged and how long the remaining battery power can be used. The measuring current range of KG110F is 0-100A, the measuring current range of KG140F is 0-400A, and the measuring current range of KG160F is 0-600A. 0-120V lead-acid batteries, lithium batteries, iron-lithium batteries and all other batteries can be used.
Features:

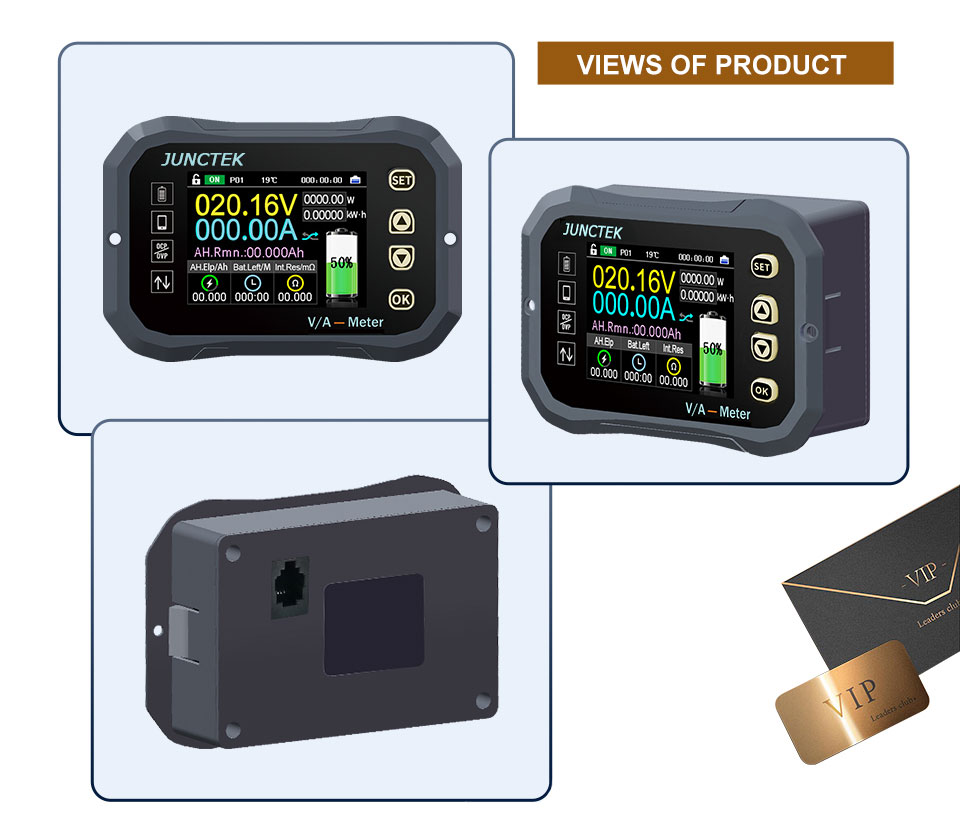

- 2.4" color screen with larger and clearer fonts and beautiful appearance
- Automatically identify the current in both charging and discharging directions
- Using current*working time to calculate the capacity of charging and discharging; more accurate than the method of calculating the remaining capacity by voltage

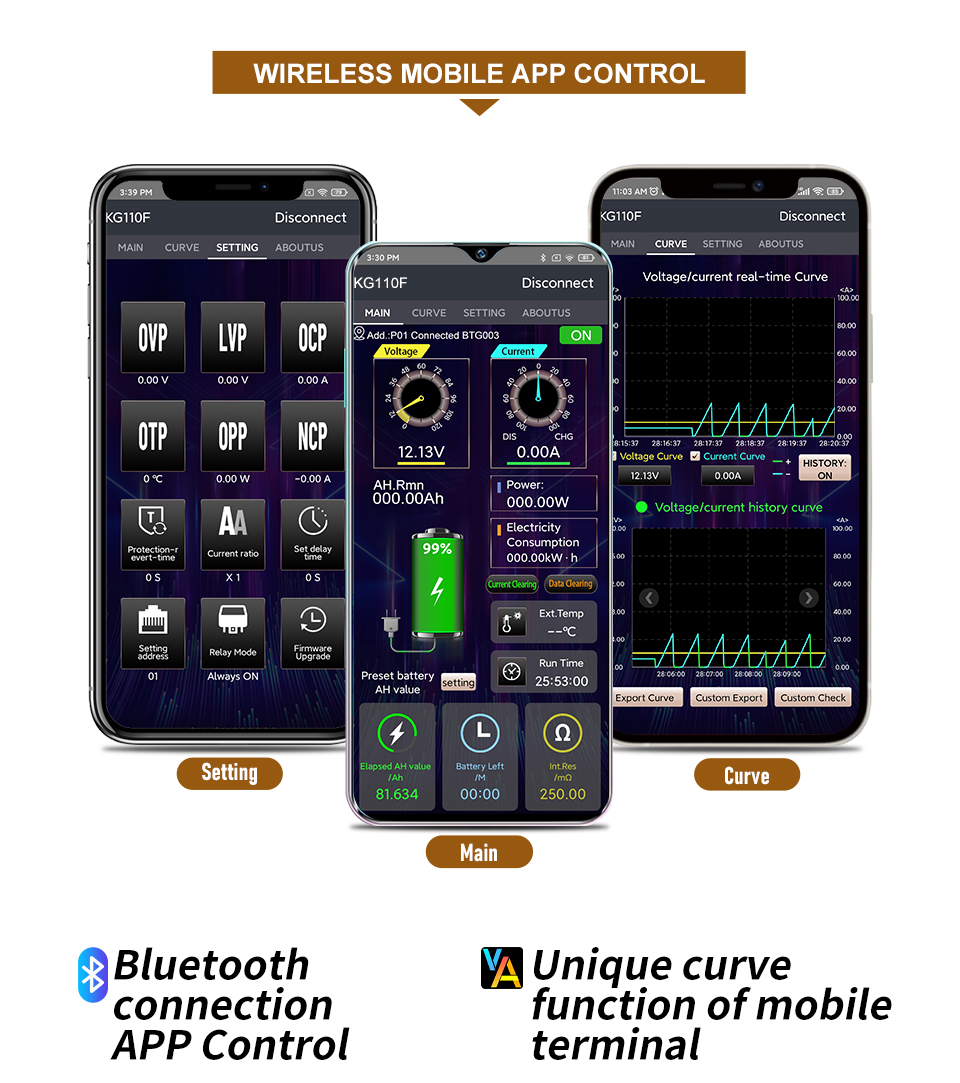

- The mobile APP can connect to the meter through Bluetooth to view data and set parameters
- The mobile phone APP can upgrade the firmware of the measurement module
- The mobile APP can view the real-time curve and historical curve of voltage and current, and support historical data export

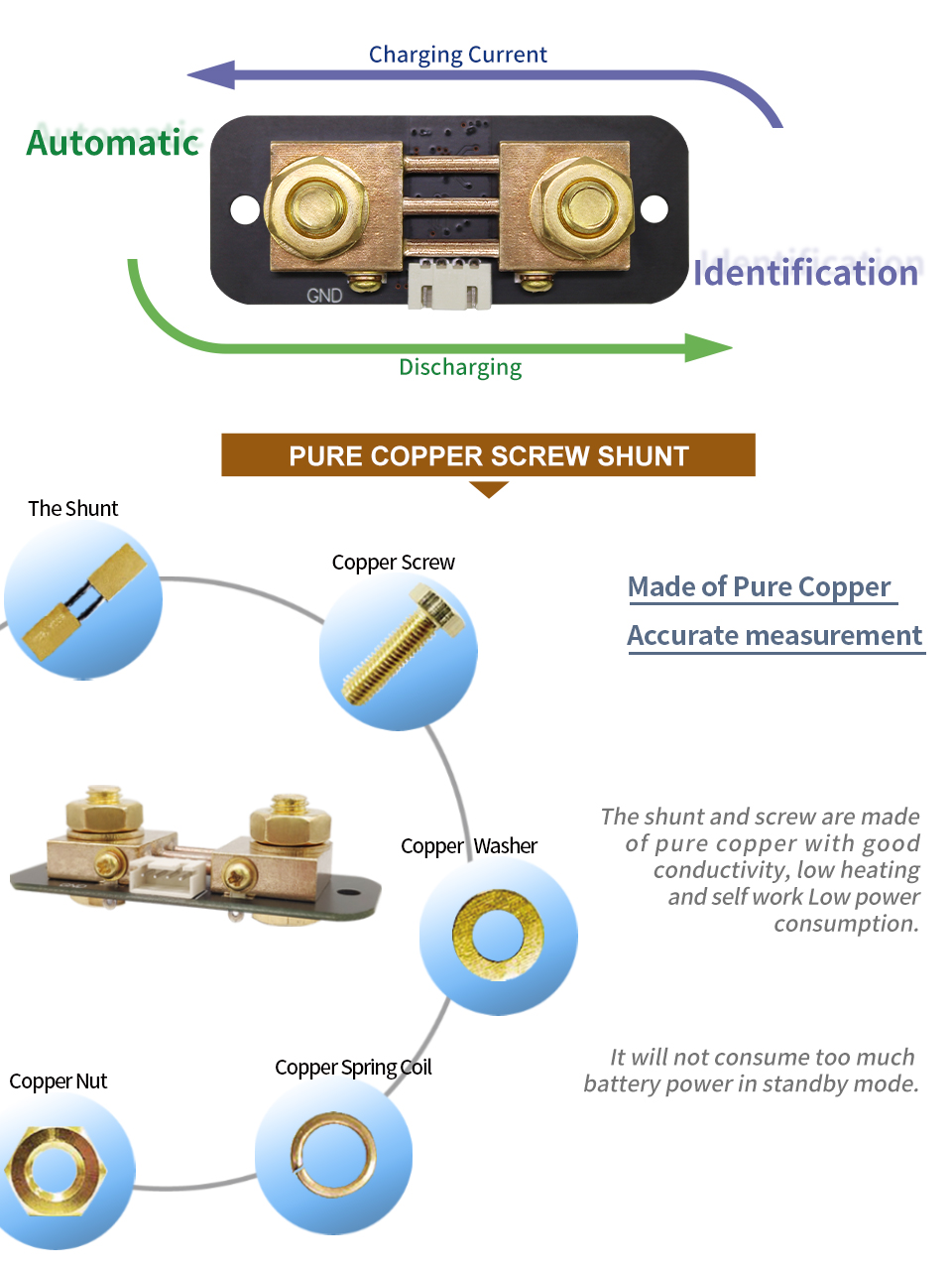

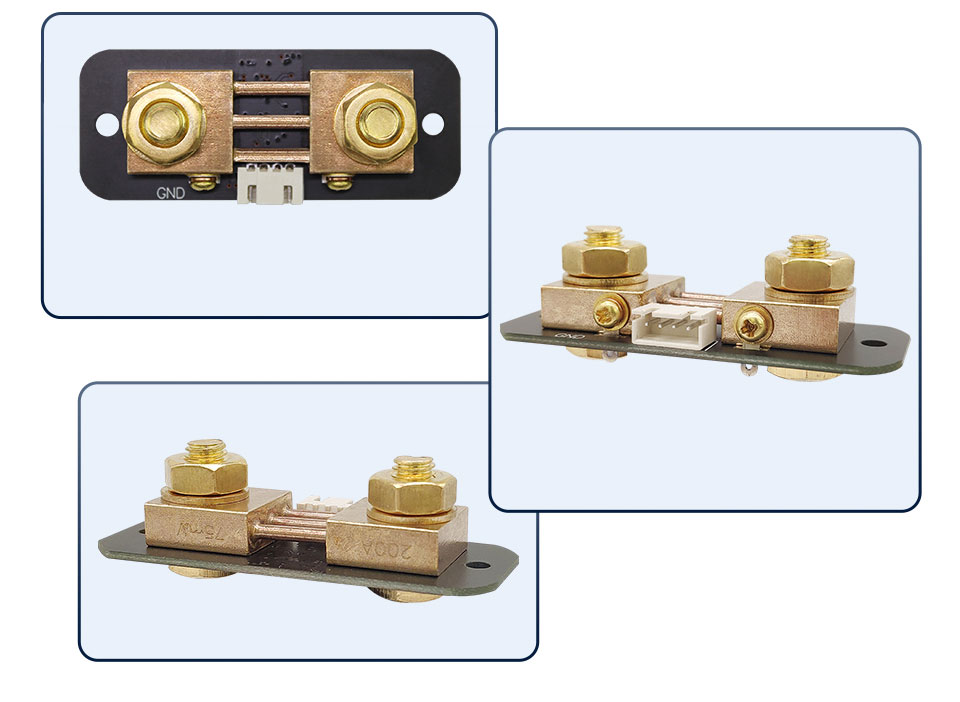

- The shunt and the screws are made of pure copper material, and the power consumption in standby mode is very low

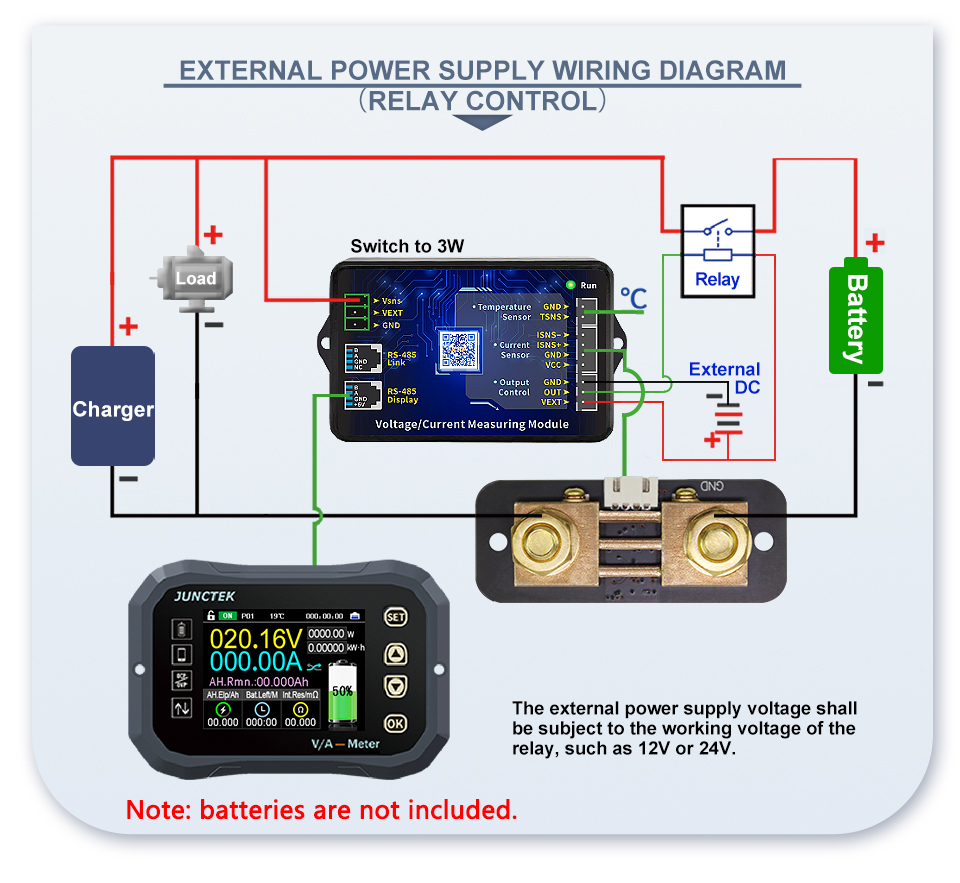

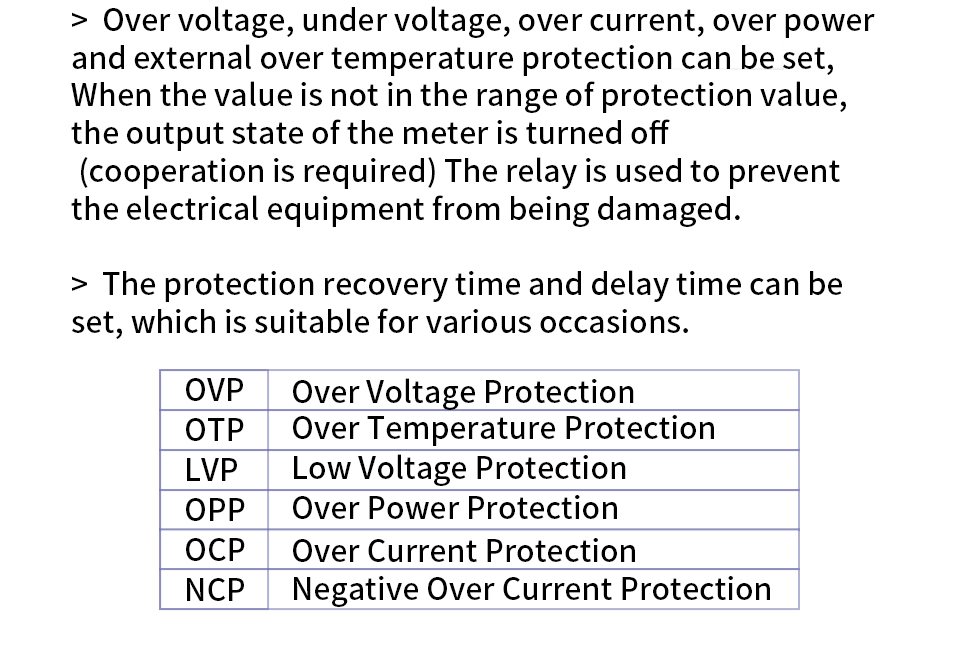

- After configuring a relay (not included), it can realize over-voltage protection, under-voltage protection, over-current protection, over-temperature protection, and over-power protection
- The parameters of voltage, current and temperature can be calibrated by themselves

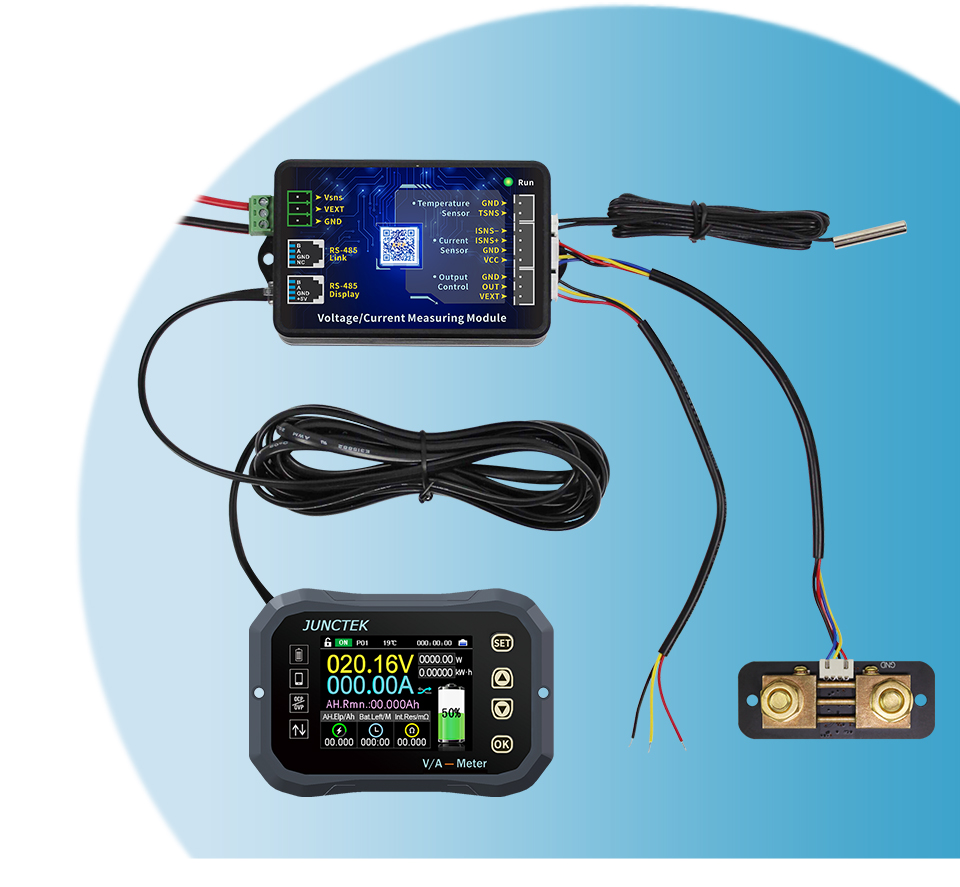

- The display and measurement module are connected through a 3m/9.8ft telephone line, and the maximum length can be extended to 30m/98.4ft, which is more convenient for installation

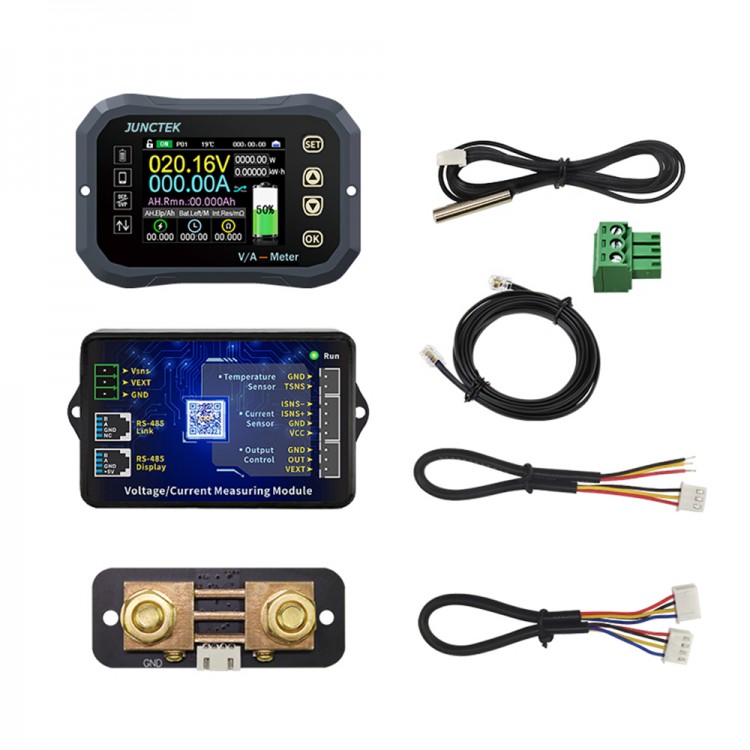

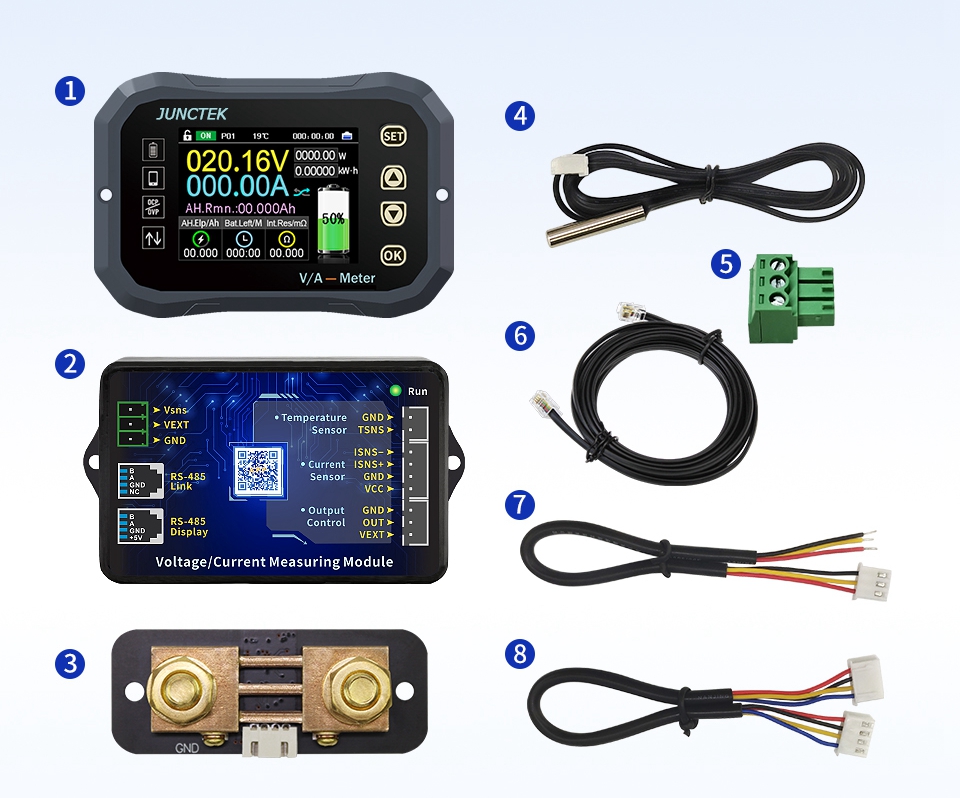

Package Included:
1. LCD Display Module x 1

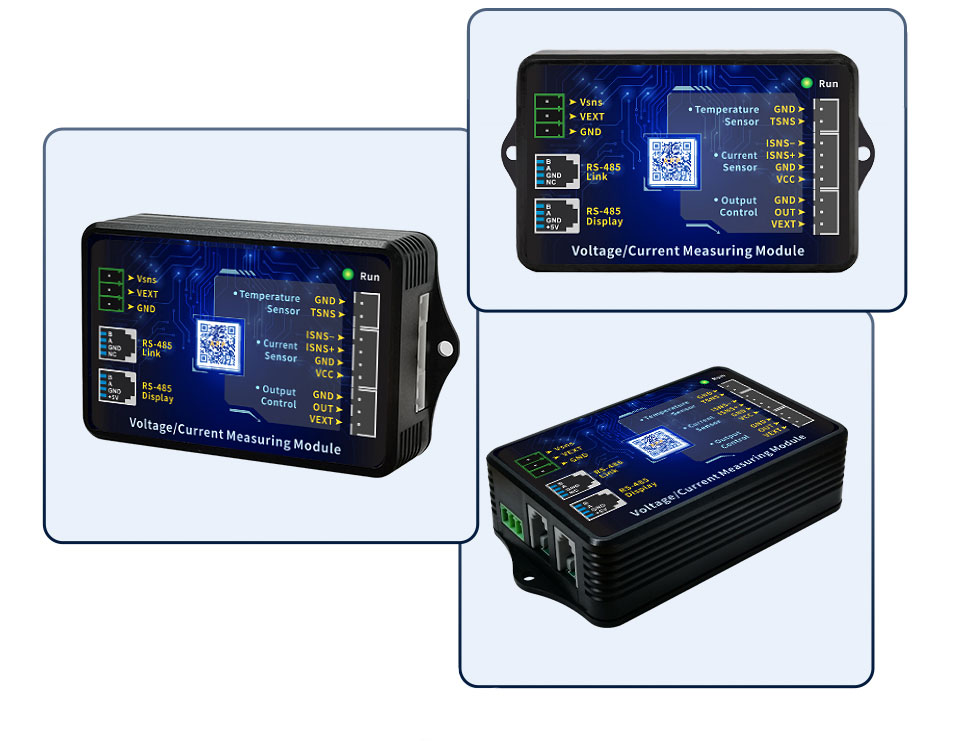

2. Voltage/Current Measuring Module x 1
3. Sampler x 1
4. Temperature Sensor x 1
5. 3P Terminal x 1
6. 3M/9.8FT Communication Cable x 1
7. 3P Connection Cable x 1
8. 4P Connection Cable x 1
Note:
- Battery is not included in the package.
