KIA-1KW Mini Induction Heater 1000W Handheld Mini Ductor Automotive Flameless Heater w/ Tool Case
Description:
This
is a kind of quality electromagnetic induction heater, with soft-start
function, with long service life, safe and reliable, under frequent
starts. Adopts high-performance driver chip for IGBT to drive, can
precisely drive and output waveform. Automatic load identification and
phase lock function, so that the load side can get a higher power
factor, and the circuit can be accurately controlled in the weak
inductive area and work efficiently. Help remove rusted fasteners and
parts; you can have a try.
Features:
- With soft-start function, with long service life, safe and reliable, under frequent starts.
- With overcurrent-protection function for IGBT.
- With input and output overcurrent-protection, automatic adjustment negative feedback function.
- With over-temperature-protection function for IGBT.
- With heating coil short-circuit-protection function.
- With heating coil open-circuit-protection function.
- Full-bridge series resonance circuit topology, with strong anti-interference ability.
- Adopts high-performance driver chip for IGBT to drive, can precisely drive and output waveform.
-
Automatic load identification and phase lock function, so that the load
side can get a higher power factor, and the circuit can be accurately
controlled in the weak inductive area and work efficiently.
- Several electromagnetic heating controllers are installed in parallel on the same heating tube without interference.
- Power saving, and easy installation, it can be connected to induction coils of barrel type and flat plate type, and etc.
Specifications:
- Name: Electromagnetic Induction Heater
- Model: KIA-1KW
- Main material: metal
- Voltage: 220V/110V optional
- Frequency: 50/60Hz
- Rated current: 4.5A
- The maximum output current: 150A
- Power: 1000W
- Highest heating temperature: 800℃
- Instrument-protection temperature: 80℃
- Ambient temperature: -40℃ to 60℃
- Relative humidity: <95% RH
- Atmospheric pressure: 86KPa-100KPa

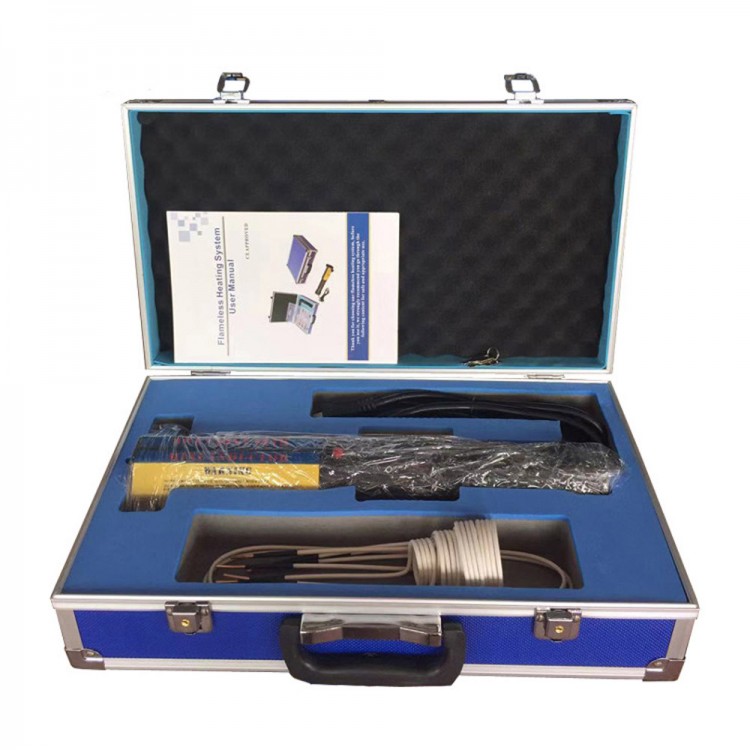

Package Included:
- 1 x Electromagnetic Induction Heater
- 2 x Dia. 30mm Coils
- 2 x Dia. 40mm Coils
- 2 x Dia. 50mm Coils
- 2 x Annealed Copper Wires
- 1 x Power Adapter
