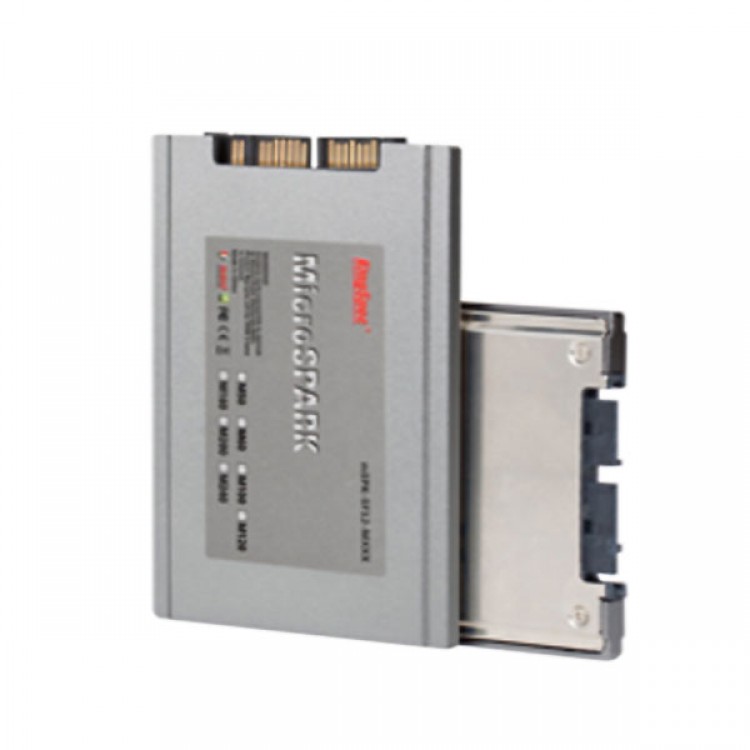

Kingspec 1.8" MicroSATA 1.8 MLC SSD mSPK-SF12-M60 Spark Solid State Drive-60GB

Availability: Out Of Stock

  • Price:$121.56
  • Price in reward points: 1216 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $119.13 $116.70 $113.05 $108.19 Contact US
Quantity:

Kingspec 1.8" MicroSATA 1.8 MLC SSD mSPK-SF12-M60 Spark Solid State Drive-60GB
Descriptions:
- Spark is a high speed and performance series SSD of SATAII, the R/W Speed can achieve the theoretical speed of 300MB/s. And the IOPS for 4KB file can reach 30K.
- With the unique DuraWriteTM data write of the controller greatly extend the service life of flash memory, meanwhile the AES data confidentiality to ensure the security of data, the RADIO allows users to easily set up a disk array features, and achieve higher performance.
- Various products for customers a variety of options in the entire series. Support NCQ, the TRIM, etc

Specfications:

Model MicroSATA 1.8 MLC
General Form factor 1.8
Interface Micro SATA
Performance Capacity 60GB | 120GB | 240GB
Sustained Read 270MB/S | 271MB/S | 275MB/S
Sustained Write 261MB/S | 262MB/S | 266MB/S
Random IOPS
4KB Random Read IOPS
4KB Random Write IOPS
Average Access time 0.1ms
Storage Media NAND Flash MLC_NAND Flash
Power Consumption input Voltage 5.0V+/_5%
Idle 0.5W
Active 2.0W
Reliability& Endurance Write endurance 16years @100GBytes write and erase per day
Read endurance unlimited
Wear-Leveling Algorithm Dynamic and static wear-leveling
Data Retention 10years at 25ºC
MTBF 2,000,000hours
ECC Supports BCH ECC 24bits in 512 bytes
Bad Block Management Auto Bad Block Management in syste
Environment Operating Temperature 0~70℃
Non-operating Temperature -40~85℃
Shock
Vibration
Ambient Humidity 5-95%
Warranty 2years
Available unit Available NO EOL
Testing Platform CPU:Intel® Core™ i3 Duo CPU 540 @ 3.07GHz Chipset:Intel® H55 Express Chipset Memory:Kingston KVR800D2N5/2G OS:Microsoft Windows 7 Professional 64-bit AHCI Driver:Intel® Rapid Storage Technology – Intel® ICH10R SATA AHCI Controlle v9.6 BIOS Settings: AHCI Mode
Testing Software CrystalDiskMark v3.0
Physical Dimensions & Weight Height(mm) 5.0+/_0.25
Width(mm) 54.4+/_0.25
Length(mm) 78.3+/_0.25
Weight(g) 37
