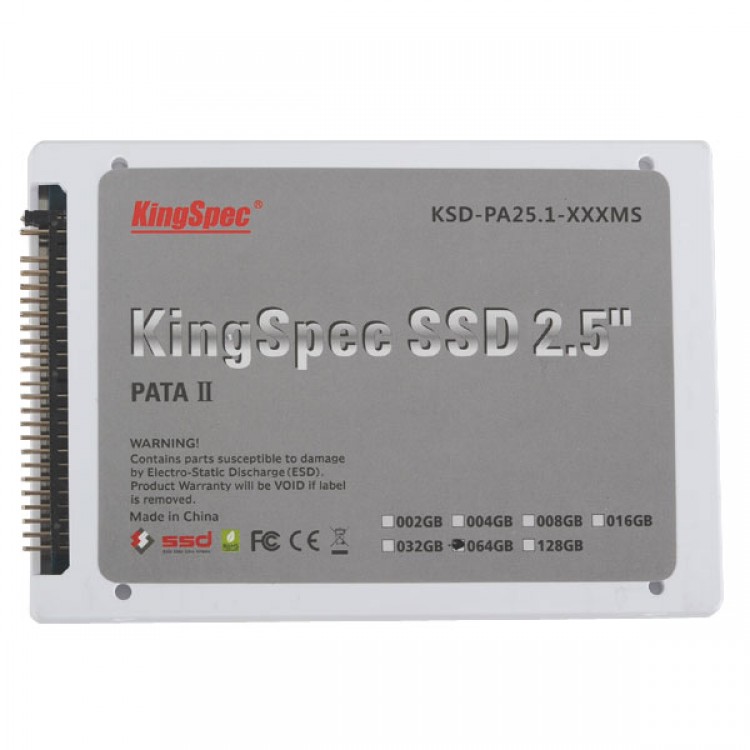

Kingspec 2.5" PATA MLC SSD KSD-PA25.1-064MS IDE44 Solid State Drive 4 Channel-64GB

Availability: Out Of Stock

  • Price:$78.69
  • Price in reward points: 787 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $77.12 $75.54 $73.18 $70.03 Contact US
Quantity:

Kingspec 2.5" PATA MLC SSD KSD-PA25.1-064MS IDE44 Solid State Drive 4 Channel-64GB
Specfications:



Item Model KSD-PA25.1-XXXMS
General Form factor 2.5"
interface IDE44
Performance Capacity(GB) 8GB 16GB 32GB 64GB 128GB
Sustained Read 45MB/S 45MB/S 50MB/S 66MB/S 72MB/S
Sustained Write 26MB/S 28MB/S 30MB/S 35MB/S 45MB/S
Random IOPS 6045
Average Access time 0.3ms
Storage Media NAND Flash MLC(Test Flash:16pcs K9GAG08U0D)
Power Consumption input Voltage 5V± 5%
Idle 0.5 W
Active 2W
Reliability& Endurance Write endurance 8years @100GBytes write and erase per day at 32GB
Read endurance unlimited
Wear-Leveling Algorithm Dynamic and static wear-leveling
Data Retention 10years at 25ºC
MTBF 1,000,000hours
ECC Supports BCH ECC 8bits or 15bits  in 512 bytes
Bad Block Management Auto Bad Block Management in system
Environment Operating Temperature 0~70ºC
Non-operating Temperature -45~85ºC
Shock 2,000G(@0.3ms half sine wave)
Vibration 20G(40-2000HZ)
Humidity 5-95%
Warranty  2years
Available unit  Available,NO EOL
Testing Platform Intel Celeron 336 2.80GHz,DDR2 PC2-5300 512MB×2pcs single channel RAM, VIA VT8237A VIA P4M900 Chipset,Microsoft Windows XP Professional SP2
Testing Software HDBench3.4.0.3,  IOMeter 2006.07.27
Physical Dimensions
& Weight
Height(mm) 9.5± 0.25
Width(mm) 69.8± 0.25
Length(mm) 100.2± 0.25
Weight(g) 75g
