Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $127.96 | $125.35 | $121.43 | $116.21 | Contact US |

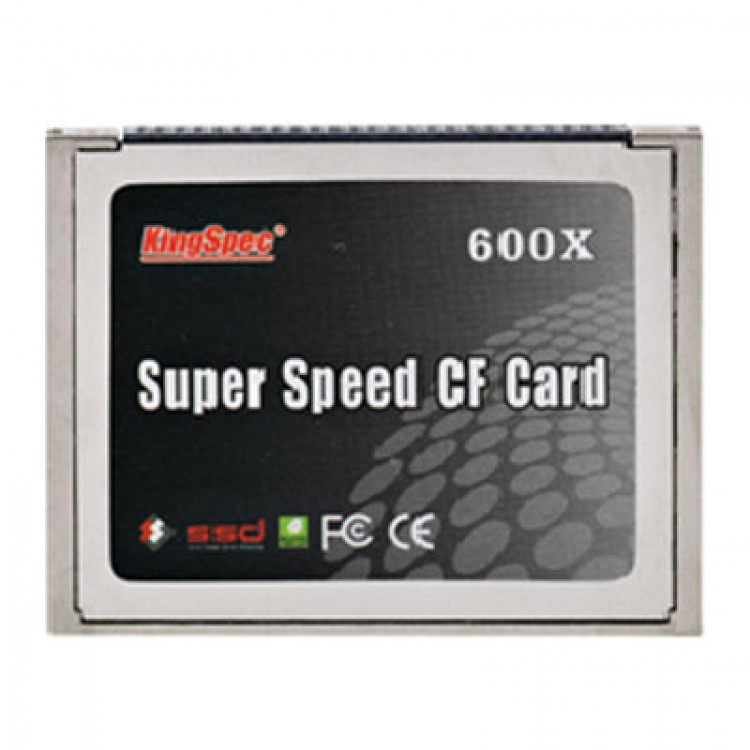

KingSpec SSD CF Card IDE Compact Flash Card KCF-PA.1-064MS For Camrra and Laptop 64GB
Descriptions:
Portable series: This series is special for some mobile devices such as USB, ESATA, support hot plug function, high-speed, convenient and safe. Support USB 2.0, backward can compatible with USB1.1.
Model | CF MLC | ||||
General | Form factor | 3.3*42.8*36.4mm | |||
Interface | CF | ||||
Performance | Capacity | 8GB | 16GB | 32GB | 64GB | |||
Sustained Read | 52MB/S(400X) | 86MB/S(600X) | 86MB/S(600X) | 86MB/S(600X) | ||||
Sustained Write | 15MB/S | 28MB/S | 59MB/S | 60MB/S | ||||
Random IOPS | |||||
4KB Random Read IOPS | 5807 | ||||
4KB Random Write IOPS | 4771 | ||||
Average Access time | |||||
Storage Media | NAND Flash | MLC | |||
Power Consumption | input Voltage | 3.3V±5% | |||
Idle | 0.4W | ||||
Active | 1.35W | ||||
Reliability& Endurance | Write endurance | 8years @100GBytes write and erase per day at 32GB | |||
Read endurance | unlimited | ||||
Wear-Leveling Algorithm | Dynamic and static wear-leveling | ||||
Data Retention | 10years at 25ºC | ||||
MTBF | 1,000,000hours | ||||
ECC | Supports BCH ECC 8bits or 15bits in 512 bytes | ||||
Bad Block Management | Auto Bad Block Management in system | ||||
Environment | Operating Temperature | 0~70℃ | |||
Non-operating Temperature | -40~85℃ | ||||
Shock | 2,000G(@0.3ms half sine wave) | ||||
Vibration | 20G(40-2000HZ) | ||||
Ambient Humidity | 5-95% | ||||
Warranty | 5years | ||||
Available unit | Available | NO EOL | |||
Testing Platform | CPU:AMD Athlon 64×2 5200+ 2.7GHz,SDRAM:DDR2 800(PC6400) 2048 MB×1PCS, Mainboard:AMD RS780 (ATI Radeon HD 3200 Graphics)System:Microsoft Windows XP Professional SP2 | ||||
Testing Software | HDBench3.4.0.3, IOMeter 2006.07.27 | ||||
Physical Dimensions & Weight | Height(mm) | 3.3+/_0.25 | |||
Width(mm) | 42.8+/_0.25 | ||||
Length(mm) | 36.4+/_0.25 | ||||
Weight(g) | 12+/_0.2 |
