KST DS125MG Metal Digital Coreless Motor Wing Servo Glider 7KG for RC Multicopter
Description:
The KST DS125 Wing Servo is an amazingly good metal cased wing servo. It is exactly the same size and has 90% of the performance and build quality of the market leader.
Only 10mm thickness. This great wing-servo can easily fit in thin glider and jet wings. With a massive 7kg.cm torque the KST DS125 is appropriate for F3F, F3B, F3J, F5J, all fast gliders, and jets.
Specifications:

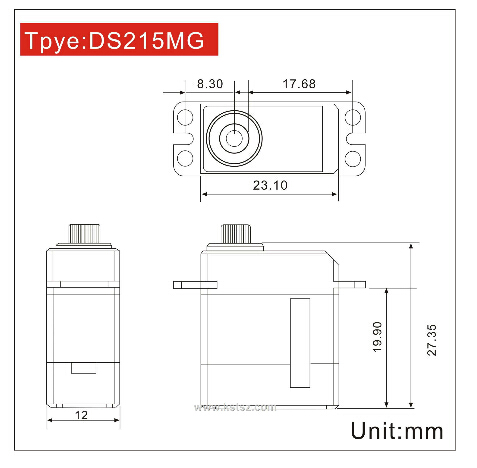

- Dimensions :30 mm (width) x 10 mm (thickness )x 35.5 mm (hight)
- Stall torque (4.8V) :6.0 kg cm /83 oz in
- Stall torque (6V) : 7.0 kg cm/ 97 oz in
- Operating speed (4.8V) : 0.15 sec/60°
- Operating speed (6V): 0.12 sec/60°
- Operating voltage : 4.5V to 6.0V
- Lead length: 16 cm/6.3 in
- Weight: 27.5 g/ 0.97 oz
- Bearings : Dual ball bearings
- Gear material: Bronze
- Motor Type: DC motor
- Driver type : FET
- Programmable: No
- Supplied accessories :
1* metal output arm, 3* substantial plastic output arms,
2* output arm retaining screws, 3* mounting screws
Packing Included:
- 1 x Servo
- Accessories
