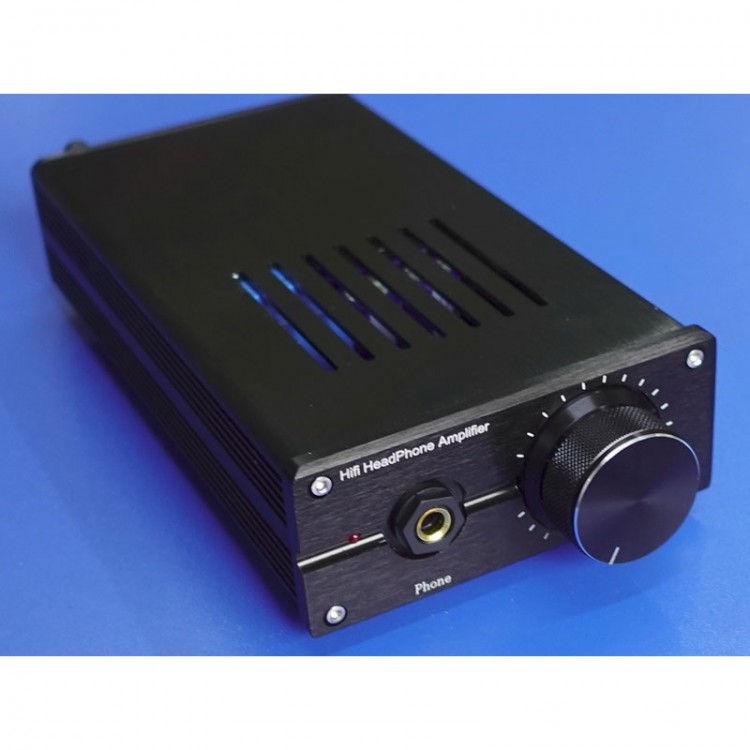

L4398 DSD Integrated CS4398 Decoding Headphone Amplifier Host without Sub Card Hard Decoding DSD Master Band
Parameter:
- Input interface: USB square port
- Input format: PCM 24-192K DSD64, DSD128
- Line interface: RCA stereo
- THD+N: -107dB
- S/N: 112dB
- Line output level: 2.2 V vppm
- Line output impedance: <100 ohm
- Amplifier output power: 550mW/600ohm; 280mW/300ohm; 170mW/600ohm
- Amplifier frequency range: 10Hz-20kHz (-1dB)
- Headphone amplifier distortion: 0.02% at 1 kHz Vppm=20V (90% power output)
- Headphone amplifier output noise level: -88dB
- Headphone amplifier output impedance: 10 ohm
- Average power consumption: AC220V<10W.
- Size: 118 x 52 x 205mm
- Weight: 1.8 kg
Features:
- Adopt CS4398 decoding chip and using MCU to dynamically optimize 24-192KPCM and DSD.
- Compatible with Italian digital interface, support PCM's ASIO, for Wasabi source code and DSD bus output.
- LPF uses AD712 operational amplifier.
- Dual transformer output, three independent power supply, strictly independent power supply for digital, DAC analog, and low-pass parts.
- The core part of CS4398 has been optimized in terms of power supply, software, low-pass filtering, wiring, etc.
- Using CS4398DSD bus to transmit and hard decode DSD audio.
- It Integrated a complete Lehman headphone amplifier circuit and equipped with headphone protection function.
- The driver used in this machine and foobar2000 with all plug-ins are shown in the following software package: https://pan.baidu.com/s/18nc5Bdu9wjlgGda6jCiU-A; password: 8888
Package Included:
- 1 x Host
- 1 x Power Cable
