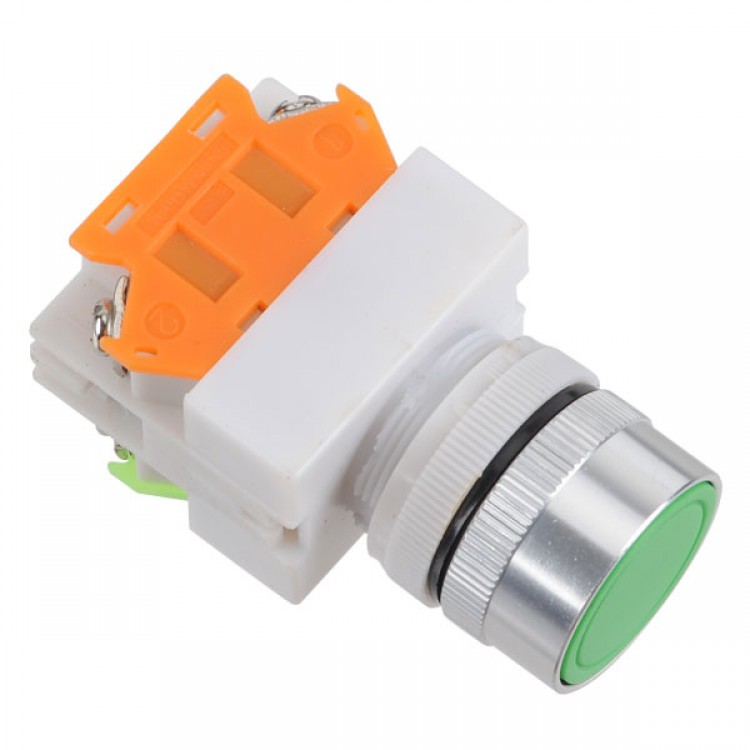

LAY7 (PBCY090)LAY37 Green Pushbutton Switch Push Button

Availability: Out Of Stock

  • Price:$1.97
  • Price in reward points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1.93 $1.89 $1.83 $1.75 Contact US
Quantity:
  This product has a minimum quantity of 2

LAY7 (PBCY090)LAY37 Green Pushbutton Switch Push Button
Specfication:

Product Name: LAY7 Series Pushbutton Switch
Model Number: LAY7 Series
Place of Origin: China

Main technical parameters:
-  Rated insulation voltage: 660V (AC 50Hz)
- Conventional thermal current: 10A
- Button utilization category rated operational voltage and rated operational current
-  Protective class: IP55
- Button with lamp rated operational voltage and power see list5

Application condition:
- Ambient air temperature: -5 ~ +40¡ãC
-  Altitude height: ¡Ü2,000m
-  Pollution degree: 3
- Type of installation: II



Description
Frequency limits:AC 50Hz
Rated operational voltage:up to AC660V/DC440V
Function:Control and signal chain
Certificate
CCC、CE
Standard
GB14048.5
Technical Data
Rated insulation voltage:660V
Conventional thermal current(Ith):10A
Operating rate: 1200 cycles/h.
Protection grade:IP55
Features
Base uses PA66 and contactors are copper
Contactors possess the function of cleaning itself which ensures the reliable switching on and off.
NO and NC contactors can be combined freely.And they are
insulating which can work as heterospolar.
Having mounting pad of preventing revolve and loose
LAY7 light button uses LED, having the features of energy saving and long mechanical durabilities
