| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $32.77 | $32.10 | $31.10 | $29.76 | Contact US |
LC29HBS Dual Band Multi-constellation Base Station GNSS Module + Antenna with RTK Function GPS/BDS/Galileo/QZSS/GLONASS
$45.10
LC29HDA Dual Band Multi-constellation Mobile Station GNSS Module + Antenna with RTK Function GPS/BDS/Galileo/QZSS/GLONASS
$49.96
LC29HDA Dual Band Multi-constellation Mobile Station GNSS Module with RTK Function GPS/BDS/Galileo/QZSS/GLONASS
$39.27
LC29HBS Dual Band Multi-constellation Base Station GNSS Module with RTK Function GPS/BDS/Galileo/QZSS/GLONASS
Description:

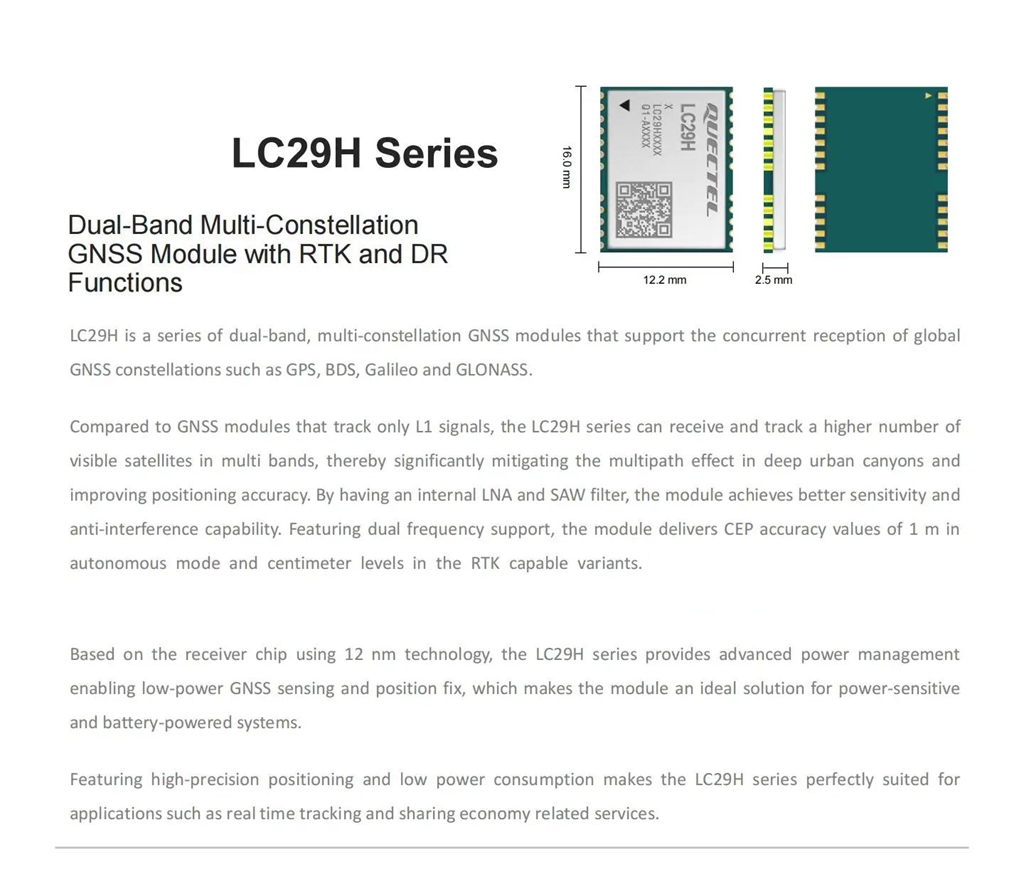

- LC29H is a series of dual-band, multi-constellation GNSS modules that support the concurrent reception of global GNSS constellations such as GPS, BDS, Galileo and GLONASS.
- Compared to GNSS modules that track only L1 signals, the LC29H series can receive and track a higher number of visible satellites in multi bands, thereby significantly mitigating the multi-path effect in deep urban canyons and improving positioning accuracy. By having an internal LNA and SAW filter, the module achieves better sensitivity and anti-interference capability. Featuring dual frequency support, the module delivers CEP accuracy values of 1m in autonomous mode and centimeter levels in the RTK capable variants.
- Based on the receiver chip using 12nm technology, the LC29H series provides advanced power management enabling low-power GNSS sensing and position fix, which makes the module an ideal solution for power-sensitive and battery-powered systems.
- Featuring high-precision positioning and low power consumption makes the LC29H series perfectly suited for applications such as real time tracking and sharing economy related services.
Package Included:

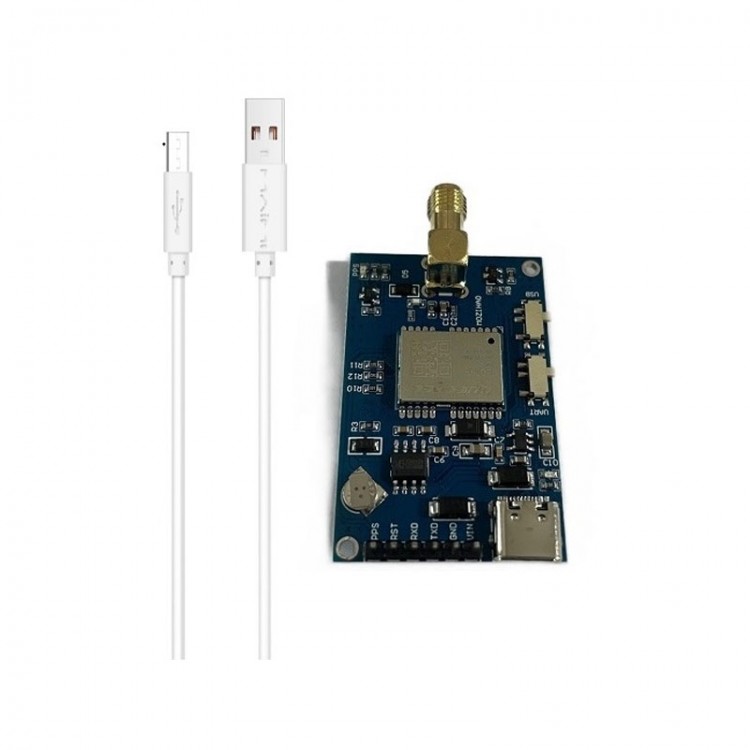

- 1 x Base Station GNSS Module
- 1 x USB Cable
