LCD Screen for GBA Highlight Brightness LCD Point-to-point Display Warm Light Screen with Black Lens

LCD Screen for GBA Highlight Brightness LCD Point-to-point Display Warm Light Screen with Black Lens

Features:
- IPS LCD screen with warm light, no need for shell cutting and welding.
- Support all for Nintendo GBA motherboards.
- Support low battery prompt.
- Support point-to-point display.
- Support shutdown brightness memory and display style memory.

Installation notes:
- Do not pull the LCD cable. Pulling the LCD cable will display horizontal and vertical lines, which cannot be repaired. In particular, the LCD screen is stuck on the double-sided adhesive tape. If the LCD screen is removed by pulling the flat cable, it is not bad but also internal injury.
- Do not squeeze the LCD screen. Squeezing the LCD frame and back cover will result in uneven display of LCD backlight, light spots and dark spots.
- When installing the LCD screen, try to tear off the film and install it at one time. Do not touch the LCD screen after tearing off the film, which is easy to leave dust and fingerprints.
- The packages sold only have different lens. Other configurations are the same. Original lens can be used. The matching lens are made of glass.
- When the battery is low, the LCD backlight will flash. Replace the battery.

Installation instruction:
- The motherboard cable is divided into 32 pins and 40 pins, choose the cable you use. There is a cable label under the cable holder.
- Put the double-sided adhesive tape and the LCD screen limit block first. The LCD screen limit blocks are placed on the bottom two sides of the casing.
- Then install the LCD screen and the LCD screen adapter board. The LCD screen should be as close to the far right as possible, and the top of the frame should be just at the position of the two small bumps.
- The wire on the cable must be connected to the positive LCD screen of the battery holder to turn on! Just wrap the wire around the battery holder. Do not touch the exposed wire and wire with other components, it will short circuit!

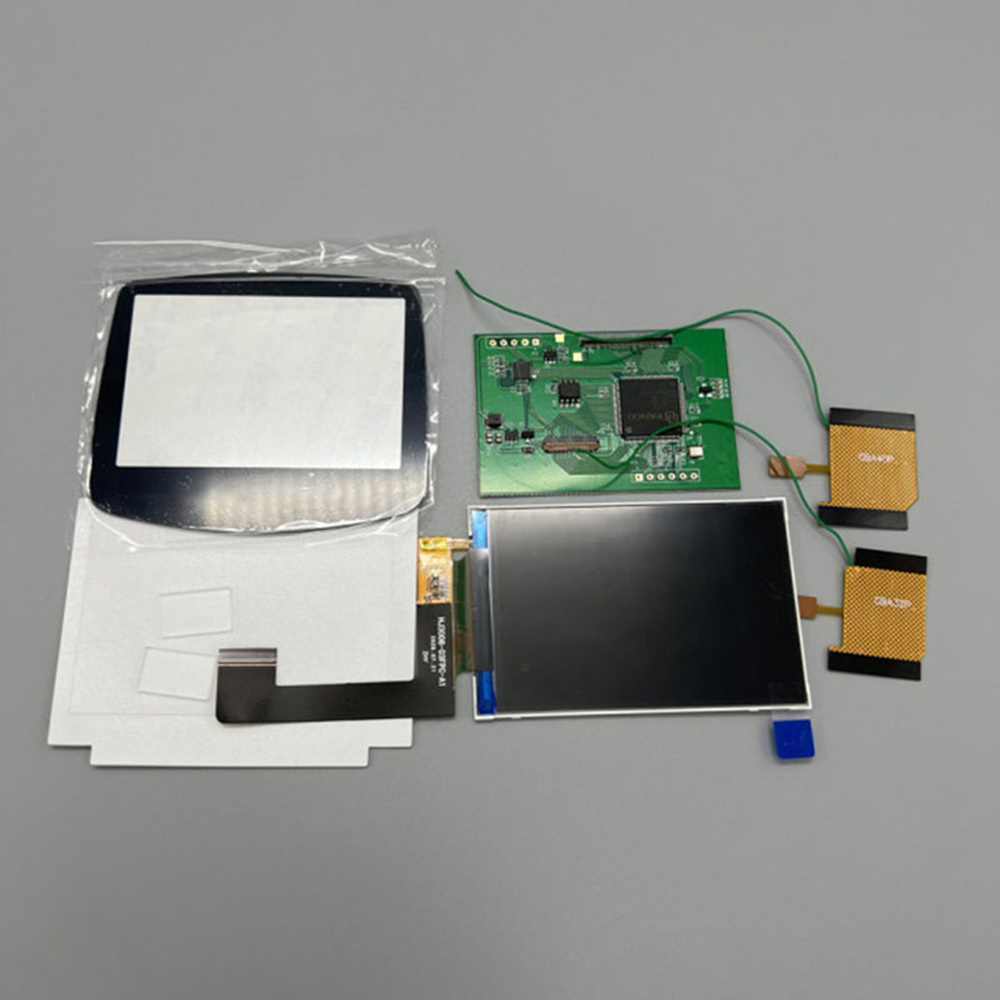

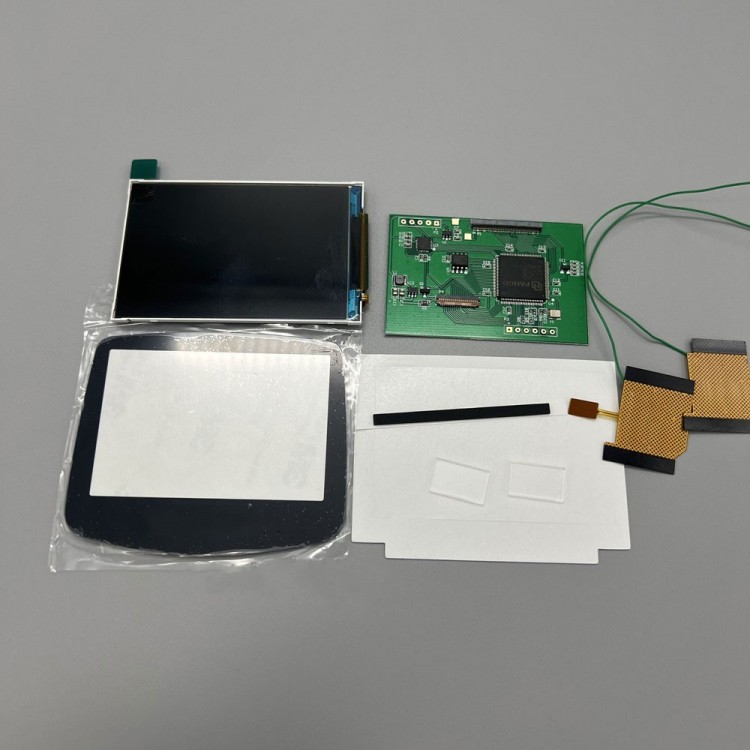

Package Included:
- 1 x LCD Screen
- 1 x 32pin Ribbon Cable
- 1 x 40pin Ribbon Cable
- 1 x LCD Screen Adapter Board
- 1 x Double-side Adhesive Tape
- 2 x Limit Block
- 2 x Limit Block
- 1 x Black Lens

Note:
- Battery is not included.
