LED Bargraph Display Panel Meter Deviation Indicator 101 Segments DC 5V Center Zero AE1101FW29Z

Availability: In stock, usually dispatched in 1 business day

  • Price:$46.96
  • Price in reward points: 470 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $46.02 $45.08 $43.67 $41.79 Contact US
Quantity:
Buy it now Add cart

You might like

51 Segments 75mm LED Single Bargraph Display Panel Meter Power Detector Indicator Red AE151S29Z

51 Segments 75mm LED Single Bargraph Display Panel Meter Power Detector Indicator Red AE151S29Z

$26.76

(0)
LED Double Bargraph Indicator Meter Power Liquid Water Level Display 101seg 100mm Red+Yellow-green

LED Double Bargraph Indicator Meter Power Liquid Water Level Display 101seg 100mm Red+Yellow-green

$85.51

(0)
RH-003X 4K HD 5.1Channel Audio Video Player Cortex-A53 64bit Processor 2GB RAM + 16GB EMMC Support for DTS/Dolby

RH-003X 4K HD 5.1Channel Audio Video Player Cortex-A53 64bit Processor 2GB RAM + 16GB EMMC Support for DTS/Dolby

$132.96

(0)
BDS PP-131P Green Audio Spectrum Analyzer Display Music Spectrum Indicator VU Meter 31-Segment

BDS PP-131P Green Audio Spectrum Analyzer Display Music Spectrum Indicator VU Meter 31-Segment

$407.40

(0)
BDS PP-131 Green Audio Spectrum Analyzer Display Music Spectrum Indicator VU Meter 31-Segment

BDS PP-131 Green Audio Spectrum Analyzer Display Music Spectrum Indicator VU Meter 31-Segment

$381.74

(0)
TKL 4.8PRO Digital Audio Processor Multifunction Audio Processor 4 Input 8 Output for Bars Stages

TKL 4.8PRO Digital Audio Processor Multifunction Audio Processor 4 Input 8 Output for Bars Stages

$362.91

(0)
6mm-NC V6 3D Edge Finder Touch Probe Edge Finder Precise CNC Probe Compatible with MACH3 and GRBL

6mm-NC V6 3D Edge Finder Touch Probe Edge Finder Precise CNC Probe Compatible with MACH3 and GRBL

$67.45

(0)
V6 Model6 3D Touch Probe Desktop CNC Touch Probe Edge Finder 6mm-NO Compatible with MACH3 and GRBL

V6 Model6 3D Touch Probe Desktop CNC Touch Probe Edge Finder 6mm-NO Compatible with MACH3 and GRBL

$65.34

(0)

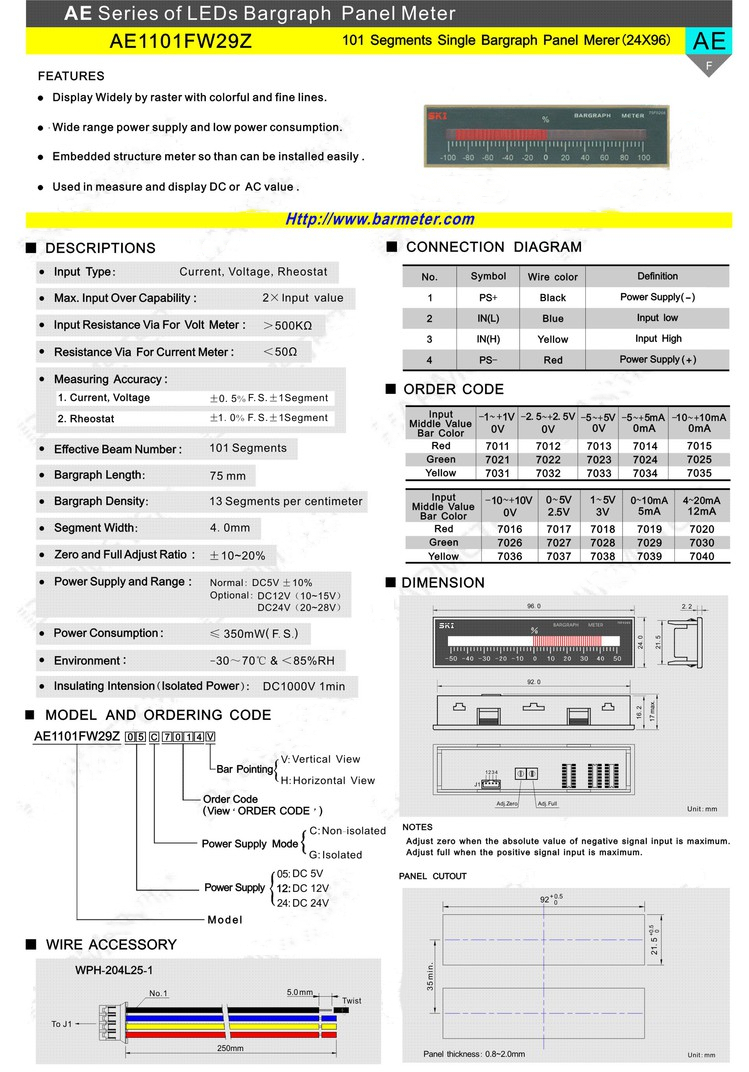

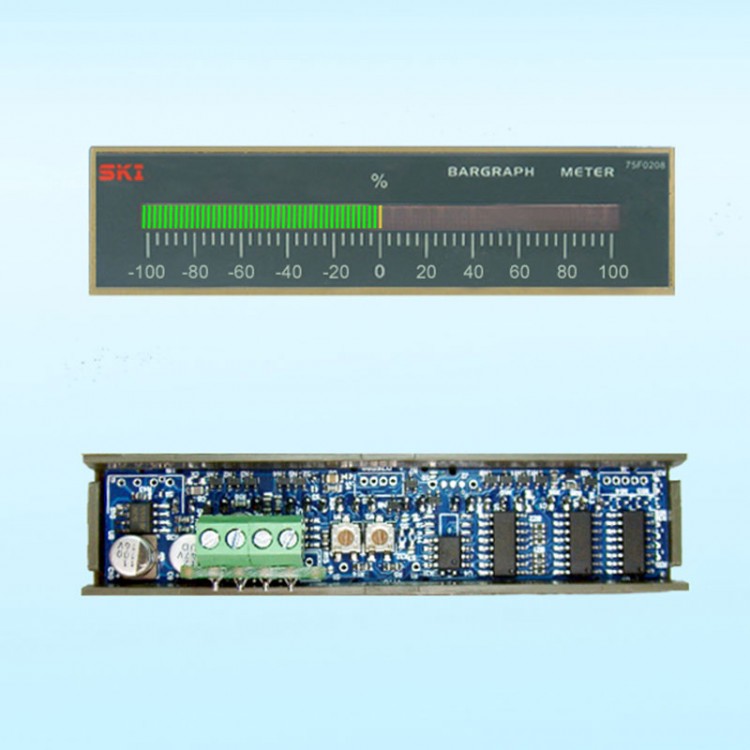

LED Bargraph Display Panel Meter Deviation Indicator 101 Segments DC 5V Center Zero AE1101FW29Z

Parameter:
Product model: AE1101FW29Z
Panel size: 96 × 24mm (cut-out 92 × 21)
101 line 75mm deviation indication
Line density: 11 lines / cm
Input signal: -1V-- +1V, -5V-- +5V, etc .
Accuracy: 1%
Typical power consumption at full scale: 0.5W

Package List:
1 x LED Bargraph Panel Meter

Note: The product is powered by DC 5V, A port.
