Description
- Note: If your system is WINDOWS XP, please check whether your computer has ".NET 3.5 SP1" this component, if not, go to the Microsoft website to download and install.
- WIN7 64-bit also need to install additional driver.
- Please do not upgrade yourself.
Function:
- Dual input oscilloscope (single, 16Msps, 3MHz bandwidth)
- 8-channel logic analyzer
- Data Logger
- Dual channel voltmeter
- Mixed signal oscilloscopes and logic analyzer
- Frequency meter
- Remote controller
- PWM controller
- Frequency generator
- I2C controller
- Pulse / edge counter
- 8 digital channel + 1 analog channel logic analyzer, support for multiple protocols
Analog parameters:
- Number of input channels: 2 channel
- Sampling channel: 1 channel
- The maximum sampling frequency: 16MHz
- The maximum analog bandwidth: 3MHz
- Input voltage range: -10V to + 10V
- Sensitivity: 78mV
- Maximum vertical resolution: 256 level
Digital parameters:
- Number of channels: 8
- Input voltage: 0V-5.3V
- Input Low level: <0.8V
- Input high level: >1.4V
- Supported protocols: SPI, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wire, PS / 2
The communication interface parameters:
- USB parameters: USB2.0 high-speed 480Mbps
System requirements:
- Supported operating systems Win2000 / XP / Vista / WIN7 (32bit)
- Celeron 4 2.0G or Pentium 4 1.8G higher processor
- Need USB2.0 high speed interface, does not support full speed USB2.0 or USB1.1
- Memory Requirements 128M or more
- Need 2G or more hard disk
- You need to install Framework 3.5 SP1

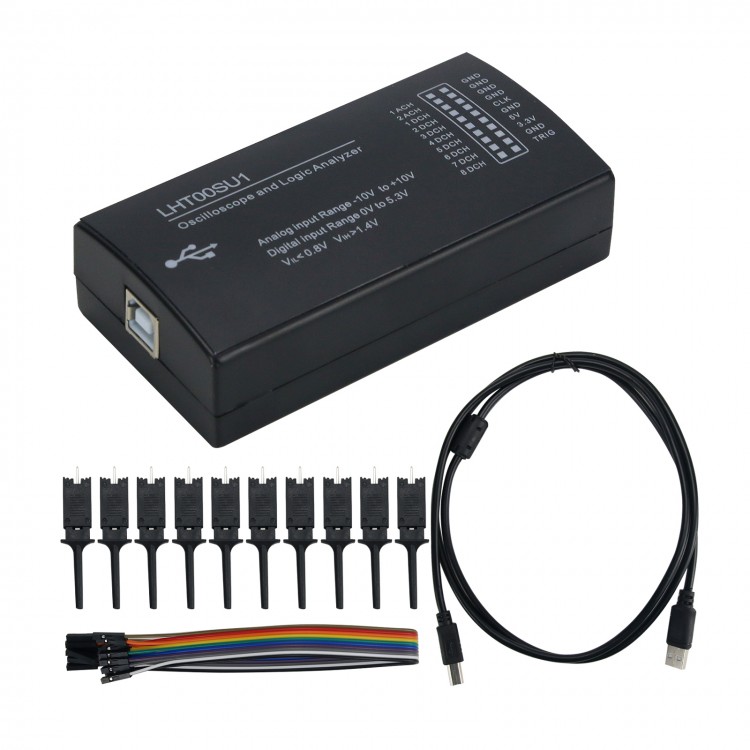

Package included:
- 1 x Machine
- 1 x Testing clamp line (with 10 test clip)
- 1 x USB connection line
