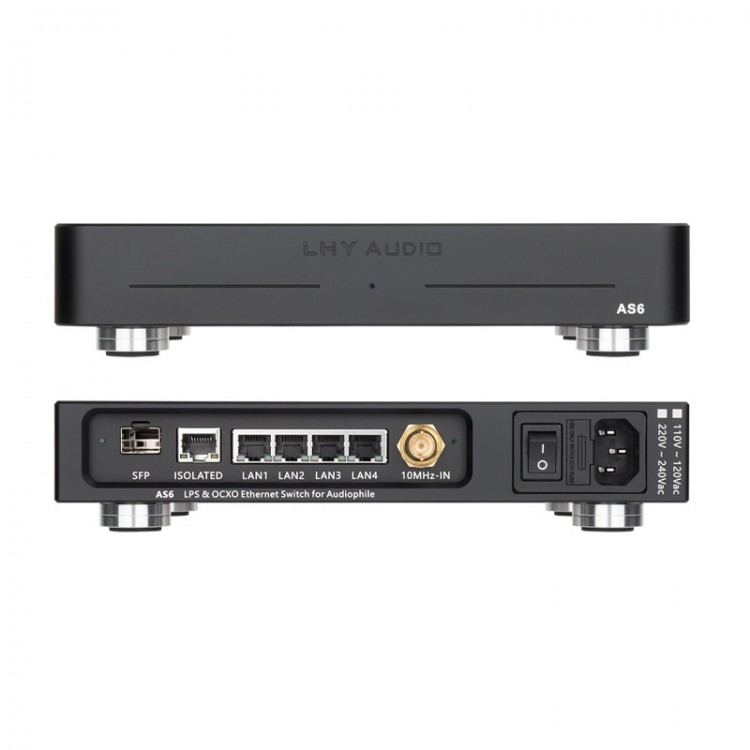

LHY AUDIO AS6 1000Mbps 6-Port Hifi Switch LPS & OCXO Ethernet Switch (Black 115V) for Audiophile

LHY AUDIO AS6 1000Mbps 6-Port Hifi Switch LPS & OCXO Ethernet Switch (Black 115V) for Audiophile

Features:
uV-Level Pure Linear Power Supply
* The AS6 uses a three-way independent LT3042 + PNP architecture uV-level regulated power supply to separately power the OCXO and the mainboard.

ISOLATED Network Port with Dedicated Imported Network Transformer
* All RJ45 ports on the AS6 feature isolation design. Specifically, the ISOLATED network port uses a dedicated imported network transformer to enhance isolation performance, providing a cleaner and quieter network connection for digital audio streaming equipment.

Built-in Imported High-Precision OCXO with Low Phase Noise
* The AS6 is equipped with a high-precision OCXO that provides an accurate operating clock frequency to the switch's main controller. If you already have a higher-grade reference clock, you can connect it via the AS6's external clock BNC input port to further elevate its performance.

EMI AC Filtering / High-Speed Rectifier Filtering / High-Capacity Multistage Filtering Array
* The AS6 includes an internal EMI AC filter that effectively suppresses and eliminates interference from the AC power source. In the DC power section, multiple large-capacity filter capacitors ensure ample energy supply to the mainboard, easily handling even the most complex and dynamic music data.

Packing List:
* 1 x Set of Hifi Audio Switch

Packaging Details:
* G.W.: 2.2kg
