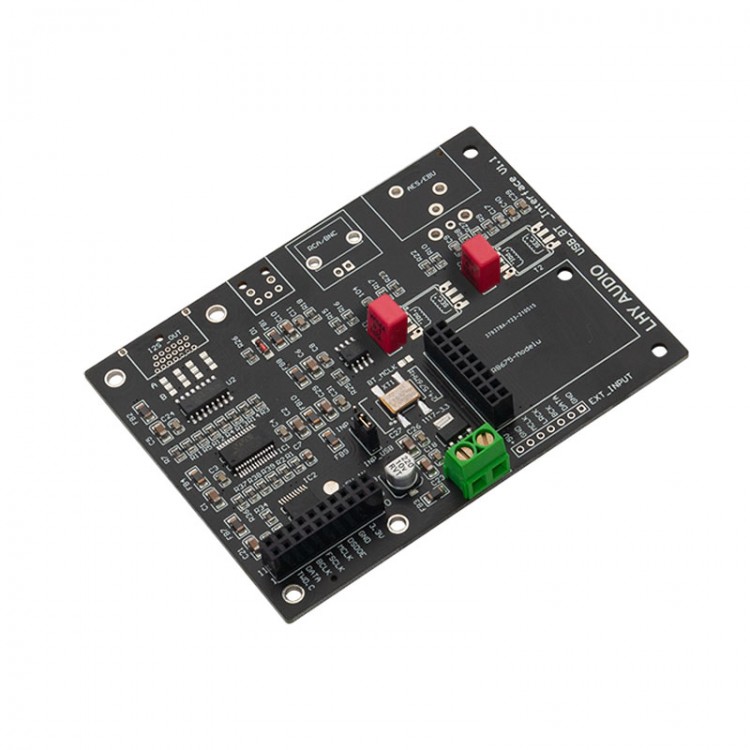

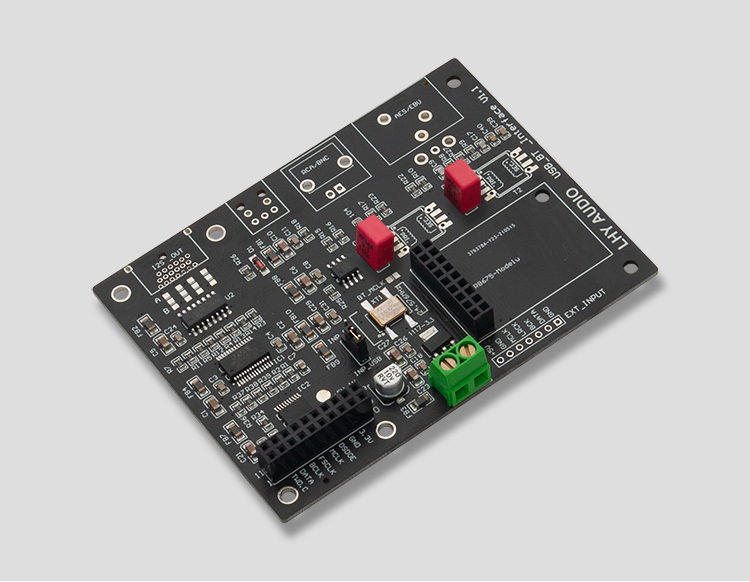

LHY AUDIO Digital Audio Output Board IIS To Coaxial Output Board (Without Output Terminals)
Features:
- Support for Amanero Combo384 USB interface and XMOS USB module. CS8675 Bluetooth 5.0 module can be used as Bluetooth receiver
- Support PCM2706, CM108, SA9027 and other I2S signal conversion. Default I2S 4-wire (BCLK, LRCK, DATA, MCLK). Support for Raspberry, Bluetooth and other non-master clock MCLK output 3-wired BCLK, LRCK, DATA. MCLK is provided by the crystal oscillator clock on the board, the default is 24.576M, and the clock can be changed by yourself
- At the same time, external I2S signals can be accessed through switching function
Specifications:
- Model: 2478
- Input interface: I2S
- Size: 99 x 74mm/3.9 x 2.9"
Package Included:
- 1 x Digital Audio Output Board
