Lilliput 7" 664/O IPS FPV Monitor Peaking HDMI In Field Monitor w/ HDMI input for Canon MARK 5D II III

Lilliput 7" 664/O IPS FPV Monitor Peaking HDMI In Field Monitor w/ HDMI input for Canon MARK 5D II III



Versions:
- 664/O     = 664 + HDMI output (SKU:26509)
- 664/P     = 664 + Peaking Filter, False Colors, Histogram, Exposure,(SKU:26508)
- 664/O/P = 664 + HDMI output + Peaking Filter, False Colors, Histogram, Exposure(SKU:26510)
- 664/W    = 664 + 5.8Ghz Wireless Receiver(SKU:26511)

Description:
- The 2013 ADVANCED FUNCTION
- HOT Lilliput Product
- Lilliput 7" 664/O HDMI IN&OUT Monitor
- Professional functions, good quality, easy to use!
- Latest design from Lilliput
- Only 365g.  lighter, thinner, and portable
- This 664 is the upgrade version of Lilliput 5D-II monitor.

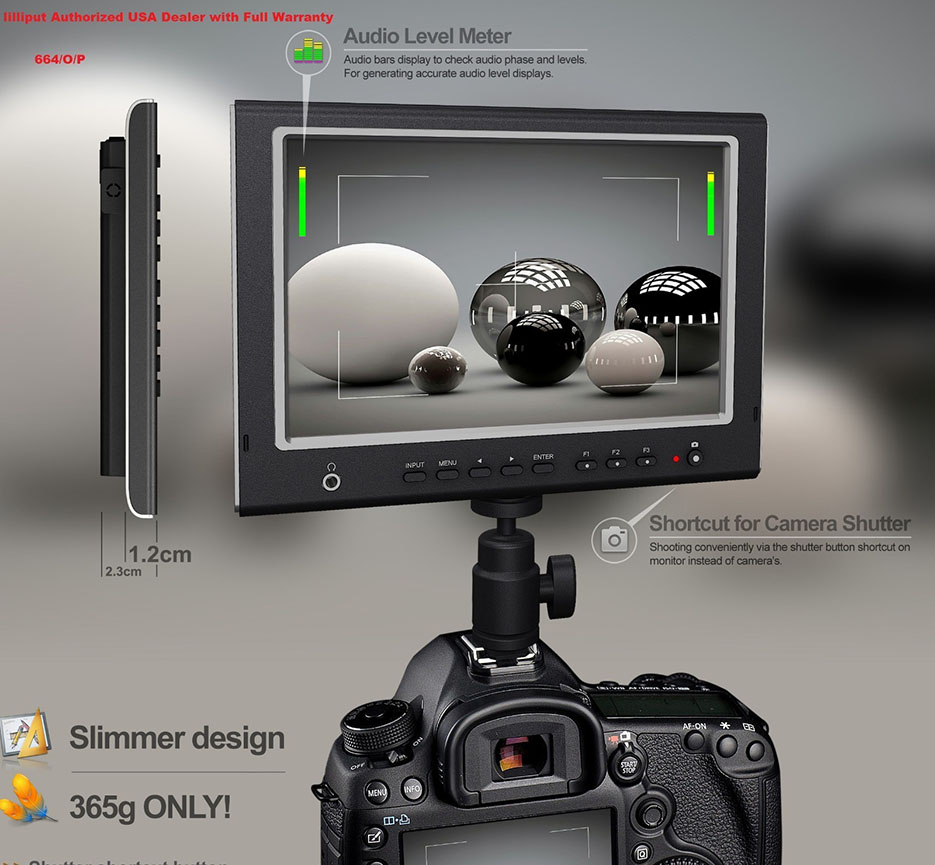

- With all Lilliput 5D-II feather, this Lilliput 664 is with two new useful functions -Audio Level Meter and Shortcut for Camera Shutter

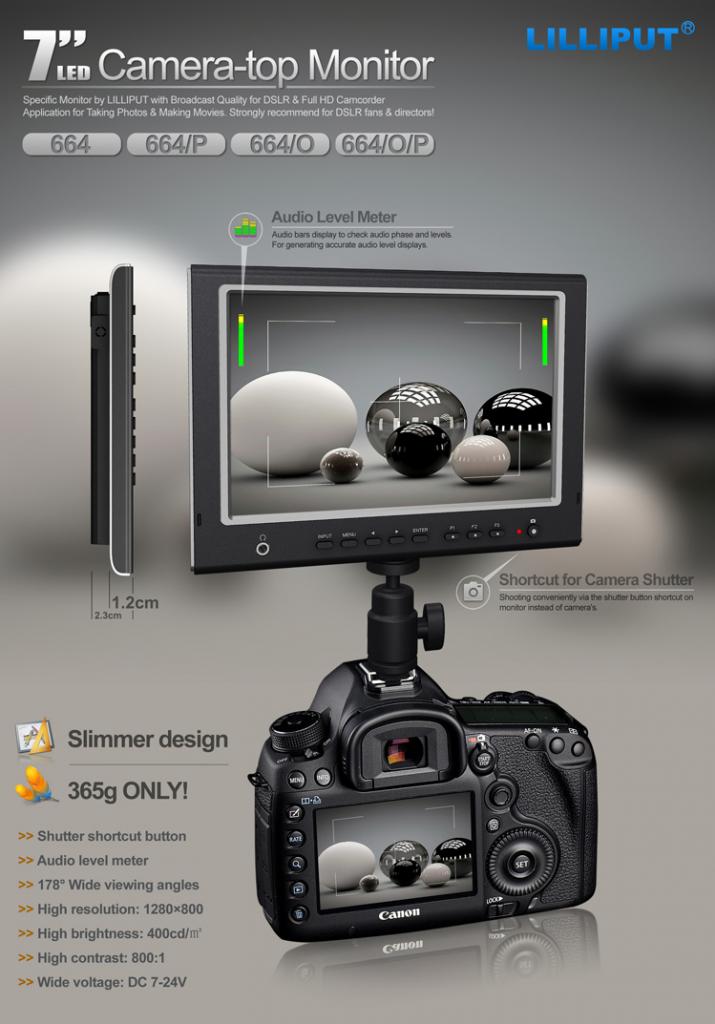

-  7" Camera-top monitor with Shutter Port for DSLR & Full HD Camcorder
- 664/O (HDMI input & output)
- IPS panel 178° wide viewing angles
- High resolution: 1280×800
- High brightness: 400cd/㎡
- High contrast: 800:1
- Faster response time
- Wide voltage: DC 7-24V
- Firm & portable design
- POP-UP shortcut menu

Advanced Functions:
Camera Mode, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 8x Zoom, Picture-in-Picture, Flip H/V, Backlit Control.

Specifications:
- Panel Size: 7" LED backlit
- Physical Resolution: 1280×800
- Aspect Ratio: 16:9
- Brightness: 400cd/㎡
- Contrast: 800:1
- Viewing Angle: 178°/ 178°(H/V) (IPS)
- Input Signal: HDMI×1, Composite×1, Shutter Port×1
- Output Signal: HDMI×1
- Audio: Speaker×1(built-in), Ear Phone Slot×1(built-in)
- Current: 960mA
- Input Voltage: DC 7-24V

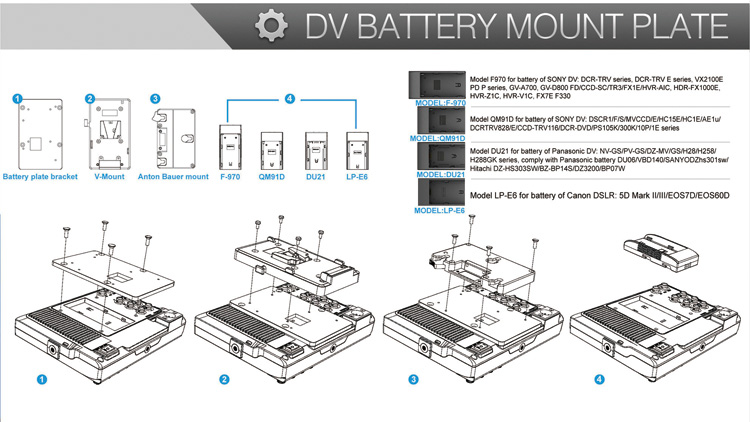

- Battery Plate: V-mount, Anton Bauer mount, F-970, QM91D, DU21, LP-E6
- Power Consumption: ≤12W
- Operating Temperature: -20C ~ 60C
- Storage Temperature: -30~ 70C
- Dimension(LWD): 184.5×131×23
- Weight: 365g







Package included:
- Lilliput 7" 664/O IPS FPV Monitor
- Folding sun shade cover 1 piece
- Battery plate (send F970 and LP-E6 as default. )
- HDMI A/C cable 1 piece
- Composite cable 1 piece
- Shutter release cable 2 pieces
- Shoe mount 1 piece
-12V DC adapter 1 piece
- Manual 1 copy
- Battery plate bracket 1 piece
