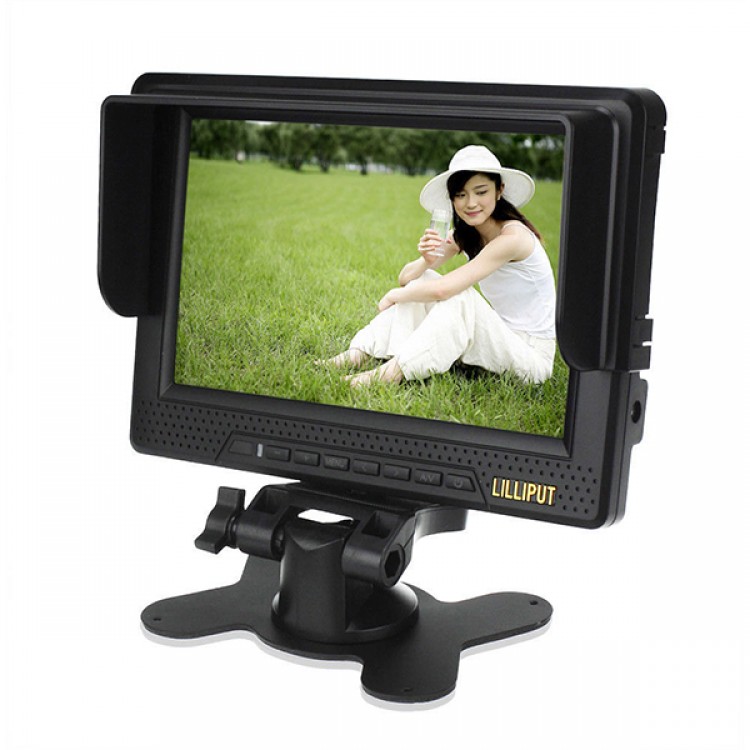

LILLIPUT 7" 668GL-70NP/H/Y LCD Field HD Monitor HDMI YPbPr DSLR Composite Input FPV Monitor

LILLIPUT 7" 668GL-70NP/H/Y LCD Field HD Monitor HDMI YPbPr DSLR Composite Input FPV Monitor



Features:
- LCD 16:9 Aspect Ratio
- HDMI & YPbPr Input
- Max 1920×1080 pixels
- Application for Full HD Video Camera in CCTV Monitoring and Making Movies

Specifications:
- Panel Size: 7"TFT LCD (16:9)
- Resolution: 800×480, up to 1920×1080
- Brightness: 450cd/㎡ (optional: 250cd/㎡)
- Contrast: 500:1
- Viewing Angle: 120°/ 140°(H/V)
- Input Voltage: DC 12V
- Input Signal: HDMI,YPbPr, AV
- Battery: 2200mAh/7.4V (built-in)
- Current: 650mA (1.2A when charging)
- Standby Current: ≤50mA
- Power Consumption: ≤8W
- Input Resistance: 75Ω
- Input Frequency: H/30-60KHz,V/60-75Hz
- Audio Output: ≥250mW
- Speaker: ×1(front)

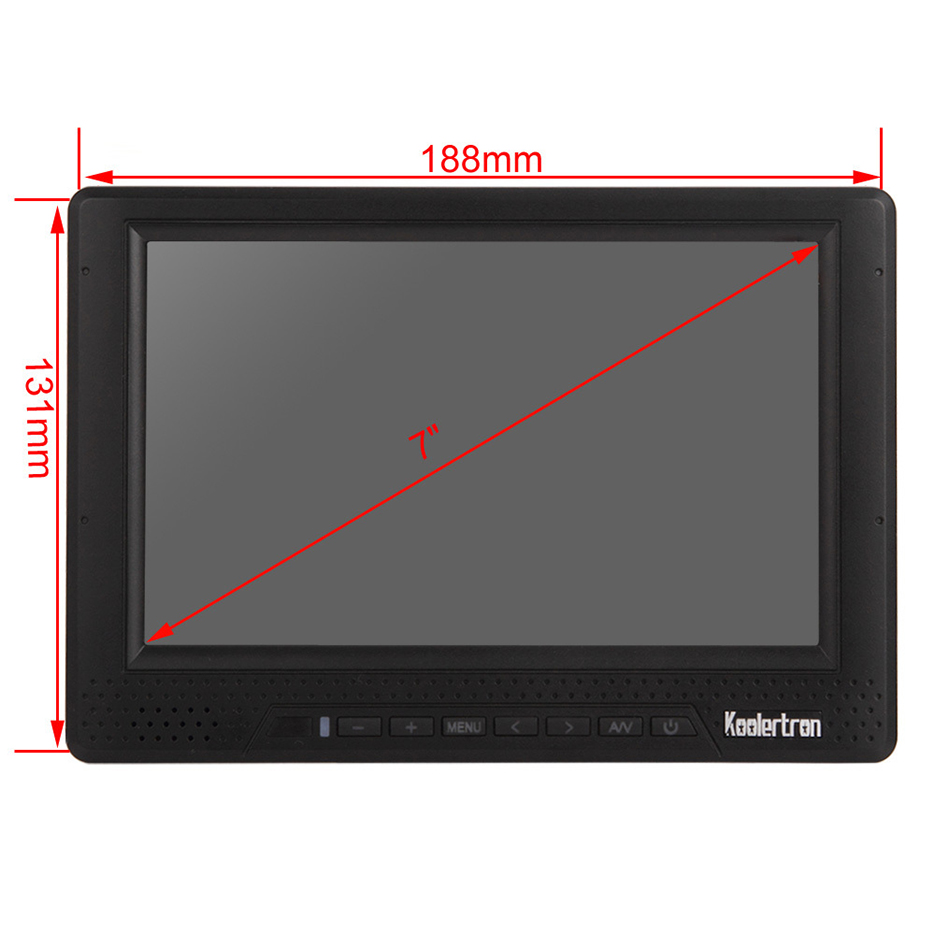

- Dimension(LWD): 188×125×33mm
                                194.4×134.1×63.2mm (with sun shade)
- Weight: 542g / 582g (with sun shade)

Cautions:

1.Please use the adapter attached in the accessory.
2.Please do NOT expose this product to direct sunlight, heat, or humid conditions.
3.Keep away from strong light while using this product so as to obtain the clearest and the most colorful picture.
4.Please avoid heavy impact or drop on to the ground.
5.Do not use chemical solutions to clean this unit. Please simply wipe with a clean soft cloth to keep the brightness of the surface.
6.If the product does not operate normally when the instructions are followed. Adjust only those controls that are covered by the instructions. Improper adjustment of other controls may result in damage and will often require extensive work of a qualified technician.


Package Included:
- 1x Lilliput 668GL-70NP/H/Y 7" Camera Monitor
- 1x Sun Shade
- 1x 2200mAh/7.4V Li-ion Battery
- 1x 12V 1.5A DC Adapter
- 1x Remote Control
- 1x Bracket
- 1x Operation Manual

Not included
- 1x HDMI to Mini HDMI Cable (optional, contact us and add an extra US. $5)
- 1x Shoe Mount (for camera only) (optional, US. $5)
