LILYGO LoRa32 V2.1 ESP32 Bluetooth WiFi Wireless Module with 0.96-inch OLED (for Disaster-Radio 915MHz Version Firmware)
Specification:
- Working voltage: 1.89 - 13.7V
- Acceptable current: 109-114mA
- Emission current: 120mA at +20dBm; 90mAh at +17dBm; 29mAh at +13dBm
- Transmission power: +20dBm
- Receiver sensitivity: -139dBm at LoRa & 62.5KHz & SF = 12 & 146bps; -136dBm at LoRa & 125Khz & SF = 12 & 293bps; -118dBm at LoRa & 125Khz & SF = 6 & 9380bps; -123dBm at FSK &5Khz & 1.2Kbps
- Frequency error: +/-15KHz
- FIFO space: 64Byte
- Data rate: 1.2K91300Kbps at FSK; 0.018K ~ 37.5Kbps at LoRa
- Modulation modes: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
- Interface format: SPI
- Sleep current: 0.2uA at SLEEP; 1.5uA at IDLE
- Working temperature: -40℃ to +85℃
Features and Functions:
- Digital RSSI function
- Automatic frequency correction
- Automatic gain control
- RF wake-up function
- Low voltage detection and temperature sensor
- Fast wake-up and frequency hopping
- Highly configurable packet handler
- SMA antenna
More Details:
- https://github.com/Xinyuan-LilyGO/LilyGo-LoRa-Series

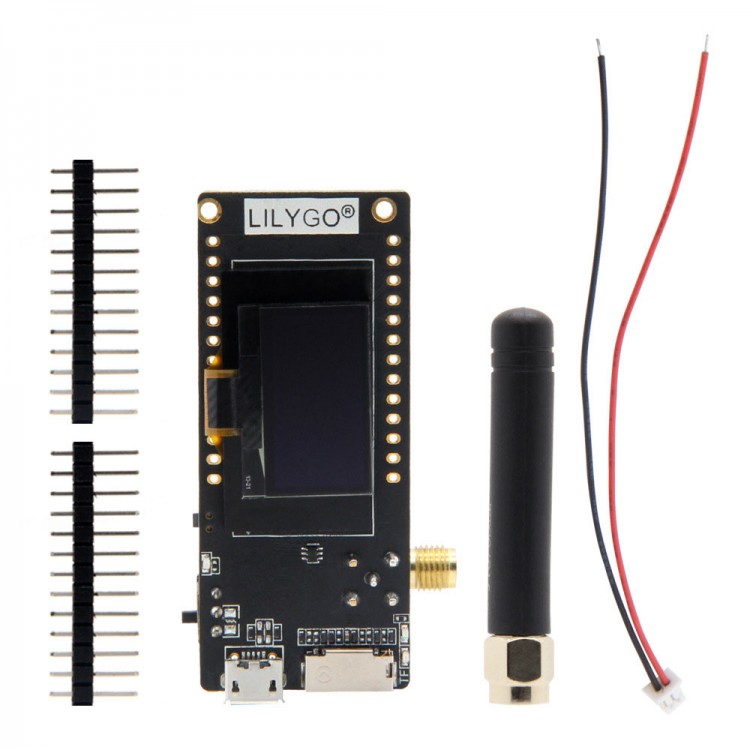

Package Included:
- 1 x Wireless Module
- 2 x Pin Connectors
- 1 x Antenna
- 1 x Power Cable
