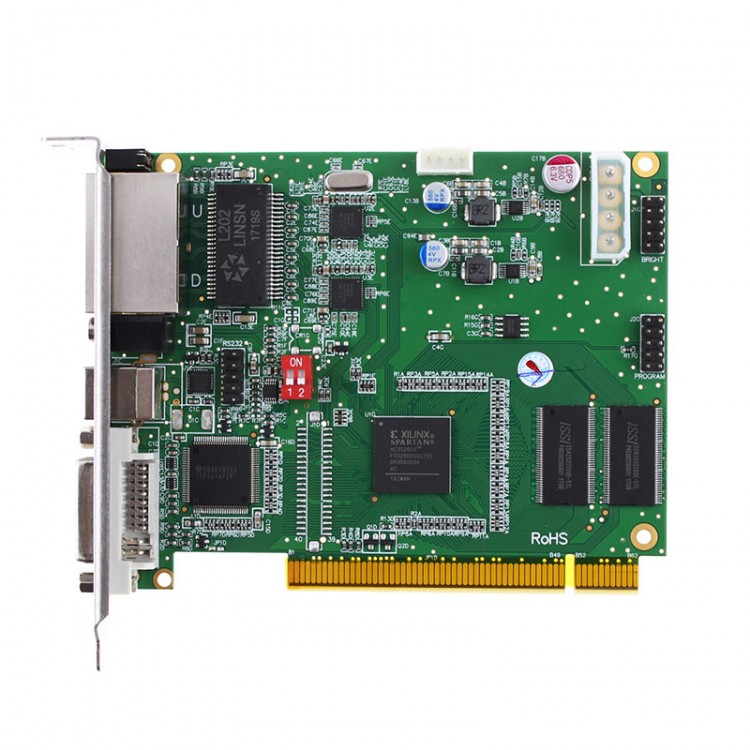

Linsn TS802D LED Control Card LED Display Sending Card for Outdoor Full Color LED Video Wall Screen

Linsn TS802D LED Control Card LED Display Sending Card for Outdoor Full Color LED Video Wall Screen

Advantages:
1) One DVI video signal input;
2) One Audio signal input;
3) Sending card is set by USB; can be cascaded to drive a larger screen, up to 4 cards cascaded;
4) Two network outputs; single port supports up to 655360 pixels;
5) Support adjusting brightness manually (require working with outer box); three scales can be set: 16-grade, 32-grade and 64-grade;
6) Support 60Hz and 30Hz output modes.

Key Features:
1. The TS802D sending card includes full-color sending card TS802 and dual-color sending card DS802. Full-color sending card supports full-color, dual-color and single color led displays. Dual-color sending card supports dual-color and single color led displays.
2. The LED display sending card supports up to 2048*640.
3. Supporting display mode: 640*480, 800*600, 1024*768, 1280*768, 1280*800, 1280*1024, 1440*900, 1440*1080, 1600*1200, 1680*1050, 1728*1296, 1920*1080, 1920*1200, 2048*1152 and 2048*1280.
4. Audio Transmission Function: The LED control card sends audio data using a network cable, and function board outputs audio signals to the display. Double 24bit 64KHZ hi-fi digital signal to analog signal or analog signal to digital signal, thus your display can have a perfect video effect.
5. Cascade function: Through the DIP switch on the LED sending card, several TS802D sending cards can be easily cascaded to support a super large LED display.
6. Sending card U/D port flexibility for carrying half width or half height. For example, TS802D can max support 1280*1024 with two ports. A single network output port supports 1280*512 or 640*1024
7. Sending card rotation function: In Sender setting, the sending card has 0, 90, 180, 270 degree rotation function.
8. Sending card zoom in/out function: In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out.
9. Supporting 10-bit colors: The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors. The eighth supports 10-bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to work with our video processors using the 30 bits TTL.
10. Multi-display synchronous and combination functions. One sending card can control multi-displays, realizing displays combination, synchronous display, and independent playing.

Package Included:
- 1 x TS802D LED Control Card
