| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $1,318.20 | $1,291.30 | $1,250.94 | $1,197.14 | Contact US |

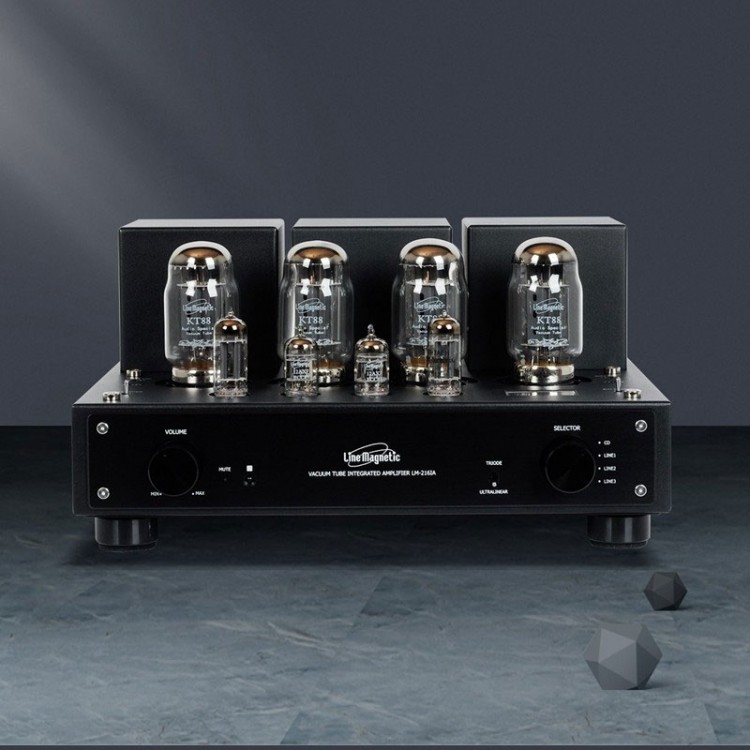

LM-216IA PLUS 220V HiFi Electronic Tube Amplifier QCC3024 Bluetooth KT88 Vacuum Tube Power Amplifier
Features:
- Newly upgraded electronic tube with delicate and captivating charm; The preamplification has been upgraded to the customized 12AU7 for PSVANE, and combined with the customized KT88 for PSVANE as the rear stage, the sound is full, elastic, warm, delicate and moisturized.
- Adopting wire drawing technology, the texture is improved, the appearance is atmospheric and stable, and it better integrates into the original HIFI system and home decoration.
- New Bluetooth connection function, using for Qualcomm QCC3024 chip solution, with lower power consumption and faster transmission, ensuring stable and smooth signal transmission and providing a higher quality listening experience.
- Adopting for ALPS high-end motor potentiometer with remote control function, convenient and fast.
- By adopting pure manual scaffolding technology, the electrical performance of the contact points is basically guaranteed, the wiring length is reduced, and the mutual inductance between various interfering devices can be reasonably avoided.
- Ring power transformer significantly reduces signal attenuation and provides more stable current and voltage.
- Real time monitoring of the current working status of KT88 electronic tube, adjusting the bias voltage according to listening habits; The current value at each scale point is 5MA; increasing the bias current by one scale point will increase the speed, make the sound field deeper and wider; Reducing the bias current by one scale point will make the sound softer and smoother.
- Carbon fiber speaker terminal, insulated with nylon and glass fiber, POM insulation gasket, with smooth and transparent sound performance.
Specification:
- THD+N: 1% (1Hz)
- SNR: 87dB
- Input sensitivity: 340mV
- Output power: 45W + 45W
- Frequency response: 10Hz - 50kHz (-1.5dB)
- Input impedance: 100Kohms
- Output impedance: 4ohms, 8ohms
- Power supply voltage: 220V
- Power consumption: 240W
- Net weight: 19.6kg
- Product size: 376 x 345 x 191.5mm
Package Included:
- 1 x Electronic Tube Amplifier
