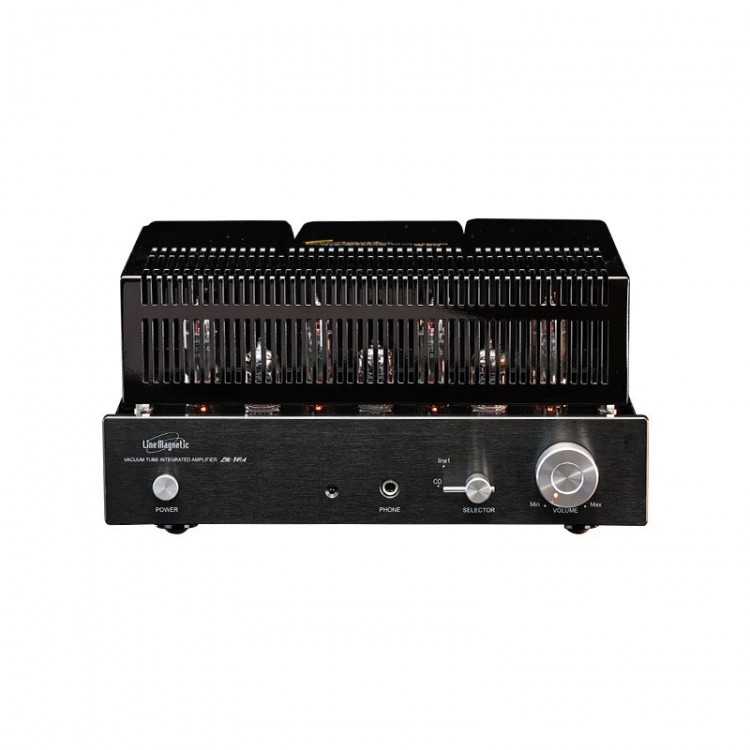

LM-84IA EL84 Electronic Tube Amplifier 11W+11W HiFi Integrated Audio Power Amplifier 230V
Description:
- The front stage uses 12AX7 and 12AU7 vacuum tubes, while the rear stage uses four EL84 vacuum tubes for AB class push-pull power amplification, resulting in warm, thick, and smooth sound.
- The volume control knob adopts high luxury chamfering technology and high-end motor potentiometer for ALPS.
- By adopting pure manual shed construction technology, the electrical performance of the contact points is basically guaranteed, the length of the wiring is reduced, and the mutual inductance between various interfering devices can be reasonably avoided.
- Equipped with headphone amplifier function; headphone amplifiers can leverage the characteristics of electronic tube amplifiers, with higher resolution, precise sound field positioning, and a more natural sense of layering.
- The speaker output terminal is set with 4ohms and 8ohms output options to better match speakers with different impedances and maximize the sound effect of the speakers.
- The LM-84IA has a subwoofer function with warm and natural tone characteristics, which increases the richness and depth of the sound during amplification.
Specification:
- Model: LM-84 IA
- Using electronic tubes: 12AX7 x 1, 12AU7 x 2, EL84 x 4
- Harmonic distortion: 1% (1Hz)
- SNR: 80dB
- Input sensitivity: 0.25V
- Frequency response: 22Hz - 30kHz (-1.5dB)
- Output power: 11W + 11W
- Input impedance: 100kohms
- Output impedance: 4ohms, 8ohms
- Power supply voltage: 230V
- Power consumption: 95W
- Product size: 320 x 288 x 160mm
- Net weight: 19kg
Package Included:
- 1 x Electronic Tube Amplifier
