Product Description:

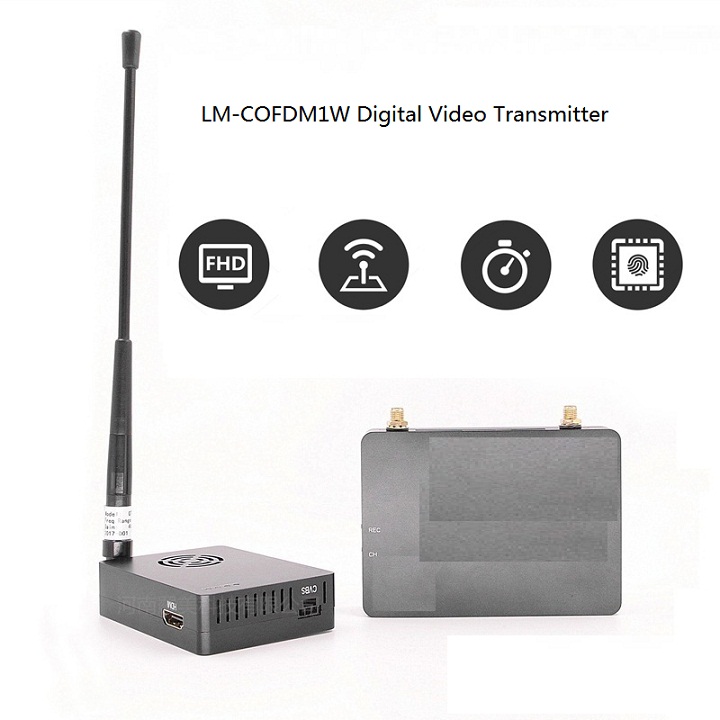

- Transmission CVBS analog video,COFDM technology
- HDMI video 1980P image,visdeo video input transmission,H.264 CVBS
- COFDM wireless HD image transmission,use H.264 video coding and decoding,COFDM digital modulation technology.
Advantage:
- Support single transmit single receive,single transmit multi receive application mode.
- Ultra far distance transmission,range:5~10Km
- HDMI video input output,resolution can reach 1080P60
- Support analog signal standard definition input,can connect infrared camera
- Strong environment adaptability,working temperature range:‐10 ~ +50°C
Antenna parameter:
- Frequency:510+-10Mhz
- Interface:M head
- Gain:5.5dBi
- Length:745mm

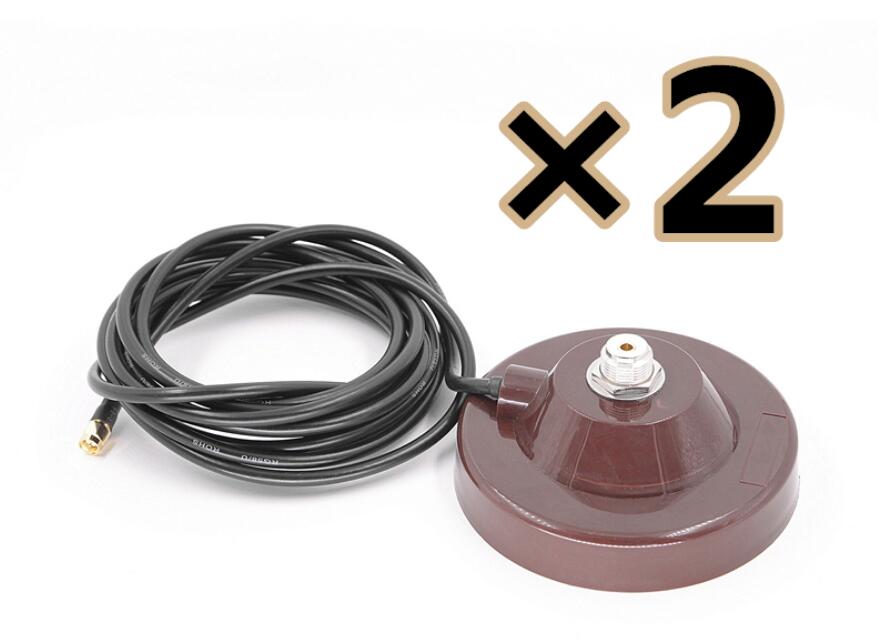

- Sucker diameter:110mm
- Sucker cable length:3.5+-0.1m
- Sucker cable connector:SMA
Note:The digital signal is very sensltive.Please make sure the antenna interfaces do not loosen when using.It is the best that the two antennas distance is more than 1 meter.
HD Image transmitter parameter:
- Mode:TM-COFDM1W
- Working frequency:500~520MHz (300~900MHz can be customed)
- Antenna interface:50Ω SMA female head
- Modulation mode:COFDM
- Transmitter index
Video rate:2~5MHz
Working bandwidth:6/8MHz
Delay:about 100~300ms
Compression format:H.264
Image definition:1080P @60/50/30 (downward compatible)
- Working voltage:DC 9~28V

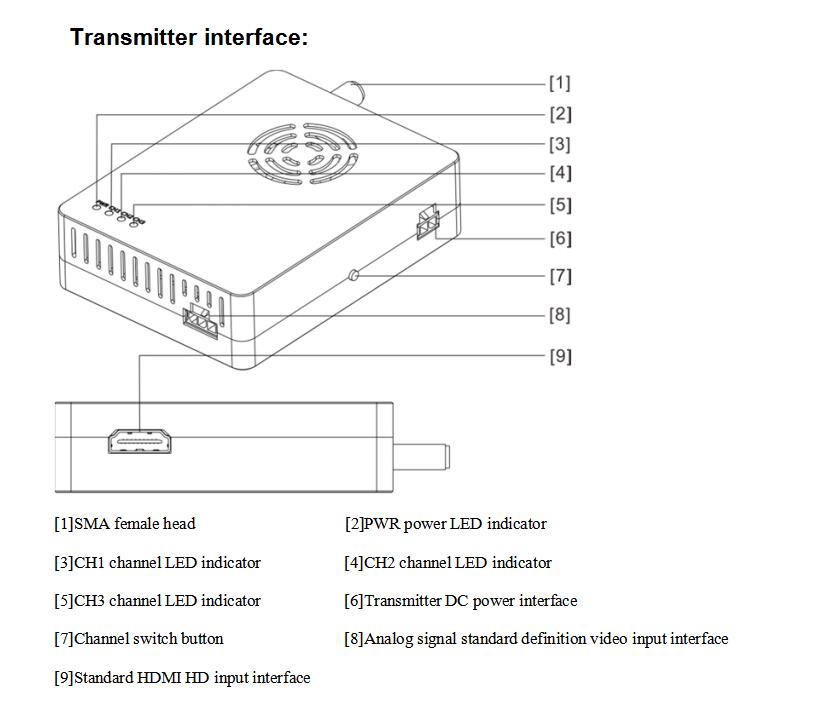

- Audio video input interface:HDMI HD interface,CVBS analog standard definition interface
- Power:≤10W @standard power:1000mW
- Transmission distance:
Receiver 2dBi antenna:transmission distance:2~4km
Receiver 4dBi antenna:transmission distance:4~5km；
Receiver 5.5dBi antenna:transmission distance:5~10km；
- Weight:90g (Antenna is not included.)
- Size:82.5x62x22mm
HD Image receiver parameter:
Mode:RX-COFDM1W
- Working frequency:500~520MHz（300~900MHz 可定制）
- Antenna interface:50Ω SMA female head
- Modulation mode:COFDM
- Receiver index
Receiver sensitivity:≤‐98dBm
Working bandwidth:6/8MHz
Video rate:2~5MHz
Compression format:H.264
- Working voltage:DC 9~18V
- Video output interface:HDMI
- Power:≤4W
- Weight:120g (Antenna is not included.)
- Size:107x77x20mm

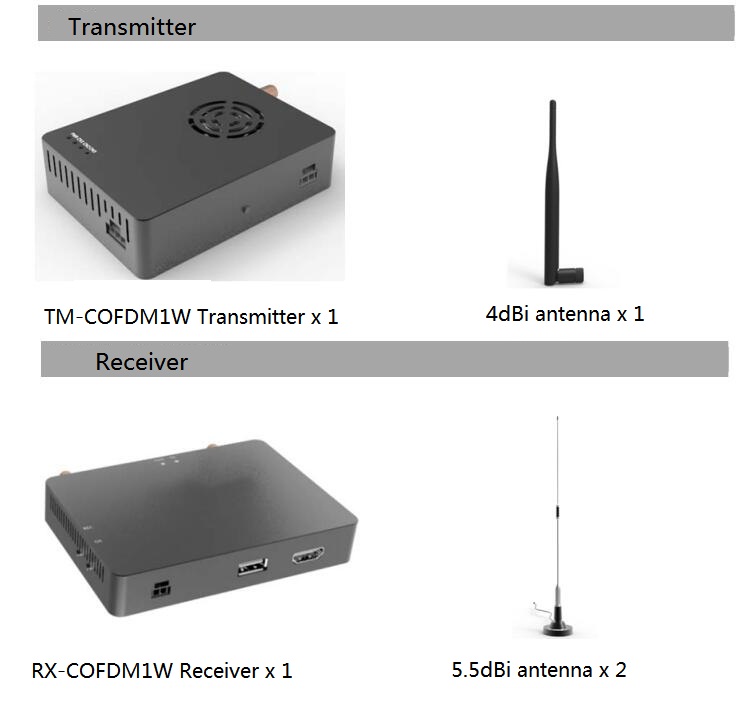

Package List:
- 1 x TM-COFDM1W Transmitter
- 1 x RX-COFDM1W Receiver
- 1 x 4dBi antenna
- 2 x 5.5dBi antenna
