LMX2595 Module Frequency Synthesizer Development Board w/ Case PLL 10M-20GHz Microwave Signal Source

LMX2595 Module Frequency Synthesizer Development Board w/ Case PLL 10M-20GHz Microwave Signal Source

Description:
-The LMX2595 high-performance broadband synthesizer can generate any frequency in the range of 10MHz to 20GHz. The integrated doubler is used to generate frequencies above 15GHz. A high-performance PLL with a quality factor of -236dBc/Hz and a high phase detector frequency can achieve very low in-band noise and integrated jitter. The high-speed N divider has no prescaler, which significantly reduces the amplitude and number of spurs. There is also a programmable input multiplier that reduces spurs on integer boundaries.
-LMX2595 allows users to synchronize the output of multiple devices, and can be applied when it is determined that a delay is required between input and output. The frequency ramp generator can synthesize up to 2 ramps in the automatic ramp generation option or the manual option to achieve maximum flexibility. The fast calibration algorithm can speed up the frequency to more than 20µs. LMX2595 adds support for generating or repeating SYSREF (compliant with the JESD204B standard), which is an ideal low-noise clock source for high-speed data converters. In this configuration, a fine delay adjustment (9ps resolution) is provided to solve the delay difference of the board trace.
-The output driver in LMX2595 provides up to 7dBm output power when the carrier frequency is 15GHz. The device uses a single 3.3V power supply and has an integrated LDO, eliminating the need for an on-board low-noise LDO.

Features:
-10MHz to 20GHz output frequency
-110dBc/Hz phase noise with 100KHz offset and 15GHz carrier
-45fs rms jitter at 7.5GHz (100Hz to 100MHz)
-Programmable output power
-Eliminate integer boundary spurs with programmable input multiplier
-Achieve output phase synchronization across multiple devices
-Support SYSREF with 9ps resolution programmable delay
-FMCW frequency ramp and chirp capability application
-Less than 20μs VCO calibration speed
-3.3V single supply operation

PLL Main Specifications:
Quality factor: -236dBc/Hz
Nominal 1/f noise:–129dBc/Hz
Maximum phase detector frequency
400MHz integer mode
300MHz fractional mode
32-bit fractional-N divider

Details:
1. The LMX2595 frequency synthesizer development board is built by senior engineers with full reference to the design of the official version; the PCB has a beautiful appearance, reasonable layout and design, and exquisite materials.
2. Module external control IO is basically external, and is basically compatible with the interface of the official evaluation board.
3. The external signal terminals of the module are:
Output signal: RFA's A&B, RFB's A&B
Input signal: SysRefReq, SYNC, clock input A&B (external clock needs to adjust some components of the PCB board)

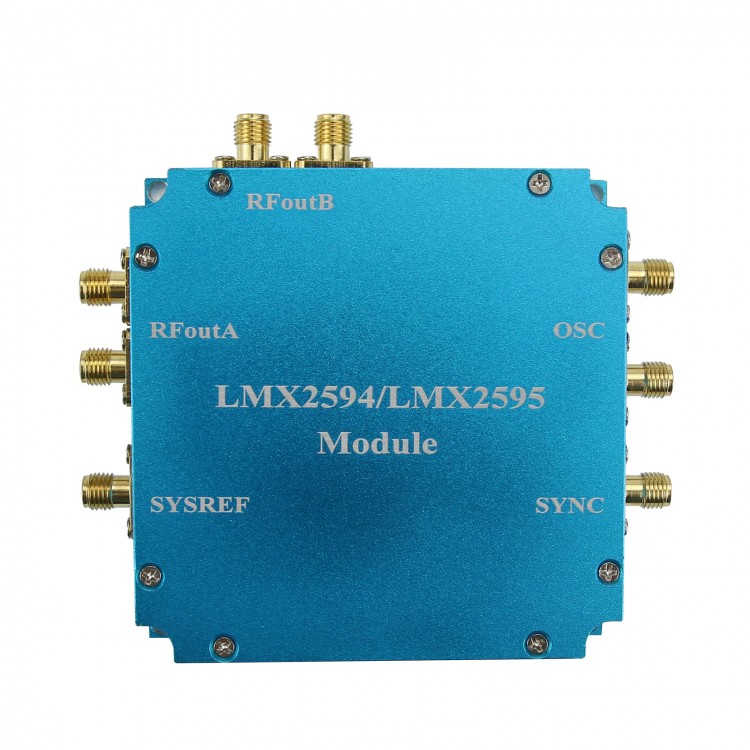

4.The module also has a matching aluminum alloy case, which can play an effective shielding effect.
5.Power supply mode: 3.3V (no regulator IC inside the module)

Applications:
-5G and millimeter wave wireless infrastructure
-Test and measurement equipment
-Radar
-MIMO
-Phased array antenna and beamforming
-High-speed data converter clock (support JESD204B)

Package List:
-1 x LMX2595 Module
-1 x 16Pin Cable

Module Measured Waveform

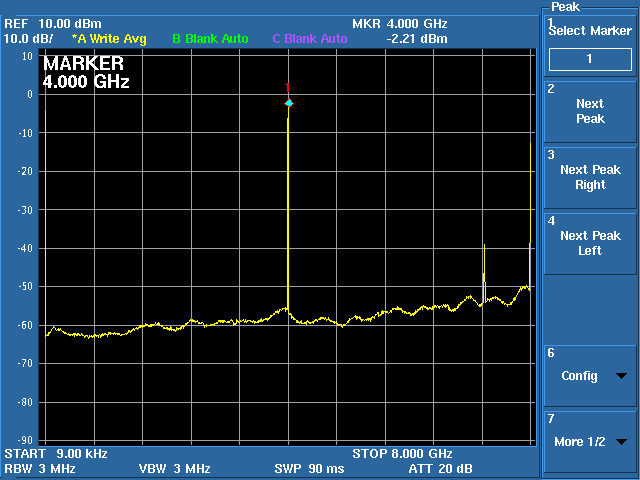

0-8G spectrogram, signal 4GHz

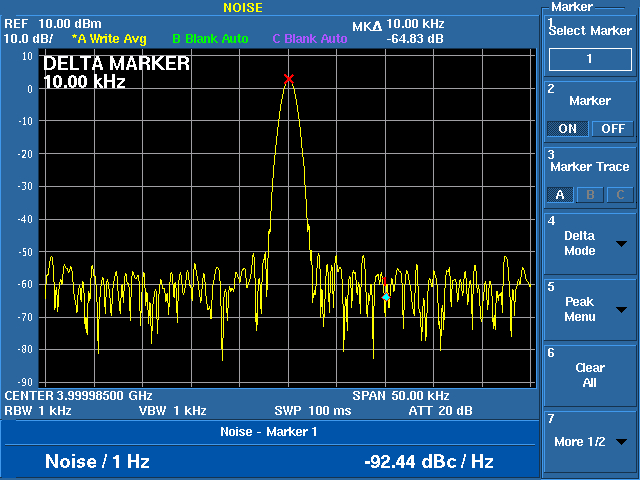

Phase noise test, signal 4GHz

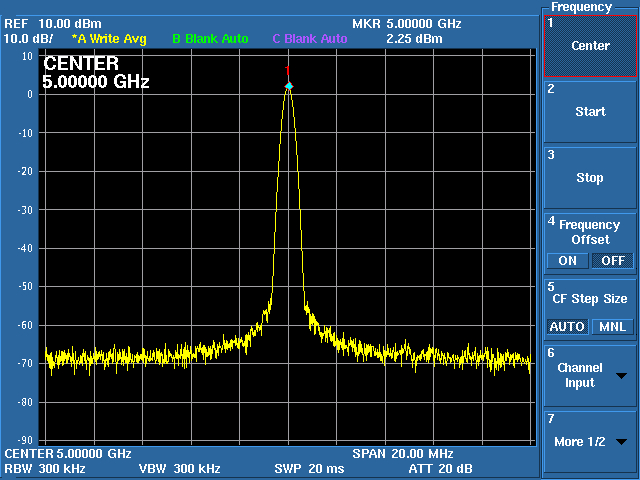

Signal 5GHz

Signal 4GHz

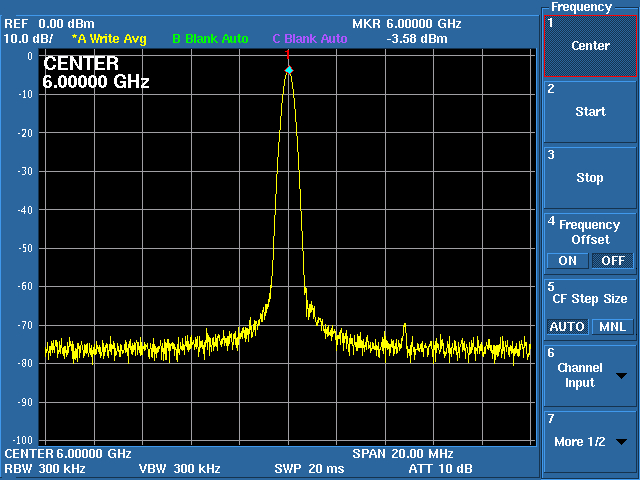

Signal 6GHz

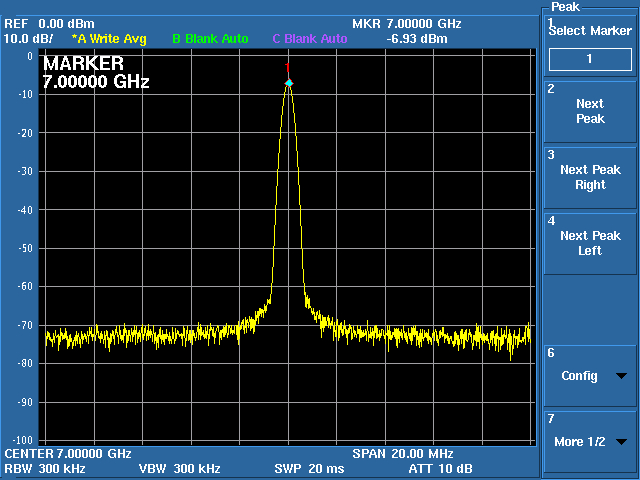

Signal 7GHz
