LOTO USB Arbitrary Waveform Generator/ Signal Generator/ Function Generator 2-Channel SIG852 + PA1

LOTO USB Arbitrary Waveform Generator/ Signal Generator/ Function Generator 2-Channel SIG852 + PA1

Description:
SIG852 is perfectly useful for low frequency applications that require quick and easy signal output. It supports software editing and drawing waveform by a mouse.

Features:
- Dimensions: 143 x 93 x 23mm/5.6 x 3.7 x 0.9" (LxWxH)
- 100~70K sampling rate, 4000 point waveform depth, 2 channels and 8-bit resolution
- Single output, continuous output, sweep output mode optional
- Output signal voltage range 0~3V, output impedance 50/1KΩ
- Support the full range of system platforms for Windows, and support for hand-drawn arbitrary waveforms with a mouse
- Support waveform editing and calculation
- Support sine wave, triangle wave, sawtooth wave, square wave, Gaussian white noise, DC, Gaussian pulse, Sinx/x, exponential rise and exponential fall
- USB 2.0 interface takes power directly from a PC. No need for additional power supply
- Support for exporting and importing wave files
- Supports custom calibration of any physical quantity

Specifications of Signal Generator:
- Interface type: 2-channel BNC seat, spaced 2cm/0.8"
- Vertical resolution: 8 bits/channel
- The highest sampling rate (S/s): 70K
- Bandwidth (-3dB): 30K
- Output coupling: AC/DC
- Output impedance: 50Ω (DC mode output)
- Channel relationship: two channels can output the same waveform, or two channels can output different waveforms independently
- Waveform storage depth: 4000 points (2 channels with the same waveform)/2000 points (2 channels with different waveforms)
- Operating system requirements: for Windows XP, Win 7, Win 8.1 and Win 10 (32bit or 64bit)
- Output mode: cyclic output/single output
- Waveform types: sine wave, triangle wave, sawtooth wave, square wave, Gaussian white noise, DC, Gaussian pulse, Sinx/x, exponential rise and exponential fall
- Waveform setting: support to set minimum, maximum, frequency and phase
- Waveform drawing: support mouse hand-drawn arbitrary waveform
- Waveform segmentation: you can edit and set partial waveforms in segments
- Waveform calculation: support the scaling of the waveform, the addition and subtraction of the waveform
- Signal output voltage range: 0~3V (DC mode output), -1.5V to 1.5V (AC mode output). If you need a larger voltage output range, it is recommended to add a power amplifier module
- File saved: txt, csv, excel and sig852
- Temperature range: Operating temperature: 0℃ to 40C (20℃to 30℃ for stated accuracy). Storage temperature: -20℃ to 60℃
- Dimensions: 143 x 93 x 23mm/5.6 x 3.7 x 0.9" (LxWxH)
- Language (full support): English and Simplified Chinese

PA1 Parameters:
- Number of channels: 1
- Bandwidth: 50K Hz
- Input voltage range: -5V to +5V
- Voltage magnification: X1, X2 and X4
- Output voltage range: -10V to +10V
- Maximum output current: 1A
- Module power supply: 12V, 2A
- Size: 85 x 55 x 20mm/3.3 x 2.2 x 0.8"

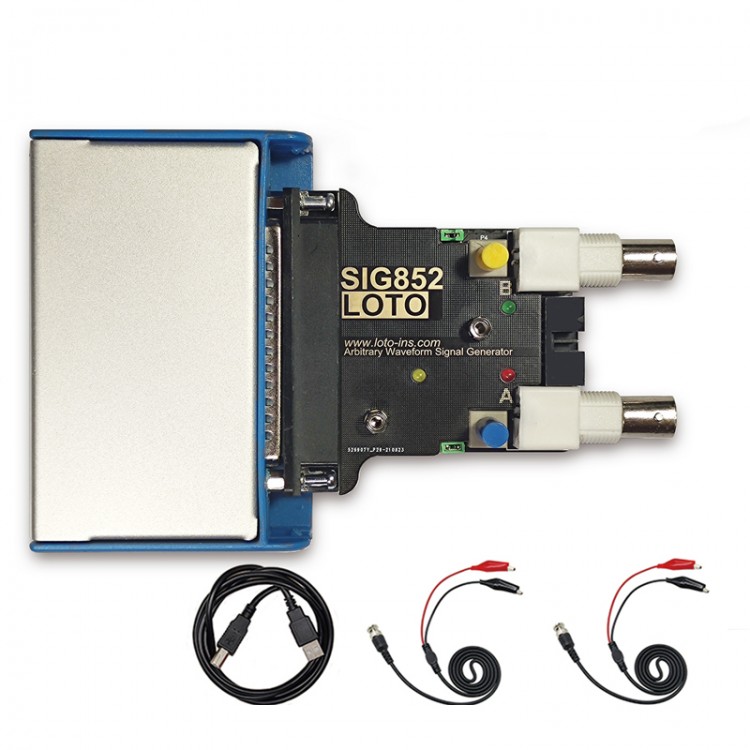

Package Included:
- 1 x Arbitrary Waveform Generator Host
- 1 x USB Cable (USB2.0; length: 1m/3.3ft; USB type A male to USB type B male)
- 2 x Output Cables
- 1 x Set of PA1 Power Amplifier Module
