Description:

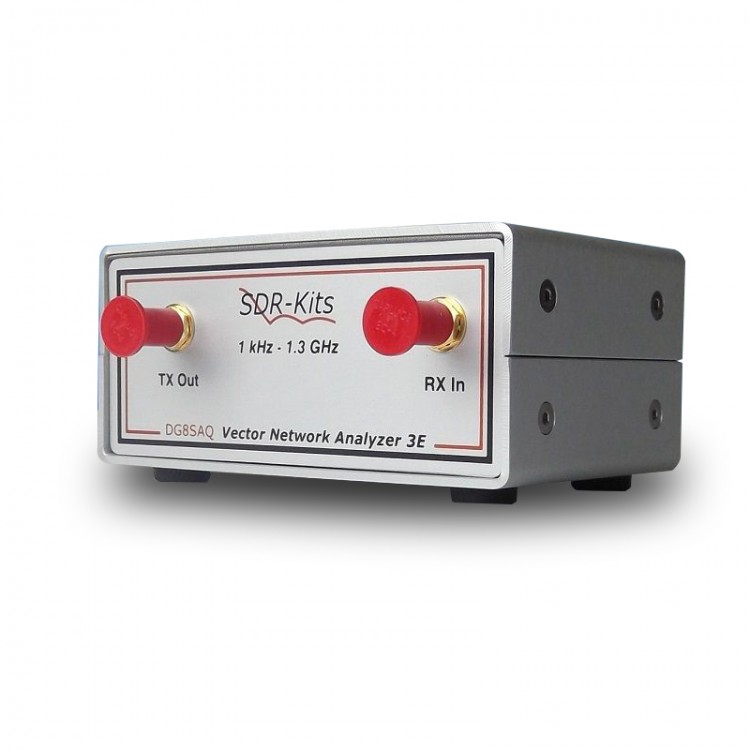

- Covering 1 kHz to 1.3 GHz and powered from a PC USB-bus, the VNWA 3 offers a dynamic range of 90dB up to 500 MHz and better than 50dB above 500 MHz.
- Designed by Professor Thomas Baier DG8SAQ, the VNWA 3 is used by Professionals, Universities, Research Institutes and Radio Amateurs worldwide since its launch in 2009.
- VNWA Driver and Software runs on all recent Windows 64 bit and 32 bit Operating Systems, including Windows 10, 8.1 & 8, Windows 7 and Windows Vista.
- As manufacturer of the DG8SAQ Low Cost Network Analyzer, SDR Kits is committed to supporting Users, providing advice and technical support, regular software updates and facilitating the DS8SAQ VNWA Forum.
- Please note: Only DG8SAQ VNWAs manufactured and supplied by SDR-Kits® are supported by the VNWA Designer and SDR-Kits® to give accurate Measurements.
The DG8SAQ VNWA 3 offers:
- All VNWA hardware on a single Printed Circuit board for maximum reliability
- High stability 12 MHz TCXO from which all clock signals are obtained
- Redesigned Solid 2mm Anodized enclosure and brass chassis
- Supplied fully Assembled and Tested
Supplied complete with:
- 3 pcs Amphenol Connex Calibration Kit consisting of SMA 50 Ohm load, SMA Open/Adapter and SMA Short
- 20cm RG223 Cable for thru Calibration
- Quality USB Cable
- VNWA 3 "Getting Started" booklet
- 12 months return to base Warranty
- Free Software downloaded from SDR-Kits software support site
Full Specification
- S-Parameter S11, S12, S21 & S22, VSWR, Smith Chart
- Component Measurements Resistance, Admittance Capacitance, Inductance & Quality Factor (Q)
- Time domain & Gating in Time domain - Distance to Fault (DTF) measurement
- Import and Export of Touchstone files (S1P - S2P - S3P)
- Logarithmic and Listed sweep: up to 8192 points with sampling time adjustable from 0.2mS to 100mS
- Network Matching Tool, Complex Calculator & Crystal Parameter tool
- User defined S-parameter calculator - Zplot & Excel application Support
- Basic Spectrum Analyzer - useful up to 100 MHz
- Basic Signal Generator - max RF Output as signal generator -17dBm - no harmonic filtering
- Power requirement - USB 1.1 or USB 2 Interface 5V DC max 400mA
-12 MHz TCXO Master Clock - stability of 2 ppm
- Microprocessor: Atmel ATMega 328P with - 16K Flash memory - clocked at 16 MHz
- Connectors: SMA x 2, Mini USB-B Power requirement - USB 1.1 or USB 2 Interface 5V DC max 400mA
- Dimensions: Width 10.4 cm, Depth 8.0 cm, Height 4.6 cm, Weight 0.35 Kg
- CE and RoHS Compliance
DG8SAQ VNWA 3EC with fitted expansion board and clock connector also available from SDR-Kits' Ebay Shop See other items
Not included but also available: 'Measurements with the DGS8SAQ VNWA 2/3 Vector Network Analyzer' by Gerfied Palme DG8AG (English or German Language). A step-by-step book featuring 28 guided measurements written specifically for this instrument.
