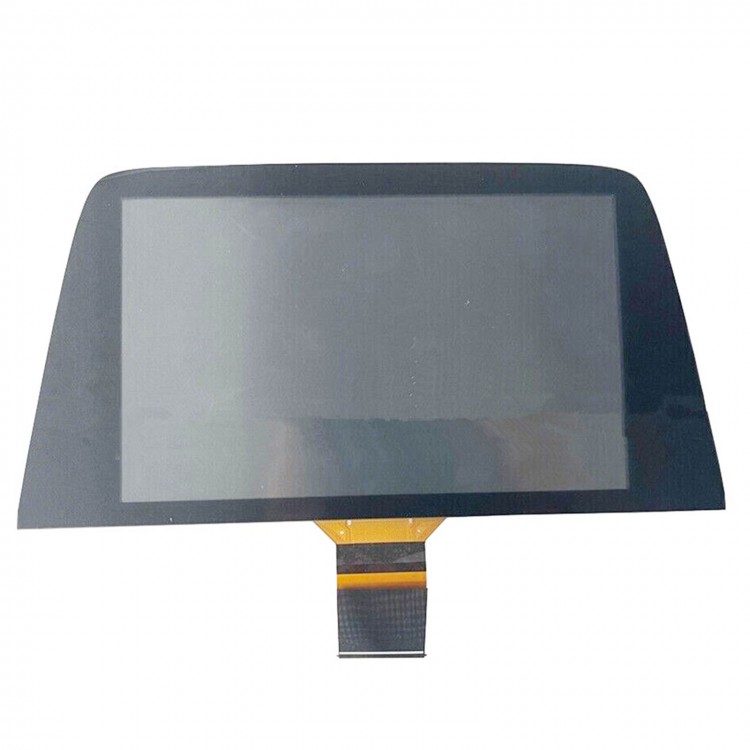

LQ080Y5DZ10 8" Navigation LCD Capacitive Touch Screen Assembly for 2006 Opel Chevrolet Buick Verano

LQ080Y5DZ10 8" Navigation LCD Capacitive Touch Screen Assembly for 2006 Opel Chevrolet Buick Verano

Features:
* Multi-purpose touch screen for commercial applications
* Highly responsive touch
* Quality guaranteed
* The product has passed safety inspection before shipment
* Ultra-precise capacitive touch screen
* It is not only a capacitive touch screen but also serves as a computer LCD and handwriting display
* Widely used in tablets, equipment monitors, medical devices, and in-vehicle navigation systems.

Application Scenarios:
* For military handheld devices, drone controllers, mobile POS, industrial tablets, industrial control panels, car navigation, car control systems, automotive diagnostics, touch monitors, all-in-one touch PCs, ordering systems, POS systems, inquiry terminals, queue management systems, inspection devices, medical equipment, banking terminals, and government service machines.

Specifications:
* Touch Screen Structure: ITO film + TIO glass
* Light Transmittance: ≥80%
* Surface Hardness: ≥3H (pencil)
* Lifespan: 1,000,000 touches
* Operating Temperature: -20°C to 70°C
* Response Time: ≤10ms
* Operating Force: <80g
* Connection Material: FPC flexible flat cable

Electrical Characteristics:
* Circuit Rating (Max Voltage): DC 5V, 1-5mA
* Optical Characteristics (Light Transmittance): Film + Glass Type ≥80% (Must maintain over 78% at visible wavelength 550nm)
* Insulation Resistance: Analog type 25V (DC) ≥ 20 MΩ
* Film Terminal Resistance (Top Layer): 200-900 Ω
* Glass Terminal Resistance (Bottom Layer): 200-900 Ω
* Chattering Time: ≤10ms
* Tapping Durability: ≥1,000,000 touches (Using 2.6mm rubber stylus, 250gf pressure, 2 times/sec)
* Pen Sliding Durability: >100,000 times (Using 2.0mm polyester pen, 250gf pressure, 60mm/s speed, back-and-forth stroke of 10-100mm at same position)

Packing List:
* 1 x Navigation LCD Display

Packaging Details:
* Weight: 0.5kg
