LS133 UV Energy Meter UV Light Meter 340-420NM Designed For 365NM 385NM 405NM LED Light Sources

LS133 UV Energy Meter UV Light Meter 340-420NM Designed For 365NM 385NM 405NM LED Light Sources

LS133 UV Energy Meter Introduction:
LS133 UV energy meter can display UV irradiation intensity, UV energy and temperature at the same time. This UV integrator is suitable for measuring various UV LED light sources such as 365nm, 385nm, 395nm, 405nm, etc. Mainly used in UV dryers, UV curing machines, mobile phone UV coating machines, exposure machines, printing presses and other equipment. UV radiation intensity and energy of UV light sources in the above equipment can be measured. The UV power puck is small as a bank card and the instrument body is slim, breaking the limitation of measurement space. It can be used normally in small spaces.

LS133 UV Energy Meter Parameters:
- Application: Light intensity, energy and temperature measurement of UV LED light sources
- Spectral range: 340nm-420nm, calibrated at 395nm LED light source
- Power measuring range: 0-40000mW/cm²
- Power resolution: 1mW/cm²
- Energy measuring range: 0-999999mJ/cm²
- Energy measuring accuracy: ± 10%, ± 5% (typical)
- Sampling speed: 2048 times/second
- Recording period: 32 min
- Power supply: Rechargeable lithium battery 3.7V at 400mAh
- Display: 128x64 Dot matrix OLED
- Dimension: 95mm x 44mm x 7.6mm(L*W*H)
- Product Weight: 57g



LS133 UV Energy Meter Characteristics:

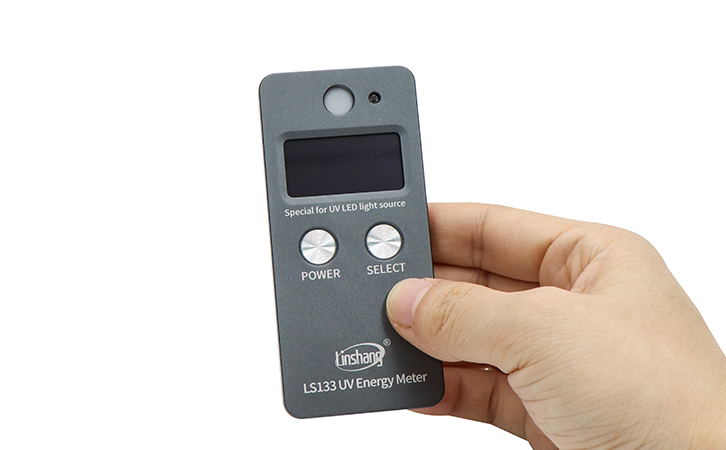

1. The thickness of LS133 UV integrator is 7.6mm and the width is 44mm, the measurement won’t be limited by the measurement space.


2. The spectral response range is wide, suitable for measuring various wavelengths of UV LED light sources such as 365nm, 385nm, 395nm, 405nm, etc.

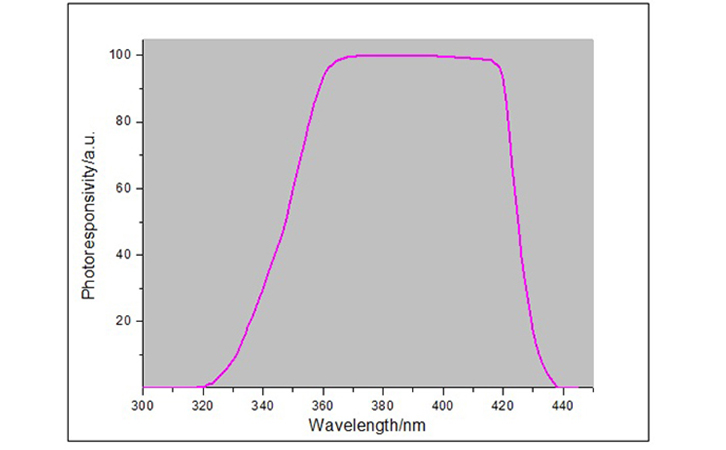

Spectral response curve

3. High-speed data acquisition of 2048 times per second ensures that the UV power puck has very good repeatability and accuracy.

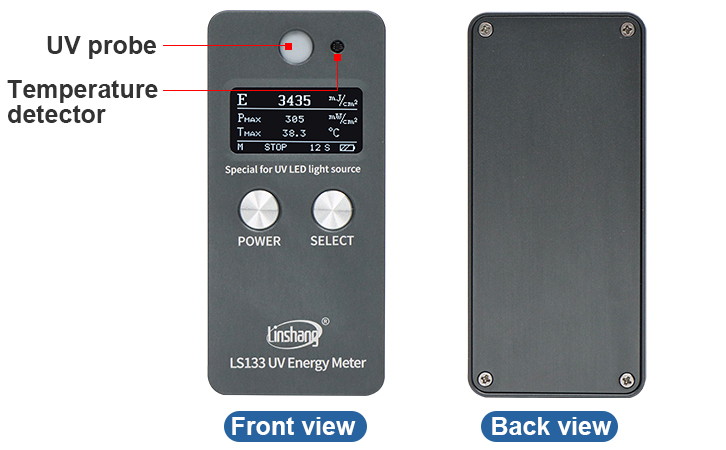

4. The built-in high-precision and high-sensitivity temperature detector and timer can dynamically test the temperature and display the measurement time.

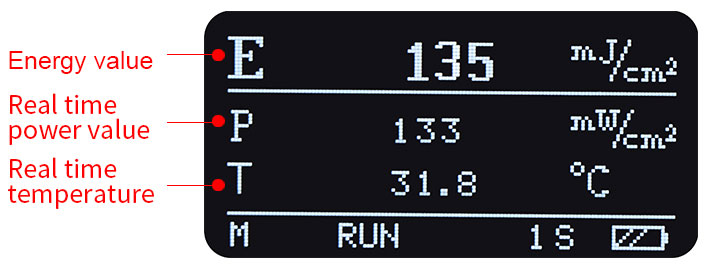

5. The real-time power value can be displayed during the measurement and the accumulated UV energy value and the maximum power value can be displayed directly after the measurement is completed.
6. This UV integrator use metal shell and high temperature resistant design, which can run in an environment of 100°C for a long time.
7. When the UV radiometer is off, long press the “POWER” button to enter the setting interface to set the measurement mode, trigger power value, smooth processing parameters and calibration standard. The parameter setting steps are shown in the following figure:

UV integrator setting steps

8. Manual measurement mode can be used in most measurement occasions, while automatic measurement mode is suitable for occasions where the instrument needs to run for a long time with the conveyor belt to receive ultraviolet rays.
9. The stored data will not be lost when the power is off and the last test data will be displayed automatically when the machine is turned on.

Product Qualifications and Standards:

UV integrator patent certificate

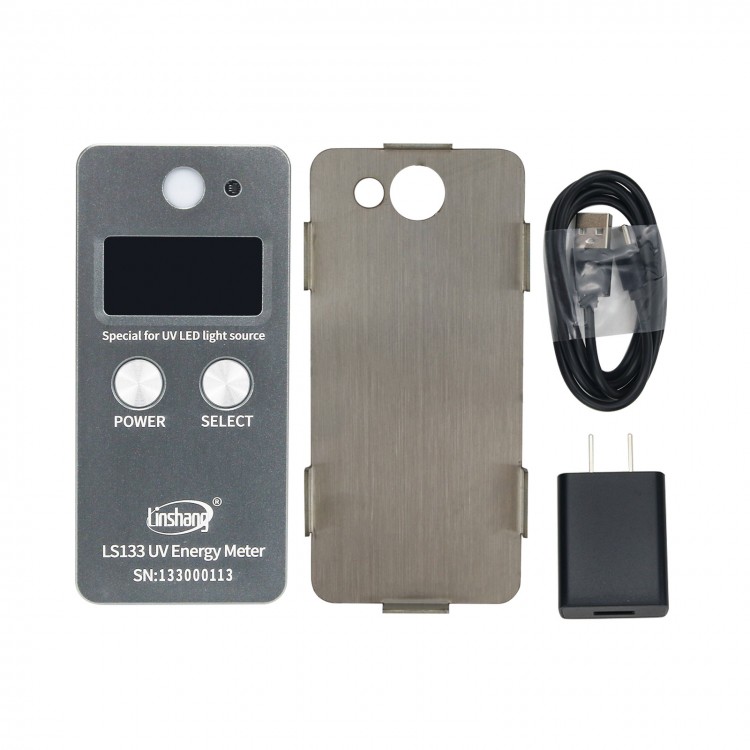

Package Included:
- 1 x Set of LS133 UV Energy Meter

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you!
