• LT3042 Linear Power Supply Board Regulator Amanero XMOS DAC Mono Channel DC Output
  • LT3042 Linear Power Supply Board Regulator Amanero XMOS DAC Mono Channel DC Output

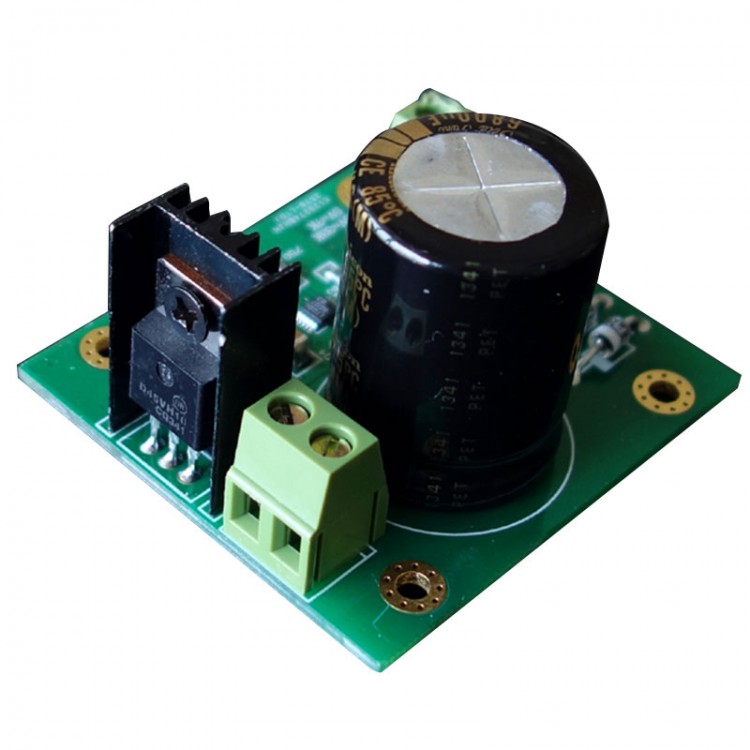

LT3042 Linear Power Supply Board Regulator Amanero XMOS DAC Mono Channel DC Output

Availability: In stock, usually dispatched in 1 business day

  • Price:$21.05
  • Price in reward points: 211 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.63 $20.21 $19.58 $18.73 Contact US
Quantity:

LT3042 Linear Power Supply Board Regulator Amanero XMOS DAC Mono Channel DC Output

Description:

The LT3042 is a high performance low dropout linear regulator that utilizes LTC's ultra-low noise and ultra-high PSRR architecture to power noise-sensitive RF applications. Can provide accurate and stable, ultra-low noise core voltage to the digital circuit such as DAC CD machine
- 5V output voltage , current is 1A
- Finished board, single channel
- Input voltage: AC5V-13V or DC7V-18V
- PCB Size: 55X44MM

Features:
- Ultra-low RMS noise: 0.8μVRMS (10Hz to 100kHz)
- Ultra-low noise: 2nV / Hz (at 10kHz)
- High PSRR: 79dB (at 1MHz)
- Output current: 1A
- Wide input voltage range: 5V to 20V
- Individual capacitors improve noise and PSRR
- 100μA SET Pin Current: ± 1% Initial Accuracy
- High bandwidth: 1MHz
- Low dropout voltage: 350mV
- Output voltage range: 0V to 15V
- Quick Start capability
- High precision enable / UVLO
- Multiple devices can be paralleled to reduce noise and provide higher current
- Internal current limit with foldback

Packing include :
- Power supply Board x 1
